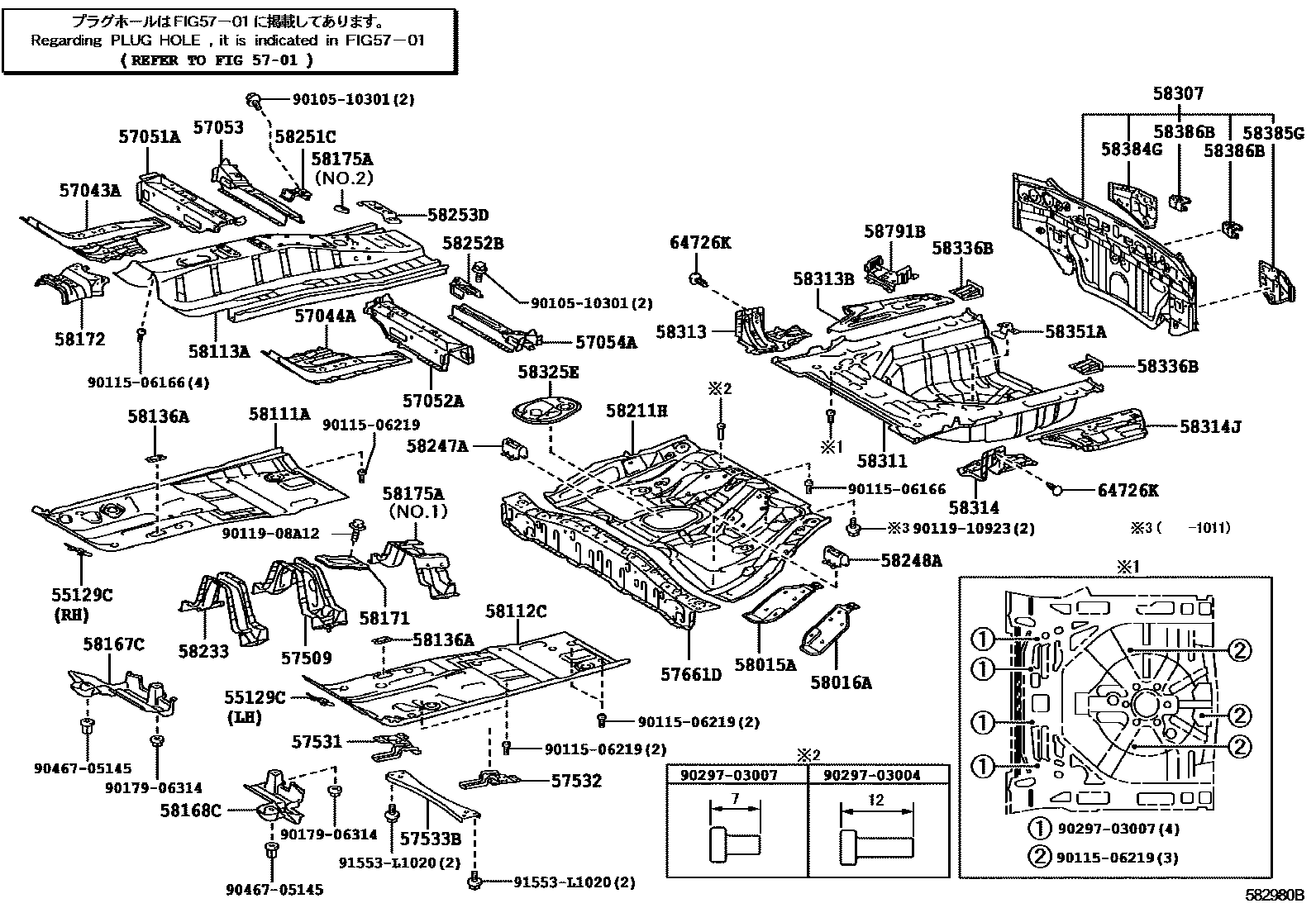

FLOOR PAN & LOWER BACK PANEL
55129CCOVER, DASH PANEL HOLE
RH
LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57533BBRACE, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58167CCOVER, FRONT FLOOR, CENTER RH
58168CCOVER, FRONT FLOOR, CENTER LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
NO.1
NO.2
58211HPAN, CENTER FLOOR
58233BRACKET, EXHAUST PIPE MOUNTING
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58313BPANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58314JPANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351ABRACKET, SPARE WHEEL CARRIER
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58791BCARRIER, JACK
64726KCLIP, LUGGAGE TRIM, REAR
9010510301
9011506166
9011506219
9011908A12
9011910923
9017906314
9029703004
9029703007
9046705145
91553L1020
55 parts on this diagram · 1 diagram in section
