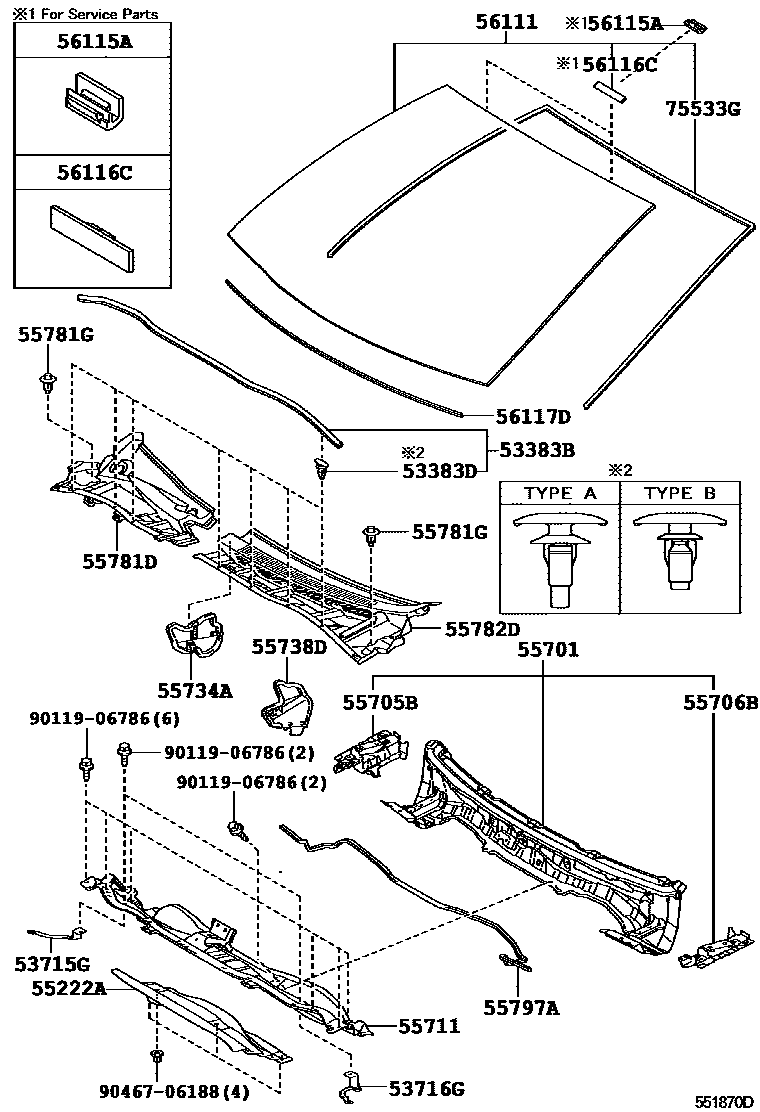

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12160iZRE152..6F..N200703-201004

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iZRE152..6F..N200703-201004

TYPE A:REFER ILLUST.

main67867-52030iZRE15#200703-201004

TYPE B:REFER ILLUST.

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-12071iZRE152200703-201004

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-12081iZRE152200703-201004

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-12020iZRE152200703-201004

55701PANEL SUB-ASSY, COWL

main55700-12B00iZRE152200703-201004

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12080iZRE152200703-201004

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12090iZRE152200703-201004

55711PANEL, COWL TOP, OUTER

main55701-12A30iZRE152200703-201004

55734APLATE, WATER GUARD, RH

main55734-12130iZRE152200703-201004

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-12070iZRE152200703-201004

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12350iZRE152200703-201004

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iZRE152200703-201311

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12120iZRE152200703-201004

55797ASEAL, COWL WATER EXTRACT

main55737-74010iZRE152..4FC;ZRE152..6F..D200807-201004

main55797-12040iZRE152200703-200806

56111GLASS, WINDSHIELD

main56101-12220iZRE152200703-200711

*LAM,T=4.76,GREEN

sub56101-12221

sub56117-12300

main56101-12221iZRE152200711-200807

*LAM,T=4.76,GREEN

sub56101-12222

main56101-12222iZRE152200808-200901

*LAM,T=4.76,GREEN

sub56101-12223

main56101-12223iZRE152..4FC;ZRE152..6F..D200902-201301

*LAM,T=4.76,GREEN

sub56101-12224

main56101-12224iZRE152201302

*LAM,T=4.76,GREEN

main56101-12280iZRE152..N200703-200711

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56101-12281

sub56117-12300

main56101-12281iZRE152..N200711-200807

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56101-12282

main56101-12282iZRE152..N200808-200901

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56101-12283

main56101-12283iZRE152..6F..N200902-201004

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-12691iZRE153201004-201301

*LAM,T=4.76,GREEN

sub56101-12692

main56101-12692iZRE153201302

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZRE15#200703-201004

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZRE152..4FC;ZRE152..6F..D200703-201004

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-12300iZRE152200703-201004

L=1303

sub56117-50140

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-12690iZRE152200703-201004

9011906786

main90119-06786

9046706188

main90467-06188

22 parts on this diagram · 1 diagram in section
