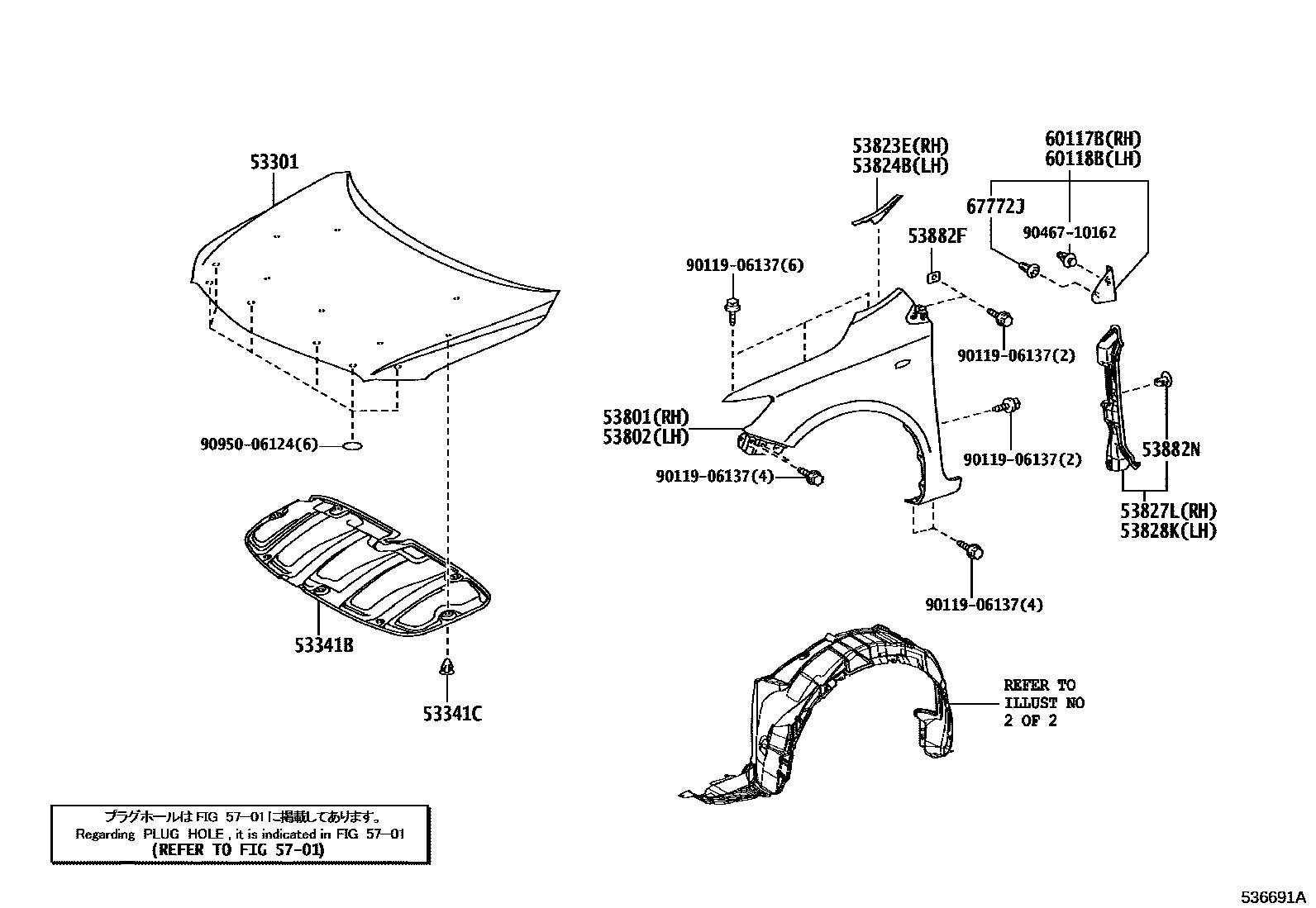

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12A20iZRE15#200703-201004

53341BINSULATOR, HOOD

main53341-12260iZRE152200703-201004

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZRE152200703-201004

53801FENDER SUB-ASSY, FRONT RH

main53811-12A10iZRE152..4FC;ZRE152..6F..D200703-201004

main53811-12B60iZRE15#201004

53802FENDER SUB-ASSY, FRONT LH

main53812-12A10iZRE152200703-201004

main53812-12B60iZRE15#201004

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12030iZRE152200703-201004

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12020iZRE152200703-201004

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12080iZRE152200703-201004

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12080iZRE15#200703-201004

53882FSEAL, FRONT FENDER

main53882-16030iZRE152200703-201004

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-11050-E1iZRE152200703-201311

SANDAL WOOD

sub90467-11050

5701

60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-12030iZRE152200703-201004

60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-12030iZRE152200703-201004

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03iZRE152200703-201004

9011906137

main90119-06137

9046710162

main90467-10162

9095006124

main90950-06124

18 parts on this diagram · 4 diagrams in section
