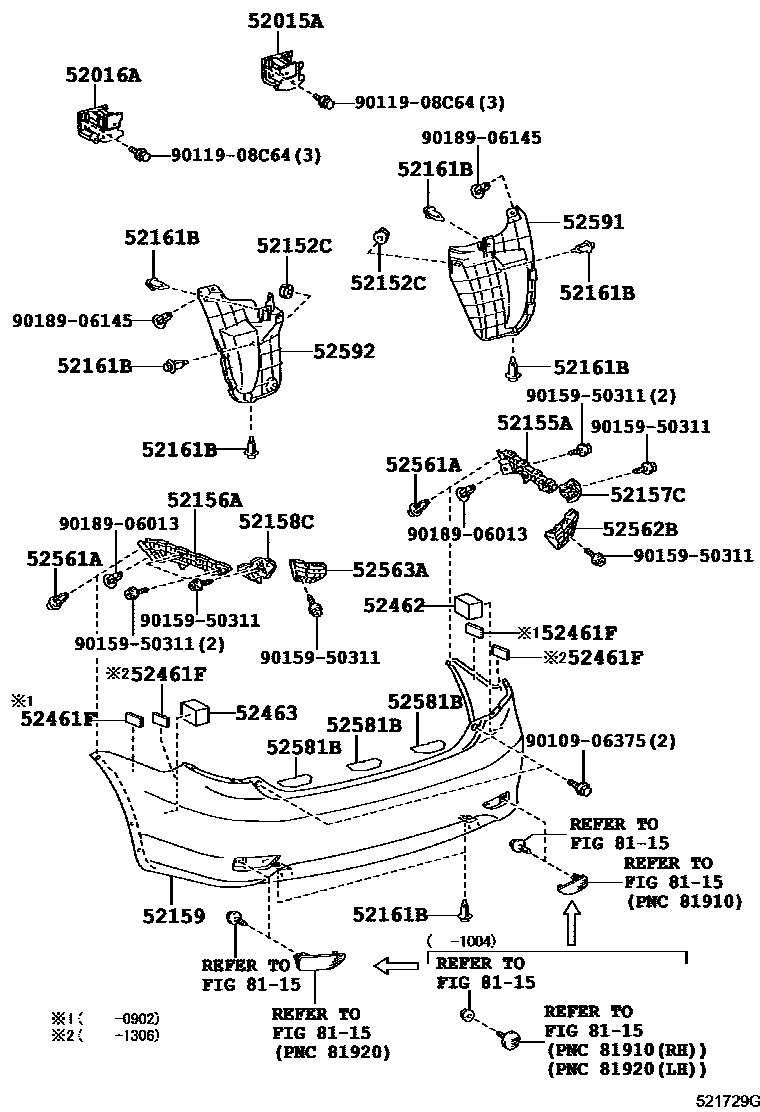

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12330iZRE152..6F..N¥3,780200703-201004

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12300iZRE152¥3,780200703-201004

52152CCLIP, REAR BUMPER SIDE

main90467-06121iZRE152¥220200703-201207

main90467-06206-C0iZRE15#201207-201311

BLACK

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12320iZRE152200703-201311

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12290iZRE152¥2,640200703-201004

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-12160iZRE152¥1,230200703-201004

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-12090iZRE152200703-201004

52159COVER, REAR BUMPER

main52159-12934iZRE152¥37,400200703-201004

PAINT REQ.

main52159-12941iZRE15#¥33,600201004

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iZRE152¥120200703-201004

sub52161-0K040¥120

52461FPAD, REAR BUMPER

main52461-12030iZRE152¥110200703-201306

52462PAD, REAR BUMPER, RH

main52462-12090iZRE152¥460200703-201004

main52462-12120iZRE15#201004

52463PAD, REAR BUMPER, LH

main52462-12090iZRE152¥460200703-201004

main52462-12120iZRE15#201004

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iZRE152200703-201207

DK.GRAY

sub90467-05090¥110

main90467-05170iZRE15#¥80201208

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-12120iZRE15#¥3,120201004

main52562-12130iZRE152200703-201004

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-12040iZRE152200703-201004

main52563-12090iZRE15#¥3,120201004

52581BPROTECTOR, REAR BUMPER

main52581-13030iZRE152¥290200703-201004

52591SEAL, REAR BUMPER SIDE, RH

main52591-12200iZRE152200703-201004

52592SEAL, REAR BUMPER SIDE, LH

main52592-12120iZRE152200703-201004

8115

9010906375

main90109-06375¥80

9011908C64

main90119-08C64¥90

9015950311

main90159-50311¥70

9018906013

main90189-06013¥70

9018906145

main90189-06145¥80

24 parts on this diagram · 1 diagram in section
