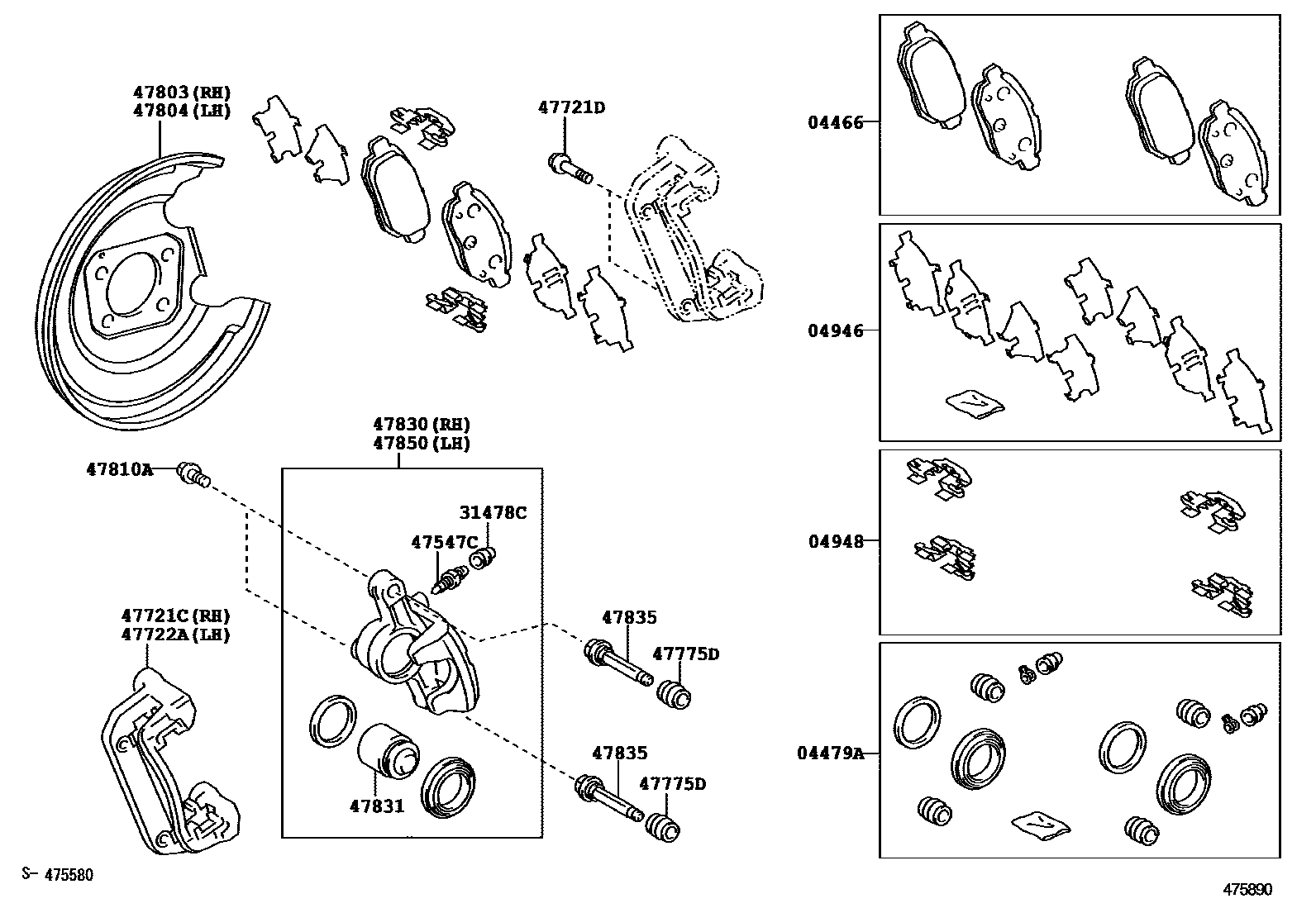

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-12130iZRE152200703-201110

MARK AK NS254

sub04466-12140

main04466-12140iZRE15#201111-201205

MARK AK NS254

sub04466-12150

main04466-12150iZRE15#201206-201311

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iZRE15#200703-201311

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12040iZRE152200703-201007

sub04946-12110

main04946-12110iZRE15#201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-12030iZRE152200703-200812

main04948-12060iZRE15#201111

main04948-52040iZRE152..4FC;ZRE152..6F..D200710-201111

sub04948-12060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZRE152200703-201004

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZRE152200703-201004

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iZRE152200703-200710

main47821-12151iZRE152200710-201004

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iZRE152200703-201004

*10-1.25PX24-21.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iZRE152200703-200710

main47821-12151iZRE152200710-201004

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iZRE152200703-201004

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12070iZRE152200703-200710

main47881-12071iZRE152200710-201004

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12070iZRE152200703-200710

main47882-12071iZRE152200710-201004

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iZRE152200703-201004

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12151iZRE152200703-201004

47831PISTON, REAR DISC BRAKE

main47831-52050iZRE152200703-201004

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iZRE152200703-201004

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12151iZRE152200703-201004

17 parts on this diagram · 1 diagram in section
