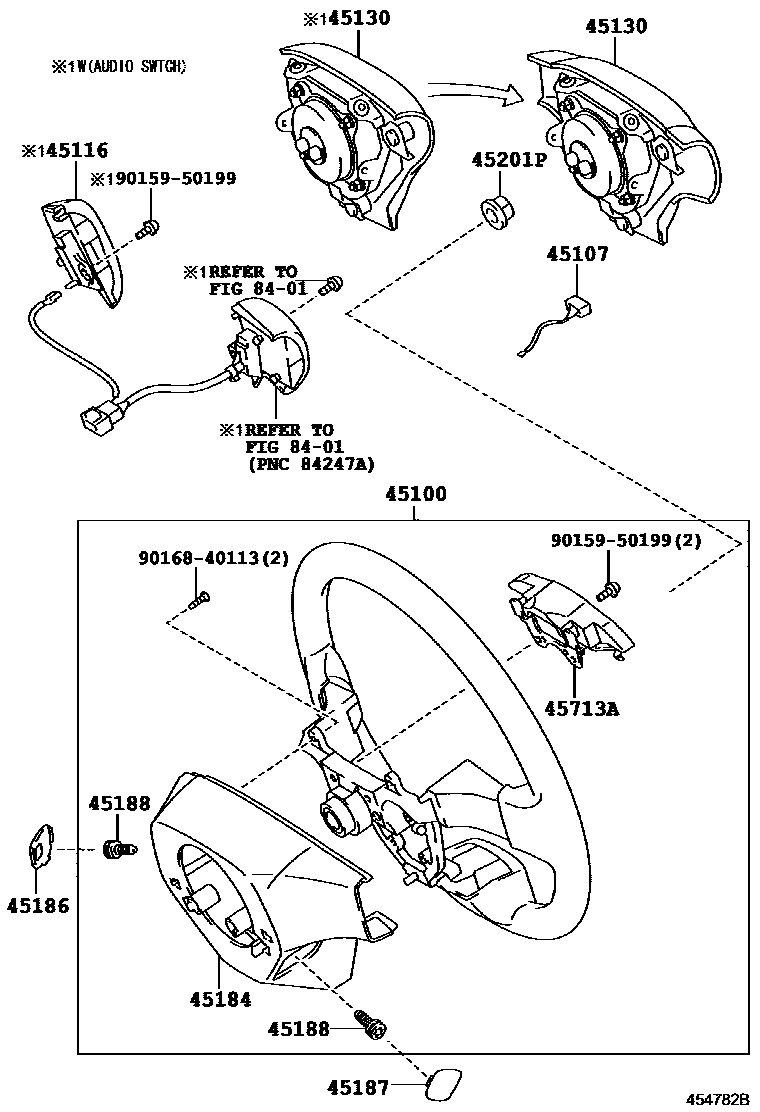

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12D60-B0i200703-200812

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-12D60-E0i200703-200812

3-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-12E90-B0supersedes 45100-68130-B0i201004-201311

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-12120i201004-201311

main45116-52030i201002-201004

45130BUTTON ASSY, HORN

main45130-12B50-E0supersedes 45130-12B40-E0i201002-201004

ASH BROWN,TRIM4#

main45130-12C40-B0i201004-201311

DK.GRAY,TRIM1#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12340-B0i200812-201004

DK.GRAY,TRIM1#

main45184-12340-E0i200703-200812

ASH BROWN,TRIM4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-42040-B0supersedes 45186-42030-B0i201004-201311

CRUISE CONTROL-WITH,DK.GRAY,TRIM1#

main45186-12010-B0supersedes 45186-12020-B0i200812-201004

CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SW),DK.GRAY,TRIM1#

main45186-12010-E0supersedes 45186-12020-E0i200703-200812

CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-12020-B0i200812-201004

DK.GRAY,TRIM1#

main45187-12020-E0i200812-201004

ASH BROWN,TRIM4#

main45187-42020-B0i201004-201311

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200703-200812

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200703-200812

45713ADAMPER, STEERING SHAKE

main45713-12080i200703-200812

main45713-12110i201004

8401

9015950199

main90159-50199

9016840113

main90168-40113

13 parts on this diagram · 2 diagrams in section
