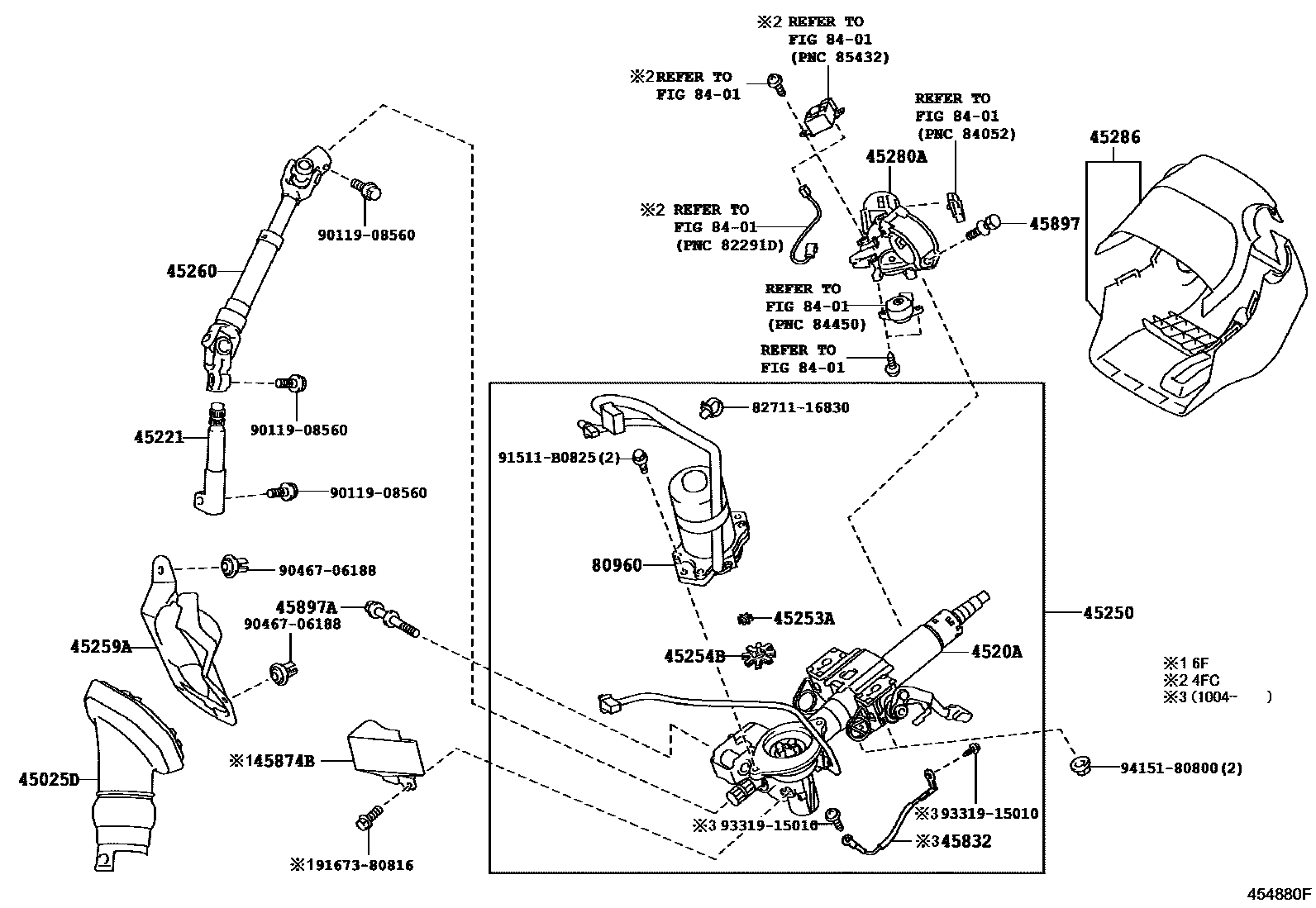

STEERING COLUMN & SHAFT

0001 1 0002 1STARTING SYSTEM-PUSH BUTTON

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZRE152200703-201004

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-12010iZRE153201004

main4520A-12020iZRE152200703-201004

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZRE152..6F..N200703-201004

45250COLUMN ASSY, STEERING

main45250-12B62iZRE153201004-201311

main45250-12B72iZRE152200812-201311

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iZRE152200703-201004

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZRE152200703-201004

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZRE152200703-201001

main45259-12120iZRE152..4FC;ZRE152..6F..D201002-201004

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12580iZRE152200703-201206

sub45260-12750

main45260-12750iZRE15#201207

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42130iZRE152..4FC200703-201311

main45280-42140iZRE152..6F200703-201311

45286COVER, STEERING COLUMN

main45286-12975-B0iZRE153201004-201311

DK.GRAY,TRIM1#,4#

sub45286-12975

main45286-12977-B0iZRE152..D200703-201311

DK.GRAY,TRIM1#

main45286-12977-B0iZRE152..N201004-201311

DK.GRAY,TRIM1#,4#

main45286-12977-E1iZRE152..N200703-201004

ASH BROWN,TRIM4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iZRE15#201004

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-12090iZRE152..6F..N200703-201004

45897BOLT, STEERING LOCK SET

main45897-12020iZRE152200703-201004

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZRE152200703-201209

main90119-10981iZRE15#201210

80960MOTOR ASSY, POWER STEERING

main80960-12150iZRE152200703-201004

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9011908560

main90119-08560

9046706188

main90467-06188

91511B0825

main91511-B0825

9167380816

main91673-80816

9331915010

main93319-15010

9415180800

main94151-80800

23 parts on this diagram · 2 diagrams in section
