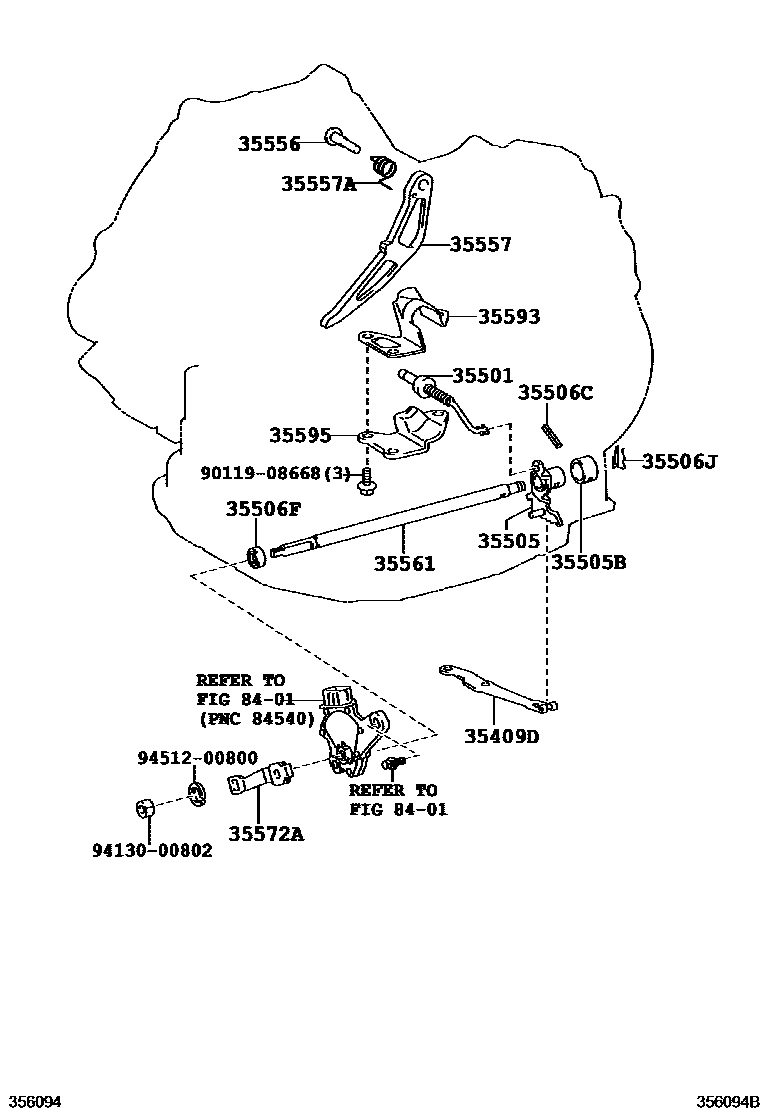

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U341E 0002 1U241E

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52020iZRE152..4FC200812-201004

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iZRE153201004

main35501-52020iZRE152..4FC200812-201004

main35501-52021iZRE152..4FC201101

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20030iZRE152..4FC200703-200812

main35505-21010iZRE153201004

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iZRE152..4FC200703-200812

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iZRE152..4FC200703-200812

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iZRE152..4FC200703-200812

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iZRE152..4FC200703-200812

35556SHAFT, PARKING LOCK PAWL

main35556-32020iZRE152..4FC201004

main35556-32030iZRE153201004

35557PAWL, PARKING LOCK

main35557-52020iZRE152..4FC200703-200812

main35557-52021iZRE152..4FC201106

main35590-32010iZRE153201004

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iZRE153201004

main90949-03089iZRE152..4FC200703-200812

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iZRE153201004

main35561-52020iZRE152..4FC200703-200812

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-28120iZRE153201004-201311

sub35572-42020

main35572-52030iZRE152..4FC200703-200812

35593SLEEVE, CAM GUIDE

main35593-52010iZRE152..4FC200812-201004

35595BRACKET, PARKING LOCK PAWL

main35595-21010iZRE153201004

main35595-52020iZRE152..4FC200703-200812

8401

9011908668

main90119-08668

9413000802

main94130-00802

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
