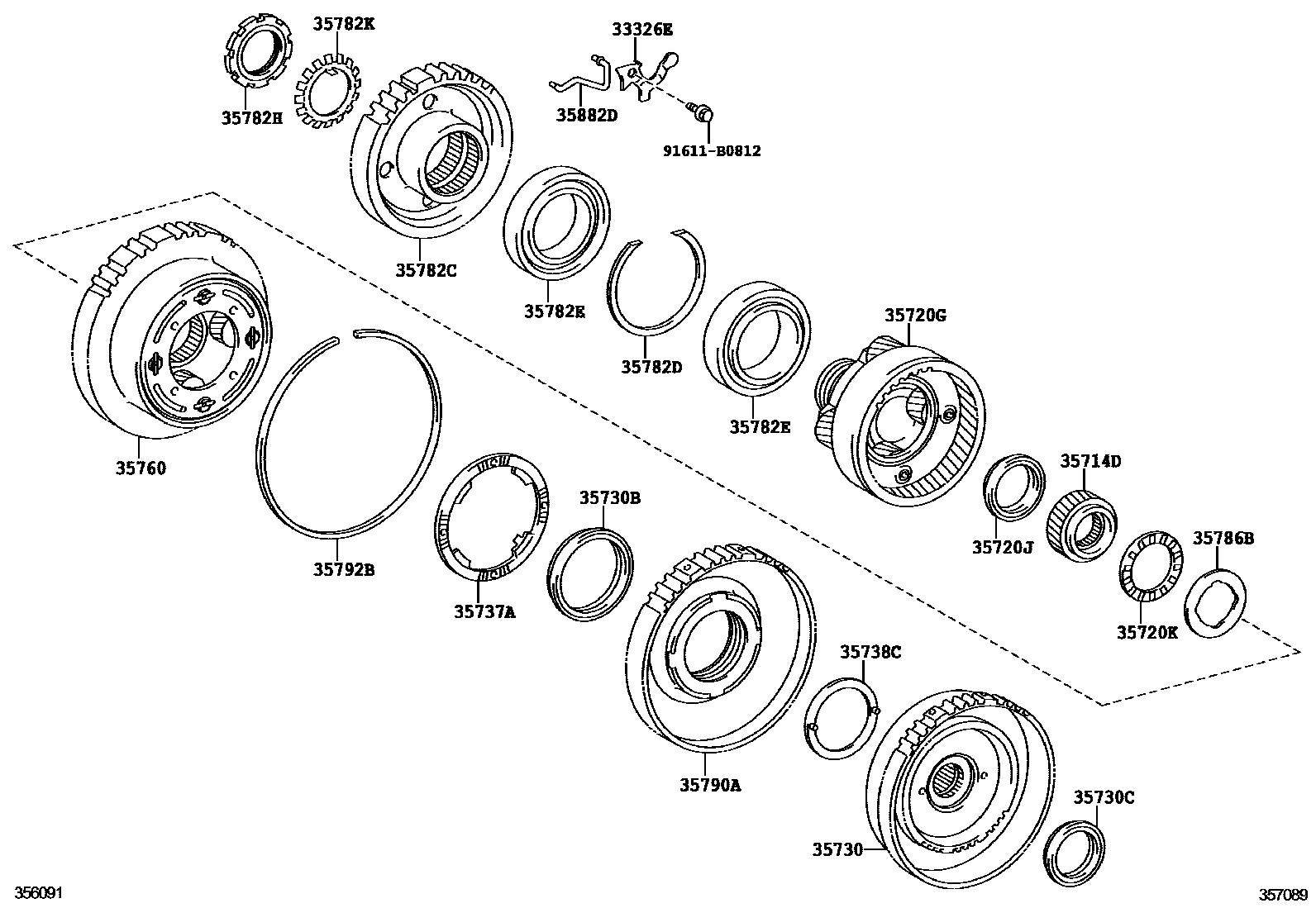

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
33326EPLATE, BEARING LOCK
35714DGEAR, FR PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
sub35720-28080
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35738CWASHER, PLANETARY CARRIER THRUST, NO.2
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
NO.1
NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
35782HNUT(FOR COUNTER DRIVE GEAR)
35782KWASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT)
35786BRACE, THRUST BEARING, NO.2
35790ACLUTCH ASSY, 1 WAY
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
35882DTUBE, DIFFERENTIAL GEAR LUBE APPLY
91611B0812
main91611-B0812
23 parts on this diagram · 2 diagrams in section
