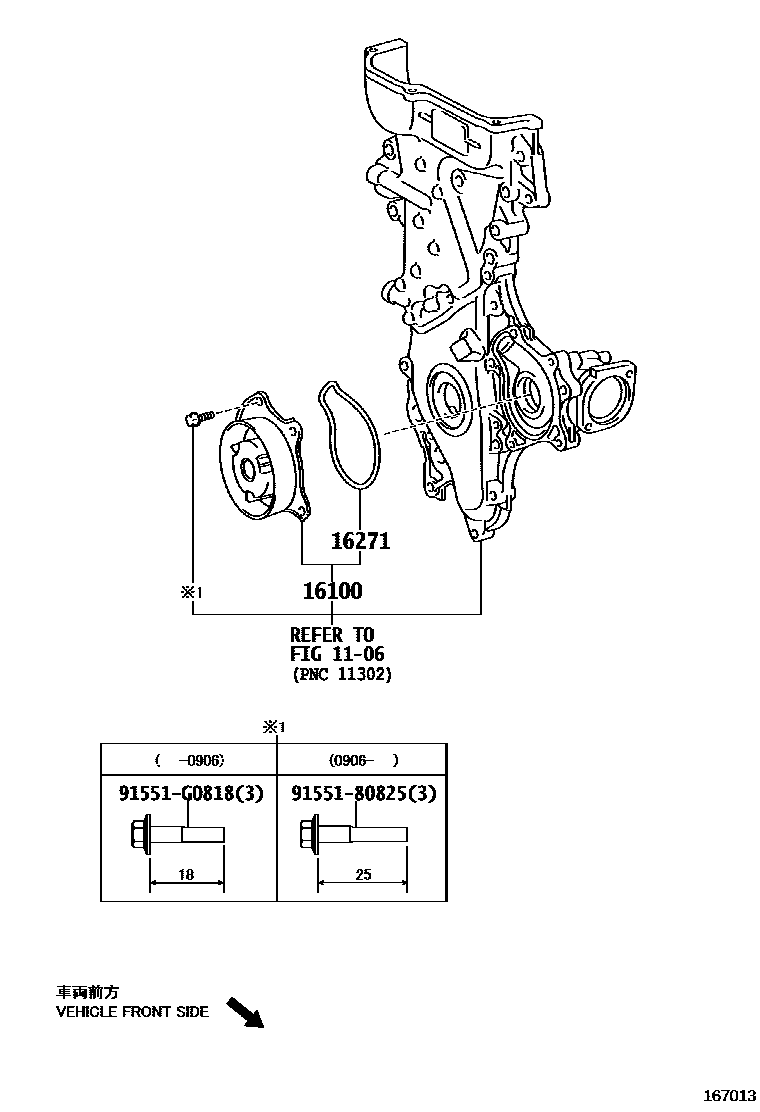

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-09560i2ZRFE..ZRE152201110

(L)

main16100-39465i2ZRFE..ZRE152200703-200906

sub16100-39466

sub91551-80825

main16100-39466i2ZRFE..ZRE152201004

(J)

main16100-39466i2ZRFE..ZRE152..6F..N200906-201004

16271GASKET, WATER PUMP

main16271-37010i2ZRFE..ZRE152200703-201004

9155180825

main91551-80825

91551G0818

main91551-G0818

5 parts on this diagram · 1 diagram in section
