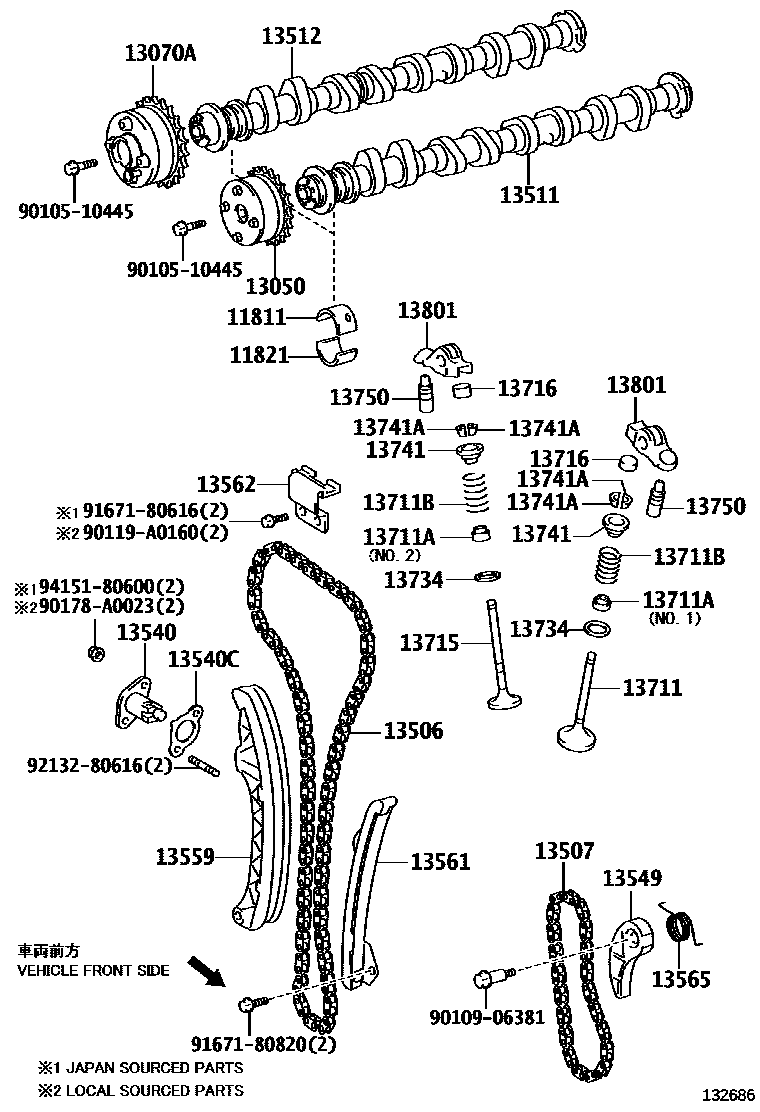

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
MADE IN USA
MADE IN USA
MADE IN CHINA
(L)
(J)
(J)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(L),*251
(L),*119
13540TENSIONER ASSY, CHAIN, NO.1
(L)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
13565SPRING, CHAIN DAMPER
(L)
13711VALVE, INTAKE
(L)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
(L),NO.1
(L),NO.2
NO.1
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(J),*119
(L),*251
(L),*251
13715VALVE, EXHAUST
(L)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
(L)
13741RETAINER, VALVE SPRING
(L)
13741ALOCK, VALVE SPRING RETAINER
(L)
13750ADJUSTER ASSY, VALVE LASH
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
9010510445
main90105-10445
9010906381
main90109-06381
90119A0160
main90119-A0160
90178A0023
main90178-A0023
9167180616
main91671-80616
9167180820
main91671-80820
9213280616
main92132-80616
9415180600
main94151-80600
33 parts on this diagram · 1 diagram in section
