CRANKSHAFT & PISTON

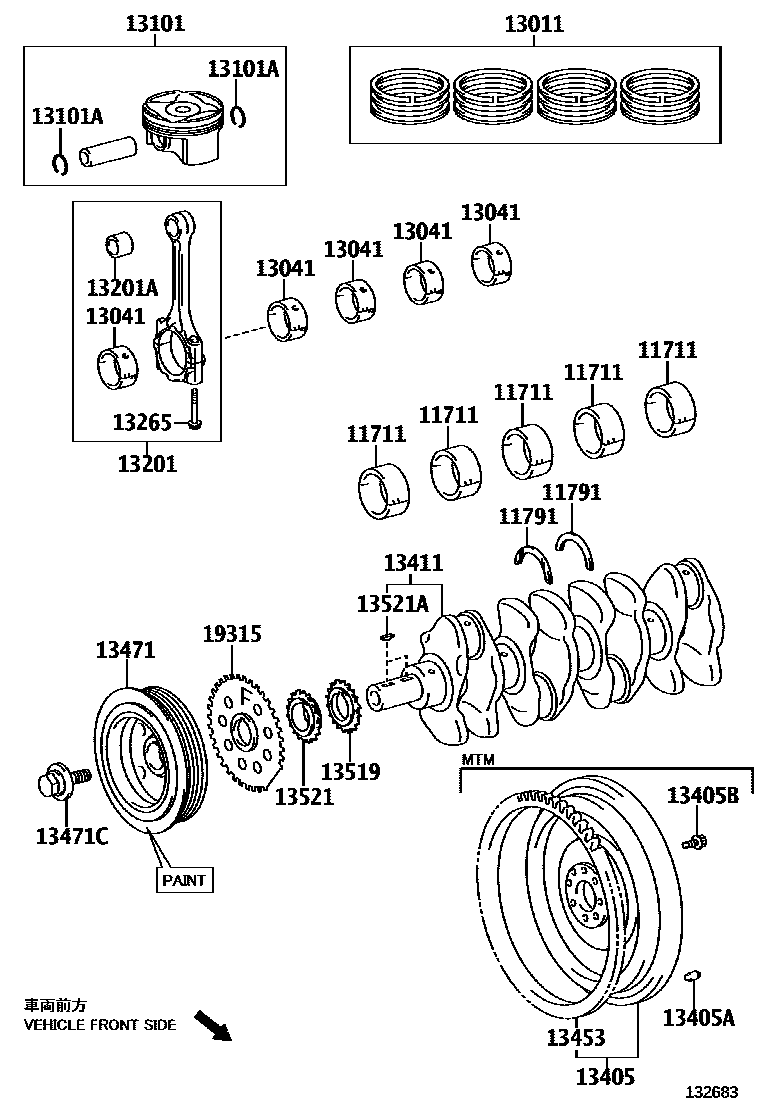

Parts diagram
11711BEARING, CRANKSHAFT
main11701-0T010-01×5i201110-201311
MARK1,(L),REFER R/M
sub11701-0T011
main11701-0T010-02×5i201110-201311
MARK2,(L),REFER R/M
sub11701-0T011
main11701-0T010-03×5i201110-201311
MARK3,(L),REFER R/M
sub11701-0T011
main11701-0T010-04×5i201110-201311
MARK4,(L),REFER R/M
sub11701-0T011
main11701-37020-01×5i200812-201002
MARK1,REFER REPAIR MANUAL
sub11701-37021
main11701-37020-02×5i200812-201004
MARK2,REFER REPAIR MANUAL
sub11701-37021
main11701-37020-03×5i201004-201304
MARK3,(J),REFER R/M
sub11701-37021
main11701-37020-04×5i201004-201304
MARK4,(J),REFER R/M
sub11701-37021
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0T030×2i201110-201311
STD,(L)
main11791-22020×2i200812-201002
STD
main11791-37010×2i201310-201311
STD
13011RING SET, PISTON
main13011-0T010i201110
STD,(L)
main13011-37090i200812-201002
STD
main13011-37130i201004
STD
13041BEARING, CONNECTING ROD
main13041-0T010-01×4i201110
MARK1,(L),REFER R/M
main13041-0T010-02×4i201110
MARK2,(L),REFER R/M
main13041-0T010-03×4i201110
MARK3,(L),REFER R/M
main13041-37010-01×4i200812-201002
MARK1,REFER REPAIR MANUAL
main13041-37010-02×4i200703-200812
MARK2,REFER REPAIR MANUAL
main13041-37010-03×4i200703-200812
MARK3,REFER REPAIR MANUAL
main13041-37030-01×4i201004
MARK1,REFER REPAIR MANUAL
main13041-37030-02×4i201004
MARK2,REFER REPAIR MANUAL
main13041-37030-03×4i201004
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
main13101-0T010×4i201110
STD,(L)
sub13101-37380
main13101-37071×4i200703-200812
STD
main13101-37090×4i201004
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-20064×8i200703-200812
13201ROD SUB-ASSY, CONNECTING
main13201-09A10×4i201110
(L)
main13201-09A30×4i201101
MADE IN EUROPE
main13201-39185×4i200812-201002
main13201-39205×4i201004
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73151×4i200812-201002
13265BOLT, CONNECTING ROD
main13265-22020×8i200812-201004
sub13265-22040
13405FLYWHEEL SUB-ASSY
main13405-37050i200703-200812
sub13405-37051
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054×3i200703-200704
L=23,OD=8
main90250-08120×3i200704-200812
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
main90913-01027×8i201004-201311
main90913-A1002×8i201307-201311
(L)
13411CRANKSHAFT
main13401-0T030i201110-201311
*251
main13401-0T061i201309-201311
(L),*119
main13401-37020i200812-201004
main13401-37021i201309-201311
(J),*119
main13401-37031i201004-201309
main13401-37032i201309-201311
13453GEAR, FLYWHEEL RING
main13453-0T010i200812-201002
(L)
main13453-10010i200812-201004
(J)
13471PULLEY, CRANKSHAFT
main13470-37020i200812-201002
main13470-37041i201310-201311
*251
sub13470-37042
main13470-37050i201110-201310
YELLOW,PINK PAINTED
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14106i201004
13519GEAR, OIL PUMP DRIVE
main13519-37010i200812-201004
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0T030i201110
(L)
main13521-37010i200812-201002
sub13521-37011
main13521-37020i201004
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-04003×2i200812-201002
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-37010i200703-200808
main19315-37020i200808-200812

20 parts on this diagram · 1 diagram in section
