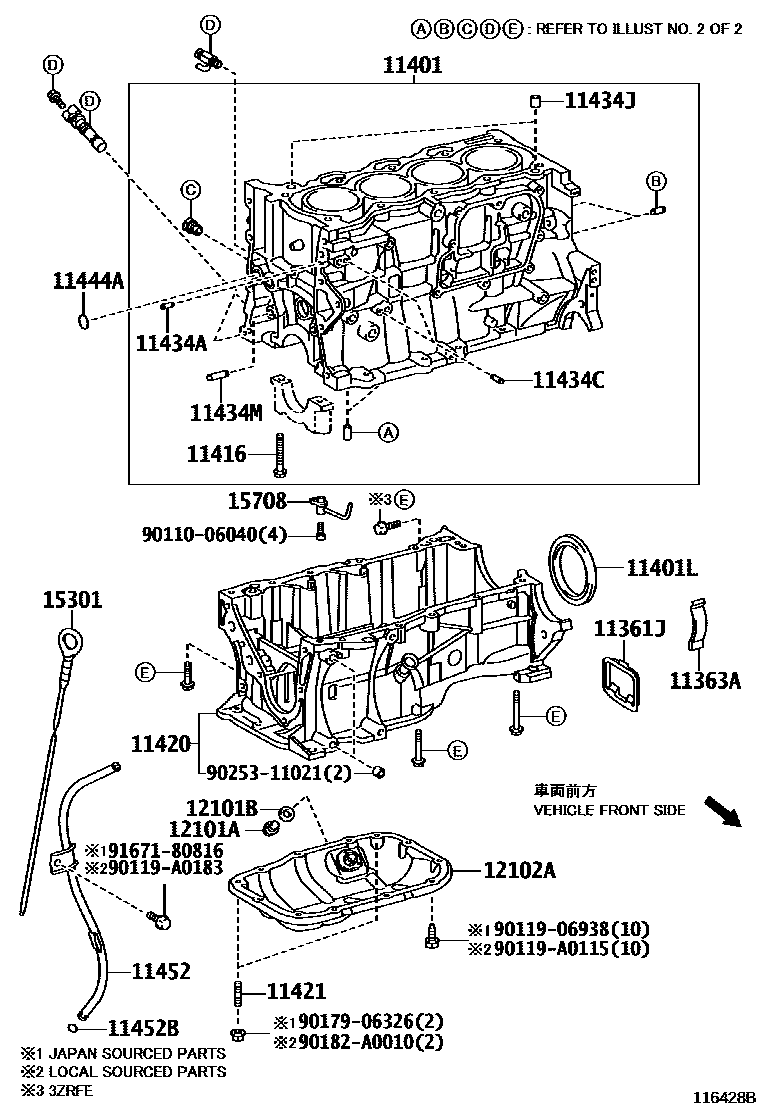

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
11401BLOCK SUB-ASSY, CYLINDER
sub11410-39055
sub11410-39036
sub11410-39057
sub11410-39245
sub11410-39057
sub11410-39035
11401LSEAL, ENGINE REAR OIL
(J)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
(L)
(J)
11421BOLT, STUD(FOR OIL PAN)
(J)
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
11444ARING, O
(L)
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(J)
9011006040
main90110-06040
9011906938
main90119-06938
90119A0115
main90119-A0115
90119A0183
main90119-A0183
9017906326
main90179-06326
90182A0010
main90182-A0010
9025311021
main90253-11021
9167180816
main91671-80816
27 parts on this diagram · 3 diagrams in section
