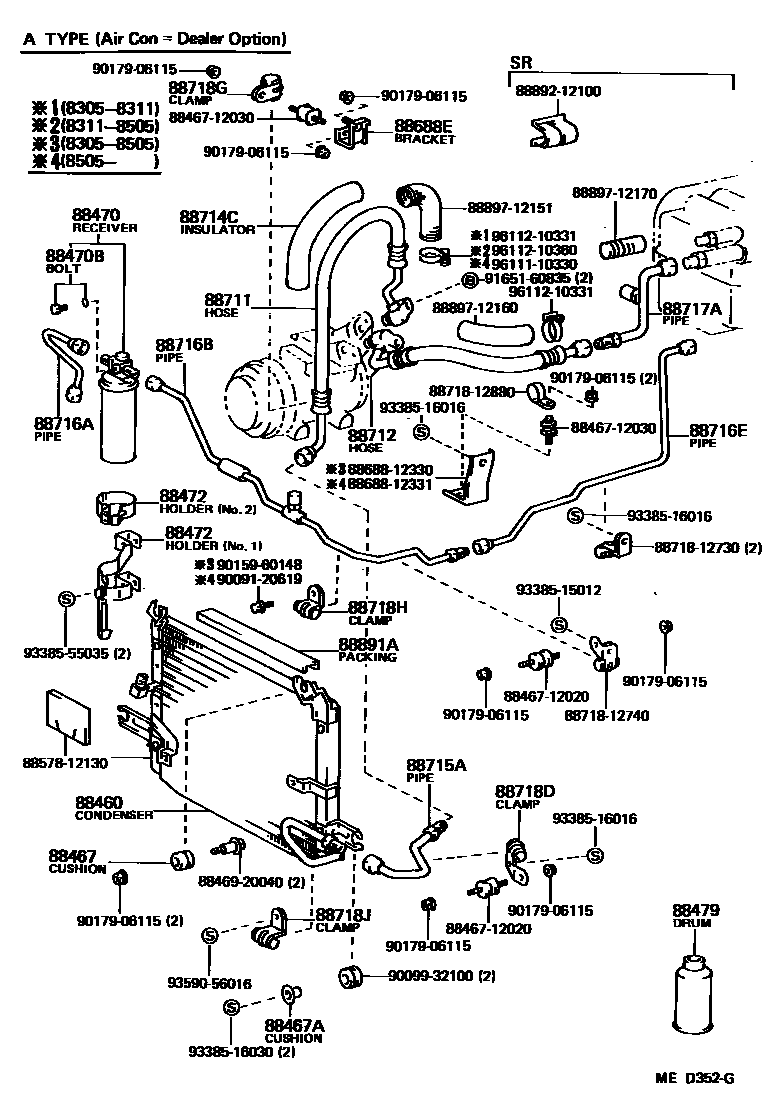

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88460CONDENSER ASSY, COOLER

main88460-12210iAE86..LHD..(GEN,ME)198305-198505

B TYPE

sub88460-12211

main88460-12211iAE86..GEN,ME198505-198707

B TYPE

sub88450-12030

main88460-12220iAE86..ARL,GEN,ME198305-198505

A TYPE

sub88460-12221

main88460-12221iAE86..GEN198505-198704

A TYPE

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20040iAE86..ARL,GEN,ME198305-198707

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-14050iAE86..ARL,GEN,ME198305-198707

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iAE86..ARL,GEN,ME198305-198707

88470BBOLT, FUSE

main88475-12020iAE86..ARL,GEN,ME198408-198707

88472BRACKET, RECEIVER TANK, NO.1

main88473-12010iAE86..ARL,GEN,ME198305-198707

NO.2

main88473-12020iAE86..LHD..(GEN,ME)198305-198505

NO.1

main88473-12021iAE86..LHD..(GEN,ME)198505-198707

NO.1

main88473-12021iAE86..RHD..GEN198505-198703

NO.1,B TYPE

main88473-12030iAE86..RHD..(ARL,GEN)198305-198704

NO.1,A TYPE

main88473-12030iAE86..RHD..GEN198703-198704

NO.1,B TYPE

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iAE86..ARL,GEN,ME198305-198707

400G

sub90986-02004

sub90986-02005

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-12190iAE86..ARL,GEN,ME198305-198707

A TYPE

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-12280iAE86..LHD..SR..GEN198305-198310

main88711-12300iAE86..LHD..GT..(GEN,ME)198308-198408

main88711-12310iAE86..LHD..SR..GEN198310-198505

main88711-12311iAE86..SR198505-198704

main88711-12320iAE86..RHD..GT..GEN198308-198505

main88711-12330iAE86..RHD..SR198305-198505

main88711-12340iAE86..LHD..GT..(GEN,ME)198408-198505

main88711-12341iAE86..GT..(GEN,ME)198505-198707

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-12430iAE86..LHD..(GEN,ME)198305-198505

main88712-12431iAE86..LHD..(GEN,ME)198505-198707

main88712-12440iAE86..RHD..SR198305-198505

main88712-12450iAE86..RHD..GT..GEN198308-198505

main88712-12580iAE86..RHD..SR198505-198704

A TYPE

main88712-12590iAE86..RHD..GT..GEN198505-198704

A TYPE

main88720-12210iAE86..RHD..SR198505-198704

B TYPE

main88720-12220iAE86..RHD..GT..GEN198505-198704

B TYPE

88714CINSULATOR, COOLER REFRIGERANT HOSE, NO.1

main88714-12090iAE86..GT..GEN198305-198704

A TYPE

sub88714-89106

main88714-12140iAE86..RHD..SR198505-198704

A TYPE

main88714-14020iAE86..LHD..(GEN,ME)198305-198505

B TYPE

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-12250iAE86..LHD..(GEN,ME)198305-198505

main88715-12270iAE86..GEN,ME198305-198707

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-12690iAE86..ARL,GEN,ME198305-198707

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-12710iAE86..LHD..(GEN,ME)198305-198707

main88716-12730iAE86..RHD..(ARL,GEN)198305-198505

main88716-12732iAE86..RHD..GEN198703-198704

B TYPE

main88726-12210iAE86..RHD..GEN198703-198704

A-TYPE

main88726-12210iAE86..RHD..GEN198505-198703

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88710-12100iAE86..RHD..GEN198505-198704

B TYPE

main88716-12700iAE86..LHD..(GEN,ME)198305-198703

sub88716-12701

main88716-12701iAE86..LHD..(GEN,ME)198703-198707

main88716-12740iAE86..RHD..(ARL,GEN)198305-198505

main88716-12741iAE86..RHD..GEN198505-198704

A TYPE

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-12200iAE86..LHD..(GEN,ME)198305-198505

B TYPE

main88717-12201iAE86..LHD..(GEN,ME)198505-198704

B TYPE

main88717-12270iAE86..RHD..GT..GEN198308-198505

A TYPE

main88717-12271iAE86..RHD..GT..GEN198505-198704

A TYPE

main88717-12280iAE86..LHD..(GEN,ME)198305-198704

A TYPE

88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

main88718-12760iAE86..ARL,GEN,ME198305-198707

A TYPE

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-12700iAE86..ARL,GEN,ME198305-198707

88718HCLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)

main88718-12280iAE86..ARL,GEN,ME198305-198707

88718JCLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)

main88718-12720iAE86..ARL,GEN,ME198305-198707

88891APACKING A (FOR COOLER)

main88578-12120iAE86..ARL,GEN,ME198305-198707

8846712020CUSHION, COOLER CONDENSER, NO.1

main88467-12020

8846712030CUSHION, COOLER CONDENSER, NO.1

main88467-12030

8846920040SWITCH, PRESSURE CONTROL

main88469-20040

8857812130PAKING, COOLER AIR DUCT

main88578-12130

8868812330BRACKET, COOLER DIAPHRAGM

main88688-12330

8868812331BRACKET, COOLER DIAPHRAGM

main88688-12331

8871812730PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12730

8871812740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12740

8871812880PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12880

8889212100BRACKET, COOLER EVAPORATOR MOUNTING

main88892-12100

8889712151VALVE, COOLER MAGNET

main88897-12151

8889712160VALVE, COOLER MAGNET

main88897-12160

8889712170VALVE, COOLER MAGNET

main88897-12170

9009120619

main90091-20619

9009932100

main90099-32100

9015960148

main90159-60148

9017906115

main90179-06115

9165160835

main91651-60835

9338515012

main93385-15012

9338516016

main93385-16016

9338516030

main93385-16030

9338555035

main93385-55035

9359056016

main93590-56016

9611110330

main96111-10330

9611210331

main96112-10331

9611210360

main96112-10360

47 parts on this diagram · 4 diagrams in section
