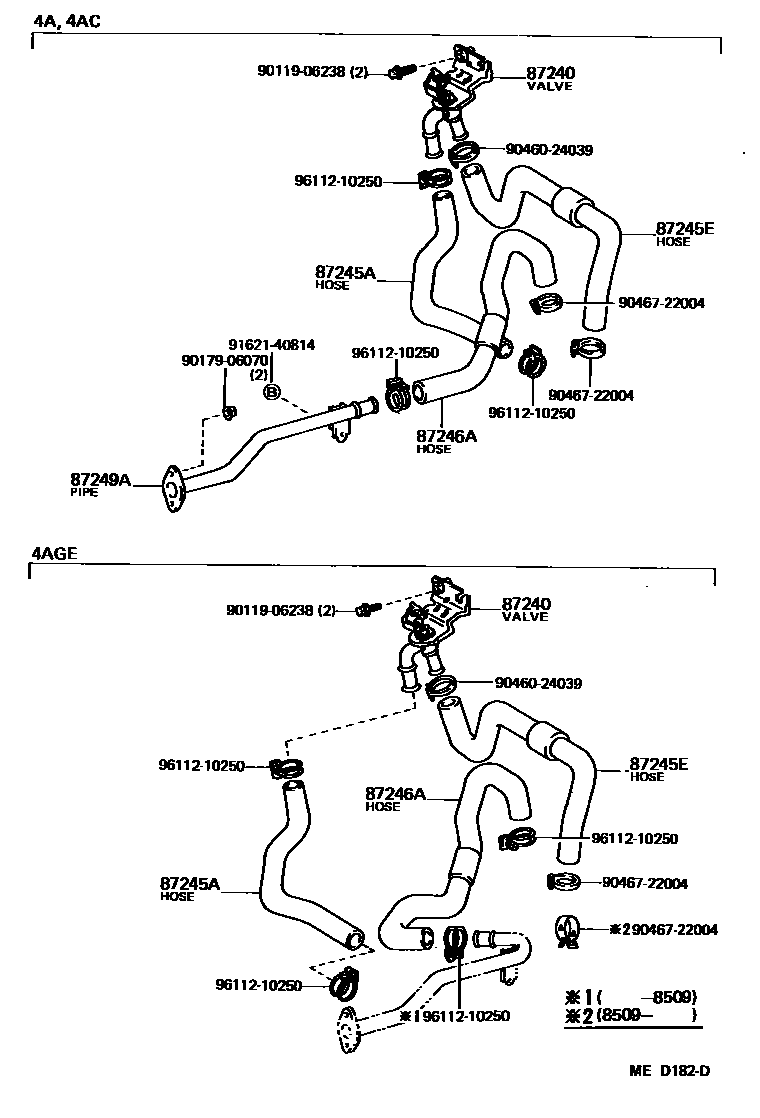

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-12210iAE86198305-198707

87245AHOSE, HEATER WATER, INLET A

main87245-12800iAE86198305-198707

87245EHOSE, HEATER WATER, INLET E

main87245-12770iAE86..RHD198305-198704

main87245-12780iAE86..LHD198305-198707

87246AHOSE, HEATER WATER, OUTLET A

main87245-12790iAE86..RHD..GT198308-198704

main87245-12810iAE86..RHD..SR198305-198704

main87245-12820iAE86..LHD..EUG;AE86..LHD..GT..(GEN,ME)198308-198505

main87245-12830iAE86..LHD..SR198305-198409

sub87245-1A150

main87245-1A050iAE86..LHD..SR..GEN198305-198704

W/O HEATER

main87245-1A150iAE86..SDZ198409-198704

main87245-1A150iAE86..SDZ;AE86..2D..EUG198504-198505

FRG SPEC

87249APIPE, HEATER WATER OUTLET, A

main87208-12012iAE86..RHD..SR198305-198704

main87208-12020iAE86..LHD..SR198305-198704

9011906238

main90119-06238

9017906070

main90179-06070

9046024039

main90460-24039

9046722004

main90467-22004

9162140814

main91621-40814

9611210250

main96112-10250

11 parts on this diagram · 3 diagrams in section
