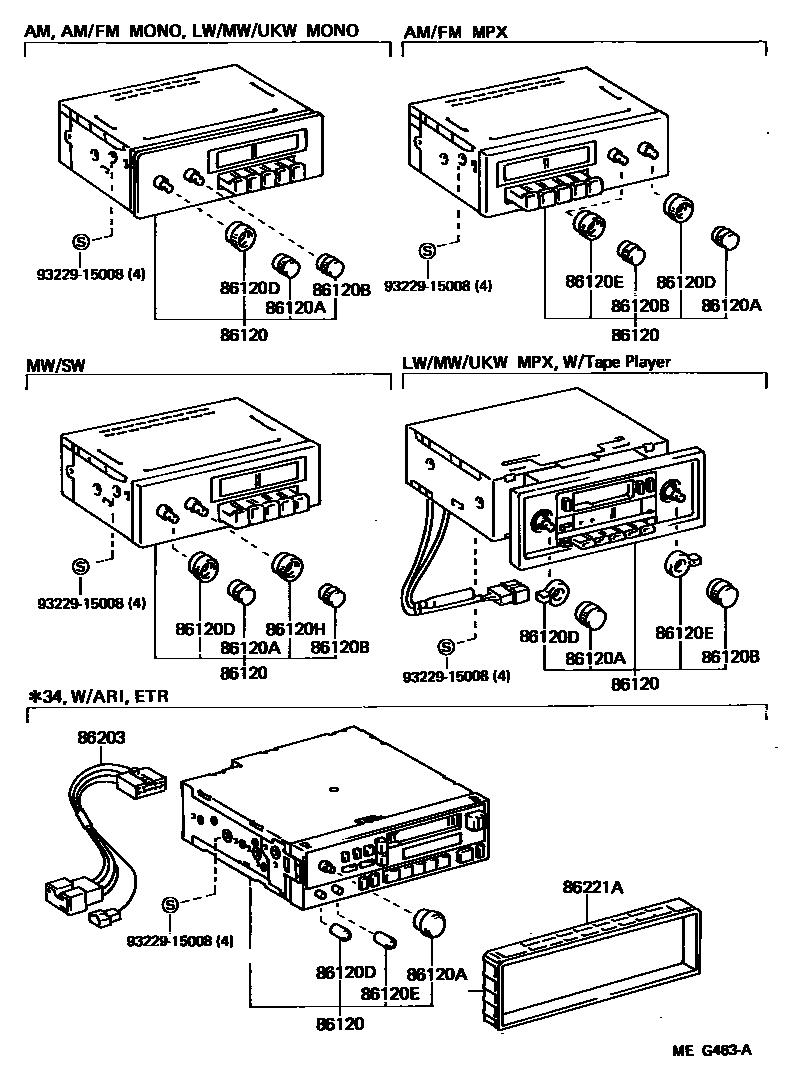

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-12370iAE86..EUG,FRG198308-198608

*34

main86120-14391iAE86..GEN,ME198305-198408

MW/SW

sub86120-30670

main86120-14392iAE86..GEN,ME198408-198608

MW/SW

main86120-14420iAE86..GEN;AE86..LHD..EUG198305-198406

AM

sub86120-14421

main86120-14421iAE86..GEN;AE86..LHD..(EUG,FRG)198406-198704

AM

sub86120-10260

sub86203-20180

main86120-14430iAE86..GEN,ME198305-198408

*25

sub86120-14431

main86120-14431iAE86..GEN,ME198408-198707

*25

main86120-14460iAE86..ARL,GEN198305-198412

*19

sub86120-14461

main86120-14461iAE86..ARL,GEN198412-198704

*19

sub86120-16430

sub86203-20180

main86120-16260iAE86..EUG198308-198412

LW/MW/UKW,MONO,L=188

main86120-16261iAE86..EUG,FRG198412-198608

LW/MW/UKW,MONO,L=188

main86120-17100iAE86..RHD..EUG198603-198608

*34,W/ARI,ETR

main86120-22390iAE86..LHD..EUG198308-198412

LW/MW/UKW,MONO,L=180

sub86120-22391

main86120-22391iAE86..LHD..(EUG,FRG)198412-198608

FUJITSU TEN,LW/MW/UKW,MONO,L=180

main86120-22400iAE86..SDZ198308-198502

LW/MW/UKW,W/ARI

sub86120-22401

main86120-22401iAE86..FRG,SDZ198502-198603

LW/MW/UKW,W/ARI

sub86120-22402

main86120-22402iAE86..FRG,SDZ198603-198608

FUJITSU TEN,LW/MW/UKW,W/ARI

main86120-32100iAE86..EUR198608-198704

LW/MW/UKW,MPX/ARI/CASSETTE

sub86120-32102

main86120-32110iAE86..EUR198608-198704

LW/MW/UKW,MPX/ARI

main86120-32240iAE86..EUR198608-198704

LW/MW/UKW,MONO

86120AKNOB, RADIO RECEIVER SWITCH

main86128-14240iAE86..SDZ198308-198502

LW/MW/UKW,W/ARI

main86128-14240iAE86..LHD..EUG198308-198412

LW/MW/UKW,MONO,L=180

main86128-14500iAE86..ARL,GEN198305-198412

*19

main86128-14500iAE86..GEN;AE86..LHD..EUG198305-198406

AM

main86128-14500iAE86..GEN,ME198305-198408

*25 OR MW/SW

main86128-14520iAE86..EUG198308-198412

LW/MW/UKW,L=188

main86128-14580iAE86..GEN,ME198408-198707

*25 OR MW/SW

main86128-14580iAE86..ARL,GEN198412-198704

*19

main86128-14580iAE86..GEN;AE86..LHD..(EUG,FRG)198406-198704

AM

main86128-14680iAE86..FRG,SDZ198502-198608

LW/MW/UKW,W/ARI

main86128-14680iAE86..EUG,FRG198412-198608

LW/MW/UKW,MONO

main86128-30460iAE86..RHD..EUG198603-198608

*34,W/ARI,ETR

main86128-32030iAE86..EUG,FRG198308-198608

*34

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-14240iAE86..LHD..EUG198308-198412

LW/MW/UKW,MONO,L=180

main86128-14240iAE86..SDZ198308-198502

LW/MW/UKW,W/ARI

main86128-14500iAE86..GEN;AE86..LHD..EUG198305-198406

AM

main86128-14500iAE86..GEN,ME198305-198408

*25 OR MW/SW

main86128-14500iAE86..ARL,GEN198305-198412

*19

main86128-14520iAE86..EUG198308-198412

LW/MW/UKW,L=188

main86128-14580iAE86..ARL,GEN198412-198704

*19

main86128-14580iAE86..GEN,ME198408-198707

*25 OR MW/SW

main86128-14580iAE86..GEN;AE86..LHD..(EUG,FRG)198406-198704

AM

main86128-14680iAE86..FRG,SDZ198502-198608

LW/MW/UKW,W/ARI

main86128-14680iAE86..EUG,FRG198412-198608

LW/MW/UKW,MONO

main86128-32030iAE86..EUG,FRG198308-198608

*34

86120DKNOB, RADIO RECEIVER TONE

main86128-14200iAE86..GEN;AE86..LHD..EUG198305-198406

AM

main86128-14200iAE86..GEN,ME198305-198408

*25 OR MW/SW

main86128-14200iAE86..ARL,GEN198305-198412

*19

main86128-14260iAE86..EUG198308-198412

LW/MW/UKW,MONO

main86128-14260iAE86..SDZ198308-198502

LW/MW/UKW,W/ARI

main86128-14600iAE86..GEN;AE86..LHD..(EUG,FRG)198406-198704

AM

main86128-14600iAE86..ARL,GEN198412-198704

*19

main86128-14600iAE86..GEN,ME198408-198707

*25 OR MW/SW

main86128-14720iAE86..EUG,FRG198412-198608

LW/MW/UKW,MONO

main86128-14720iAE86..FRG,SDZ198502-198608

LW/MW/UKW,W/ARI

main86128-30480iAE86..RHD..EUG198603-198608

*34,W/ARI,ETR

main86128-32050iAE86..EUG,FRG198308-198608

*34

86120EKNOB, RADIO RECEIVER BALANCE

main86128-14200iAE86..ARL,GEN198305-198412

*19

main86128-14600iAE86..ARL,GEN198412-198704

*19

main86128-30480iAE86..RHD..EUG198603-198608

*34,W/ARI,ETR

main86128-32050iAE86..EUG,FRG198308-198608

*34

86120HKNOB, RADIO RECEIVER SELECT

main86128-14220iAE86..GEN,ME198305-198408

MW/SW

sub86128-14200

main86128-14700iAE86..GEN,ME198408-198608

MW/SW

86203WIRE, RADIO

main86203-17010iAE86..RHD..EUG198603-198608

*34,W/ARI,ETR

main86203-20160iAE86..EUR198608-198704

LW/MW/UKW

main86203-20170iAE86..EUR198608-198704

LW/MW/UKW/CASSETTE

86221APANEL, RADIO RECEIVER

main86220-12010iAE86..RHD..EUG198603-198608

*34,W/ARI,ETR

main86220-12010iAE86..EUR198608-198704

9322915008

main93229-15008

9 parts on this diagram · 3 diagrams in section
