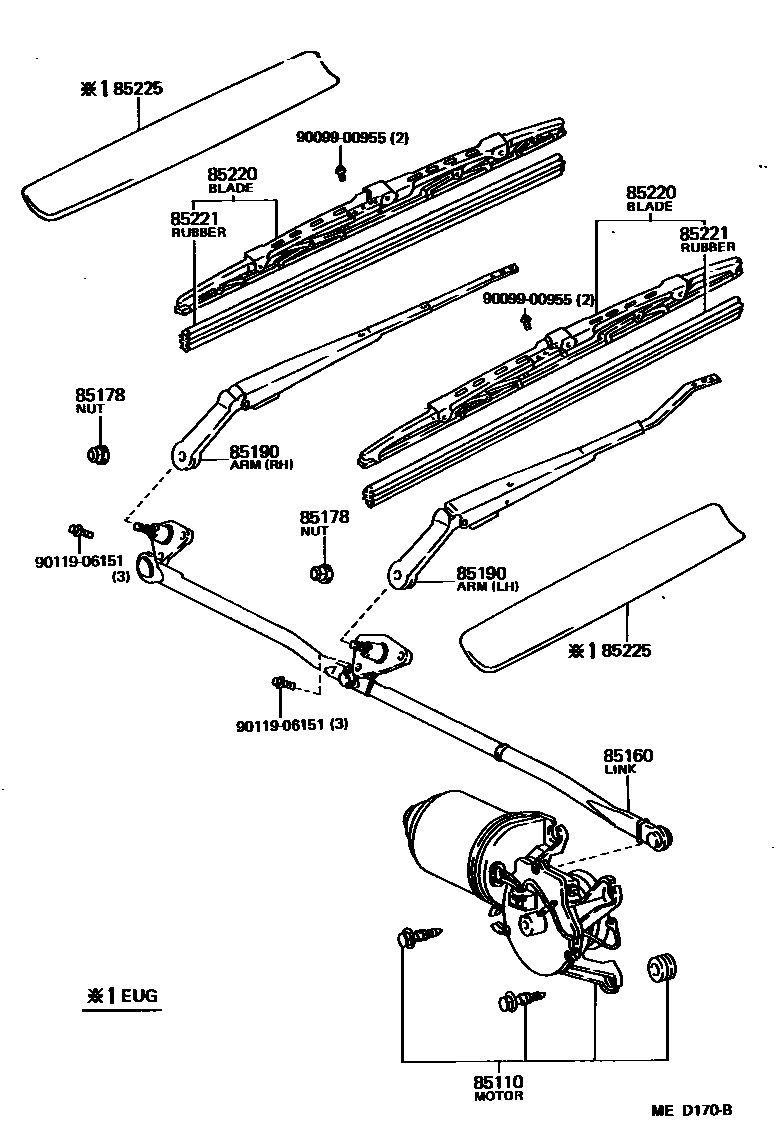

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12290iAE86..RHD..(ARL,GEN)198305-198505

sub85110-12540

main85110-12300iAE86..LHD..SR..GEN198305-198505

sub85110-12560

main85110-12340iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198505

sub85110-12590

main85110-12410iAE86..RHD..EUG198308-198505

sub85110-12550

main85110-12540iAE86..RHD..GEN198505-198704

sub85110-12550

main85110-12550iAE86..RHD..EUG198505-198703

sub85110-12551

main85110-12551iAE86..RHD..EUG198703-198704

main85110-12560iAE86..LHD..SR198505-198704

sub85110-12590

main85110-12590iAE86..LHD..GT198505-198707

85160LINK ASSY, WINDSHIELD WIPER

main85160-12340iAE86..RHD..(EUR,GEN)198305-198704

TEMPERED GLASS

main85160-12350iAE86..RHD198305-198703

LAMINATED GLASS

sub85160-12351

main85160-12351iAE86..RHD198703-198704

LAMINATED GLASS

main85160-12360iAE86..LHD..SR..GEN198305-198704

TEMPERED GLASS

sub85160-12380

main85160-12370iAE86..LHD..SR..GEN198305-198408

LAMINATED GLASS

sub85160-12380

main85160-12380iAE86..LHD..SR..GEN198408-198704

LAMINATED GLASS

main85160-12390iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198707

LAMINATED GLASS

main85160-12430iAE86..LHD..EUG;AE86..LHD..GT..GEN198308-198704

TEMPERED GLASS

sub85160-12390

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAE86198305-198507

main90176-08033iAE86198507-198707

85190ARM ASSY, WINDSHIELD WIPER

main85190-12570iAE86..RHD..GEN198305-198704

RH,TEMPERED GLASS

main85190-12580iAE86..RHD..(ARL,GEN)198305-198704

RH,LAMINATED GLASS

sub85190-12570

main85190-12590iAE86..LHD..SR..GEN198305-198704

LH,TEMPERED GLASS

main85190-12600iAE86..LHD..SR..GEN198305-198704

LH,LAMINATED GLASS

main85190-12610iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198707

LH

main85190-12660iAE86..RHD..EUG198308-198704

RH,TEMPERED GLASS

sub85190-12671

main85190-12670iAE86..RHD..EUG198308-198703

RH,LAMINATED GLASS

sub85190-12671

main85190-12671iAE86..RHD..EUG198703-198704

RH,LAMINATED GLASS

main85210-12110iAE86..RHD..(EUR,GEN)198305-198704

LH,TEMPERED GLASS

main85210-12120iAE86..RHD198305-198505

LH,LAMINATED GLASS

sub85210-12220

main85210-12130iAE86..LHD..SR..GEN198305-198704

RH,TEMPERED GLASS

main85210-12140iAE86..LHD..SR..GEN198305-198505

RH,LAMINATED GLASS

main85210-12150iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198707

RH,LAMINATED GLASS

main85210-12180iAE86..LHD..GT..(EUR,GEN)198308-198704

RH,TEMPERED GLASS

main85210-12220iAE86..RHD198505-198704

LH,LAMINATED GLASS

main85210-12230iAE86..LHD..SR198505-198704

RH,LAMINATED GLASS

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12450iAE86..RHD198305-198704

LH

sub85220-12561

main85220-12510iAE86..LHD..SR..GEN198305-198704

RH

main85220-14390iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198707

RH

main85220-16280iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198707

LH

main85220-32280iAE86..LHD..SR..GEN198305-198704

LH

sub85220-3A060

main85220-32300iAE86..RHD198305-198308

RH

sub85220-32311

main85220-32310iAE86..RHD198308-198704

RH

sub85220-32311

main85220-32570iAE86..RHD..EUG198703-198704

RH

sub85212-23040

85221BLADE, WINDSHIELD WIPER

main85221-12210iAE86..LHD..SR..GEN198305-198506

RH

sub85214-12H90

main85221-12220iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198707

RH

sub85214-12H90

main85221-12230iAE86..LHD..SR198506-198704

RH

sub85214-12H90

main85221-12230iAE86..RHD198305-198704

LH

sub85214-12H90

main85221-14260iAE86..RHD..EUG198703-198704

RH

sub85221-30130

main85221-30100iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198707

LH

sub85221-40040

main85221-30110iAE86..RHD..GEN198305-198704

RH

sub85221-30130

main85221-32060iAE86..LHD..SR..GEN198305-198704

LH

sub85221-30130

85225WING, WIPER BLADE

main85225-20230iAE86..RHD..EUG198703-198704

RH,LAMINATED GLASS

9009900955

main90099-00955

9011906151

main90119-06151

9 parts on this diagram · 2 diagrams in section
