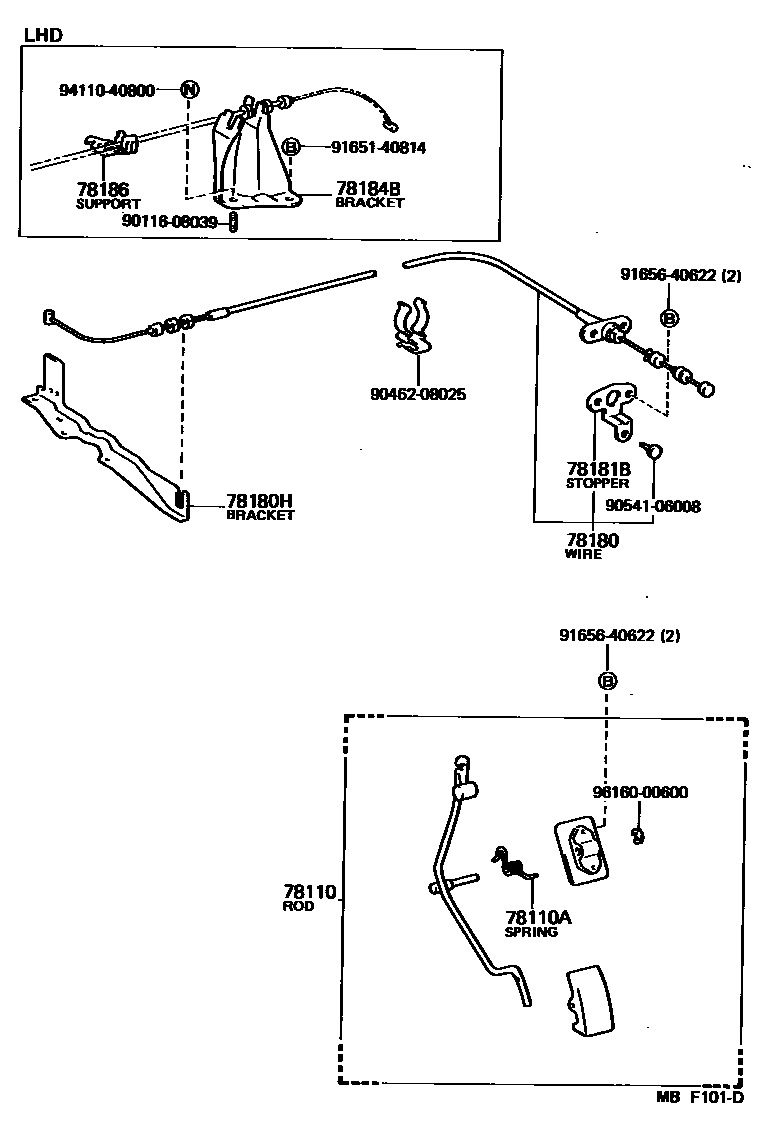

ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78010-12100iAE86..RHD198305-198505

main78010-12110iAE86..RHD198505-198704

main78010-12120iAE86..LHD198305-198707

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18055iAE86198311-198707

main90508-18398iAE86198305-198311

78180WIRE ASSY, ACCELERATOR

main78180-12400iAE86..LHD..SR198305-198505

main78180-12410iAE86..RHD..GT198308-198704

main78180-12420iAE86..LHD..GT198308-198707

main78180-12640iAE86..RHD..SR198305-198704

main78180-12710iAE86..LHD..SR198505-198704

78180HBRACKET, ACCELERATOR CONTROL CABLE

main21524-16110iAE86..RHD..SR..GEN198305-198704

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-12051iAE86..GEN198305-198306

main78181-12090iAE86198306-198707

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12140iAE86..LHD..SR198305-198704

main78184-12150iAE86..GT198308-198707

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12140iAE86..LHD..SR198305-198704

main78186-12160iAE86..LHD..GT198308-198707

9011608039

main90116-08039

9046208025

main90462-08025

9054106008

main90541-06008

9165140814

main91651-40814

9165640622

main91656-40622

9411040800

main94110-40800

9616000600

main96160-00600

14 parts on this diagram · 2 diagrams in section
