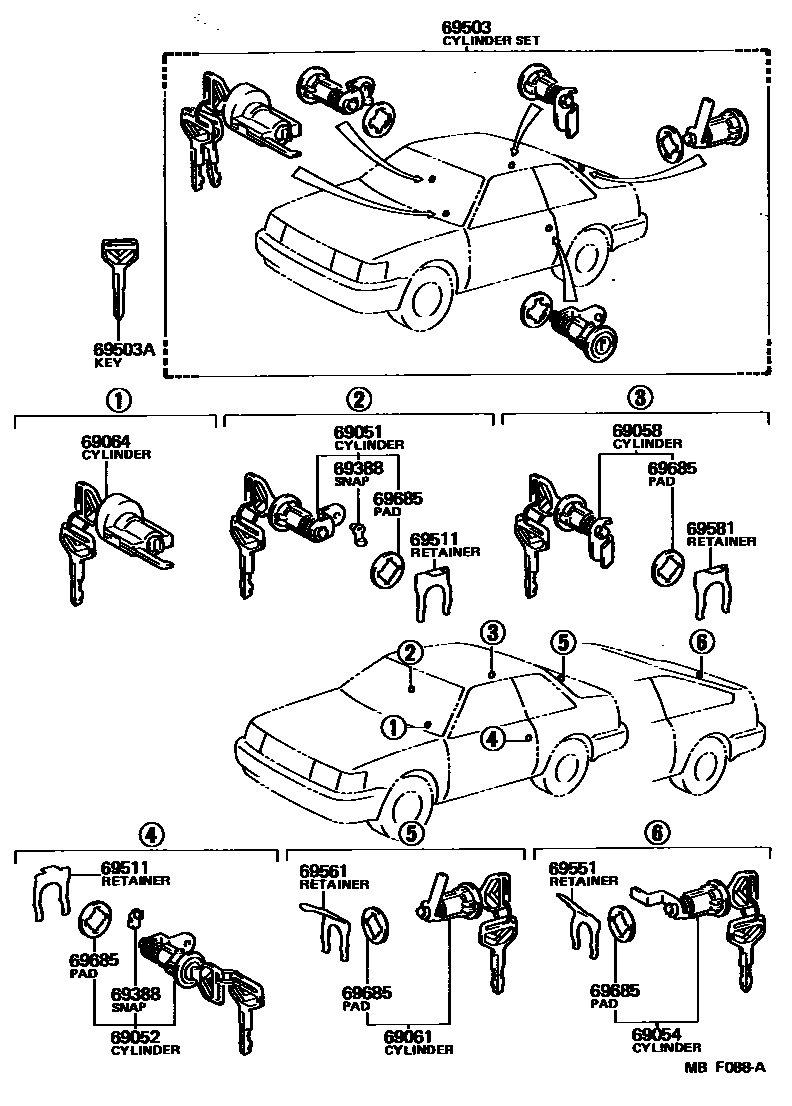

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12140iAE86..ARL,GEN,ME198305-198707

sub69051-12190

main69051-12150iAE86..EUR198308-198704

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12140iAE86..ARL,GEN,ME198305-198707

sub69052-12190

main69052-12150iAE86..EUR198308-198704

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-12160iAE86..3D..(ARL,GEN,ME)198305-198707

sub69055-12300

main69055-12170iAE86..3D..EUR198308-198704

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12070iAE86..EUR198308-198704

main69058-12080iAE86..SR..GEN198305-198608

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-12180iAE86..2D..GEN198305-198704

main69055-12200iAE86..2D..EUR198308-198704

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12070iAE86..ME198308-198505

main69057-12120iAE86..GEN,ME198612-198707

sub69057-12130

main69057-12140iAE86..EUR198612-198704

sub69057-32090

main69057-16040iAE86..ARL,GEN198305-198612

sub69057-16061

main69057-16050iAE86..EUR198308-198612

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iAE86198305-198707

LH

main69759-20090iAE86198305-198707

RH

69503CYLINDER SET, LOCK

main69005-12400iAE86..3D..SR..GEN198305-198608

W/O TRUNK OPENER

main69005-12430iAE86..3D..EUR198308-198612

main69005-12440iAE86..3D..(GEN,ME)198305-198612

W/TRUNK OPENER

main69005-12450iAE86..2D..GEN198305-198608

W/O TRUNK OPENER

main69005-12490iAE86..2D..EUR198308-198612

main69005-12500iAE86..2D..GEN198305-198612

W/TRUNK OPENER

sub69005-12400

main69005-12540iAE86..ME198308-198505

main69005-1A070iAE86..3D..EUR198612-198704

main69005-1A080iAE86..3D..(GEN,ME)198612-198707

W/TRUNK OPENER

main69005-1A110iAE86..2D..EUR198612-198704

main69005-1A120iAE86..2D..GEN198612-198704

W/TRUNK OPENER

69503AKEY, BLANK

main90999-00084iAE86..EUR198308-198704

MASTER KEY,W(*68),MASTER KEY

sub90999-00214

main90999-00085iAE86..ARL,GEN,ME198305-198707

MASTER KEY,MASTER KEY

main90999-00088iAE86..2D..EUR198505-198704

SUB KEY,W(*68),SUB KEY

main90999-00094iAE86..2D..GEN198505-198704

SUB KEY,SUB KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iAE86198305-198707

69551RETAINER, BACK DOOR LOCK CYLINDER

main69561-12130iAE86..3D198305-198707

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-12140iAE86..2D198305-198704

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iAE86..GT..EUR;AE86..SR..(EUR,GEN)198305-198704

69685PAD, LOCK CYLINDER

main69513-32010iAE86198305-198707

FR DOOR & FUEL

main69563-32010iAE86198305-198707

LUGGAGE OR BACK DOOR

14 parts on this diagram · 1 diagram in section
