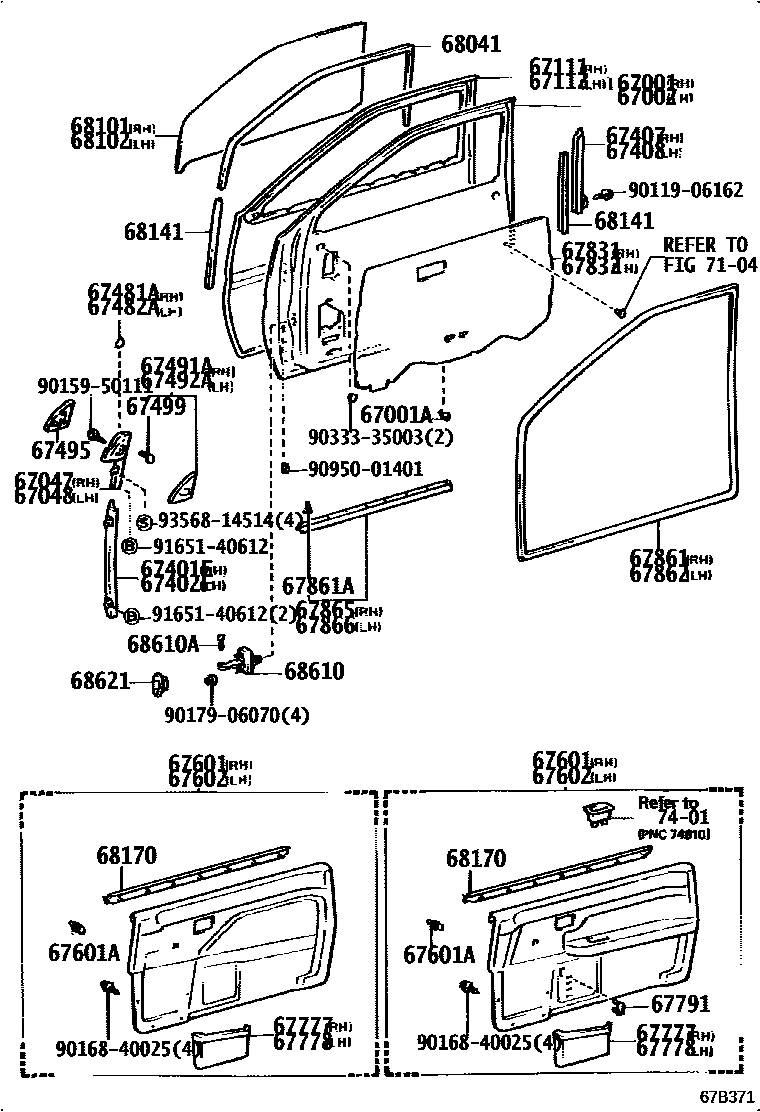

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12720iAE86..ARL,ME198502-198707

main67001-12730iAE86..ARL,ME198305-198502

sub67001-12720

main67001-12740iAE86..EUR198308-198704

main67001-12750iAE86..GEN198305-198502

sub67001-12740

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iAE86198305-198707

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12700iAE86..ARL,ME198502-198707

main67002-12710iAE86..ARL,ME198305-198502

sub67002-12700

main67002-12720iAE86..EUR,GEN198308-198704

main67002-12730iAE86..GEN198305-198502

sub67002-12720

67047BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, RH

main67047-12010iAE86198305-198401

main67047-12020iAE86198401-198707

67048BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, LH

main67048-12010iAE86198305-198401

main67048-12020iAE86198401-198707

67111PANEL, FRONT DOOR, OUTER RH

main67111-12360iAE86..GEN198305-198412

sub67111-12370

main67111-12370iAE86..ARL,EUR,ME198305-198707

67112PANEL, FRONT DOOR, OUTER LH

main67112-12350iAE86..GEN198305-198412

sub67112-12360

main67112-12360iAE86198305-198707

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12180iAE86198305-198504

sub67401-12181

main67401-12181iAE86198504-198707

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12170iAE86198305-198504

sub67402-12171

main67402-12171iAE86198504-198707

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12040iAE86198305-198402

main67403-12070iAE86198402-198405

main67403-12071iAE86198405-198707

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12040iAE86198305-198402

main67404-12070iAE86198402-198405

main67404-12071iAE86198405-198707

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-12170iAE86..ARL,EUR,ME198305-198707

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-12170iAE86..ARL,EUR,ME198305-198707

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12070iAE86..GEN198305-198704

W/O HOLE

main67491-12080iAE86198305-198707

W/HOLE

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12070iAE86..GEN198305-198704

W/O HOLE

main67492-12080iAE86198305-198707

W/HOLE

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-12040iAE86..GEN198305-198401

RH

main67495-12090iAE86..GEN198401-198704

RH

main67496-12040iAE86..RHD..EUG198305-198401

LH

main67496-12090iAE86..GEN198401-198704

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iAE86198305-198707

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-1A550-01iAE86..GT..(EUR,GEN)198505-198608

BLACK,BLACK,TRIM2#

main67610-1A550-04iAE86..GT..(EUR,GEN)198505-198608

BLUE,BLUE,TRIM8#

main67610-1A551-01iAE86..GT..(EUR,GEN)198608-198704

BLACK,BLACK,TRIM2#

main67610-1A551-04iAE86..GT..(EUR,GEN)198608-198704

BLUE,BLUE,TRIM8#

main67610-1A570-01iAE86..RHD..SR198505-198704

BLACK,BLACK,TRIM2#

main67610-1A570-04iAE86..RHD..SR198505-198704

BLUE,BLUE,TRIM8#

main67610-1A580-01iAE86..LHD..SR198505-198704

BLACK,BLACK,TRIM2#

main67610-1A580-04iAE86..LHD..SR198505-198704

BLUE,BLUE,TRIM8#

main67610-1A670-01iAE86..ME198505-198608

BLACK,BLACK,TRIM2#

main67610-1A670-04iAE86..ME198505-198608

BLUE,BLUE,TRIM8#

main67610-1A671-01iAE86..ME198608-198707

BLACK,BLACK,TRIM2#

main67610-1A671-04iAE86..ME198608-198707

BLUE,BLUE,TRIM8#

main67650-12060-02iAE86..RHD..SR..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main67650-12060-04iAE86..RHD..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

main67650-12060-12iAE86..RHD..SR..GEN198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main67650-12130-02iAE86..LHD..EUR198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub67650-12140

main67650-12130-04iAE86..LHD..EUR198308-198408

BLUE,BLUE,TRIM8#

sub67650-12140

main67650-12140-02iAE86..RHD..(ARL,EUR)198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main67650-12140-04iAE86..RHD..(ARL,EUR)198305-198408

BLUE,BLUE,TRIM8#

main67650-12141-02iAE86..RHD..(ARL,EUR)198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main67650-12141-04iAE86..RHD..(ARL,EUR)198408-198505

BLUE,BLUE,TRIM8#

main67650-12150-02iAE86..LHD..SR..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub67650-12060

main67650-12150-04iAE86..LHD..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

sub67650-12060

main67650-12150-12iAE86..LHD..SR..GEN198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

sub67650-12060

main67650-12160-04iAE86..GT198308-198408

W/*MT,BLUE,BLUE,TRIM8#

main67650-12160-12iAE86..GT198308-198408

W/*MT,DEEP MAROON,RED/MAROON,TRIM3#

main67650-12770-02iAE86..LHD..EUR198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

sub67650-12141

main67650-12770-04iAE86..LHD..EUR198408-198505

BLUE,BLUE,TRIM8#

sub67650-12141

main67650-12780-02iAE86..GT198408-198505

W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#

main67650-12780-04iAE86..GT198408-198505

W/*MT,BLUE,BLUE,TRIM8#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-16020iAE86198305-198707

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-12860-04iAE86..GT198308-198408

W/*MT,BLUE,BLUE,TRIM8#

main67620-12860-12iAE86..GT198308-198408

W/*MT,DEEP MAROON,RED/MAROON,TRIM3#

main67620-1A030-02iAE86..RHD..SR..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub67620-1A380

sub67620-1A080

main67620-1A030-04iAE86..RHD..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

sub67620-1A380

sub67620-1A080

main67620-1A030-12iAE86..RHD..SR..GEN198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

sub67620-1A380

sub67620-1A080

main67620-1A060-02iAE86..LHD..EUR198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main67620-1A060-04iAE86..LHD..EUR198308-198408

BLUE,BLUE,TRIM8#

main67620-1A070-02iAE86..RHD..(ARL,EUR)198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub67620-1A400

main67620-1A070-04iAE86..RHD..(ARL,EUR)198305-198408

BLUE,BLUE,TRIM8#

sub67620-1A400

main67620-1A071-02iAE86..RHD..(ARL,EUR)198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

sub67620-1A540

main67620-1A071-04iAE86..RHD..(ARL,EUR)198408-198505

BLUE,BLUE,TRIM8#

sub67620-1A540

main67620-1A080-02iAE86..LHD..SR..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main67620-1A080-04iAE86..LHD..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

main67620-1A080-12iAE86..LHD..SR..GEN198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main67620-1A540-02iAE86..LHD..EUR198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main67620-1A540-04iAE86..LHD..EUR198408-198505

BLUE,BLUE,TRIM8#

main67620-1A550-02iAE86..GT198408-198505

W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#

main67620-1A550-04iAE86..GT198408-198505

W/*MT,BLUE,BLUE,TRIM8#

main67620-1A860-04iAE86..RHD..SR198505-198704

BLUE,BLUE,TRIM8#

sub67620-1A870

main67620-1A870-01iAE86..RHD..SR198505-198704

BLACK,BLACK,TRIM2#

main67620-1E060-01iAE86..GT..(EUR,GEN)198505-198608

BLACK,BLACK,TRIM2#

main67620-1E060-04iAE86..GT..(EUR,GEN)198505-198608

BLUE,BLUE,TRIM8#

main67620-1E061-01iAE86..GT..(EUR,GEN)198608-198704

BLACK,BLACK,TRIM2#

main67620-1E061-04iAE86..GT..(EUR,GEN)198608-198704

BLUE,BLUE,TRIM8#

main67620-1E080-01iAE86..LHD..SR198505-198704

BLACK,BLACK,TRIM2#

main67620-1E080-04iAE86..LHD..SR198505-198704

BLUE,BLUE,TRIM8#

main67620-1E140-01iAE86..ME198505-198608

BLACK,BLACK,TRIM2#

main67620-1E140-04iAE86..ME198505-198608

BLUE,BLUE,TRIM8#

main67620-1E141-01iAE86..ME198608-198707

BLACK,BLACK,TRIM2#

main67620-1E141-04iAE86..ME198608-198707

BLUE,BLUE,TRIM8#

67777POCKET, FRONT DOOR TRIM, RH

main67777-12010-01iAE86..RHD..SR198505-198704

BLACK,BLACK,TRIM2#

sub67777-12010

main67777-12010-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub67777-12010

main67777-12010-04iAE86..RHD..SR198305-198704

BLUE,BLUE,TRIM8#

sub67777-12010

67778POCKET, FRONT DOOR TRIM, LH

main67778-12010-01iAE86..LHD..SR198505-198704

BLACK,BLACK,TRIM2#

main67778-12010-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main67778-12010-04iAE86..LHD..SR198305-198704

BLUE,BLUE,TRIM8#

67791RETAINER, FRONT DOOR POCKET

main67791-12010iAE86..GT198308-198505

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12250iAE86198305-198505

sub67831-12260

main67831-12260iAE86198505-198707

sub67831-12320

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12120iAE86198305-198505

sub67832-12130

main67832-12130iAE86198505-198707

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12470iAE86198305-198707

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAE86198305-198707

67862WEATHERSTRIP, FRONT DOOR, LH

main67861-12470iAE86198305-198707

67865WEATHERSTRIP, FRONT DOOR, LOWER RH

main67853-12010iAE86198305-198707

67866WEATHERSTRIP, FRONT DOOR LOWER, LH

main67853-12010iAE86198305-198707

68041RUN SUB-ASSY, FRONT DOOR GLASS

main68141-12170iAE86198305-198707

RH

main68151-12020iAE86198305-198707

LH

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-12440iAE86198305-198707

*TT,T=4.0,*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-12440iAE86198305-198707

*TT,T=4.0,*TT,T=4.0

68141RUN, FRONT DOOR GLASS

main68143-12060iAE86198305-198405

RR

main68143-12061iAE86198405-198707

RR

main68143-12070iAE86198305-198707

FR

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-12230iAE86198305-198707

RH

main68220-12160iAE86198305-198707

LH

68610CHECK ASSY, FRONT DOOR

main68610-12040iAE86198305-198707

68610APIN(FOR FRONT DOOR CHECK)

main68617-30010iAE86198305-198507

sub68617-90K00

main68617-90A00iAE86198507-198707

sub68617-90A01

68621SEAL, DOOR CHECK

main68621-12010iAE86198305-198707

7104

7401

9011906162

main90119-06162

9015950111

main90159-50111

9016840025

main90168-40025

9017906070

main90179-06070

9033335003

main90333-35003

9095001401

main90950-01401

9165140612

main91651-40612

9356814514

main93568-14514

48 parts on this diagram · 1 diagram in section
