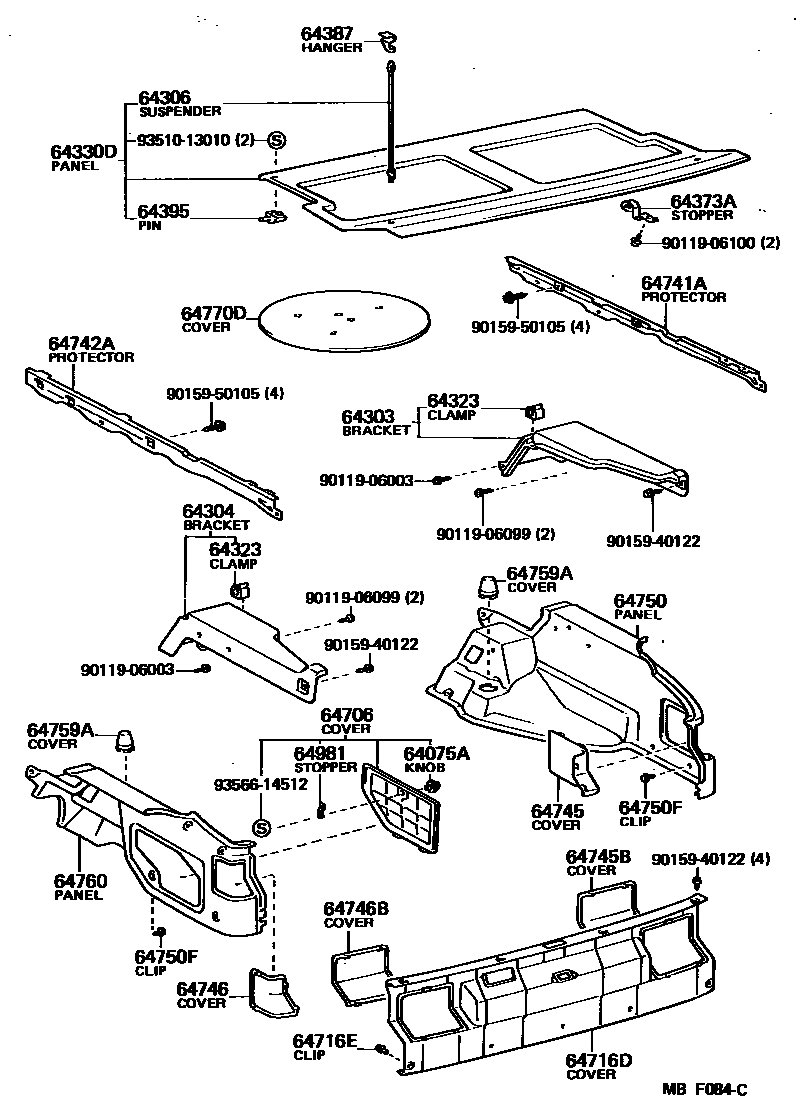

DECK BOARD & DECK TRIM COVER

64075AKNOB, DECK TRIM WASHER COVER

main64982-16020-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64982-16020

main64982-16020-12iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64982-16020

main64982-16020-14iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64982-16020

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-12020-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64301-12020

main64301-12020-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64301-12020

main64301-12020-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64301-12020

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-12020-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64302-12020

main64302-12020-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64302-12020

main64302-12020-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64302-12020

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12010iAE86..3D198305-198707

64323CLAMP, PACKAGE TRAY TRIM, NO.1

main64323-10010iAE86..3D198305-198707

RH

main64324-10010iAE86..3D198305-198707

LH

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-12450-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64330-12450

main64330-12450-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64330-12450

main64330-12450-04iAE86..3D198305-198505

BLUE,BLUE,TRIM8#

sub64330-12450

main64330-12450-14iAE86..3D198505-198707

BLUE,BLUE,TRIM8#

sub64330-12450

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-12040iAE86..3D198305-198707

64387HANGER, PACKAGE TRAY TRIM

main64381-10010iAE86..3D198305-198707

64395PIN, PACKAGE TRAY TRIM HINGE

main64395-16010iAE86..3D198305-198707

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64707-12010-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64707-12010

main64707-12010-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64707-12010

main64707-12010-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64707-12010

64716DCOVER, DECK TRIM, REAR

main64716-12060-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64716-12060

main64716-12060-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64716-12060

main64716-12060-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64716-12060

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07041-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub90467-07041

main90467-07041-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-07041

main90467-07041-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub90467-07041

64741APROTECTOR, DECK TRIM SIDE, RH

main64741-12010iAE86..3D..EUG;AE86..3D..(GEN,ME)198305-198405

sub64741-12020

main64741-12020iAE86..3D..(ARL,EUR)198305-198405

W/RR *ELR

main64741-12020iAE86..3D198405-198707

64742APROTECTOR, DECK TRIM SIDE, LH

main64742-12010iAE86..3D..EUG;AE86..3D..(GEN,ME)198305-198405

sub64742-12020

main64742-12020iAE86..3D198405-198707

main64742-12020iAE86..3D..(ARL,EUR)198305-198405

W/RR *ELR

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12040-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64745-12040

main64745-12040-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64745-12040

main64745-12040-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64745-12040

64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH

main64745-12060-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64745-12060

main64745-12060-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64745-12060

main64745-12060-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64745-12060

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-12050-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64746-12050

main64746-12050-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64746-12050

main64746-12050-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64746-12050

64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH

main64746-12070-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64746-12070

main64746-12070-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64746-12070

main64746-12070-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64746-12070

64750PANEL ASSY, DECK SIDE TRIM, RH

main64730-12150-01iAE86..3D..(GEN,ME);AE86..3D..(EUG,FRG)198505-198707

BLACK,BLACK,TRIM2#

sub64730-12150

main64730-12150-02iAE86..3D..EUG;AE86..3D..(GEN,ME)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64730-12150

main64730-12150-04iAE86..3D..(GEN,ME);AE86..3D..(EUG,FRG)198305-198707

BLUE,BLUE,TRIM8#

sub64730-12150

main64730-12160-01iAE86..3D..EUR198505-198704

W/RR *ELR,BLACK,BLACK,TRIM2#

sub64730-12160

main64730-12160-02iAE86..3D..(ARL,EUR)198305-198505

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

sub64730-12160

main64730-12160-04iAE86..3D..(ARL,EUR)198305-198704

W/RR *ELR,BLUE,BLUE,TRIM8#

sub64730-12160

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-07041-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub90467-07041

main90467-07041-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-07041

main90467-07041-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub90467-07041

64759ACOVER, SHOCK ABSORBER HEAD

main64759-14010-11iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64759-14010

main64759-14010-22iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64759-14010

main64759-14010-24iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64759-14010

64760PANEL ASSY, DECK SIDE TRIM, LH

main64740-12150-01iAE86..3D..(GEN,ME);AE86..3D..(EUG,FRG)198505-198707

BLACK,BLACK,TRIM2#

sub64740-12150

main64740-12150-02iAE86..3D..EUG;AE86..3D..(GEN,ME)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64740-12150

main64740-12150-04iAE86..3D..(GEN,ME);AE86..3D..(EUG,FRG)198305-198707

BLUE,BLUE,TRIM8#

sub64740-12150

main64740-12160-01iAE86..3D..EUR198505-198704

W/RR *ELR,BLACK,BLACK,TRIM2#

sub64740-12160

main64740-12160-02iAE86..3D..(ARL,EUR)198305-198505

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

sub64740-12160

main64740-12160-04iAE86..3D..(ARL,EUR)198305-198704

W/RR *ELR,BLUE,BLUE,TRIM8#

sub64740-12160

64770DCOVER ASSY, SPARE WHEEL

main64770-12030iAE86198305-198505

main64770-12090iAE86..3D198505-198707

64981STOPPER, WASHER TANK COVER

main64981-16021iAE86..3D198305-198707

9011906003

main90119-06003

9011906099

main90119-06099

9011906100

main90119-06100

9015940122

main90159-40122

9015950105

main90159-50105

9351013010

main93510-13010

9356614512

main93566-14512

9815940122

main98159-40122

32 parts on this diagram · 1 diagram in section
