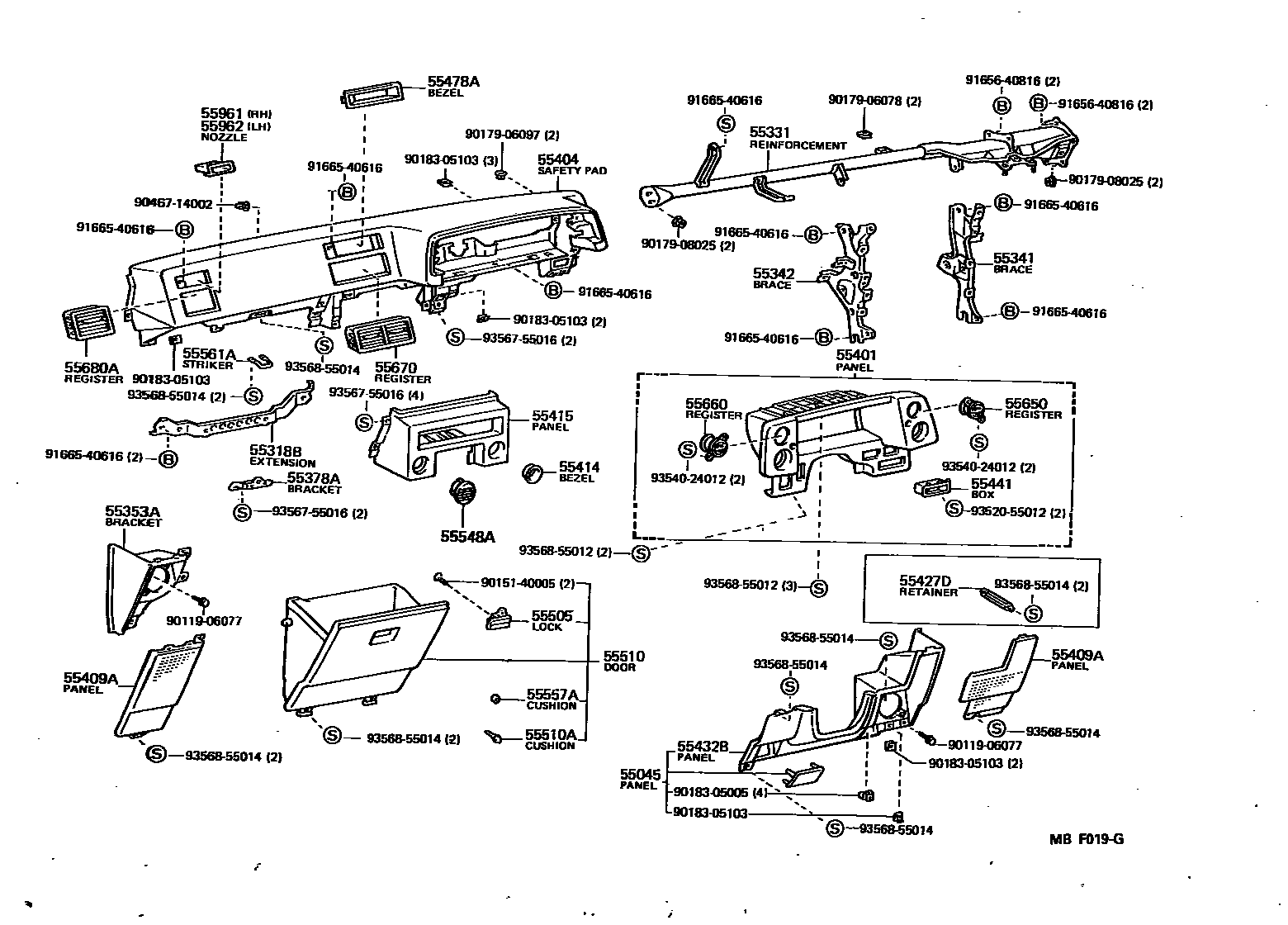

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-12070-02iAE86..RHD198408-198505

DEEP MAROON,MAROON,TRIM3#

main55045-12070-04iAE86..RHD198406-198505

BLUE,BLUE,TRIM8#

main55045-12070-05iAE86..RHD198406-198408

BEIGE,BEIGE,TRIM3#

main55045-12080-02iAE86..RHD198408-198505

W/*TIS,DEEP MAROON,MAROON,TRIM3#

main55045-12080-04iAE86..RHD198406-198505

W/*TIS,BLUE,BLUE,TRIM8#

main55045-12080-05iAE86..RHD198406-198408

W/*TIS,BEIGE,BEIGE,TRIM3#

main55045-12090-02iAE86..LHD198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

sub55045-12091

main55045-12090-04iAE86..LHD198406-198505

BLUE,BLUE,TRIM8#

sub55045-12091

main55045-12090-05iAE86..LHD198406-198408

BEIGE,BEIGE,TRIM3#

sub55045-12091

main55045-12091-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main55045-12091-04iAE86..LHD198505-198707

BLUE,BLUE,TRIM8#

main55045-12100-02iAE86..LHD198408-198505

W/*TIS,DEEP MAROON,MAROON,TRIM3#

sub55045-12101

main55045-12100-04iAE86..LHD198406-198505

W/*TIS,BLUE,BLUE,TRIM8#

sub55045-12101

main55045-12100-05iAE86..LHD198406-198408

W/*TIS,BEIGE,BEIGE,TRIM3#

sub55045-12101

main55045-12101-01iAE86..LHD198505-198707

W/*TIS,BLACK,BLACK,TRIM2#

main55045-12101-04iAE86..LHD198505-198707

W/*TIS,BLUE,BLUE,TRIM8#

main55045-12110-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main55045-12110-04iAE86..RHD198505-198704

BLUE,BLUE,TRIM8#

main55045-12120-01iAE86..RHD198505-198704

W/*TIS,BLACK,BLACK,TRIM2#

main55045-12120-04iAE86..RHD198505-198704

W/*TIS,BLUE,BLUE,TRIM8#

55318BEXTENSION, INSTRUMENT PANEL

main55558-12050iAE86..RHD198305-198704

main55558-12060iAE86..LHD198305-198707

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12100iAE86..RHD198305-198505

main55330-12101iAE86..RHD198505-198704

main55330-12110iAE86..LHD198305-198707

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-12040iAE86..RHD198305-198704

main55306-12050iAE86..LHD198305-198707

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-12090iAE86..RHD198305-198704

main55307-12100iAE86..LHD198305-198707

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-12040-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main55353-12040-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55353-12040-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

main55353-12050-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

sub55353-12050

main55353-12050-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55353-12050

main55353-12050-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

sub55353-12050

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-12090iAE86198305-198707

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55410-12890iAE86..RHD198305-198505

W/*IW

sub55410-12891

main55410-12891iAE86..RHD198505-198704

W/*IW

main55410-1A010iAE86..LHD..(EUR,GEN)198305-198505

W/*IW

sub55410-1A011

main55410-1A011iAE86..LHD..(EUR,GEN)198505-198704

W/*IW

main55410-1A030iAE86..ME198308-198505

sub55410-1A031

main55410-1A031iAE86..ME198505-198707

main55410-1A040iAE86..RHD..SR..GEN198305-198505

sub55410-1A041

main55410-1A041iAE86..RHD..SR198505-198704

main55410-1A050iAE86..LHD..SR..GEN198305-198505

sub55410-1A051

main55410-1A051iAE86..LHD..SR198505-198704

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-12160-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main55401-12160-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55401-12160-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

main55401-12170-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main55401-12170-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55401-12170-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-12040-02iAE86..RHD198408-198505

RH,DEEP MAROON,RED/MAROON,TRIM3#

sub55472-12041

main55472-12040-04iAE86..RHD198305-198505

RH,BLUE,BLUE,TRIM8#

sub55472-12041

main55472-12040-05iAE86..RHD198305-198408

RH,BEIGE,BEIGE,TRIM3#

sub55472-12041

main55472-12041-01iAE86..RHD198505-198704

RH,BLACK,BLACK,TRIM2#

main55472-12041-04iAE86..RHD198505-198704

RH,BLUE,BLUE,TRIM8#

main55472-12050-02iAE86..LHD198408-198505

LH,DEEP MAROON,MAROON,TRIM3#

main55472-12050-04iAE86..LHD198305-198505

LH,BLUE,BLUE,TRIM8#

main55472-12050-05iAE86..LHD198305-198408

LH,BEIGE,BEIGE,TRIM3#

main55472-12051-01iAE86..LHD198505-198707

LH,BLACK,BLACK,TRIM2#

main55472-12051-04iAE86..LHD198505-198707

LH,BLUE,BLUE,TRIM8#

main55473-12020-02iAE86..RHD198408-198505

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub55473-12021

main55473-12020-04iAE86..RHD198305-198505

LH,BLUE,BLUE,TRIM8#

sub55473-12021

main55473-12020-05iAE86..RHD198305-198408

LH,BEIGE,BEIGE,TRIM3#

sub55473-12021

main55473-12021-01iAE86..RHD198505-198704

LH,BLACK,BLACK,TRIM2#

main55473-12021-04iAE86..RHD198505-198704

LH,BLUE,BLUE,TRIM8#

main55473-12030-02iAE86..LHD198408-198505

RH,DEEP MAROON,MAROON,TRIM3#

main55473-12030-04iAE86..LHD198305-198505

RH,BLUE,BLUE,TRIM8#

main55473-12030-05iAE86..LHD198305-198408

RH,BEIGE,BEIGE,TRIM3#

main55473-12031-01iAE86..LHD198505-198707

RH,BLACK,BLACK,TRIM2#

main55473-12031-04iAE86..LHD198505-198707

RH,BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-12070iAE86198305-198707

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-12320iAE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME)198305-198505

main55412-12321iAE86..FRG198505-198704

SWITZERLAND SPEC

sub55412-12320

main55412-12321iAE86..SDZ;AE86..GEN,ME198505-198707

sub55412-12320

main55412-12330iAE86..EUG198308-198505

sub55412-12331

main55412-12331iAE86..EUG,FRG198505-198704

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55429-12030iAE86..EUR,GEN,ME198305-198707

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12200-04iAE86..RHD198305-198406

BLUE,BLUE,TRIM8#

main55432-12200-05iAE86..RHD198305-198406

BEIGE,BEIGE,TRIM3#

main55432-12210-04iAE86..RHD198305-198406

W/*TIS,BLUE,BLUE,TRIM8#

main55432-12210-05iAE86..RHD198305-198406

W/*TIS,BEIGE,BEIGE,TRIM3#

main55432-12220-04iAE86..LHD198305-198406

BLUE,BLUE,TRIM8#

main55432-12220-05iAE86..LHD198305-198406

BEIGE,BEIGE,TRIM3#

main55432-12230-04iAE86..LHD198305-198406

W/*TIS,BLUE,BLUE,TRIM8#

main55432-12230-05iAE86..LHD198305-198406

W/*TIS,BEIGE,BEIGE,TRIM3#

55441BOX, INSTRUMENT PANEL

main55441-12080iAE86..LHD198305-198707

55478ABEZEL, AUTO CLOCK HOLE

main55478-12040-01iAE86198505-198707

BLACK,BLACK,TRIM2#

sub55478-12040

main55478-12040-02iAE86198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55478-12040

main55478-12040-04iAE86198305-198707

BLUE,BLUE,TRIM8#

sub55478-12040

main55478-12040-12iAE86198505-198707

MAROON,MAROON,TRIM3#

sub55478-12040

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-12050-04iAE86..LHD198305-198504

BLUE,BLUE,TRIM8#

sub55560-12051

sub93229-54008

main55560-12050-12iAE86..LHD198408-198504

DEEP MAROON,DEEP MAROON,TRIM3#

sub55560-12051

sub93229-54008

main55560-12050-15iAE86..LHD198305-198408

BEIGE,BEIGE,TRIM3#

sub55560-12051

sub93229-54008

main55560-12051-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

sub55560-12051

main55560-12051-02iAE86..LHD198504-198505

DEEP MAROON,DEEP MAROON,TRIM3#

sub55560-12051

main55560-12051-04iAE86..LHD198505-198707

BLUE,BLUE,TRIM8#

sub55560-12051

main55560-12051-14iAE86..LHD198504-198505

BLUE,BLUE,TRIM8#

sub55560-12051

main55560-12060-02iAE86..RHD198408-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub55560-12051

sub93229-54008

main55560-12060-04iAE86..RHD198305-198504

BLUE,BLUE,TRIM8#

sub55560-12051

sub93229-54008

main55560-12060-15iAE86..RHD198305-198408

BEIGE,BEIGE,TRIM3#

sub55560-12051

sub93229-54008

main55560-12061-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

sub55560-12051

main55560-12061-02iAE86..RHD198504-198505

DEEP MAROON,DEEP MAROON,TRIM3#

sub55560-12051

main55560-12061-04iAE86..RHD198505-198704

BLUE,BLUE,TRIM8#

sub55560-12051

main55560-12061-14iAE86..RHD198504-198505

BLUE,BLUE,TRIM8#

sub55560-12051

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12230-02iAE86..RHD198408-198505

DEEP MAROON,TERACOTTA,TRIM3#

main55550-12230-04iAE86..RHD198305-198505

BLUE,BLUE,TRIM8#

main55550-12230-05iAE86..RHD198305-198408

BEIGE,BEIGE,TRIM3#

main55550-12231-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main55550-12231-04iAE86..RHD198505-198704

BLUE,BLUE,TRIM8#

main55550-12240-02iAE86..LHD198408-198505

DEEP MAROON,MAROON,TRIM3#

main55550-12240-04iAE86..LHD198305-198505

BLUE,BLUE,TRIM8#

main55550-12240-05iAE86..LHD198305-198408

BEIGE,BEIGE,TRIM3#

main55550-12241-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main55550-12241-04iAE86..LHD198505-198707

BLUE,BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAE86198305-198707

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-12031iAE86198305-198707

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iAE86198305-198406

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040iAE86198305-198707

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12120iAE86198305-198707

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-12200iAE86198305-198707

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12090-01iAE86..FRG198505-198704

SWITZERLAND SPEC,BLACK,BLACK,TRIM2#

sub55670-12090

main55670-12090-01iAE86..SDZ;AE86..GEN,ME198505-198707

BLACK,BLACK,TRIM2#

sub55670-12090

main55670-12090-02iAE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55670-12090

main55670-12090-04iAE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME)198305-198707

BLUE,BLUE,TRIM8#

sub55670-12090

main55670-12090-04iAE86..FRG198505-198704

SWITZERLAND SPEC,BLUE,BLUE,TRIM8#

sub55670-12090

main55670-12100-01iAE86..EUG,FRG198505-198510

BLACK,BLACK,TRIM2#

sub55670-12101

main55670-12100-02iAE86..EUG198308-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55670-12101

main55670-12100-04iAE86..EUG,FRG198308-198510

BLUE,BLUE,TRIM8#

sub55670-12101

main55670-12101-01iAE86..EUG,FRG198510-198704

BLACK,BLACK,TRIM2#

sub55670-12101

main55670-12101-04iAE86..EUG,FRG198510-198704

BLUE,BLUE,TRIM8#

sub55670-12101

55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4

main55680-12010-01iAE86..RHD..GEN198505-198704

BLACK,BLACK,TRIM2#

sub55680-12010

main55680-12010-02iAE86..RHD..(ARL,GEN)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55680-12010

main55680-12010-04iAE86..RHD..(ARL,GEN)198305-198704

BLUE,BLUE,TRIM8#

sub55680-12010

main55680-12020-01iAE86..FRG198505-198704

SWITZERLAND SPEC,BLACK,BLACK,TRIM2#

sub55680-12020

main55680-12020-01iAE86..SDZ;AE86..LHD..(GEN,ME)198505-198707

BLACK,BLACK,TRIM2#

sub55680-12020

main55680-12020-02iAE86..LHD..SR;AE86..GT..SDZ;AE86..LHD..GT..(GEN,ME)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55680-12020

main55680-12020-04iAE86..LHD..SR;AE86..GT..SDZ;AE86..LHD..GT..(GEN,ME)198305-198707

BLUE,BLUE,TRIM8#

sub55680-12020

main55680-12020-04iAE86..FRG198505-198704

SWITZERLAND SPEC,BLUE,BLUE,TRIM8#

sub55680-12020

main55680-12030-01iAE86..RHD..EUG198505-198510

BLACK,BLACK,TRIM2#

sub55680-12031

main55680-12030-02iAE86..RHD..EUG198308-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55680-12031

main55680-12030-04iAE86..RHD..EUG198308-198510

BLUE,BLUE,TRIM8#

sub55680-12031

main55680-12031-01iAE86..RHD..EUG198510-198704

BLACK,BLACK,TRIM2#

sub55680-12031

main55680-12031-04iAE86..RHD..EUG198510-198704

BLUE,BLUE,TRIM8#

sub55680-12031

main55680-12040-01iAE86..LHD..(EUG,FRG)198505-198510

BLACK,BLACK,TRIM2#

sub55680-12041

main55680-12040-02iAE86..LHD..EUG198308-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55680-12041

main55680-12040-04iAE86..LHD..(EUG,FRG)198308-198510

BLUE,BLUE,TRIM8#

sub55680-12041

main55680-12041-01iAE86..LHD..(EUG,FRG)198510-198704

BLACK,BLACK,TRIM2#

sub55680-12041

main55680-12041-04iAE86..LHD..(EUG,FRG)198510-198704

BLUE,BLUE,TRIM8#

sub55680-12041

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12110-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main55961-12110-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55961-12110-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

main55962-12110-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main55962-12110-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55962-12110-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-12120-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main55961-12120-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55961-12120-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

main55962-12100-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main55962-12100-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55962-12100-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

9011906077

main90119-06077

9015140005

main90151-40005

9017906078

main90179-06078

9017906097

main90179-06097

9017908025

main90179-08025

9018305005

main90183-05005

9018305103

main90183-05103

9046714002

main90467-14002

9165640816

main91656-40816

9166540616

main91665-40616

9352055012

main93520-55012

9354024012

main93540-24012

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

43 parts on this diagram · 3 diagrams in section
