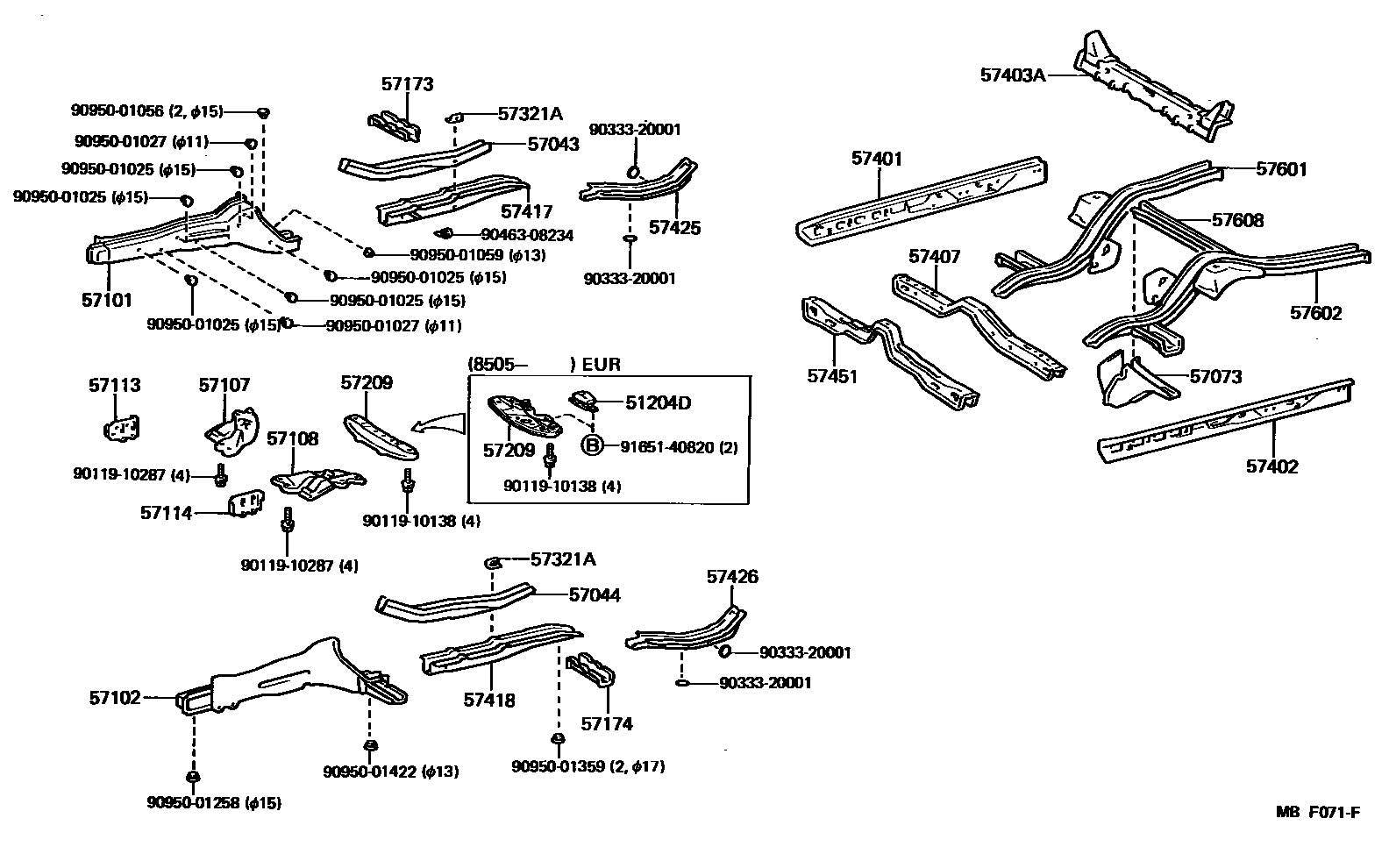

FLOOR SIDE MEMBER

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-12040iAE86..EUR198505-198704

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57016-12010iAE86..ME198308-198707

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57017-12010iAE86..ME198308-198707

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-12030iAE86198305-198707

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12180iAE86..ARL,EUR,GEN198305-198704

sub57101-12190

main57101-12190iAE86..ME198308-198707

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12180iAE86..ARL,EUR,GEN198305-198704

sub57102-12190

main57102-12190iAE86..ME198308-198707

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-12040iAE86198408-198707

main57107-12050iAE86198305-198408

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-12040iAE86..SR;AE86..RHD..GT..GEN198408-198704

main57108-12050iAE86..SR;AE86..GT..GEN198305-198408

W/O OIL COOLER

sub57108-12070

main57108-12070iAE86..LHD..GT;AE86..RHD..EUG198308-198408

W/OIL COOLER

main57108-12080iAE86..GT198408-198707

W/OIL COOLER

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12060iAE86198305-198707

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12060iAE86198305-198707

57173BOX, TORQUE, FRONT NO.2 RH

main57173-12010iAE86198305-198707

57174BOX, TORQUE, FRONT NO.2 LH

main57174-12010iAE86198305-198707

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-12280iAE86..5F198305-198507

main57209-12310iAE86..5F..(GEN,ME)198507-198707

main57209-12340iAE86..4FC198305-198704

main57209-12350iAE86..EUG,SDZ198508-198704

main57209-12360iAE86..FRG198508-198704

57321ARETAINER, CATALYTIC CONVERTER MOUNTING

main57321-12040iAE86..ARL,EUR,GEN198305-198704

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12160iAE86..ARL,GEN,ME198305-198505

sub57401-12170

main57401-12170iAE86198308-198707

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12160iAE86..ARL,GEN,ME198305-198505

sub57402-12170

main57402-12170iAE86..EUR198308-198707

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-12030iAE86..3D198305-198707

main57403-12040iAE86..2D198305-198704

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-12010iAE86198305-198707

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12040iAE86..ARL,EUR,GEN198305-198704

main57417-12050iAE86..ME198305-198707

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-12040iAE86..ARL,EUR,GEN198305-198704

main57417-12050iAE86..ME198305-198707

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-12030iAE86198305-198707

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-12030iAE86198305-198707

57451MEMBER, FRONT FLOOR CROSS

main57408-12030iAE86198305-198707

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12910iAE86..ARL,EUR,GEN198305-198408

main57601-12911iAE86..ME198308-198707

main57601-12913iAE86..ARL,EUR,GEN198408-198704

sub57601-12915

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12910iAE86..ARL,EUR,GEN198305-198408

main57602-12911iAE86..ME198308-198707

main57602-12913iAE86..ARL,EUR,GEN198408-198704

sub57602-12915

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57405-12040iAE86198305-198707

9011910138

main90119-10138

9011910287

main90119-10287

9033320001

main90333-20001

9046308234

main90463-08234

9095001025

main90950-01025

9095001027

main90950-01027

9095001056

main90950-01056

9095001059

main90950-01059

9095001258

main90950-01258

9095001359

main90950-01359

9095001422

main90950-01422

9165140820

main91651-40820

38 parts on this diagram · 1 diagram in section
