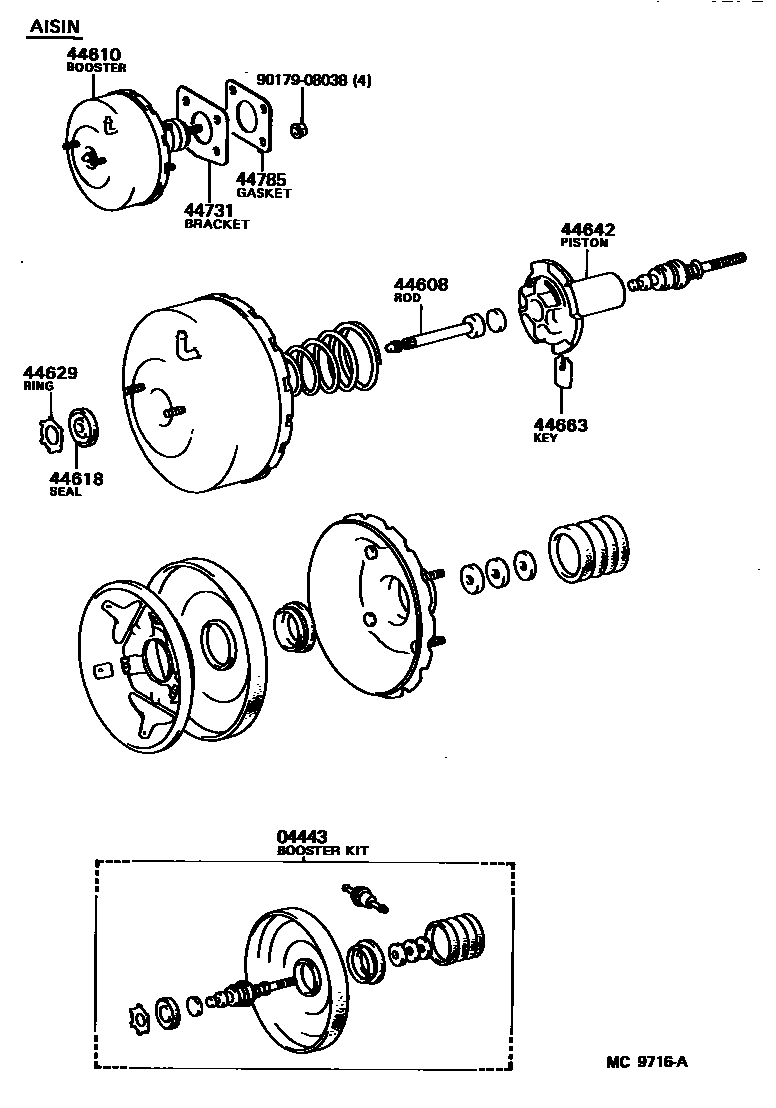

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-12250iAE86..GEN,ME198305-198707

main04443-12280iAE86..RHD..(ARL,EUR)198305-198505

main04443-12280iAE86..LHD..EUR198308-198505

AISIN

main04443-12290iAE86..LHD..EUR198308-198505

JKC

main04443-12460iAE86..EUR198505-198704

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAE86198305-198707

AISIN

main44608-32020iAE86..LHD..EUR198308-198704

JKC

44610BOOSTER ASSY, BRAKE

main44610-12390iAE86..RHD..GEN198305-198704

main44610-12420iAE86..RHD..(ARL,EUR)198305-198505

main44610-12430iAE86..LHD..EUR198308-198508

AISIN

main44610-12440iAE86..LHD..EUR198308-198704

JKC

main44610-12450iAE86..LHD..(GEN,ME)198305-198707

main44610-12610iAE86..RHD..EUG198505-198704

main44610-12620iAE86..LHD..EUR198508-198704

AISIN

44618SEAL, BOOSTER BODY

main44621-28120iAE86198305-198707

44629RING, CIRCULAR INTERNAL

main44628-28120iAE86198305-198707

44642PISTON, BRAKE BOOSTER

main44642-16050iAE86..ARL,EUR198305-198704

main44642-27150iAE86..GEN,ME198305-198707

44663KEY, VALVE STOPPER

main44635-28120iAE86198305-198707

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-14020iAE86198305-198707

44785GASKET, BRAKE BOOSTER

main44785-14010iAE86198305-198707

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
