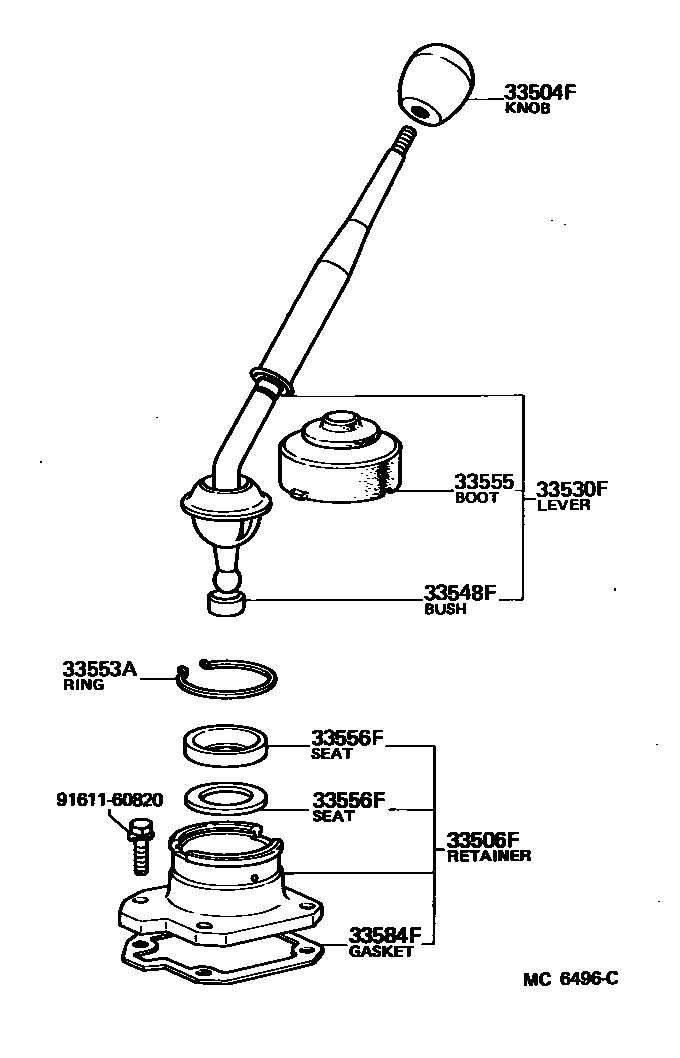

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-01iAE86..5F198305-198707

BLACK,BLACK,TRIM2#

sub33504-24010

main33542-24030-01iAE86..4FC198305-198505

BLACK,BLACK,TRIM2#

sub33542-24030

main33542-32050-01iAE86..4FC198505-198704

BLACK,BLACK,TRIM2#

sub33542-32050

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14021iAE86..5F198305-198707

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12330iAE86..RHD..SR198305-198704

main33530-12340iAE86..LHD..5F..SR198305-198704

main33530-12450iAE86..RHD..GT198308-198707

main33530-12460iAE86..LHD..GT198308-198707

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-14010iAE86..5F198305-198707

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-49003iAE86..5F198305-198707

33555BOOT, SHIFT LEVER

main33555-12080iAE86..4FC198305-198704

main33555-12090iAE86..5F198305-198707

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-14010iAE86..5F198305-198707

T=13.5

main33556-14020iAE86..5F198305-198707

T=3.0

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-20010iAE86..5F198305-198707

9161160820

main91611-60820

9 parts on this diagram · 3 diagrams in section
