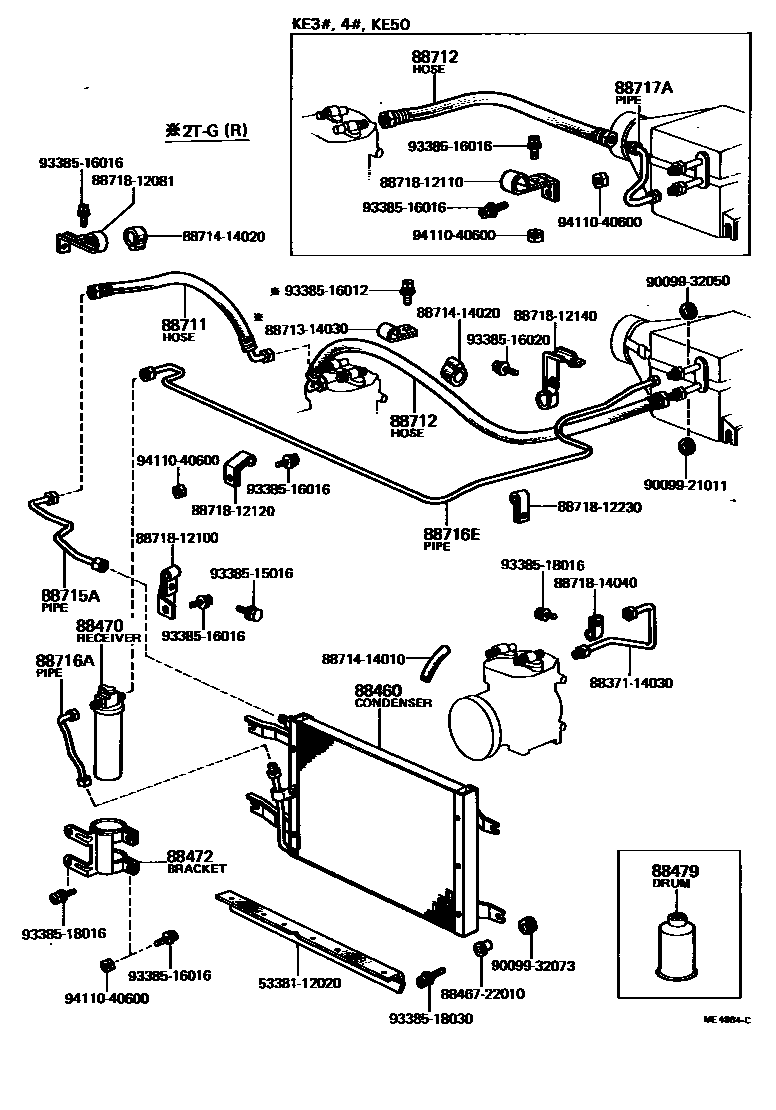

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88460CONDENSER ASSY, COOLER

main88460-12030iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

main88460-12031iKE3#..LHD197701-197709

main88460-12060iKE3#,50,TE47..GEN197709-197805

sub88460-12070

main88460-12070iKE30,35,36,50,TE47,51..GEN197805-198107

88470RECEIVER & DRYER ASSY, COOLER

main88470-10010iKE3#..LHD197408-197709

sub88470-12021

main88470-12021iKE3#,50,TE47..GEN197709-197805

main88470-95400iKE30,35,36,50,TE47,51..GEN197805-198107

sub88470-20070

88472BRACKET, RECEIVER TANK, NO.1

main88472-12120iKE3#..LHD197408-197805

main88472-12130iTE47..GT197408-197805

sub88472-12131

main88472-12131iTE47..GT..GEN197805-197902

main88472-12160iKE30,35,36,50,TE47,51..ARL,GEN197805-198107

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main88434-30010iTE47..GEN197408-198107

sub90986-02001

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-12070iTE47,51..RHD197511-197701

sub88711-12090

main88711-12071iTE47..RHD197701-197805

main88711-12080iKE3#,50..GEN197511-197805

main88711-12111iTE47..GT197805-197902

main88711-12120iTE47,51..GEN197805-197908

main88711-14030iKE3#..LHD197408-197805

sub88711-12210

main88711-30420iKE30,35,36,50..ARL,GEN197805-198107

sub88711-22160

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-12070iTE47..RHD..GT197408-197805

main88712-12110iKE3#..LHD197408-197701

main88712-12120iTE47..RHD197511-197805

main88712-12140iKE3#,50..RHD197701-197805

main88712-12160iKE30,35,36,50..LHD..GEN197701-198107

main88712-12230iKE30,35,36,50..RHD..GEN197805-198107

main88712-12240iTE47,51..RHD..GEN197805-197908

main88712-12270iTE47,51..LHD..GEN197805-197908

main88712-20060iTE47..RHD..(LT,ST)197408-197511

main88712-22060iKE3#,50..RHD..(ARL,GEN)197511-197701

sub88712-12140

main88712-60040iKE3#..RHD..GEN197408-197511

main88712-89101iTE47..LHD197709-197805

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-12040iKE3#..LHD197408-197511

main88715-12041iTE47..GT197511-197805

main88715-12042iKE30,36..GEN197701-197805

main88715-12050iTE47,51..RHD197511-197701

sub88715-12190

main88715-12051iTE47..RHD197701-197709

main88715-12061iTE47..GT..GEN197805-197902

main88715-12070iKE35,50..GEN197708-198107

main88715-12071iTE47..RHD197709-197908

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-12140iKE3#..LHD197408-197701

main88716-12141iKE3#..LHD..GEN197701-197709

main88716-12170iTE47..RHD..GT197408-197511

main88716-12171iTE47..GT197709-197902

main88716-12300iKE35,50..GEN197708-198107

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-12130iKE3#,TE47..RHD..(DLX,LT,ST,STD)..GEN197408-197511

main88716-12131iKE3#,50,TE47..RHD197511-198107

main88716-12150iKE35..RHD..SR197408-197511

main88716-12151iKE35..RHD197701-197908

main88716-12160iTE47..RHD..GT197408-197511

main88716-12161iTE47..RHD..GT197709-197902

main88716-12220iKE3#..LHD197408-197709

main88716-12250iTE47..RHD..(LT,ST)197511-197601

main88716-12261iKE30,35,36,50,TE47,51..LHD197808-198002

main88716-12351iTE47..LHD..GT197805-197902

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-12060iKE3#,50..RHD..(ARL,GEN)197408-197607

sub88717-12061

main88717-12061iKE30,36..4D..GEN197607-198107

main88717-12070iKE35..GEN197408-197908

main88717-12080iKE3#..LHD197408-197709

5338112020SEAL, HOOD TO RADIATOR SUPPORT

main53381-12020

8837114030FAN, COOLER BLOWER, NO.2

main88371-14030

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

8871314030HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88713-14030

8871414010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14010

8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14020

8871812081PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12081

8871812100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12100

8871812110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12110

8871812120PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12120

8871812140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12140

8871812230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12230

8871814040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14040

9009921011

main90099-21011

9009932050

main90099-32050

9009932073

main90099-32073

9338515016

main93385-15016

9338516012

main93385-16012

9338516016

main93385-16016

9338516020

main93385-16020

9338518016

main93385-18016

9338518030

main93385-18030

9411040600

main94110-40600

33 parts on this diagram · 3 diagrams in section
