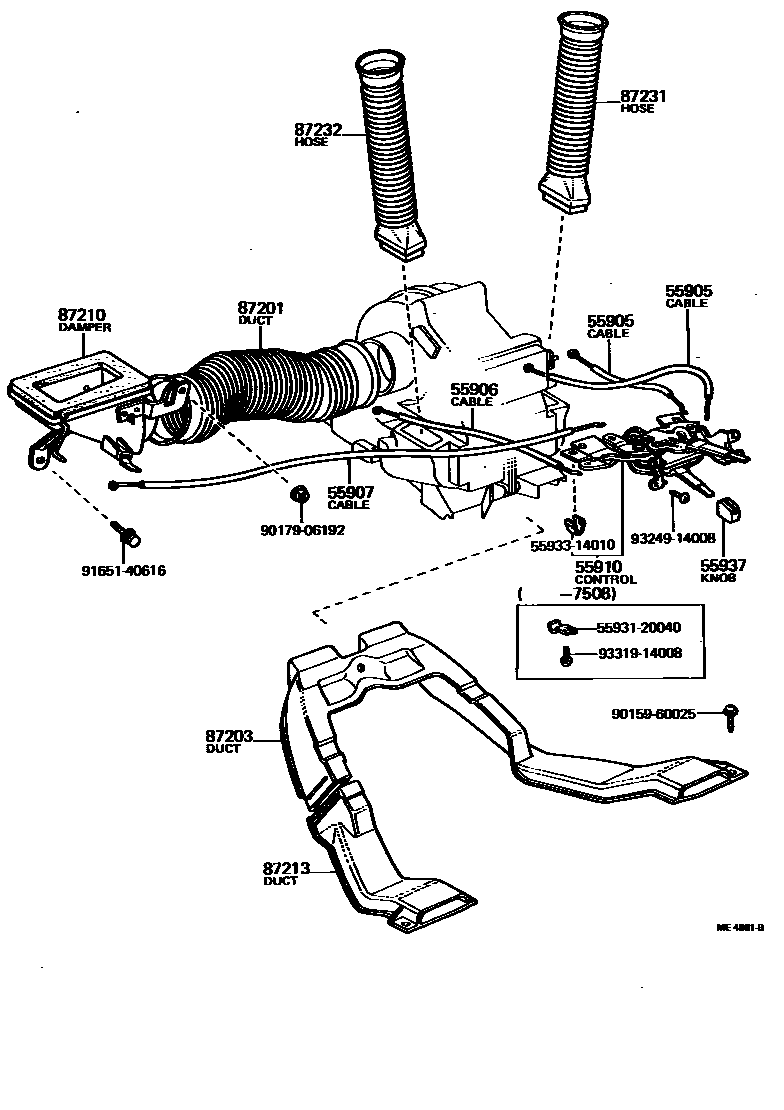

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-12040iTE3#;KE3#..ARL,EUR,GEN197408-197701

DEFROSTER DUMPER

main55906-12041iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

DEFROSTER DUMPER

main55906-12060iKE50,TE47,51..RHD197408-197701

DEFROSTER DUMPER

main55906-12080iKE50,TE47,51..LHD197408-197701

DEFROSTER DUMPER

main55906-12090iKE5#,TE47,51..(CP,LB)..RHD197701-197908

DEFROSTER DUMPER

main55906-12100iKE50,TE47,51..LHD197701-197908

DEFROSTER DUMPER

main55906-12110iKE30,35,36..LHD197701-198002

DEFROSTER DUMPER

main55909-12040iKE3#..LHD197408-197701

BOOST VENTILATOR DUMPER

main55909-12041iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

BOOST VENTILATOR DUMPER

main55909-12070iKE3#..LHD197603-197701

BOOST VENTILATOR DUMPER

main55909-12071iKE30,35,36..LHD197701-198002

BOOST VENTILATOR DUMPER

main55909-12080iKE50,TE47,51..LHD197408-197701

BOOST VENTILATOR DUMPER

main55909-12090iKE5#,TE47,51..(CP,LB)..RHD197701-197908

BOOST VENTILATOR DUMPER

main55909-12100iKE50,TE47,51..LHD197701-197908

BOOST VENTILATOR DUMPER

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-12010iKE3#,TE3#..RHD197408-197701

main55907-12011iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55907-12030iKE50,TE47,51..RHD197408-197701

main55907-12040iKE3#..LHD197408-197701

main55907-12041iKE30,35,36..LHD197701-198002

main55907-12050iKE50,TE47,51..LHD197408-197701

main55907-12060iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55907-12070iKE50,TE47,51..LHD197701-197908

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-12040iKE30,35,TE3#..RHD;KE36..RHD..(ARL,GEN)197408-197701

main55908-12041iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55908-12060iKE50,TE47,51..RHD197408-197701

main55908-12070iKE3#..LHD197408-197701

main55908-12071iKE30,35,36..LHD197701-198002

main55908-12080iKE50,TE47,51..LHD197408-197701

main55908-12090iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55908-12100iKE50,TE47,51..LHD197701-197908

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12909iKE3#..RHD..GEN197408-197412

main55910-12911iTE47..RHD197408-197412

main55910-12912iKE3#..LHD197408-197412

sub55910-12915

main55910-12913iTE47..LHD197408-197412

sub55910-12917

main55910-12914iKE30,35,TE3#..RHD;KE36..RHD..(ARL,GEN)197412-197608

main55910-12915iKE3#..LHD197412-197608

main55910-12916iKE50,TE47,51..RHD197412-197608

main55910-12917iKE50,TE47,51..LHD197412-197608

main55910-12918iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55910-12919iKE30,35,36..LHD197701-198002

main55910-12920iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55910-12921iKE50,TE47,51..LHD197701-197908

main55910-12922iKE3#,TE3#..RHD197608-197701

main55910-12923iKE50,TE47,51..RHD197608-197701

main55910-12924iKE3#..LHD197608-197701

main55910-12925iKE50,TE47,51..LHD197608-197701

55937KNOB, HEATER CONTROL LEVER

main55905-12040iTE3#;KE3#,50,TE47,51..ARL,EUR,GEN197408-198107

87201DUCT SUB-ASSY, AIR, NO.1

main87211-12010iKE3#,5#,TE3#,47,51..RHD197408-198107

main87211-12020iKE30,35,36,50,TE47,51..LHD197408-198002

87203DUCT, HEATER AIR, REAR NO.1

main87212-12020-01iKE50,TE47,51197508-197701

BLACK,BLACK,TRIM0#,2#

sub87212-12020

main87212-12020-04iKE30,35,50,TE47,51..LHD..EUR197805-197908

BLUE,BLUE,TRIM8#

sub87212-12020

main87212-12020-06iKE30,35..LHD197508-197701

BROWN,BROWN,TRIM0#,4#

sub87212-12020

main87212-12020-11iKE30,35,50,TE47,51..EUR197701-197908

BLACK,BLACK,TRIM2#

sub87212-12020

main87212-12020-16iKE30,35,50,TE47,51..EUR197701-197908

BROWN,BROWN,TRIM4#

sub87212-12020

87210DAMPER ASSY, AIR

main87210-12010iKE3#,5#,TE3#,47,51..RHD197408-198107

main87210-12020iKE30,35,36,50,TE47,51..LHD197408-198002

87213DUCT, AIR, REAR NO.2

main87212-12030-01iKE50,TE47,51197508-197701

BLACK,BLACK,TRIM0#,2#

sub87212-12030

main87212-12030-04iKE30,35,50,TE47,51..LHD..EUR197805-197908

BLUE,BLUE,TRIM8#

sub87212-12030

main87212-12030-06iKE50,TE47,51197508-197701

BROWN,BROWN,TRIM0#,4#

sub87212-12030

main87212-12030-11iKE30,35,50,TE47,51..EUR197701-197908

BLACK,BLACK,TRIM2#

sub87212-12030

main87212-12030-16iKE30,35,50,TE47,51..LHD..EUR197701-197908

BROWN,BROWN,TRIM4#

sub87212-12030

87231HOSE, HEATER DEFROSTER, RH

main87231-12050iTE3#;KE3#,50,TE47,51..ARL,EUR,GEN197408-197701

sub87231-12051

main87231-12051iKE3#,5#,TE3#,47,51197701-198107

87232HOSE, HEATER DEFROSTER, LH

main87231-12050iTE3#;KE3#,50,TE47,51..ARL,EUR,GEN197408-197701

sub87231-12051

main87231-12051iKE3#,5#,TE3#,47,51197701-198107

5593120040CLAMP, HEATER CONTROL WIRE

main55931-20040

5593314010GUIDE, LEVER, NO.2

main55933-14010

9015960025

main90159-60025

9017906192

main90179-06192

9165140616

main91651-40616

9324914008

main93249-14008

9331914008

main93319-14008

18 parts on this diagram · 4 diagrams in section
