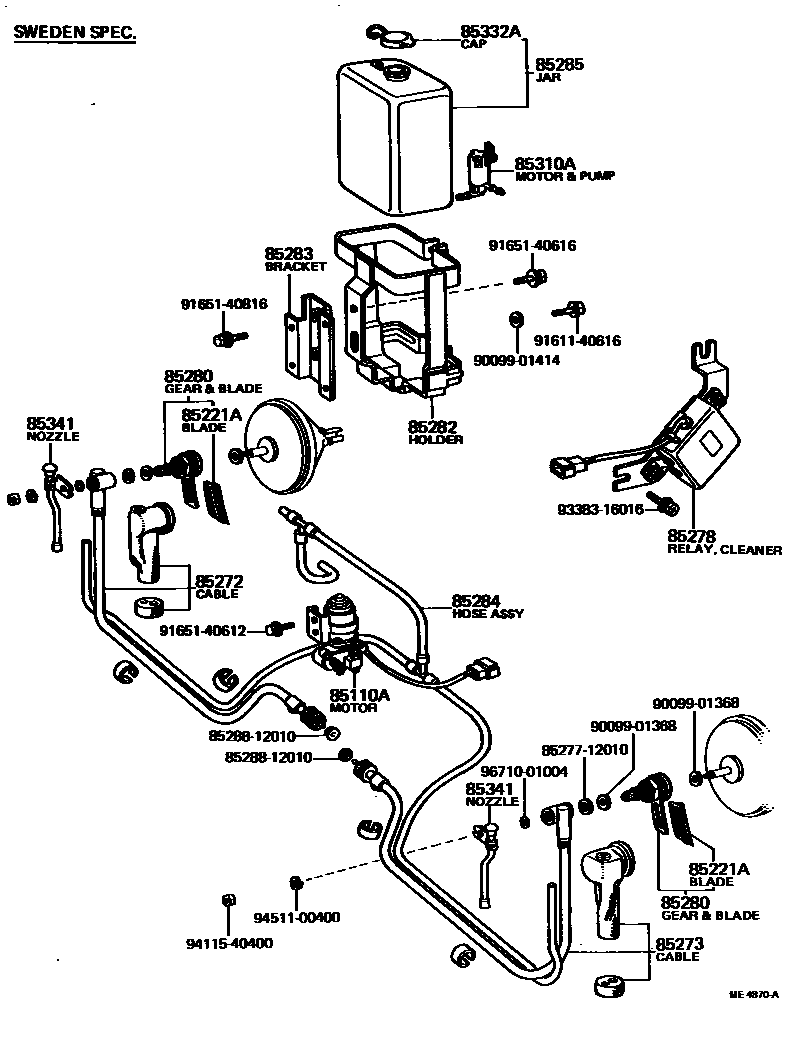

HEADLAMP CLEANER

0001 1 0002 1 0003 1

85110AMOTOR ASSY, HEADLAMP CLEANER

main85110-12110iKE3#..LHD197408-197508

85221ABLADE ASSY, HEADLAMP CLEANER

main85221-12100×2iKE3#..LHD197408-197508

85272CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-12010iKE3#..LHD197408-197508

85273CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-14010iKE3#..LHD197408-197508

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-12010iKE3#..SDN197508-197701

main85276-12020iKE3#..LHD197408-197508

main85276-14010iKE30,35,36,50..SDN197805-197908

main85276-22010iKE3#,50..SDN197701-197805

85280GEAR AND BLADE SUB-ASSY, HEADLAMP CLEANER

main85280-12010×2iKE3#..LHD197408-197508

85282HOLDER ASSY, HEADLAMP CLEANER WASHER JAR

main85282-12010iKE3#..LHD197408-197508

main85361-12040iKE3#..SDN197701-197805

main85361-12060iKE3#..SDN197508-197701

main85361-12080iKE30,35,36..SDN197805-197908

main85361-12090iKE50..SDN197805-197908

85283BRACKET, HEADLAMP CLEANER WASHER

main85283-12020iKE3#..LHD197408-197508

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main85284-12020iKE3#..LHD197408-197508

main90446-07002iKE30,35,36,50..SDN197508-197908

sub90446-07004

85285JAR, HEADLAMP CLEANER WASHER

main85330-12040iKE3#..LHD197408-197508

main85330-12060iKE30,35,36,50..SDN197508-197908

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-12020iKE3#..LHD197408-197508

main85310-12040iKE3#..SDN197508-197701

main85310-12050iKE3#,50..SDN197701-197805

main85310-12080iKE30,35,36..SDN197805-197908

main85310-12090iKE50..SDN197805-197908

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85033-20070iKE3#..LHD197408-197508

sub85332-30050

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-12060×2iKE3#..SDN197508-197805

main85035-12070iKE50..SDN197701-197805

RH

main85035-12080iKE50..SDN197701-197805

LH

main85044-12010iKE30,35,36..SDN197805-197908

RH

main85044-12020iKE50..SDN197805-197908

RH

main85045-12010iKE30,35,36..SDN197805-197908

LH

main85045-12020iKE50..SDN197805-197908

LH

main85341-22040iKE3#..LHD197408-197508

RH

sub85341-22090

main85341-22050iKE3#..LHD197408-197508

LH

sub85341-22100

8527712010HOSE, HEADLAMP CLEANER, C

main85277-12010

8528812010JOINT, HEADLAMP CLEANER HOSE NO.2

main85288-12010

9009901368

main90099-01368

9009901414

main90099-01414

9161140616

main91611-40616

9165140612

main91651-40612

9165140616

main91651-40616

9165140816

main91651-40816

9338316016

main93383-16016

9411540400

main94115-40400

9451100400

main94511-00400

9671001004

main96710-01004

25 parts on this diagram · 3 diagrams in section
