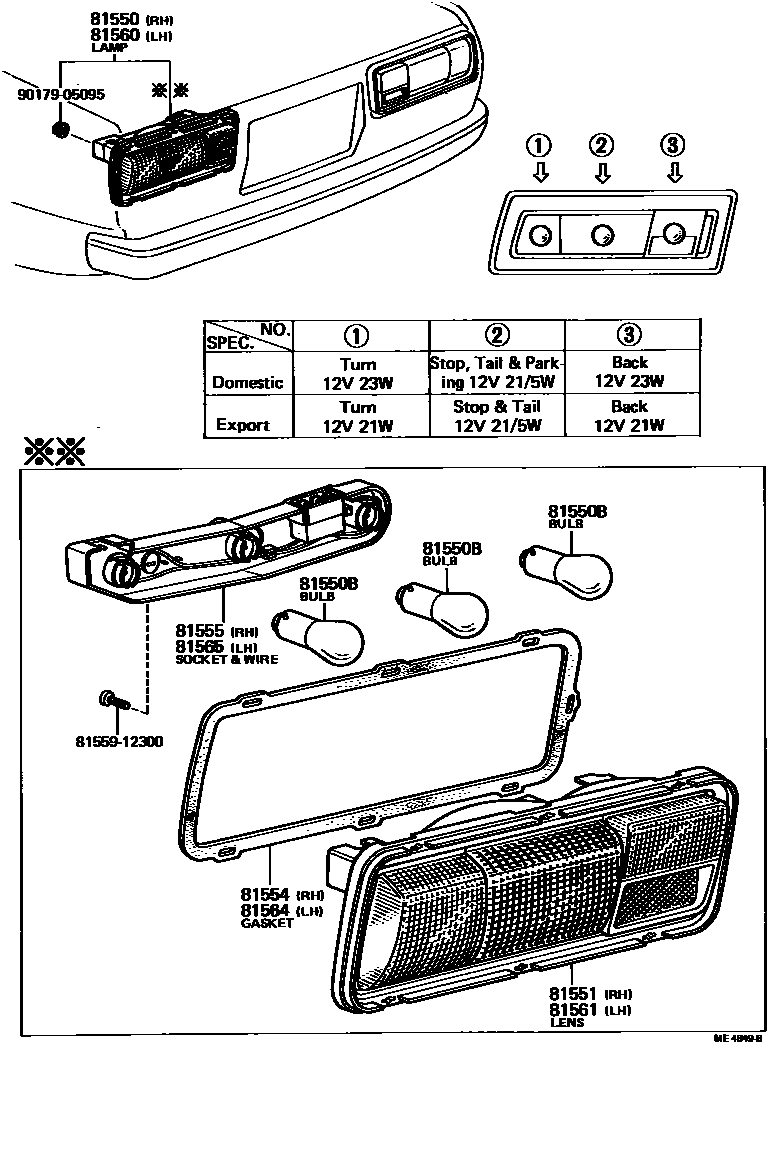

REAR COMBINATION LAMP

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-19705iKE30,TE31197408-197701

main81550-19715iKE35,TE37197408-197701

main81550-19725iKE36,38197408-198107

sub81550-13180

main81550-19735iTE47197408-197701

main81550-19775iKE35..LHD197408-197701

*WG

main81550-80074iKE38198004-198107

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11050iTE47197408-197902

12V 5W,12V 5W

main99132-11210iKE3#,5#,TE3#,47,51197408-198107

12V 21W,12V 21W

main99132-21210iKE3#,5#,TE3#,51197408-198107

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-12320iKE35,TE37197408-198004

main81551-12350iTE47197408-197902

main81551-12370iKE5#,TE51..LB197603-197908

main81551-12390iKE30,TE31197408-198004

main81551-12440iKE35..LHD..EUR197408-197908

*WG

main81551-12500iKE30,TE31197805-198107

main81551-13180iKE36,38197408-198107

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-12320iKE35,TE37197408-198004

main81552-12350iTE47197408-197902

main81554-12280iKE5#,TE51..LB197603-197908

main81554-12300iKE30,TE31197408-198004

main81554-12301iKE30,TE31197805-198107

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12300iKE30,TE31197408-197701

main81555-12301iKE30,TE31197805-198107

main81555-12320iKE35,TE37197408-197701

main81555-12370iKE50,TE51197603-197707

main81555-12371iKE5#,TE51..LB197707-197908

main81555-12391iKE30,TE31197701-197707

main81555-12392iKE30,TE31197707-198004

main81555-12410iKE35,TE37197707-198004

EXCL/*WG

main81555-12410iKE35,TE37197701-197707

main81555-12411iKE35..LHD..EUR197707-197805

*WG

main81555-12430iTE47197408-197701

main81555-12431iTE47197701-197707

main81555-12432iTE47197707-197902

main81555-12443iKE35..LHD..EUR197805-197908

*WG

main81555-12501iKE55..STD198004-198107

main81555-13170iKE36,38197408-198107

81560LAMP ASSY, REAR COMBINATION, LH

main81560-19685iKE55..STD197408-198004

main81560-19695iKE35,TE37197408-197701

main81560-19705iKE36197408-198107

sub81560-13180

main81560-19715iTE47197408-197902

main81560-19755iKE35..LHD197408-197701

*WG

main81560-19795iKE5#,TE51..LB197603-197908

main81560-80017iKE30,TE31197805-198107

main81560-80076iKE55..STD198004-198107

main81560-80077iKE38198004-198107

81561LENS, REAR COMBINATION LAMP, LH

main81561-12320iKE35,TE37197408-198004

main81561-12350iTE47197408-197902

main81561-12370iKE5#,TE51..LB197603-197908

main81561-12390iKE30,TE31197408-198004

main81561-12440iKE35..LHD..EUR197408-197908

*WG

main81561-12500iKE30,TE31197805-198107

main81561-13180iKE36,38197408-198107

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-12320iKE35,TE37197408-198004

main81562-12350iTE47197408-197902

main81564-12280iKE5#,TE51..LB197603-197908

main81564-12300iKE30,TE31197408-198004

main81564-12301iKE30,TE31197805-198107

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13170iKE36197408-198107

main81565-12300iKE30,TE31197408-198004

main81565-12301iKE55..STD197805-198107

main81565-12320iKE35,TE37197408-197701

main81565-12370iKE5#,TE51..LB197603-197908

main81565-12430iTE47197408-197902

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

9017905095

main90179-05095

11 parts on this diagram · 9 diagrams in section
