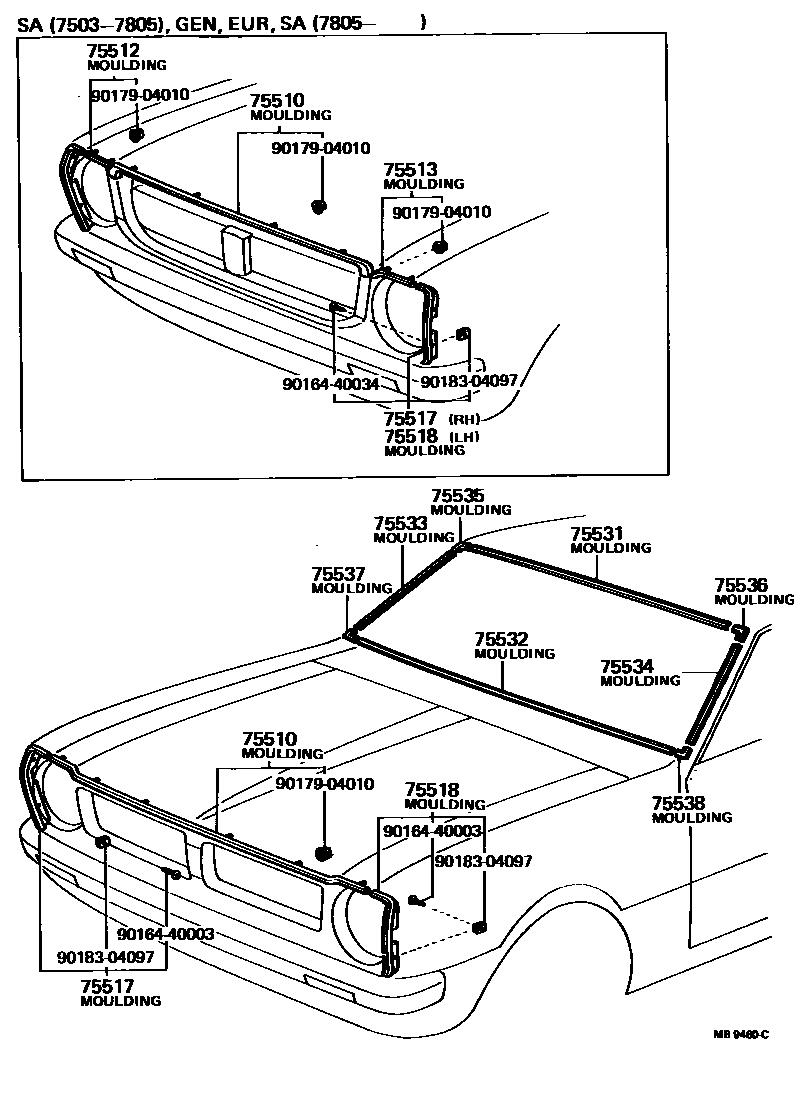

FRONT MOULDING

75510MOULDING ASSY, RADIATOR GRILLE OPENING, UPPER

main75770-19015iKE30..ARL,EUR,GEN197408-197808

main75770-19025iTE3#197503-197701

main75770-19055iKE30,TE3#..SA197701-198107

main75770-19105iKE30..GEN197805-198107

main75770-19195iKE38,55198003-198107

75512MOULDING, RADIATOR GRILLE OPENING, RH

main75076-19025iKE30,36,TE3#..SA197503-198107

main75780-19035iKE3#,55..ARL,EUR,GEN197805-198107

75513MOULDING, RADIATOR GRILLE OPENING, LH

main75077-19025iKE30,36,TE37..SA197503-198107

main75790-19035iTE31197805-198107

75517MOULDING, RADIATOR GRILLE OPENING LOWER, RH

main75601-19015iKE3#,TE3#197408-198107

main75601-19045iKE3#,55..ARL,EUR,GEN197805-198107

75518MOULDING, RADIATOR GRILLE OPENING LOWER, LH

main75602-19015iKE30,36,TE3#..SA197408-198107

main75602-19045iKE3#,55..ARL,EUR,GEN197805-198107

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12120iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

sub75575-12040

main75571-12090iKE5#,TE47,51..CP,LB197408-197908

sub75531-12120

75532MOULDING, WINDSHIELD, LOWER

main75535-12050iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main75535-12070iKE5#,TE47,51..CP,LB197408-197908

sub75535-12050

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12140iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main75533-12150iKE5#,TE47,51..CP,LB197408-197908

sub75533-12140

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75533-12140iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main75533-12150iKE5#,TE47,51..CP,LB197408-197908

sub75533-12140

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-12030iKE5#,TE47,51..CP,LB197408-197908

main75541-12050iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75541-12030iKE5#,TE47,51..CP,LB197408-197908

main75541-12050iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75543-12010iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main75543-12030iKE5#,TE47,51..CP,LB197408-197908

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75543-12010iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main75543-12030iKE5#,TE47,51..CP,LB197408-197908

9016440003

main90164-40003

9016440034

main90164-40034

9017904010

main90179-04010

9018304097

main90183-04097

17 parts on this diagram · 1 diagram in section
