REAR SEAT & SEAT TRACK

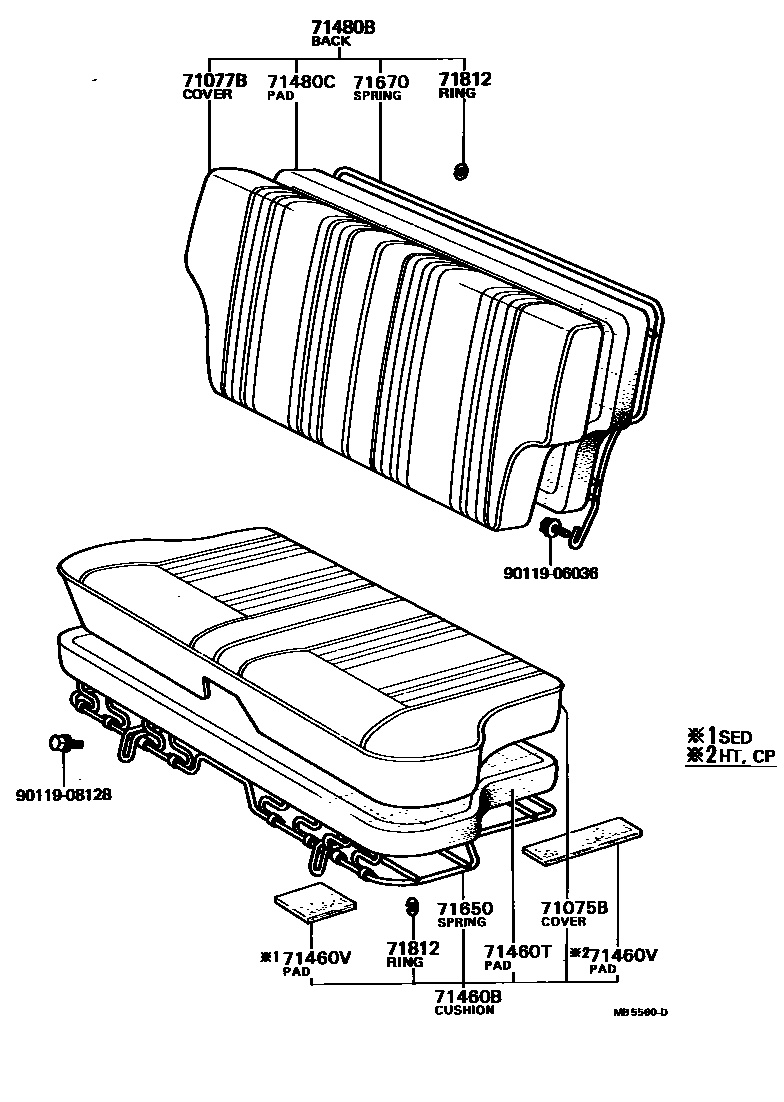

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71065-12440-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71065-12440-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71065-12450-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71065-12450-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71065-12451-03i197805-197902
FB,GRAY & BLACK,GRAY,TRIM2#
main71065-12451-04i197805-197902
FB,BLUE,BLUE,TRIM8#
main71065-12451-06i197805-197902
FB,LIGHT BROWN,BROWN,TRIM4#
main71065-12460-01i197701-197902
PF,BLACK,BLACK,TRIM2#
main71065-12460-04i197805-197902
PF,BLUE,BLUE,TRIM8#
main71065-12460-06i197701-197902
PF,LIGHT BROWN,BROWN,TRIM4#
main71065-12470-01i197701-197805
PF,BLACK,BLACK,TRIM2#
main71065-12470-06i197701-197805
PF,LIGHT BROWN,BROWN,TRIM4#
main71065-12500-01i197701-198004
PF,BLACK,BLACK,TRIM2#
main71065-12500-04i197805-198004
PF,BLUE,BLUE,TRIM8#
main71065-12500-06i197701-198004
PF,LIGHT BROWN,BROWN,TRIM4#
main71065-12510-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71065-12510-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71065-12510-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71065-12520-01i197701-198004
PF,BLACK,BLACK,TRIM2#
main71065-12520-04i197805-198004
PF,BLUE,BLUE,TRIM8#
main71065-12520-06i197701-198004
PF,LIGHT BROWN,BROWN,TRIM4#
main71065-12650-01i197805-197908
PF,BLACK,BLACK,TRIM2#
main71065-12650-04i197805-197908
PF,BLUE,BLUE,TRIM8#
main71065-12650-06i197805-197908
PF,LIGHT BROWN,BROWN,TRIM4#
main71065-12660-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71065-12660-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71065-12660-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-12420-01i197408-197503
PF,BLACK,BLACK,TRIM0#,2#
sub71075-12421
main71075-12420-06i197408-197503
PF,BROWN,BROWN,TRIM0#,4#
sub71075-12421
main71075-12420-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71075-12421
main71075-12421-01i197503-197608
PF,BLACK,BLACK,TRIM2#
main71075-12421-06i197503-197608
PF,BROWN,BROWN,TRIM4#
main71075-12421-08i197503-197608
PF,IVORY,IVORY,TRIM0#
main71075-12422-01i197608-197701
PF,BLACK,BLACK,TRIM2#
main71075-12422-06i197608-197701
PF,BROWN,BROWN,TRIM4#
main71075-12422-08i197608-197701
PF,IVORY,IVORY,TRIM0#
main71075-12423-01i197701-197808
PF,BLACK,BLACK,TRIM2#
main71075-12423-06i197701-197808
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-12470-01i197408-197503
PF,BLACK,BLACK,TRIM0#,2#
sub71075-12471
main71075-12470-06i197408-197503
PF,BROWN,BROWN,TRIM0#,4#
sub71075-12471
main71075-12470-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71075-12471
main71075-12471-01i197503-197608
PF,BLACK,BLACK,TRIM2#
main71075-12471-06i197503-197608
PF,BROWN,BROWN,TRIM4#
main71075-12471-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71075-12472-01i197608-197701
PF,BLACK,BLACK,TRIM2#
main71075-12472-06i197608-197701
PF,BROWN,BROWN,TRIM4#
main71075-12473-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71075-12473-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71075-12473-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-12550-01i197408-197701
PF,BLACK,BLACK,TRIM2#
sub71075-12550
main71075-12550-06i197408-197701
PF,BROWN,BROWN,TRIM4#
sub71075-12550
main71075-12550-08i197408-197701
PF,IVORY,IVORY,TRIM0#
sub71075-12550
main71075-12560-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71075-12560-11i197408-197503
PF,BLACK,BLACK,TRIM2#
main71075-12560-16i197408-197503
PF,BROWN,BROWN,TRIM4#
main71075-12561-08i197503-197506
PF,IVORY,IVORY,TRIM0#
main71075-12561-11i197503-197506
PF,BLACK,BLACK,TRIM2#
main71075-12561-16i197503-197506
PF,BROWN,BROWN,TRIM4#
main71075-12562-01i197508-197701
PF,BLACK,BLACK,TRIM2#
main71075-12562-06i197508-197701
PF,BROWN,BROWN,TRIM4#
main71075-12562-08i197506-197508
PF,IVORY,IVORY,TRIM0#
main71075-12562-11i197506-197508
PF,BLACK,BLACK,TRIM2#
main71075-12562-16i197506-197508
PF,BROWN,BROWN,TRIM4#
main71075-12562-18i197508-197701
PF,IVORY,IVORY,TRIM0#
main71075-12590-01i197408-197503
PF,BLACK,BLACK,TRIM2#
main71075-12590-06i197408-197503
PF,BROWN,BROWN,TRIM4#
main71075-12590-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71075-12591-01i197503-197506
PF,BLACK,BLACK,TRIM2#
main71075-12591-06i197503-197506
PF,BROWN,BROWN,TRIM4#
main71075-12591-08i197503-197506
PF,IVORY,IVORY,TRIM0#
main71075-12592-01i197506-197701
PF,BLACK,BLACK,TRIM2#
main71075-12592-06i197506-197701
PF,BROWN,BROWN,TRIM4#
main71075-12592-08i197506-197701
PF,IVORY,IVORY,TRIM0#
main71075-12593-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71075-12593-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71075-12593-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-12620-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71075-12550
sub71075-12690
main71075-12620-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71075-12550
sub71075-12690
main71075-12620-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71075-12550
sub71075-12690
main71075-12630-01i197408-197503
K-TY,BLACK,BLACK,TRIM2#
sub71075-12700
main71075-12630-06i197408-197503
K-TY,BROWN,BROWN,TRIM4#
sub71075-12700
main71075-12630-08i197408-197503
K-TY,IVORY,IVORY,TRIM0#
sub71075-12700
main71075-12700-01i197503-197701
K-TY,BLACK,BLACK,TRIM2#
sub71075-12700
main71075-12700-06i197503-197701
K-TY,BROWN,BROWN,TRIM4#
sub71075-12700
main71075-12700-08i197503-197701
K-TY,IVORY,IVORY,TRIM0#
sub71075-12700
main71075-12720-01i197603-197701
PF,BLACK,BLACK,TRIM2#
main71075-12720-06i197603-197701
PF,BROWN,BROWN,TRIM4#
main71075-12720-08i197603-197701
PF,IVORY,IVORY,TRIM0#
main71075-12750-01i197603-197701
FB,BLACK,BLACK,TRIM2#
main71075-12750-06i197603-197701
FB,BROWN,BROWN,TRIM4#
main71075-12750-08i197603-197701
FB,IVORY,IVORY,TRIM0#
main71075-12760-01i197603-197701
K-TY,BLACK,BLACK,TRIM2#
main71075-12760-06i197603-197701
K-TY,BROWN,BROWN,TRIM4#
main71075-12760-08i197603-197701
K-TY,IVORY,IVORY,TRIM0#
main71075-12780-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71075-12781
main71075-12780-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71075-12781
main71075-12780-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71075-12781
main71075-12781-01i197607-197608
FB,BLACK,BLACK,TRIM2#
main71075-12781-06i197607-197608
FB,BROWN,BROWN,TRIM4#
main71075-12781-08i197607-197608
FB,IVORY,IVORY,TRIM0#
main71075-12782-01i197608-197701
FB,BLACK,BLACK,TRIM2#
main71075-12782-06i197608-197701
FB,BROWN,BROWN,TRIM4#
main71075-12782-08i197608-197701
FB,IVORY,IVORY,TRIM0#
main71075-12783-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71075-12783-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-12784-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71075-12784-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71075-12784-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-12790-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71075-12791
main71075-12790-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71075-12791
main71075-12790-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71075-12791
main71075-12791-01i197607-197608
FB,BLACK,BLACK,TRIM2#
main71075-12791-06i197607-197608
FB,BROWN,BROWN,TRIM4#
main71075-12791-08i197607-197608
FB,IVORY,IVORY,TRIM0#
main71075-12792-01i197608-197701
FB,BLACK,BLACK,TRIM2#
main71075-12792-06i197608-197701
FB,BROWN,BROWN,TRIM4#
main71075-12792-08i197608-197701
FB,IVORY,IVORY,TRIM0#
main71075-12793-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71075-12793-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-12794-03i197805-198107
FB,GRAY & BLACK,GRAY,TRIM2#
main71075-12794-04i197805-198107
FB,BLUE,BLUE,TRIM8#
main71075-12794-06i197805-198107
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-12800-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71075-12801
main71075-12800-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71075-12801
main71075-12800-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71075-12801
main71075-12801-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71075-12801-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71075-12801-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71075-12802-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71075-12802-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-12803-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71075-12803-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71075-12803-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-13080-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71075-13081
main71075-13080-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71075-13081
main71075-13080-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71075-13081
main71075-13081-01i197503-197701
PF,BLACK,BLACK,TRIM2#
main71075-13081-06i197503-197701
PF,BROWN,BROWN,TRIM4#
main71075-13081-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71075-13082-01i197701-198107
PF,BLACK,BLACK,TRIM2#
sub71075-13082
main71075-13082-04i197805-198107
PF,BLUE,BLUE,TRIM8#
sub71075-13082
main71075-13082-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
sub71075-13082
main71075-13110-01i197508-197607
FB,BLACK,BLACK,TRIM2#
main71075-13110-06i197508-197607
FB,BROWN,BROWN,TRIM4#
main71075-13110-08i197508-197607
FB,IVORY,IVORY,TRIM0#
main71075-13112-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71075-13112-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-13113-03i197805-198002
FB,GRAY & BLACK,GRAY,TRIM2#
main71075-13113-04i197805-198002
FB,BLUE,BLUE,TRIM8#
main71075-13113-06i197805-198002
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-13120-01i197701-198002
PF,BLACK,BLACK,TRIM2#
main71075-13120-04i197805-198002
PF,BLUE,BLUE,TRIM8#
main71075-13120-06i197701-198002
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-13130-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71075-13130-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71075-13130-08i197607-197701
FB,IVORY,IVORY,TRIM0#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-12250-01i197408-197503
PF,BLACK,BLACK,TRIM2#
main71077-12250-06i197408-197503
PF,BROWN,BROWN,TRIM4#
main71077-12250-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71077-12251-01i197503-197608
PF,BLACK,BLACK,TRIM2#
main71077-12251-06i197503-197608
PF,BROWN,BROWN,TRIM4#
main71077-12251-08i197503-197608
PF,IVORY,IVORY,TRIM0#
main71077-12252-01i197608-197701
PF,BLACK,BLACK,TRIM2#
main71077-12252-06i197608-197701
PF,BROWN,BROWN,TRIM4#
main71077-12252-08i197608-197701
PF,IVORY,IVORY,TRIM0#
main71077-12253-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71077-12253-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71077-12253-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-12330-01i197408-197503
PF,BLACK,BLACK,TRIM2#
main71077-12330-06i197408-197503
PF,BROWN,BROWN,TRIM4#
main71077-12330-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71077-12331-01i197503-197608
PF,BLACK,BLACK,TRIM2#
main71077-12331-06i197503-197608
PF,BROWN,BROWN,TRIM4#
main71077-12331-08i197503-197608
PF,IVORY,IVORY,TRIM0#
main71077-12332-01i197608-197701
PF,BLACK,BLACK,TRIM2#
main71077-12332-06i197608-197701
PF,BROWN,BROWN,TRIM4#
main71077-12332-08i197608-197701
PF,IVORY,IVORY,TRIM0#
main71077-12333-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71077-12333-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71077-12333-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-12350-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71077-12350-11i197408-197503
PF,BLACK,BLACK,TRIM2#
main71077-12350-16i197408-197503
PF,BROWN,BROWN,TRIM4#
main71077-12351-01i197508-197608
PF,BLACK,BLACK,TRIM2#
main71077-12351-06i197508-197608
PF,BROWN,BROWN,TRIM4#
main71077-12351-08i197503-197508
PF,IVORY,IVORY,TRIM0#
main71077-12351-11i197503-197508
PF,BLACK,BLACK,TRIM2#
main71077-12351-16i197503-197508
PF,BROWN,BROWN,TRIM4#
main71077-12351-18i197508-197608
PF,IVORY,IVORY,TRIM0#
main71077-12352-01i197608-197701
PF,BLACK,BLACK,TRIM2#
main71077-12352-06i197608-197701
PF,BROWN,BROWN,TRIM4#
main71077-12352-08i197608-197701
PF,IVORY,IVORY,TRIM0#
main71077-12360-01i197503-197701
K-TY,BLACK,BLACK,TRIM2#
sub71077-12360
main71077-12360-06i197503-197701
K-TY,BROWN,BROWN,TRIM4#
sub71077-12360
main71077-12360-08i197503-197701
K-TY,IVORY,IVORY,TRIM0#
sub71077-12360
main71077-12390-01i197408-197701
PF,BLACK,BLACK,TRIM2#
sub71077-12390
main71077-12390-06i197408-197701
PF,BROWN,BROWN,TRIM4#
sub71077-12390
main71077-12390-08i197408-197701
PF,IVORY,IVORY,TRIM0#
sub71077-12390
main71077-12410-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71077-12390
sub71077-12470
main71077-12410-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71077-12390
sub71077-12470
main71077-12410-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71077-12390
sub71077-12470
main71077-12420-01i197408-197503
K-TY,BLACK,BLACK,TRIM2#
sub71077-12360
main71077-12420-06i197408-197503
K-TY,BROWN,BROWN,TRIM4#
sub71077-12360
main71077-12420-08i197408-197503
K-TY,IVORY,IVORY,TRIM0#
sub71077-12360
main71077-12510-01i197603-197701
PF,BLACK,BLACK,TRIM2#
main71077-12510-06i197603-197701
PF,BROWN,BROWN,TRIM4#
main71077-12510-08i197603-197701
PF,IVORY,IVORY,TRIM0#
main71077-12580-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71077-12581
main71077-12580-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71077-12581
main71077-12580-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71077-12581
main71077-12581-01i197607-197608
FB,BLACK,BLACK,TRIM2#
main71077-12581-06i197607-197608
FB,BROWN,BROWN,TRIM4#
main71077-12581-08i197607-197608
FB,IVORY,IVORY,TRIM0#
main71077-12582-01i197608-197701
FB,BLACK,BLACK,TRIM2#
main71077-12582-06i197608-197701
FB,BROWN,BROWN,TRIM4#
main71077-12582-08i197608-197701
FB,IVORY,IVORY,TRIM0#
main71077-12583-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71077-12583-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-12584-03i197805-198107
FB,GRAY & BLACK,GRAY,TRIM2#
main71077-12584-04i197805-198107
FB,BLUE,BLUE,TRIM8#
main71077-12584-06i197805-198107
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-12590-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71077-12591
main71077-12590-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71077-12591
main71077-12590-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71077-12591
main71077-12591-01i197607-197608
FB,BLACK,BLACK,TRIM2#
main71077-12591-06i197607-197608
FB,BROWN,BROWN,TRIM4#
main71077-12591-08i197607-197608
FB,IVORY,IVORY,TRIM0#
main71077-12592-01i197608-197701
FB,BLACK,BLACK,TRIM2#
main71077-12592-06i197608-197701
FB,BROWN,BROWN,TRIM4#
main71077-12592-08i197608-197701
FB,IVORY,IVORY,TRIM0#
main71077-12593-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71077-12593-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-12594-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71077-12594-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71077-12594-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-13080-01i197408-197503
PF,BLACK,BLACK,TRIM2#
main71077-13080-06i197408-197503
PF,BROWN,BROWN,TRIM4#
main71077-13080-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71077-13081-01i197503-197701
PF,BLACK,BLACK,TRIM2#
main71077-13081-06i197503-197701
PF,BROWN,BROWN,TRIM4#
main71077-13081-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71077-13082-01i197701-198107
PF,BLACK,BLACK,TRIM2#
sub71077-13082
main71077-13082-04i197805-198107
PF,BLUE,BLUE,TRIM8#
sub71077-13082
main71077-13082-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
sub71077-13082
main71077-13110-01i197508-197607
FB,BLACK,BLACK,TRIM2#
main71077-13110-06i197508-197607
FB,BROWN,BROWN,TRIM4#
main71077-13110-08i197508-197607
FB,IVORY,IVORY,TRIM0#
main71077-13112-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71077-13112-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-13113-03i197805-198002
FB,GRAY & BLACK,GRAY,TRIM2#
main71077-13113-04i197805-198002
FB,BLUE,BLUE,TRIM8#
main71077-13113-06i197805-198002
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-13120-01i197701-198002
PF,BLACK,BLACK,TRIM2#
main71077-13120-04i197805-198002
PF,BLUE,BLUE,TRIM8#
main71077-13120-06i197701-198002
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-13130-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71077-13130-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71077-13130-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71077-1A030-01i197701-197902
PF,BLACK,BLACK,TRIM2#
main71077-1A030-04i197805-197902
PF,BLUE,BLUE,TRIM8#
main71077-1A030-06i197701-197902
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-1A220-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71077-1A220-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-1A221-03i197805-197902
FB,GRAY & BLACK,GRAY,TRIM2#
main71077-1A221-06i197805-197902
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-1A230-01i197701-197908
PF,BLACK,BLACK,TRIM2#
main71077-1A230-04i197805-197908
PF,BLUE,BLUE,TRIM8#
main71077-1A230-06i197701-197908
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-1A260-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71077-1A260-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71077-1A260-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-1A270-01i197701-198004
PF,BLACK,BLACK,TRIM2#
main71077-1A270-04i197805-198004
PF,BLUE,BLUE,TRIM8#
main71077-1A270-06i197701-198004
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-1A320-01i197701-197805
PF,BLACK,BLACK,TRIM2#
main71077-1A320-06i197701-197805
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-1A330-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71077-1A330-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-12400-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71460-12401
main71460-12400-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71460-12401
main71460-12400-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71460-12401
main71460-12401-01i197503-197701
PF,BLACK,BLACK,TRIM2#
main71460-12401-06i197503-197701
PF,BROWN,BROWN,TRIM4#
main71460-12401-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71460-12402-01i197701-197808
PF,BLACK,BLACK,TRIM2#
main71460-12402-06i197701-197808
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-12450-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71460-12451
main71460-12450-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71460-12451
main71460-12450-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71460-12451
main71460-12451-01i197503-197701
PF,BLACK,BLACK,TRIM2#
main71460-12451-06i197503-197701
PF,BROWN,BROWN,TRIM4#
main71460-12451-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71460-12452-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71460-12452-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71460-12452-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-12530-01i197408-197503
PF,BLACK,BLACK,TRIM2#
main71460-12530-06i197408-197503
PF,BROWN,BROWN,TRIM4#
main71460-12530-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71460-12531-01i197503-197506
PF,BLACK,BLACK,TRIM2#
main71460-12531-06i197503-197506
PF,BROWN,BROWN,TRIM4#
main71460-12531-08i197503-197506
PF,IVORY,IVORY,TRIM0#
main71460-12532-01i197506-197701
PF,BLACK,BLACK,TRIM2#
main71460-12532-06i197506-197701
PF,BROWN,BROWN,TRIM4#
main71460-12532-08i197506-197701
PF,IVORY,IVORY,TRIM0#
main71460-12533-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71460-12533-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71460-12533-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-12540-01i197408-197701
PF,BLACK,BLACK,TRIM2#
sub71460-12540
main71460-12540-06i197408-197701
PF,BROWN,BROWN,TRIM4#
sub71460-12540
main71460-12540-08i197408-197701
PF,IVORY,IVORY,TRIM0#
sub71460-12540
main71460-12560-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71460-12560-11i197408-197503
PF,BLACK,BLACK,TRIM2#
main71460-12560-16i197408-197503
PF,BROWN,BROWN,TRIM4#
main71460-12561-08i197503-197506
PF,IVORY,IVORY,TRIM2#
main71460-12561-11i197503-197506
PF,BLACK,BLACK,TRIM4#
main71460-12561-16i197503-197506
PF,BROWN,BROWN,TRIM0#
main71460-12562-01i197508-197701
PF,BLACK,BLACK,TRIM2#
main71460-12562-06i197508-197701
PF,BROWN,BROWN,TRIM4#
main71460-12562-08i197506-197508
PF,IVORY,IVORY,TRIM0#
main71460-12562-11i197506-197508
PF,BLACK,BLACK,TRIM2#
main71460-12562-16i197506-197508
PF,BROWN,BROWN,TRIM4#
main71460-12562-18i197508-197701
PF,IVORY,IVORY,TRIM0#
main71460-12600-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71460-12540
sub71460-12670
main71460-12600-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71460-12540
sub71460-12670
main71460-12600-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71460-12540
sub71460-12670
main71460-12610-01i197408-197503
K-TY,BLACK,BLACK,TRIM2#
sub71460-12680
main71460-12610-06i197408-197503
K-TY,BROWN,BROWN,TRIM4#
sub71460-12680
main71460-12610-08i197408-197503
K-TY,IVORY,IVORY,TRIM0#
sub71460-12680
main71460-12680-01i197503-197701
K-TY,BLACK,BLACK,TRIM2#
sub71460-12680
main71460-12680-06i197503-197701
K-TY,BROWN,BROWN,TRIM4#
sub71460-12680
main71460-12680-08i197503-197701
K-TY,IVORY,IVORY,TRIM0#
sub71460-12680
main71460-12700-01i197603-197701
PF,BLACK,BLACK,TRIM2#
main71460-12700-06i197603-197701
PF,BROWN,BROWN,TRIM4#
main71460-12700-08i197603-197701
PF,IVORY,IVORY,TRIM0#
main71460-12730-01i197603-197701
FB,BLACK,BLACK,TRIM2#
main71460-12730-06i197603-197701
FB,BROWN,BROWN,TRIM4#
main71460-12730-08i197603-197701
FB,IVORY,IVORY,TRIM0#
main71460-12740-01i197603-197701
K-TY,BLACK,BLACK,TRIM2#
main71460-12740-06i197603-197701
K-TY,BROWN,BROWN,TRIM4#
main71460-12740-08i197603-197701
K-TY,IVORY,IVORY,TRIM0#
main71460-12770-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71460-12771
main71460-12770-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71460-12771
main71460-12770-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71460-12771
main71460-12771-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71460-12771-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71460-12771-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71460-12772-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71460-12772-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-12773-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71460-12773-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71460-12773-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-12780-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71460-12781
main71460-12780-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71460-12781
main71460-12780-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71460-12781
main71460-12781-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71460-12781-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71460-12781-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71460-12782-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71460-12782-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-12783-03i197805-198107
FB,GRAY & BLACK,GRAY,TRIM2#
main71460-12783-04i197805-198107
FB,BLUE,BLUE,TRIM8#
main71460-12783-06i197805-198107
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-12790-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71460-12791
main71460-12790-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71460-12791
main71460-12790-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71460-12791
main71460-12791-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71460-12791-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71460-12791-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71460-12792-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71460-12792-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-12793-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71460-12793-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71460-12793-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-13100-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71460-13101
main71460-13100-06i197408-197503
PF.BROWN,BROWN,TRIM4#
sub71460-13101
main71460-13100-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71460-13101
main71460-13101-01i197503-197508
PF,BLACK,BLACK,TRIM2#
main71460-13101-06i197503-197508
PF.BROWN,BROWN,TRIM4#
main71460-13101-08i197503-197508
PF,IVORY,IVORY,TRIM0#
main71460-13102-01i197508-197701
PF,BLACK,BLACK,TRIM2#
main71460-13102-06i197508-197701
PF.BROWN,BROWN,TRIM4#
main71460-13102-08i197508-197701
PF,IVORY,IVORY,TRIM0#
main71460-13130-01i197501-197503
AUSTRALIA SPEC,PF,BLACK,BLACK,TRIM2#
main71460-13130-01i197408-197503
ECE SPEC,PF,BLACK,BLACK,TRIM2#
main71460-13130-06i197408-197503
ECE SPEC,PF,BROWN,BROWN,TRIM4#
main71460-13130-06i197501-197503
AUSTRALIA SPEC,PF,BROWN,BROWN,TRIM4#
main71460-13130-08i197408-197503
ECE SPEC,PF,IVORY,IVORY,TRIM0#
main71460-13130-08i197501-197503
AUSTRALIA SPEC,PF,IVORY,IVORY,TRIM0#
main71460-13131-01i197503-197604
AUSTRALIA SPEC,PF,BLACK,BLACK,TRIM2#
main71460-13131-01i197503-197701
ECE SPEC,PF,BLACK,BLACK,TRIM2#
main71460-13131-01i197604-197701
PF.BLACK,BLACK,TRIM2#
main71460-13131-06i197604-197701
PF.BROWN,BROWN,TRIM4#
main71460-13131-06i197503-197604
AUSTRALIA SPEC,PF,BROWN,BROWN,TRIM4#
main71460-13131-06i197503-197701
ECE SPEC,PF,BROWN,BROWN,TRIM4#
main71460-13131-08i197503-197701
ECE SPEC,PF,IVORY,IVORY,TRIM0#
main71460-13131-08i197604-197701
PF,IVORY,IVORY,TRIM0#
main71460-13131-08i197503-197604
AUSTRALIA SPEC,PF,IVORY,IVORY,TRIM0#
main71460-13132-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71460-13132-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71460-13132-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-13140-01i197508-197607
ECE SPEC,FB,BLACK,BLACK,TRIM2#
main71460-13140-01i197508-197604
AUSTRALIA SPEC,FB,BLACK,BLACK,TRIM2#
main71460-13140-01i197604-197607
FB,BLACK,BLACK,TRIM2#
main71460-13140-06i197508-197604
AUSTRALIA SPEC,FB,BROWN,BROWN,TRIM4#
main71460-13140-06i197508-197607
ECE SPEC,FB,BROWN,BROWN,TRIM4#
main71460-13140-06i197604-197607
FB,BROWN,BROWN,TRIM4#
main71460-13140-08i197508-197604
AUSTRALIA SPEC,FB,IVORY,IVORY,TRIM0#
main71460-13140-08i197508-197607
ECE SPEC,FB,IVORY,IVORY,TRIM0#
main71460-13140-08i197604-197607
FB,IVORY,IVORY,TRIM0#
main71460-13142-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71460-13142-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-13143-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71460-13143-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71460-13143-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-13150-01i197508-197607
FB,BLACK,BLACK,TRIM2#
main71460-13150-06i197508-197607
FB,BROWN,BROWN,TRIM4#
main71460-13150-08i197508-197607
FB,IVORY,IVORY,TRIM0#
main71460-13152-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71460-13152-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-13153-03i197805-198002
FB,GRAY & BLACK,GRAY,TRIM2#
main71460-13153-04i197805-198002
FB,BLUE,BLUE,TRIM8#
main71460-13153-06i197805-198002
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-13160-01i197701-198002
PF,BLACK,BLACK,TRIM2#
main71460-13160-04i197805-198002
PF,BLUE,BLUE,TRIM8#
main71460-13160-06i197701-198002
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-13170-01i197701-197908
PF,BLACK,BLACK,TRIM2#
main71460-13170-04i197805-197908
PF,BLUE,BLUE,TRIM8#
main71460-13170-06i197701-197908
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-13180-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71460-13180-01i197607-197701
ECE SPEC,FB,BLACK,BLACK,TRIM2#
main71460-13180-06i197607-197701
ECE SPEC,FB,BROWN,BROWN,TRIM4#
main71460-13180-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71460-13180-08i197607-197701
ECE SPEC,FB,IVORY,IVORY,TRIM0#
main71460-13180-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71460-13190-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71460-13190-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71460-13190-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71560-12430-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71560-12430-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71560-12440-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71560-12440-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71560-12441-03i197805-197902
FB,GRAY & BLACK,GRAY,TRIM2#
main71560-12441-06i197805-197902
FB,LIGHT BROWN,BROWN,TRIM4#
main71560-12450-01i197701-197902
PF,BLACK,BLACK,TRIM2#
main71560-12450-06i197701-197902
PF,LIGHT BROWN,BROWN,TRIM4#
main71560-12460-01i197701-197805
PF,BLACK,BLACK,TRIM2#
main71560-12460-06i197701-197805
PF,LIGHT BROWN,BROWN,TRIM4#
main71560-12490-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71560-12490-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71560-12490-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71560-12500-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71560-12500-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71560-12500-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71560-12510-01i197701-198004
PF,BLACK,BLACK,TRIM2#
main71560-12510-04i197805-198004
PF,BLUE,BLUE,TRIM8#
main71560-12510-06i197701-198004
PF,LIGHT BROWN,BROWN,TRIM4#
main71560-12620-01i197805-197908
PF,BLACK,BLACK,TRIM2#
main71560-12620-04i197805-197908
PF,BLUE,BLUE,TRIM8#
main71560-12620-06i197805-197908
PF,LIGHT BROWN,BROWN,TRIM4#
main71560-12630-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71560-12630-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71560-12630-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
71460TPAD SUB-ASSY, REAR SEAT CUSHION, NO.1
main71405-12071i197906-198107
main71405-12081i197906-198107
main71611-12250i197906-198107
sub71611-12270
main71621-12130i197906-198107
main71621-13041i197906-198107
main71621-13060i197906-198107
71460VPAD, REAR SEAT CUSHION SILENCER, NO.3
main71645-12030i197906-198107
main71648-12010i197906-198107
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-12270-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71480-12271
main71480-12270-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71480-12271
main71480-12270-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71480-12271
main71480-12271-01i197503-197701
PF,BLACK,BLACK,TRIM2#
main71480-12271-06i197503-197701
PF,BROWN,BROWN,TRIM4#
main71480-12271-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71480-12272-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71480-12272-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71480-12272-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-12350-01i197408-197503
PF,BLACK,BLACK,TRIM2#
main71480-12350-06i197408-197503
PF,BROWN,BROWN,TRIM4#
main71480-12350-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71480-12351-01i197503-197701
PF,BLACK,BLACK,TRIM2#
main71480-12351-06i197503-197701
PF,BROWN,BROWN,TRIM4#
main71480-12351-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71480-12352-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71480-12352-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71480-12352-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-12360-01i197408-197701
PF,BLACK,BLACK,TRIM2#
sub71480-12360
main71480-12360-06i197408-197701
PF,BROWN,BROWN,TRIM4#
sub71480-12360
main71480-12360-08i197408-197701
PF,IVORY,IVORY,TRIM0#
sub71480-12360
main71480-12380-08i197408-197503
PF,IVORY,IVORY,TRIM0#
main71480-12380-11i197408-197503
PF,BLACK,BLACK,TRIM2#
main71480-12380-16i197408-197503
PF,BROWN,BROWN,TRIM4#
main71480-12381-01i197508-197701
PF,BLACK,BLACK,TRIM2#
main71480-12381-06i197508-197701
PF,BROWN,BROWN,TRIM4#
main71480-12381-08i197503-197508
PF,IVORY,IVORY,TRIM0#
main71480-12381-11i197503-197508
PF,BLACK,BLACK,TRIM2#
main71480-12381-16i197503-197508
PF,BROWN,BROWN,TRIM4#
main71480-12381-18i197508-197701
PF,IVORY,IVORY,TRIM0#
main71480-12420-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71480-12360
sub71480-12480
main71480-12420-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71480-12360
sub71480-12480
main71480-12420-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71480-12360
sub71480-12480
main71480-12430-01i197408-197503
K-TY,BLACK,BLACK,TRIM2#
sub71480-12510
main71480-12430-06i197408-197503
K-TY,BROWN,BROWN,TRIM4#
sub71480-12510
main71480-12430-08i197408-197503
K-TY,IVORY,IVORY,TRIM0#
sub71480-12510
main71480-12510-01i197503-197701
K-TY,BLACK,BLACK,TRIM2#
sub71480-12510
main71480-12510-06i197503-197701
K-TY,BROWN,BROWN,TRIM4#
sub71480-12510
main71480-12510-08i197503-197701
K-TY,IVORY,IVORY,TRIM0#
sub71480-12510
main71480-12530-01i197603-197701
PF,BLACK,BLACK,TRIM2#
main71480-12530-06i197603-197701
PF,BROWN,BROWN,TRIM4#
main71480-12530-08i197603-197701
PF,IVORY,IVORY,TRIM0#
main71480-12600-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71480-12601
main71480-12600-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71480-12601
main71480-12600-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71480-12601
main71480-12601-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71480-12601-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71480-12601-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71480-12602-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71480-12602-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-12603-03i197805-198107
FB,GRAY,GRAY,TRIM2#
main71480-12603-04i197805-198107
FB,BLUE,BLUE,TRIM8#
main71480-12603-06i197805-198107
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-12610-01i197508-197607
FB,BLACK,BLACK,TRIM2#
sub71480-12611
main71480-12610-06i197508-197607
FB,BROWN,BROWN,TRIM4#
sub71480-12611
main71480-12610-08i197508-197607
FB,IVORY,IVORY,TRIM0#
sub71480-12611
main71480-12611-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71480-12611-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71480-12611-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71480-12612-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71480-12612-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-12613-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71480-12613-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71480-12613-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-12890-01i197701-197902
PF,BLACK,BLACK,TRIM2#
main71480-12890-04i197805-197902
PF,BLUE,BLUE,TRIM8#
main71480-12890-06i197701-197902
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-13100-01i197408-197503
PF,BLACK,BLACK,TRIM2#
sub71480-13101
main71480-13100-06i197408-197503
PF,BROWN,BROWN,TRIM4#
sub71480-13101
main71480-13100-08i197408-197503
PF,IVORY,IVORY,TRIM0#
sub71480-13101
main71480-13101-01i197503-197701
PF,BLACK,BLACK,TRIM2#
main71480-13101-06i197503-197701
PF,BROWN,BROWN,TRIM4#
main71480-13101-08i197503-197701
PF,IVORY,IVORY,TRIM0#
main71480-13140-01i197408-197503
ECE SPEC,PF,BLACK,BLACK,TRIM2#
main71480-13140-01i197501-197503
AUSTRALIA SPEC,PF,BLACK,BLACK,TRIM2#
main71480-13140-06i197408-197503
ECE SPEC,PF,BROWN,BROWN,TRIM4#
main71480-13140-06i197501-197503
AUSTRALIA SPEC,PF,BROWN,BROWN,TRIM4#
main71480-13140-08i197501-197503
AUSTRALIA SPEC,PF,IVORY,IVORY,TRIM0#
main71480-13140-08i197408-197503
ECE SPEC,PF,IVORY,IVORY,TRIM0#
main71480-13141-01i197503-197604
AUSTRALIA SPEC,PF,BLACK,BLACK,TRIM2#
main71480-13141-01i197503-197701
ECE SPEC,PF,BLACK,BLACK,TRIM2#
main71480-13141-01i197604-197701
PF,BLACK,BLACK,TRIM2#
main71480-13141-06i197503-197604
AUSTRALIA SPEC,PF,BROWN,BROWN,TRIM4#
main71480-13141-06i197503-197701
ECE SPEC,PF,BROWN,BROWN,TRIM4#
main71480-13141-06i197604-197701
PF,BROWN,BROWN,TRIM4#
main71480-13141-08i197503-197701
ECE SPEC,PF,IVORY,IVORY,TRIM0#
main71480-13141-08i197503-197604
AUSTRALIA SPEC,PF,IVORY,IVORY,TRIM0#
main71480-13141-08i197604-197701
PF,IVORY,IVORY,TRIM0#
main71480-13142-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71480-13142-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71480-13142-06i197701-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-13150-01i197508-197604
AUSTRALIA SPEC,FB,BLACK,BLACK,TRIM2#
main71480-13150-01i197604-197607
FB,BLACK,BLACK,TRIM2#
main71480-13150-01i197508-197607
ECE SPEC,FB,BLACK,BLACK,TRIM2#
main71480-13150-06i197604-197607
FB,BROWN,BROWN,TRIM4#
main71480-13150-06i197508-197604
AUSTRALIA SPEC,FB,BROWN,BROWN,TRIM4#
main71480-13150-06i197508-197607
ECE SPEC,FB,BROWN,BROWN,TRIM4#
main71480-13150-08i197508-197607
ECE SPEC,FB,IVORY,IVORY,TRIM0#
main71480-13150-08i197604-197607
FB,IVORY,IVORY,TRIM0#
main71480-13150-08i197508-197604
AUSTRALIA SPEC,FB,IVORY,IVORY,TRIM0#
main71480-13152-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71480-13152-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-13153-03i197805-197908
FB,GRAY & BLACK,GRAY,TRIM2#
main71480-13153-04i197805-197908
FB,BLUE,BLUE,TRIM8#
main71480-13153-06i197805-197908
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-13160-01i197508-197607
FB,BLACK,BLACK,TRIM2#
main71480-13160-06i197508-197607
FB,BROWN,BROWN,TRIM4#
main71480-13160-08i197508-197607
FB,IVORY,IVORY,TRIM0#
main71480-13162-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71480-13162-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-13163-03i197805-198002
FB,GRAY & BLACK,GRAY,TRIM2#
main71480-13163-04i197805-198002
FB,BLUE,BLUE,TRIM8#
main71480-13163-06i197805-198002
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-13170-01i197701-198002
PF,BLACK,BLACK,TRIM2#
main71480-13170-04i197805-198002
PF,BLUE,BLUE,TRIM8#
main71480-13170-06i197701-198002
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-13180-01i197701-197908
PF,BLACK,BLACK,TRIM2#
main71480-13180-04i197805-197908
PF,BLUE,BLUE,TRIM8#
main71480-13180-06i197701-197908
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-13190-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71480-13190-01i197607-197701
ECE SPEC,FB,BLACK,BLACK,TRIM2#
main71480-13190-06i197607-197701
ECE SPEC,FB,BROWN,BROWN,TRIM4#
main71480-13190-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71480-13190-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71480-13190-08i197607-197701
ECE SPEC,FB,IVORY,IVORY,TRIM0#
main71480-13200-01i197607-197701
FB,BLACK,BLACK,TRIM2#
main71480-13200-06i197607-197701
FB,BROWN,BROWN,TRIM4#
main71480-13200-08i197607-197701
FB,IVORY,IVORY,TRIM0#
main71480-1A240-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71480-1A240-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-1A241-03i197805-197902
FB,GRAY & BLACK,GRAY,TRIM2#
main71480-1A241-04i197805-197902
FB,BLUE,BLUE,TRIM8#
main71480-1A241-06i197805-197902
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-1A250-01i197701-197908
PF,BLACK,BLACK,TRIM2#
main71480-1A250-04i197805-197908
PF,BLUE,BLUE,TRIM8#
main71480-1A250-06i197701-197908
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-1A280-01i197701-198107
PF,BLACK,BLACK,TRIM2#
main71480-1A280-04i197805-198107
PF,BLUE,BLUE,TRIM8#
main71480-1A280-06i197701-197805
PF,BROWN,BROWN,TRIM4#
main71480-1A280-06i197805-198107
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-1A290-01i197701-198004
PF,BLACK,BLACK,TRIM2#
main71480-1A290-04i197805-198004
PF,BLUE,BLUE,TRIM8#
main71480-1A290-06i197701-198004
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-1A340-01i197701-197805
PF,BLACK,BLACK,TRIM2#
main71480-1A340-06i197701-197805
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-1A350-01i197701-197805
FB,BLACK,BLACK,TRIM2#
main71480-1A350-06i197701-197805
FB,LIGHT BROWN,BROWN,TRIM4#
71480CPAD SUB-ASSY, REAR SEATBACK, NO.1 (FOR BENCH TYPE)
main71407-12041i197906-198107
main71407-12051i197906-198107
main71661-12110i197906-198107
main71661-13041i197906-198107
71650SPRING ASSY, REAR SEAT CUSHION
main71650-12111i197906-198107
main71650-12120i197906-198107
main71650-12130i197906-198107
main71650-12150i197906-198107
71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)
main71670-12051i197906-198107
main71670-12061i197906-198107
71812CLIP (FOR FRONT SEAT CUSHION COVER)
main90468-18071i197408-198107
sub90468-18008
9011906036
main90119-06036
9011908128
main90119-08128

12 parts on this diagram · 6 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
