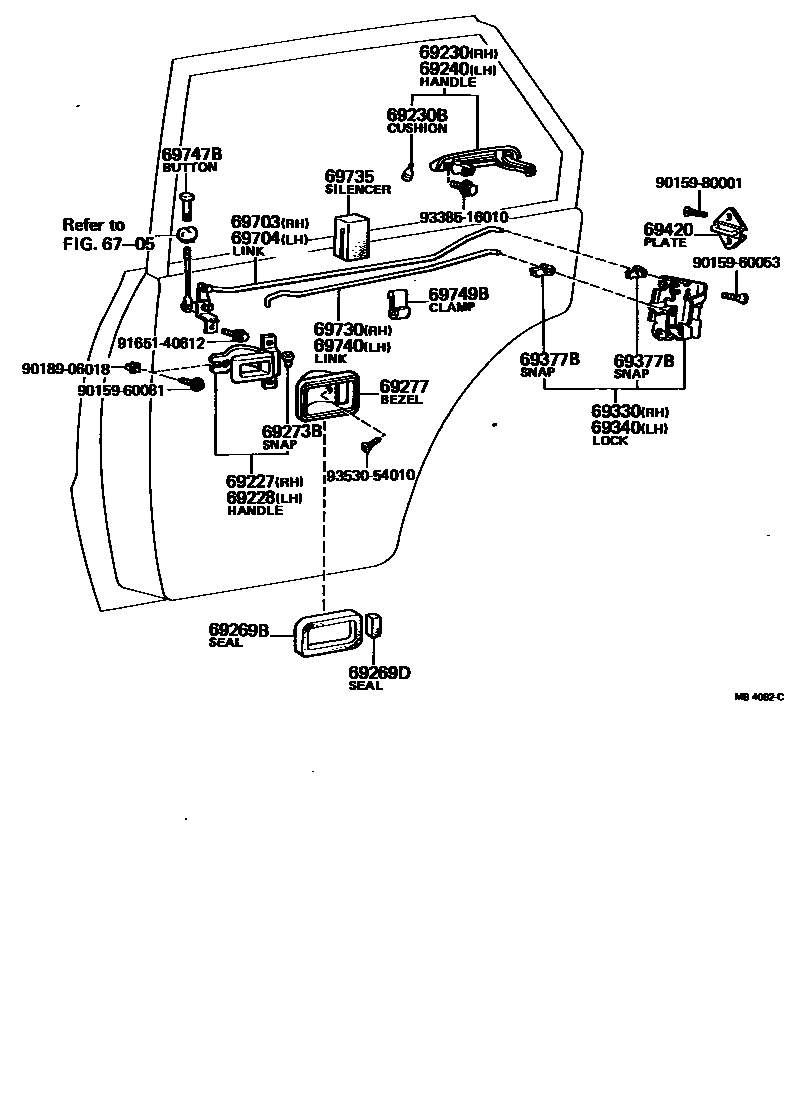

REAR DOOR LOCK & HANDLE

6705

69227HANDLE, REAR DOOR INSIDE, RH

main69205-12040-01iKE30,36,38,55,TE31..4D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69205-12040¥2,010

main69205-12040-04iKE30,36,38,55..4D197805-198107

BLUE,BLUE,TRIM8#

sub69205-12040¥2,010

main69205-12040-05iKE30,36,38,55,TE31..4D197701-198107

BEIGE,BEIGE,TRIM4#

sub69205-12040¥2,010

main69205-12040-06iKE30,36,TE31..4D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69205-12040¥2,010

main69207-10010iKE30,36,TE31..4D197408-197508

69228HANDLE, REAR DOOR INSIDE, LH

main69206-12040-01iKE30,36,38,55,TE31..4D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69206-12040¥2,010

main69206-12040-04iKE30,36,38,55..4D197805-198107

BLUE,BLUE,TRIM8#

sub69206-12040¥2,010

main69206-12040-05iKE30,36,38,55,TE31..4D197701-198107

BEIGE,BEIGE,TRIM4#

sub69206-12040¥2,010

main69206-12040-06iKE30,36,TE31..4D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69206-12040¥2,010

main69208-10010iKE30,36,TE31..4D197408-197508

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12030iKE30,36,38,55,TE31..4D¥2,880197408-198107

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iKE30,36,38,55,TE31..4D¥310197408-198107

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12030iKE30,36,38,55,TE31..4D¥2,960197408-198107

69269BSEAL, DOOR INSIDE HANDLE NO.1(FOR REAR DOOR)

main69269-12010iKE30,36..LHD..4D197609-197908

COLD SPEC

69269DSEAL, DOOR INSIDE HANDLE NO.2(FOR REAR DOOR)

main69289-12010iKE30,36..LHD..4D¥210197609-197908

COLD SPEC

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69279-12010iKE30,36,38,55,TE31..4D¥300197508-198107

69277BEZEL, REAR DOOR INSIDE HANDLE

main69276-10012iKE30,36,TE31..4D¥470197408-197508

main69276-10012-01iKE30,36,38,55,TE31..4D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69276-10012¥470

main69276-10012-04iKE30,36,38,55..4D197805-198107

BLUE,BLUE,TRIM8#

sub69276-10012¥470

main69276-10012-05iKE30,36,38,55,TE31..4D197701-198107

BEIGE,BEIGE,TRIM4#

sub69276-10012¥470

main69276-10012-06iKE30,36,TE31..4D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69276-10012¥470

69330LOCK ASSY, REAR DOOR, RH

main69330-12040iKE30,36,38,55,TE31..4D¥6,000197805-198107

main69330-20040iKE30,36,TE31..4D197408-197805

69340LOCK ASSY, REAR DOOR, LH

main69340-12040iKE30,36,38,55,TE31..4D¥6,000197805-198107

main69340-20040iKE30,36,TE31..4D197408-197805

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69377-30020iKE30,36,38,55,TE31..4D¥270197708-198107

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20050iKE30,36,38,55,TE31..4D¥1,280197408-198107

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69730-12030iKE30,36,38,55,TE31..4D¥1,150197408-198107

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69740-12030iKE30,36,38,55,TE31..4D197408-198107

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-12010iKE30,36,38,55,TE31..4D197408-198107

69735SILENCER, REAR DOOR LOCK LINK

main69759-12011iKE30,36,38,55,TE31..4D¥270197408-198107

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-12020iKE30,36,38,55,TE31..4D197408-198107

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-20020iKE30,36,38,55,TE31..4D¥370197512-198107

sub69741-32010¥340

main69747-30012iKE30,36,TE31..4D¥340197408-197512

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iKE30,36,38,55,TE31..4D¥140197408-198107

9015960053

main90159-60053¥160

9015960081

main90159-60081¥70

9015980001

main90159-80001¥120

9018906018

main90189-06018¥80

9165140612

main91651-40612¥70

9338516010

main93385-16010¥110

9353054010

main93530-54010¥70

28 parts on this diagram · 1 diagram in section
