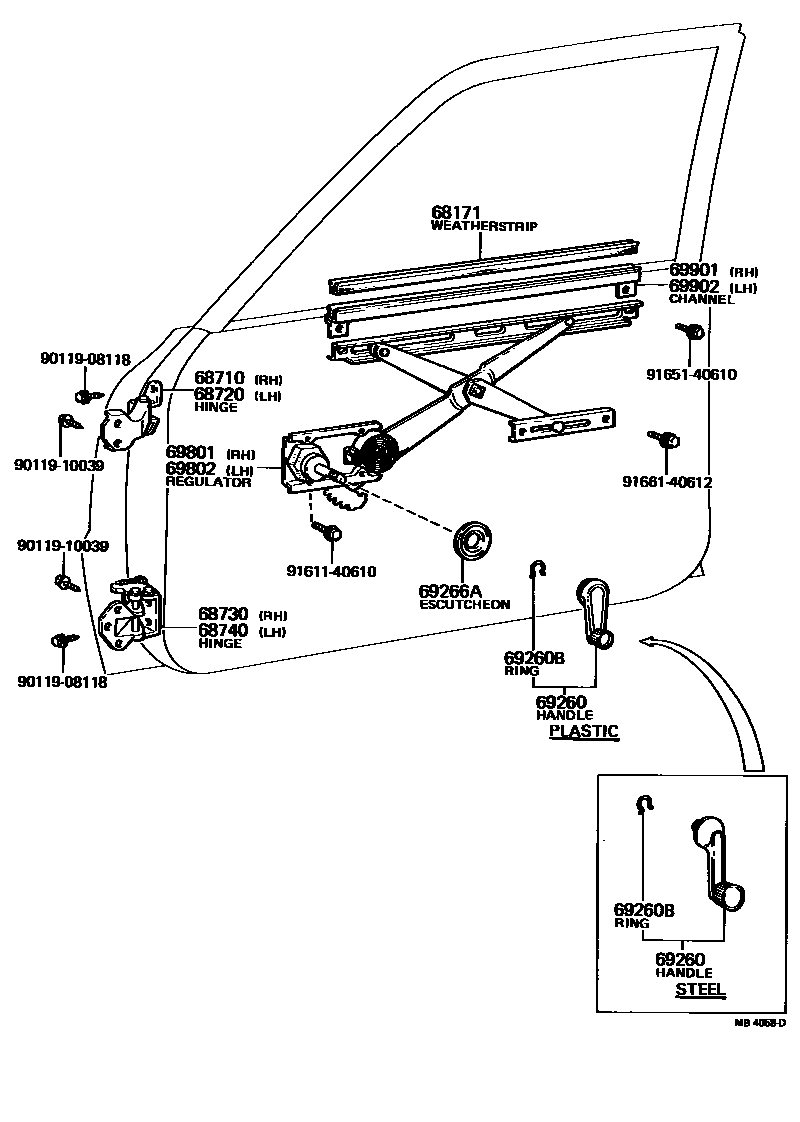

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1 0004 1 0005 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2iKE30,36,38,55,TE31..DV,SED,WG197408-198107

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12050iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main68710-20050iKE5#,TE47,51..CP,LB197408-197908

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12050iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main68720-20040iKE5#,TE47,51..CP,LB197408-197908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20050iKE3#,TE3#197408-197507

main68730-20060iKE5#,TE47,51..CP,LB197408-197908

main68730-30050iKE3#,55,TE3#..DV,HT,SED,WG197507-198107

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20050iKE3#,TE3#197408-197507

main68740-20060iKE5#,TE47,51..CP,LB197408-197908

main68740-30030iKE3#,55,TE3#..DV,HT,SED,WG197507-198107

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12010×2iKE3#,TE3#,47197503-197508

main69260-12010-01×2iKE3#,5#,TE3#,47,51197508-198107

BLACK,BLACK,TRIM0#,2#

main69260-12010-04×2iKE3#,5#,TE3#,47,51197805-198107

BLUE,BLUE,TRIM8#

main69260-12010-05×2iKE3#,5#,TE3#,47,51197701-198107

BEIGE,BEIGE,TRIM4#

main69260-12010-06×2iKE3#,50,TE3#,47,51197508-197701

BROWN,BROWN,TRIM0#,4#

main69260-14010×2iKE3#,TE47197408-197503

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iKE3#,5#,TE3#,47,51197503-198107

main90520-01274×2iKE3#,TE47197408-197503

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010×2iKE3#,TE3#,47197408-197508

main69285-22010×2iKE3#,50,TE3#,47,51197508-197701

WHITE

main69285-22010-01×2iKE3#,5#,TE3#,47,51197508-197901

BLACK,BLACK,TRIM0#,2#

main69285-22010-04×2iKE3#,5#,TE47,51197805-197901

BLUE,BLUE,TRIM8#

main69285-22010-05×2iKE3#,5#,TE3#,47,51197701-197901

BEIGE,BEIGE,TRIM4#

main69285-22010-06×2iKE3#,50,TE3#,47,51197508-197701

BROWN,BROWN,TRIM0#,4#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-12110iKE30,36197408-197503

main69810-12111iKE30,36,TE31197503-197701

main69810-12112iKE3#,55..(DV,SED,WG)..(ARL,GEN)197908-198004

main69810-12120iKE35197408-197503

main69810-12121iKE35,TE37197503-197701

main69810-12122iKE35,55..HT197701-198107

main69810-12130iTE47197408-197503

main69810-12131iKE5#,TE47,51..CP,LB197503-197908

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-12110iKE30,36197408-197503

main69820-12111iKE30,36,TE31197503-197701

main69820-12112iKE30,55..SED..(ARL,EUR,GEN)197701-197908

main69820-12120iKE35197408-197503

main69820-12121iKE35,TE37197503-197701

main69820-12122iKE35,55..HT197701-198107

main69820-12130iTE47197408-197503

main69820-12131iKE5#,TE47,51..CP,LB197503-197908

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080iKE3#,55..(DV,SED,WG)..(ARL,GEN)197908-198107

main69901-20070iKE30,TE31..SA197701-197908

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080iKE3#,55..(DV,SED,WG)..(ARL,GEN)197908-198107

main69901-20070iKE30,TE31..SA197701-197908

9011908118

main90119-08118

9011910039

main90119-10039

9161140610

main91611-40610

9165140610

main91651-40610

9166140612

main91661-40612

17 parts on this diagram · 5 diagrams in section
