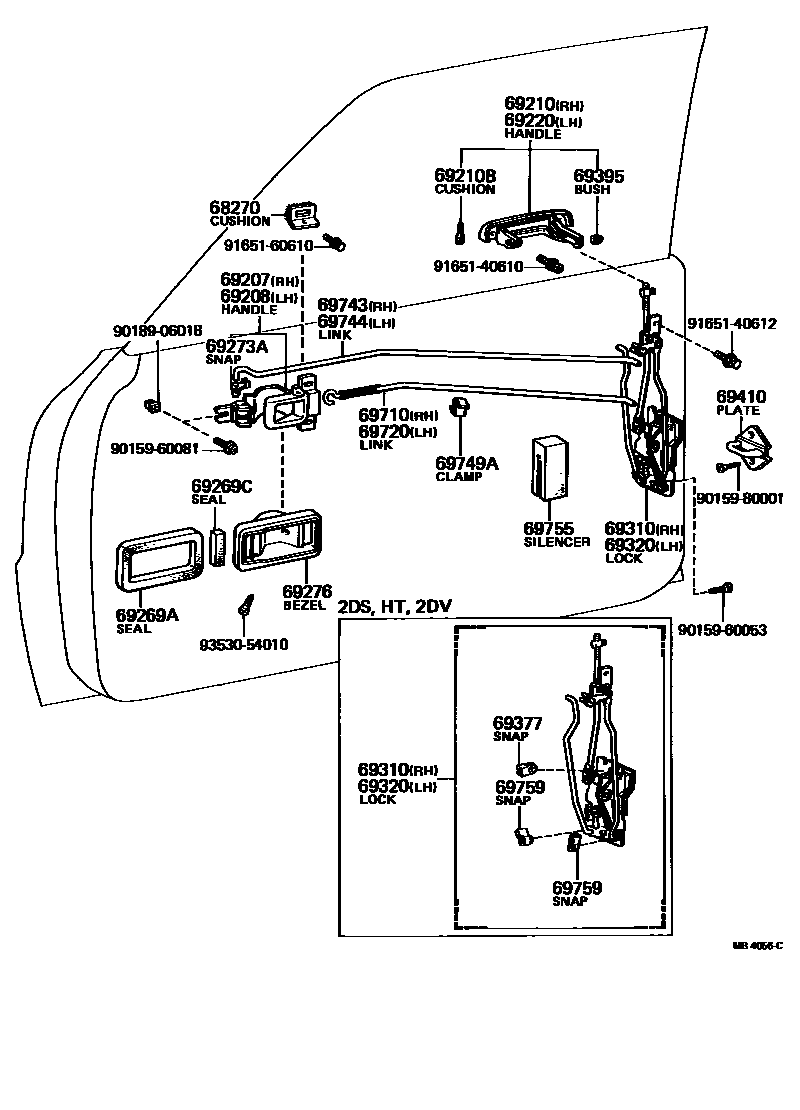

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

68270CUSHION, FRONT DOOR GLASS, INNER

main68270-12010iKE5#,TE47,51..CP,LB197408-197908

main68270-12020iKE35,55,TE37..HT197408-198107

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12030-01iKE3#,5#,TE3#,47,51..2D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69205-12030¥3,400

main69205-12030-04iKE3#,5#,TE47,51..2D197805-198107

BLUE,BLUE,TRIM8#

sub69205-12030¥3,400

main69205-12030-05iKE3#,5#,TE3#,47,51..2D197701-198107

BEIGE,BEIGE,TRIM4#

sub69205-12030¥3,400

main69205-12030-06iKE3#,50,TE3#,47,51..2D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69205-12030¥3,400

main69205-12040-01iKE30,36,38,55,TE31..4D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69205-12040¥2,010

main69205-12040-04iKE30,36,38,55..4D197805-198107

BLUE,BLUE,TRIM8#

sub69205-12040¥2,010

main69205-12040-05iKE30,36,38,55,TE31..4D197701-198107

BEIGE,BEIGE,TRIM4#

sub69205-12040¥2,010

main69205-12040-06iKE30,36,TE31..4D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69205-12040¥2,010

main69207-10010iKE30,36,TE31..4D197408-197508

main69207-20021iKE3#,TE3#,47..2D¥2,190197408-197508

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12030-01iKE3#,5#,TE3#,47,51..2D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69206-12030

main69206-12030-04iKE3#,5#,TE47,51..2D197805-198107

BLUE,BLUE,TRIM8#

sub69206-12030

main69206-12030-05iKE3#,5#,TE3#,47,51..2D197701-198107

BEIGE,BEIGE,TRIM4#

sub69206-12030

main69206-12030-06iKE3#,50,TE3#,47,51..2D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69206-12030

main69206-12040-01iKE30,36,38,55,TE31..4D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69206-12040¥2,010

main69206-12040-04iKE30,36,38,55..4D197805-198107

BLUE,BLUE,TRIM8#

sub69206-12040¥2,010

main69206-12040-05iKE30,36,38,55,TE31..4D197701-198107

BEIGE,BEIGE,TRIM4#

sub69206-12040¥2,010

main69206-12040-06iKE30,36,TE31..4D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69206-12040¥2,010

main69208-10010iKE30,36,TE31..4D197408-197508

main69208-20011iKE3#,TE3#,47..2D¥2,190197408-197508

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12030iKE3#,5#,TE3#,47,51¥3,080197408-198107

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iKE3#,5#,TE3#,47,51¥310197408-198107

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12030iKE3#,5#,TE3#,47,51¥2,910197408-198107

69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)

main69269-12010iKE30,36..LHD..4D197609-197908

COLD SPEC

main69269-12020iKE3#,50,TE47,51..LHD..2D197609-197908

COLD SPEC

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010iKE30,35,36,50,TE47,51..LHD..EUR¥210197609-197908

COLD SPEC

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69273-10010iKE3#,5#,TE3#,47,51..2D¥320197508-198107

main69279-12010iKE30,36,38,55,TE31..4D¥300197508-198107

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-10012iKE30,36,TE31..4D¥470197408-197508

main69276-10012-01iKE30,36,38,55,TE31..4D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69276-10012¥470

main69276-10012-04iKE30,36,38,55..4D197805-198107

BLUE,BLUE,TRIM8#

sub69276-10012¥470

main69276-10012-05iKE30,36,38,55,TE31..4D197701-198107

BEIGE,BEIGE,TRIM4#

sub69276-10012¥470

main69276-10012-06iKE30,36,TE31..4D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69276-10012¥470

main69276-20011iKE3#,TE3#,47..2D¥630197408-197508

main69276-20011-01iKE3#,5#,TE3#,47,51..2D197508-198107

BLACK,BLACK,TRIM0#,2#

sub69276-20011¥630

main69276-20011-04iKE3#,5#,TE47,51..2D197805-198107

BLUE,BLUE,TRIM8#

sub69276-20011¥630

main69276-20011-05iKE3#,5#,TE3#,47,51..2D197701-198107

BEIGE,BEIGE,TRIM4#

sub69276-20011¥630

main69276-20011-06iKE3#,50,TE3#,47,51..2D197508-197701

BROWN,BROWN,TRIM0#,4#

sub69276-20011¥630

69310LOCK ASSY, FRONT DOOR, RH

main69310-12040iKE3#,TE3#..2D¥6,500197408-197805

sub69310-12041

main69310-12041iKE3#,55,TE3#..(DV,HT,SED)..2D197805-198107

main69310-12050iKE30,36,TE31..4D¥6,500197408-197805

sub69310-12051¥6,400

main69310-12051iKE30,36,38,55,TE31..4D¥6,400197805-198107

main69310-12060iKE5#,TE47,51..CP,LB¥6,000197408-197908

69320LOCK ASSY, FRONT DOOR, LH

main69320-12040iKE3#,TE3#..2D¥6,500197408-197805

sub69320-12041

main69320-12041iKE3#,55,TE3#..(DV,HT,SED)..2D197805-198107

main69320-12050iKE30,36,TE31..4D¥6,500197408-197805

sub69320-12051

main69320-12051iKE30,36,38,55,TE31..4D197805-198107

main69320-12060iKE5#,TE47,51..CP,LB197408-197908

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020iKE3#,55,TE3#..DV,HT,SED,WG¥270197708-198107

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69395-22010iKE30,35,5#,TE3#,47,51¥260197408-198107

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12030iKE5#,TE47,51..CP,LB197408-197908

main69410-20050iKE3#,55,TE3#..DV,HT,SED,WG¥1,280197408-198107

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-12050iKE3#,55,TE3#..(DV,HT,SED)..2D197408-198107

main69710-12060iKE5#,TE47,51..CP,LB197408-197908

main69711-12020iKE30,36,38,55,TE31..4D197408-198107

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-12020iKE30,36,38,55,TE31..4D197408-198107

main69720-12050iKE3#,55,TE3#..(DV,HT,SED)..2D197408-198107

main69720-12060iKE5#,TE47,51..CP,LB197408-197908

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-12020iKE3#,55,TE3#..(DV,HT,SED)..2D197408-198107

main69775-12010iKE5#,TE47,51..CP,LB197408-197908

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-12020iKE3#,55,TE3#..(DV,HT,SED)..2D197408-198107

main69776-12010iKE5#,TE47,51..CP,LB197408-197908

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iKE3#,5#,TE3#,47,51..2D¥140197408-198107

69755SILENCER, FRONT DOOR LOCK LINK

main69759-12011iKE3#,5#,TE3#,47,51¥270197408-198107

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030iKE3#,55,TE3#..DV,HT,SED,WG¥210197708-198107

9015960053

main90159-60053¥160

9015960081

main90159-60081¥70

9015980001

main90159-80001¥120

9018906018

main90189-06018¥80

9165140610

main91651-40610¥160

9165140612

main91651-40612¥70

9165160610

main91651-60610¥100

9353054010

main93530-54010¥70

30 parts on this diagram · 2 diagrams in section
