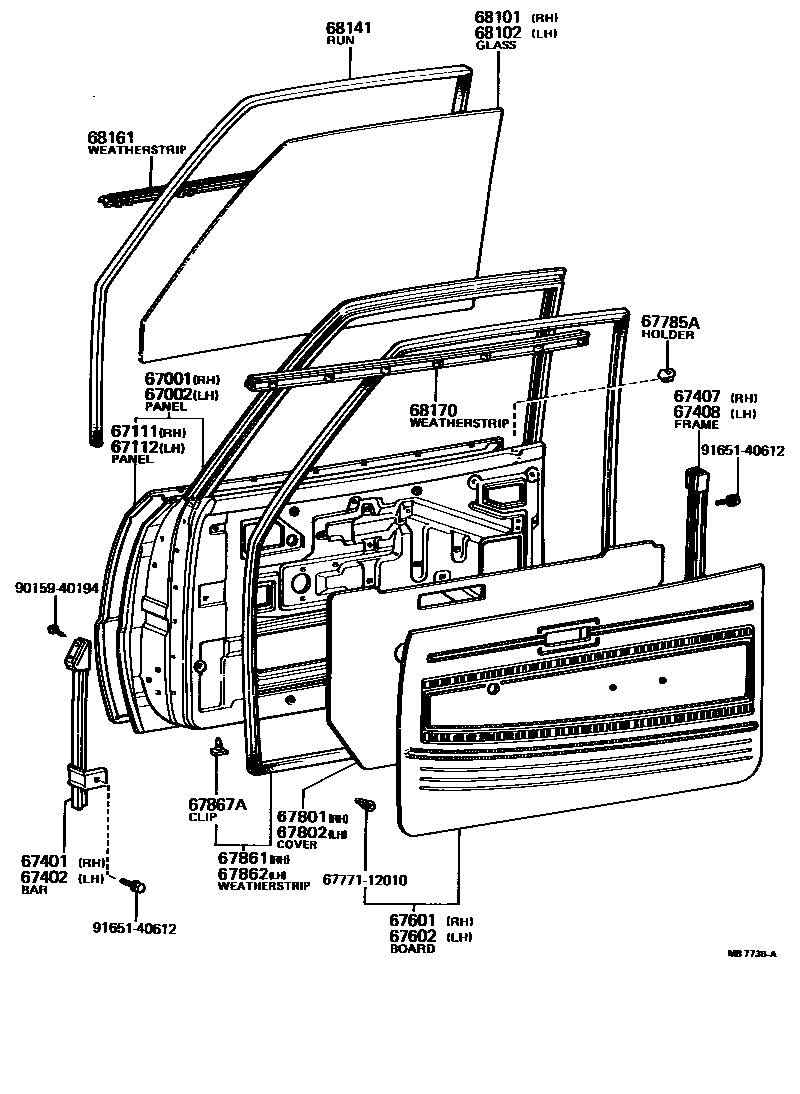

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12210iKE30,36,TE31..2D197408-198107

W/O MIRROR HOLE

main67001-12220iKE30,36,TE31..4D197408-197512

W/O MIRROR HOLE

sub67001-12H00

main67001-12221iKE30,36..4D197512-198107

W/O MIRROR HOLE

main67001-12230iKE35197408-197701

W/O MIRROR HOLE

sub67001-12H02

main67001-12231iKE35..EUR,GEN197701-197908

W/O MIRROR HOLE

sub67001-12241

main67001-12250iKE50,TE47,51..EUR,GEN197408-197908

W/O MIRROR HOLE

main67001-12290iKE30,36..RHD..4D197408-197512

W/MIRROR HOLE

sub67001-12291

sub69751-20050

main67001-12291iKE30,36,TE31..RHD..4D197512-197808

W/MIRROR HOLE

sub67001-12H08

main67001-12292iKE30..LHD..4D..EUR197808-198107

W/MIRROR HOLE

sub67001-12361

main67001-12310iKE30..LHD..2D..EUR197408-197808

W/MIRROR HOLE

sub67001-12H07

main67001-12311iKE30..LHD..2D..EUR197808-198107

W/MIRROR HOLE

main67001-12320iKE35..RHD197408-197701

W/MIRROR HOLE

sub67001-12321

sub67401-12082

sub67403-12021

main67001-12321iKE35,TE37..RHD..(EUR,GEN,SA)197701-197808

W/MIRROR HOLE

sub67001-12H09

main67001-12322iKE35,TE37..RHD197808-198004

W/MIRROR HOLE

main67001-12330iKE50,TE47,51..RHD..(EUR,GEN)197408-197808

W/MIRROR HOLE

sub67001-12H10

main67001-12331iKE50,TE47,51..RHD197808-197908

W/MIRROR HOLE

sub67001-12H10

main67001-12350iKE30..2D..ARL197610-197808

sub67001-12H04

main67001-12360iKE30,36..4D..ARL197610-197808

sub67001-12H05

main67001-12361iKE38,55..4D197808-198107

main67001-12370iKE35..ARL197610-197701

sub67001-12371

sub67401-12082

sub67403-12021

main67001-12371iKE35..ARL197701-197808

sub67001-12H06

main67001-12372iKE55..HT197808-198107

main67001-12380iKE50..ARL197701-197808

sub67001-12H11

main67001-12381iKE55..K50197808-197908

sub67001-12H11

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12220iKE30,36,TE31..2D197408-198107

W/O MIRROR HOLE

main67002-12230iKE30,36,TE31..4D197408-197512

W/O MIRROR HOLE

sub67002-12231

sub69751-20050

main67002-12231iKE30,36,TE31..4D197512-198107

W/O MIRROR HOLE

main67002-12240iKE35,TE37197408-197701

W/O MIRROR HOLE

sub67002-12H00

main67002-12241iKE35,TE37197701-198004

W/O MIRROR HOLE

sub67002-12391

main67002-12260iKE50,TE47,51..EUR,GEN197408-197908

W/O MIRROR HOLE

main67002-12310iKE30,36..LHD..4D197408-197512

W/MIRROR HOLE

sub67002-12311

sub69751-20050

main67002-12311iKE36..RHD..4D197512-197808

W/MIRROR HOLE

sub67002-12H06

main67002-12312iKE30,36..LHD..4D197808-198002

W/MIRROR HOLE

main67002-12330iKE36..RHD..2D197408-197808

W/MIRROR HOLE

sub67002-12H05

main67002-12331iKE36,38..RHD..2D197808-198107

W/MIRROR HOLE

sub67002-12321

main67002-12340iKE35..LHD197408-197701

W/MIRROR HOLE

sub67002-12341

sub67402-12082

sub67404-12021

main67002-12341iKE35..LHD197701-197808

W/MIRROR HOLE

sub67002-12H07

main67002-12342iKE35..LHD197808-197908

W/MIRROR HOLE

main67002-12350iKE50,TE47,51..LHD197408-197808

W/MIRROR HOLE

sub67002-12H08

main67002-12351iKE50,TE47,51..LHD197808-197908

W/MIRROR HOLE

sub67002-12H08

main67002-12370iKE30..2D..ARL197610-197808

main67002-12380iKE30,36,38,55..4D..ARL197610-198107

main67002-12390iKE35..ARL197610-197701

sub67002-12391

sub67402-12082

sub67404-12021

main67002-12391iKE35,55..HT..ARL197701-198107

main67002-12400iKE5#..K50..ARL197701-197908

67111PANEL, FRONT DOOR, OUTER RH

main67111-12140iKE30,36,38,55,TE31..4D197408-198107

W/O MIRROR HOLE

main67111-12150iKE3#,55,TE3#..(DV,HT,SED,WG)..2D197408-198107

W/O MIRROR HOLE

main67111-12160iKE5#,TE47,51..CP,LB197408-197908

W/O MIRROR HOLE

67112PANEL, FRONT DOOR, OUTER LH

main67112-12140iKE30,36,38,55,TE31..4D197408-198107

W/O MIRROR HOLE

main67112-12150iKE3#,55,TE3#..(DV,HT,SED,WG)..2D197408-198107

W/O MIRROR HOLE

main67112-12160iKE5#,TE47,51..CP,LB197408-197908

W/O MIRROR HOLE

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-12060iKE30,36,TE31..2D197408-197805

sub67401-12061

main67401-12061iKE30,36,38,TE31..2D197805-198107

main67401-12070iKE30,36,TE31..4D197408-197805

main67401-12071iKE30,36,38,55,TE31..4D197805-198107

main67401-12080iKE35197408-197410

sub67401-12081

sub69951-12061

sub69986-30030

main67401-12081iKE35,TE37197410-197612

main67401-12082iKE35,55,TE37..HT197612-198107

main67401-12090iKE5#,TE47,51..CP,LB197408-197908

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-12060iKE30,36,TE31..2D197408-197805

sub67402-12061

main67402-12061iKE30,36,38,TE31..2D197805-198107

main67402-12070iKE30,36,TE31..4D197408-197805

main67402-12071iKE30,36,38,55,TE31..4D197805-198107

main67402-12080iKE35197408-197410

sub67402-12081

sub69952-12021

sub69986-30030

main67402-12081iKE35,TE37197410-197612

main67402-12082iKE35,55,TE37..HT197612-198107

main67402-12090iKE5#,TE51..LB197408-197908

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12010iKE30,36,38,TE31..2D197408-198107

main67403-12020iKE35,TE37197408-197612

main67403-12021iKE35,55,TE37..HT197612-198107

main67403-12030iKE5#,TE47,51..CP,LB197408-197908

main67407-20050iKE30,36,38,55,TE31..4D197408-198107

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12010iKE30,36,38,TE31..2D197408-198107

main67404-12020iKE35,TE37197408-197612

main67404-12021iKE35,55,TE37..HT197612-198107

main67404-12030iKE5#,TE47,51..CP,LB197408-197908

main67408-20040iKE30,36,38,55,TE31..4D197408-198107

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-12230-01iKE30,36..2D..STD197408-197701

BLACK,BLACK,TRIM2#

main67610-12230-06iKE30,36..2D..STD197408-197701

BROWN,BROWN,TRIM4#

main67610-12230-08iKE30,36..2D..STD197408-197701

IVORY,IVORY,TRIM0#

main67610-12231-01iKE30,36,38,TE31..2D..STD197701-198107

BLACK,BLACK,TRIM2#

main67610-12231-04iKE30,36,38,TE31..2D..STD197805-198107

BLUE,BLUE,TRIM8#

main67610-12231-06iKE30,36,38,TE31..2D..STD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67610-12240-01iKE30,36..2D..DLX197408-197701

BLACK,BLACK,TRIM2#

main67610-12240-06iTE31..STD197408-197701

BROWN,BROWN,TRIM4#

main67610-12240-08iTE31..STD197408-197701

IVORY,IVORY,TRIM0#

main67610-12241-01iKE30,36,TE31..2D..DLX197701-197908

BLACK,BLACK,TRIM2#

sub67610-12241

main67610-12241-06iKE30,36,TE31..2D..DLX197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub67610-12241

main67610-12241-14iKE30,36..2D..DLX197805-197908

BLUE,BLUE,TRIM8#

sub67610-12241

main67610-12270-01iKE30,36..4D..STD197408-197701

BLACK,BLACK,TRIM2#

main67610-12270-06iKE30,36..4D..STD197408-197701

BROWN,BROWN,TRIM4#

main67610-12270-08iKE30,36..4D..STD197408-197701

IVORY,IVORY,TRIM0#

main67610-12271-01iKE30,36..4D..STD197701-198107

BLACK,BLACK,TRIM2#

main67610-12271-04iKE30,36..4D..STD197805-198107

BLUE,BLUE,TRIM8#

main67610-12271-06iKE30,36..4D..STD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67610-12280-01iKE30,36,TE31..4D..DLX197408-197701

BLACK,BLACK,TRIM2#

main67610-12280-06iKE30,36,TE31..4D..DLX197408-197701

BROWN,BROWN,TRIM4#

main67610-12280-08iKE30,36,TE31..4D..DLX197408-197701

IVORY,IVORY,TRIM0#

main67610-12281-01iKE30,36,TE31..(2FC,4F,5F)..4D..DLX197701-198107

BLACK,BLACK,TRIM2#

sub67610-12281

main67610-12281-06iKE30,36,TE31..4D..DLX197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub67610-12281

main67610-12281-14iKE30,36..4D..DLX197805-198107

BLUE,BLUE,TRIM8#

sub67610-12281

main67610-12390-01iTE47,51197408-197701

BLACK,BLACK,TRIM2#

sub67610-12390

main67610-12390-06iTE47..LT197408-197701

BROWN,BROWN,TRIM4#

sub67610-12390

main67610-12390-08iTE47,51197408-197701

IVORY,IVORY,TRIM0#

sub67610-12390

main67610-12400-01iTE47..GT,ST197408-197503

BLACK,BLACK,TRIM2#

sub67610-12400

main67610-12400-06iTE47..GT,ST197408-197503

BROWN,BROWN,TRIM4#

sub67610-12400

main67610-12400-08iTE47..GT,ST197408-197503

IVORY,IVORY,TRIM0#

sub67610-12400

main67610-12410-01iKE35..DLX197408-197701

BLACK,BLACK,TRIM2#

main67610-12410-06iKE35..DLX197408-197701

BROWN,BROWN,TRIM4#

main67610-12410-08iKE35,TE37197408-197701

IVORY,IVORY,TRIM0#

main67610-12411-01iKE35,55,TE37..HT197701-198107

BLACK,BLACK,TRIM2#

main67610-12411-06iKE35,55,TE37..HT197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67610-12411-14iKE35,55..HT197805-198107

BLUE,BLUE,TRIM8#

main67610-12420-01iKE35..SR197408-197503

BLACK,BLACK,TRIM2#

main67610-12420-06iKE35..SR197408-197503

BROWN,BROWN,TRIM4#

main67610-12420-08iKE35..SR197408-197503

IVORY,IVORY,TRIM0#

main67610-12441-01iTE31..2D..DLX197711-197904

FULL TRIM,BLACK,BLACK,TRIM2#

main67610-12441-06iTE31..2D..DLX197711-197904

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

main67610-12452-01iKE30,TE31..4D..SA197701-197908

FULL TRIM,BLACK,BLACK,TRIM2#

main67610-12452-06iKE30,TE31..4D..SA197701-197908

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

main67610-12490-01iKE50197603-197701

BLACK,BLACK,TRIM2#

main67610-12490-06iKE50197603-197701

BROWN,BROWN,TRIM4#

main67610-12490-08iKE50197603-197701

IVORY,IVORY,TRIM0#

main67610-12640-01iKE5#,TE47,51..CP,LB197701-197908

BLACK,BLACK,TRIM2#

sub67610-12640

main67610-12640-06iKE5#,TE47,51..CP,LB197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub67610-12640

main67610-12640-14iKE5#,TE47,51..CP,LB197805-197908

BLUE,BLUE,TRIM8#

sub67610-12640

main67610-12650-01iKE30..4D..DLX..EUR197811-197908

FULL TRIM,BLACK,BLACK,TRIM2#

main67610-12650-04iKE30..4D..DLX..EUR197811-197908

FULL TRIM,BLUE,BLUE,TRIM8#

main67610-12650-06iKE30..4D..DLX..EUR197811-197908

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

main67610-12660-01iKE30..2D..DLX..EUR197811-197908

FULL TRIM,BLACK,BLACK,TRIM2#

main67610-12660-04iKE30..2D..DLX..EUR197811-197908

FULL TRIM,BLUE,BLUE,TRIM8#

main67610-12660-06iKE30..2D..DLX..EUR197811-197908

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-12230-01iKE30,36..2D..STD197408-197701

BLACK,BLACK,TRIM2#

main67620-12230-06iKE30,36..2D..STD197408-197701

BROWN,BROWN,TRIM4#

main67620-12230-08iKE30,36..2D..STD197408-197701

IVORY,IVORY,TRIM0#

main67620-12231-01iKE30,36,38,TE31..2D..STD197701-198107

BLACK,BLACK,TRIM2#

main67620-12231-04iKE30,36,38..2D..STD197805-198107

BLUE,BLUE,TRIM8#

main67620-12231-06iKE30,36,38,TE31..2D..STD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67620-12240-01iTE31..STD197408-197701

BLACK,BLACK,TRIM2#

main67620-12240-06iKE30,36..2D..DLX197408-197701

BROWN,BROWN,TRIM4#

main67620-12240-08iTE31..STD197408-197701

IVORY,IVORY,TRIM0#

main67620-12241-01iKE30,36,TE31..2D..DLX197701-197908

BLACK,BLACK,TRIM2#

sub67620-12241

main67620-12241-06iKE30,36,TE31..2D..DLX197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub67620-12241

main67620-12241-14iKE30,36..2D..DLX197805-197908

BLUE,BLUE,TRIM8#

sub67620-12241

main67620-12251-01iKE30..2D..DLX..EUR197711-197908

FULL TRIM,BLACK,BLACK,TRIM2#

main67620-12251-04iKE30..2D..DLX..EUR197811-197908

FULL TRIM,BLUE,BLUE,TRIM8#

main67620-12251-06iKE30..2D..DLX..EUR197711-197908

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

main67620-12270-01iKE30,36..4D..STD197408-197701

BLACK,BLACK,TRIM2#

main67620-12270-06iKE30,36..4D..STD197408-197701

BROWN,BROWN,TRIM4#

main67620-12270-08iKE30,36..4D..STD197408-197701

IVORY,IVORY,TRIM0#

main67620-12271-01iKE30,36..4D..STD197701-198107

BLACK,BLACK,TRIM2#

main67620-12271-04iKE30,36..4D..STD197805-198107

BLUE,BLUE,TRIM8#

main67620-12271-06iKE30,36..4D..STD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67620-12280-01iKE30,36,TE31..4D..DLX197408-197701

BLACK,BLACK,TRIM2#

main67620-12280-06iKE30,36,TE31..4D..DLX197408-197701

BROWN,BROWN,TRIM4#

main67620-12280-08iKE30,36,TE31..4D..DLX197408-197701

IVORY,IVORY,TRIM0#

main67620-12281-01iKE30,36,TE31..(2FC,4F,5F)..4D..DLX197701-198107

BLACK,BLACK,TRIM2#

sub67620-12281

main67620-12281-06iKE30,36,TE31..4D..DLX197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub67620-12281

main67620-12281-14iKE30,36..4D..DLX197805-198107

BLUE,BLUE,TRIM8#

sub67620-12281

main67620-12292-01iKE30..4D..DLX..EUR197701-198004

FULL TRIM,BLACK,BLACK,TRIM2#

main67620-12292-04iKE30..4D..DLX..EUR197811-197908

FULL TRIM,BLUE,BLUE,TRIM8#

main67620-12292-06iKE30,TE31..4D..SA197701-198004

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

main67620-12350-01iKE35..DLX197408-197701

BLACK,BLACK,TRIM2#

main67620-12350-06iKE35,TE37197408-197701

BROWN,BROWN,TRIM4#

main67620-12350-08iKE35..DLX197408-197701

IVORY,IVORY,TRIM0#

main67620-12351-01iKE35,55,TE37..HT197701-198107

BLACK,BLACK,TRIM2#

sub67620-12351

main67620-12351-06iKE35,55,TE37..HT197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub67620-12351

main67620-12351-14iKE35,55..HT197805-198107

BLUE,BLUE,TRIM8#

sub67620-12351

main67620-12360-01iKE35..SR197408-197503

BLACK,BLACK,TRIM2#

main67620-12360-06iKE35..SR197408-197503

BROWN,BROWN,TRIM4#

main67620-12360-08iKE35..SR197408-197503

IVORY,IVORY,TRIM0#

main67620-12370-01iTE47..LT197408-197701

BLACK,BLACK,TRIM2#

sub67620-12390

main67620-12370-06iTE47,51197408-197701

BROWN,BROWN,TRIM4#

sub67620-12390

main67620-12370-08iTE47,51197408-197701

IVORY,IVORY,TRIM0#

sub67620-12390

main67620-12380-01iTE47..GT,ST197408-197503

BLACK,BLACK,TRIM2#

sub67620-12380

main67620-12380-06iTE47..GT,ST197408-197503

BROWN,BROWN,TRIM4#

sub67620-12380

main67620-12380-08iTE47..GT,ST197408-197503

IVORY,IVORY,TRIM0#

sub67620-12380

main67620-12390-01iKE50197603-197701

BLACK,BLACK,TRIM2#

sub67620-12390

main67620-12390-06iKE50197603-197701

BROWN,BROWN,TRIM4#

sub67620-12390

main67620-12390-08iKE50197603-197701

IVORY,IVORY,TRIM0#

sub67620-12390

main67620-12460-01iKE5#,TE47,51..CP,LB197701-197908

BLACK,BLACK,TRIM2#

main67620-12460-06iKE5#,TE47,51..CP,LB197701-197908

LIGHT BROWN,BROWN,TRIM4#

main67620-12460-14iKE5#,TE47,51..CP,LB197805-197908

BLUE,BLUE,TRIM8#

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main67785-20010iKE30,36,TE31..4D197408-197512

main69751-20030iKE30,36,38,55,TE31..4D197512-198101

sub69751-20031

main69751-20031-01iKE30,38,55..4D198101-198107

BLACK

sub69751-20031

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-12040iKE30,36,38,TE31..2D197408-198107

main67831-12050iKE30,36,38,55,TE31..4D197408-198107

main67831-12060iKE35,55,TE37..HT197408-198107

main67831-12070iKE5#,TE47,51..CP,LB197408-197908

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-12040iKE30,36,38,TE31..2D197408-198107

main67831-12050iKE30,36,38,55,TE31..4D197408-198107

main67831-12060iKE35,55,TE37..HT197408-198107

main67831-12070iKE5#,TE47,51..CP,LB197408-197908

67861WEATHERSTRIP, FRONT DOOR, RH

main67860-12010iKE35,55,TE37..HT197408-198107

TOYOTA GOSEI

main67861-12180iKE30,36,TE31..2D197408-198107

main67861-12190iKE30,36,TE31..4D197408-197702

sub67861-12251

main67861-12200iKE5#,TE47,51..CP,LB197408-197908

main67861-12252iKE30,36,38,55,TE31..4D197702-198107

main67861-12310iKE30,TE31..2D197702-198107

main67861-12320iKE35,55,TE37..HT197702-198107

TGK SEALS

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12180iKE30,36,TE31..2D197408-198107

main67862-12190iKE30,36,TE31..4D197408-197702

sub67862-12251

main67862-12200iKE5#,TE47,51..CP,LB197408-197908

main67862-12252iKE30,36,38,55,TE31..4D197702-198107

main67862-12310iKE30,TE31..2D197702-198004

main67862-12320iKE35,55,TE37..HT197702-198107

TGK SEALS

main67870-12010iKE35,55,TE37..HT197408-198107

TOYOTA GOSEI

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12010iKE3#,TE3#..2D197408-197702

main67867-12010iKE35,36,38,55,TE37..2D197702-198107

TOYOTA GOSEI

main67867-12020iKE5#,TE47,51..CP,LB197408-197908

main67868-30040iKE30,35,55,TE3#..HT,SED197702-198107

TGK SEALS

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-12170iKE30..RHD..2D197408-197502

*TEM,T=4.0,AUSTRALIA SPEC

sub68111-12180

main68111-12170iKE30,36,38,TE31..2D..STD197408-198107

*TEM,T=4.0

sub68111-12180

main68111-12180iKE30..2D..DLX197408-197908

*TT,T=4.0

main68111-12190iKE30..RHD..4D197408-197502

*TEM,T=4.0,AUSTRALIA SPEC

sub68111-12200

main68111-12190iKE30,36..4D197408-198107

*TEM,T=4.0

sub68111-12200

main68111-12200iKE30,36..4D..DLX..(EUR,GEN)197408-198107

*TT,T=4.0

main68111-12210iKE35..EUR,GEN197408-197908

*TT,T=5.0

main68111-12220iTE47197408-197902

*TT,T=5.0

main68111-12230iKE35,55,TE37..HT..(ARL,SA)197408-198107

*TEM,T=5.0

sub68111-12210

main68111-12260iKE50,TE51..EUR,GEN197603-197908

*TT,T=5.0

main68111-12270iKE5#..K50..ARL197701-197908

*TEM,T=5.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-12170iKE30,36..2D197408-197502

*TEM,T=4.0,AUSTRALIA SPEC

sub68112-12180

main68112-12170iKE30,36..2D197408-198107

*TEM,T=4.0

sub68112-12180

main68112-12180iKE30..2D..DLX197408-197908

*TT,T=4.0

main68112-12190iKE30..RHD..4D197408-198107

*TEM,T=4.0

sub68112-12200

main68112-12190iKE30..RHD..4D197408-197502

*TEM,T=4.0,AUSTRALIA SPEC

sub68112-12200

main68112-12200iKE30,36..4D..DLX..(EUR,GEN)197408-198107

*TT,T=4.0

main68112-12210iKE35..EUR,GEN197408-197908

*TT,T=5.0

main68112-12220iTE47197408-197902

*TT,T=5.0

main68112-12230iKE35,55,TE37..HT..(ARL,SA)197408-198107

*TEM,T=5.0

sub68112-12210

main68112-12260iKE50,TE51..EUR,GEN197603-197908

*TT,T=5.0

main68112-12270iKE5#..K50..ARL197701-197908

*TEM,T=5.0

68141RUN, FRONT DOOR GLASS

main68141-12070iKE30,TE31..2D197408-198004

main68141-12080iKE30,36,38,55,TE31..4D197408-198107

sub68141-12070

main68141-13030iKE36,38..2D197408-198107

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-12050iKE36,38..2D197408-198107

main68160-12060iTE31..4D197408-198107

main68161-12110iKE5#,TE51..LB..DLX197603-197908

RH

main68162-12070iKE5#,TE51..LB..DLX197603-197908

LH

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-12070iKE35,55,TE37..HT197408-198107

RH

main68170-12080iKE30,36,38,TE31..2D197408-198107

main68170-12090iKE30,36,38,55,TE31..4D197408-198107

main68170-12100iKE5#,TE47,51..CP,LB197408-197908

RH

main68220-12030iKE35,55,TE37..HT197408-198107

LH

main68220-12060iKE5#,TE47,51..CP,LB197408-197908

LH

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

9015940194

main90159-40194

9165140612

main91651-40612

24 parts on this diagram · 3 diagrams in section
