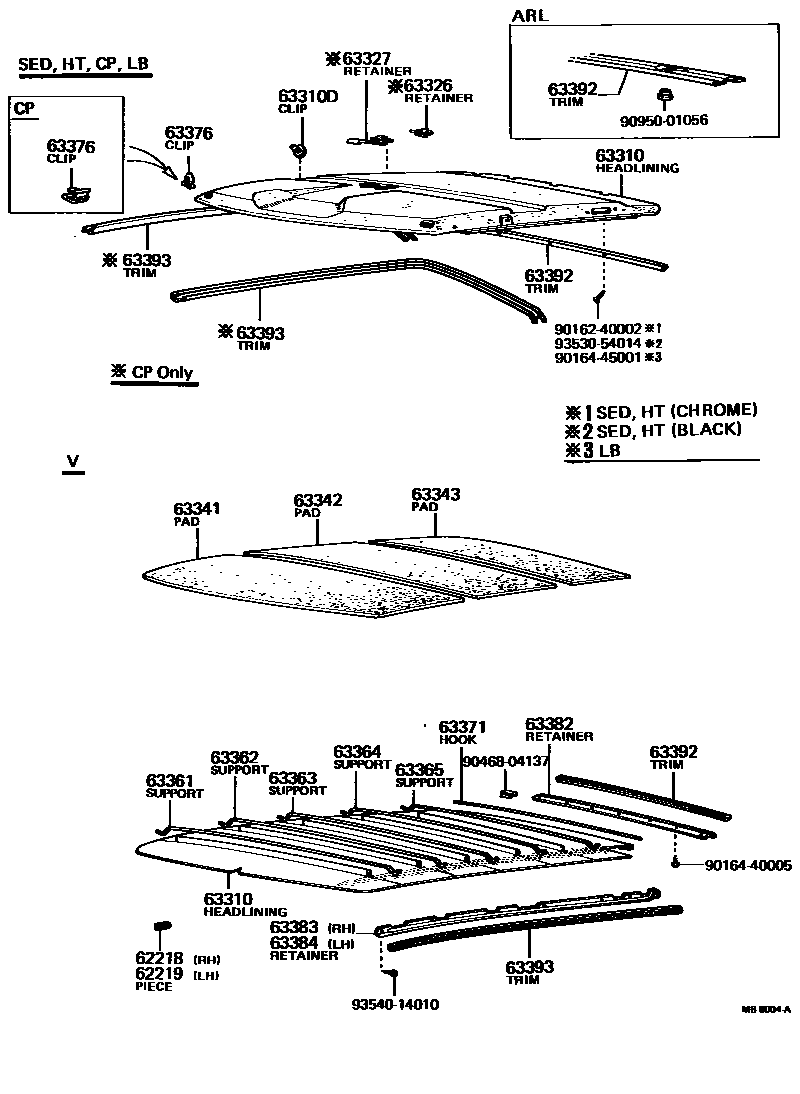

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-13010iKE30,36,TE31197408-197508

IVORY

main62218-13011-01iKE36;KE30,38,55,TE31..(DV,SED,WG)..(ARL,GEN,SA)197701-198107

BLACK,BLACK

sub62218-13011

main62218-13011-03iKE30,36,TE31..ARL,GEN,SA197508-197701

GRAY,GRAY

sub62218-13011

main62218-13011-04iKE36;KE30,38,55..(DV,SED,WG)..(ARL,GEN,SA)197805-198107

BLUE,BLUE

sub62218-13011

main62218-13011-05iKE30,36,TE31..ARL,GEN,SA197508-197701

BEIGE,BEIGE

sub62218-13011

main62218-13011-06iKE36;KE30,38,55,TE31..(DV,SED,WG)..(ARL,GEN,SA)197701-198107

LIGHT BROWN,BROWN

sub62218-13011

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-13010iKE30,36,TE31197408-197508

IVORY

main62219-13011-01iKE36;KE30,38,55,TE31..(DV,SED,WG)..(ARL,GEN,SA)197701-198107

BLACK,BLACK

sub62219-13011

main62219-13011-03iKE30,36,TE31..ARL,GEN,SA197508-197701

GRAY,GRAY

sub62219-13011

main62219-13011-04iKE36;KE30,38,55..(DV,SED,WG)..(ARL,GEN,SA)197805-198107

BLUE,BLUE

sub62219-13011

main62219-13011-05iKE30,36,TE31..ARL,GEN,SA197508-197701

BEIGE,BEIGE

sub62219-13011

main62219-13011-06iKE36;KE30,38,55,TE31..(DV,SED,WG)..(ARL,GEN,SA)197701-198107

LIGHT BROWN,BROWN

sub62219-13011

63310HEADLINING ASSY, ROOF

main63310-12150iKE30..STD197408-197508

IVORY

sub63310-12360

sub90467-06143

main63310-12160iKE30..RHD..DLX197408-197503

IVORY

sub63310-12162

main63310-12162-03iKE30..RHD197508-197701

GRAY,GRAY,TRIM0#,2#

sub63310-12162

sub63310-12360

sub90467-08007

sub90467-06143

main63310-12162-05iKE30..RHD197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub63310-12162

sub63310-12360

sub90467-08007

sub90467-06143

main63310-12162-08iKE30..RHD..DLX197503-197508

IVORY,IVORY

sub63310-12162

sub63310-12360

sub90467-08007

sub90467-06143

main63310-12163-04iKE30,55..SED197805-198002

BLUE,TRIM8#

sub63310-12361

main63310-12163-13iKE30,55..SED197805-198002

GRAY,TRIM2#

sub63310-12361

main63310-12163-15iKE30,55..SED197805-198002

BEIGE,TRIM4#

sub63310-12361

main63310-12180-08iKE35..RHD197408-197503

IVORY,IVORY

sub63310-12182

main63310-12182-08iKE35..RHD197503-197508

IVORY,IVORY

sub63310-12380

sub90467-06143

sub63310-12183

main63310-12183-03iKE35197508-197701

GRAY,GRAY,TRIM0#,2#

sub63310-12380

sub90467-06143

main63310-12183-05iKE35197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub63310-12380

sub90467-06143

main63310-12184-04iKE35,55..HT197805-198107

BLUE,BLUE,TRIM8#

sub63310-12380

main63310-12184-13iKE35,55..HT197805-198107

GRAY,GRAY,TRIM2#

sub63310-12380

main63310-12184-15iKE35,55..HT197805-198107

BEIGE,BEIGE,TRIM4#

sub63310-12380

main63310-12190-03iKE50,TE51197603-197701

GRAY,GRAY,TRIM0#,2#

sub63310-12190

main63310-12190-05iKE50,TE51197603-197701

BEIGE,BEIGE,TRIM0#,4#

sub63310-12190

main63310-12210-03iTE47197508-197511

GRAY,GRAY,TRIM0#,2#

sub63310-12211

main63310-12210-05iTE47197508-197511

BEIGE,BEIGE,TRIM0#,4#

sub63310-12211

main63310-12210-08iTE47197408-197508

IVORY,IVORY

sub63310-12211

main63310-12211-03iTE47197511-197701

GRAY,GRAY,TRIM0#,2#

main63310-12211-05iTE47197511-197701

BEIGE,BEIGE,TRIM0#,4#

main63310-12230iKE35..LHD197408-197503

IVORY

sub63310-12232

main63310-12232iKE35..LHD197503-197508

IVORY

sub63310-12183

sub90467-06143

main63310-12250iKE30..LHD..DLX197408-197503

IVORY

sub63310-12252

main63310-12252-03iKE30..LHD197508-197701

GRAY,GRAY,TRIM0#,2#

sub63310-12252

sub63310-12360

sub90467-08007

sub90467-06143

main63310-12252-05iKE30..LHD197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub63310-12252

sub63310-12360

sub90467-08007

sub90467-06143

main63310-12252-08iKE30..LHD..DLX197503-197508

IVORY,IVORY

sub63310-12252

sub63310-12360

sub90467-08007

sub90467-06143

main63310-12270-03iKE30..2D..DLX;KE30,TE31..2D..STD..(ARL,GEN,SA)197508-197701

SUSPENDED HEADLINING,GRAY,GRAY,TRIM0#,2#

sub63310-12270

main63310-12270-08iKE30,TE31..2D197408-197508

SUSPENDED HEADLINING,IVORY,IVORY

sub63310-12270

main63310-12270-13iKE30,TE31..2D..(ARL,GEN,SA)197701-198004

SUSPENDED HEADLINING,GRAY,GRAY,TRIM2#

sub63310-12270

main63310-12270-15iKE30,TE31..2D..(ARL,GEN,SA)197701-198004

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub63310-12270

main63310-12280-03iKE30,TE31..4D..(ARL,GEN,SA)197508-197701

SUSPENDED HEADLINING,GRAY,GRAY,TRIM0#,4#

sub63310-12280

main63310-12280-08iKE30,TE31..4D197408-197508

SUSPENDED HEADLINING,IVORY,IVORY

sub63310-12280

main63310-12280-13iKE30,55,TE31..4D..(ARL,GEN,SA)197701-198107

SUSPENDED HEADLINING,GRAY,GRAY,TRIM2#

sub63310-12280

main63310-12280-15iKE30,55,TE31..4D..(ARL,GEN,SA)197701-198107

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub63310-12280

main63310-12310-03iKE35..K50..SDN;KE35,TE37..ARL,GEN,SA197508-197701

SUSPENDED HEADLINING,GRAY,GRAY,TRIM0#,2#

sub63310-12310

main63310-12310-08iKE35,TE37197408-197508

SUSPENDED HEADLINING,IVORY,IVORY

sub63310-12310

main63310-12310-13iKE35,55,TE37..HT..(ARL,GEN,SA)197701-198107

SUSPENDED HEADLINING,GRAY,GRAY,TRIM2#

sub63310-12310

main63310-12310-15iKE35,55,TE37..HT..(ARL,GEN,SA)197701-198107

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub63310-12310

main63310-12320-13iKE50,TE51197701-197707

GRAY,GRAY,TRIM2#

main63310-12320-15iKE50,TE51197701-197707

BEIGE,BEIGE,TRIM4#

main63310-12321-04iKE5#,TE51..LB197805-197908

BLUE,BLUE,TRIM8#

main63310-12321-13iKE5#,TE51..LB197707-197908

GRAY,GRAY,TRIM2#

main63310-12321-15iKE5#,TE51..LB197707-197908

BEIGE,BEIGE,TRIM4#

main63310-12360-13iKE30197701-197707

GRAY,GRAY,TRIM2#

sub63310-12361

sub90467-07158

sub90467-08007

main63310-12360-15iKE30197701-197707

BEIGE,BEIGE,TRIM4#

sub63310-12361

sub90467-07158

sub90467-08007

main63310-12361-04iKE30,55..SED198002-198107

BLUE,BLUE,TRIM8#

sub63310-12361

main63310-12361-13iKE30197707-198107

GRAY,GRAY,TRIM2#

sub63310-12361

main63310-12361-15iKE30,55..SED197707-198107

BEIGE,BEIGE,TRIM4#

sub63310-12361

main63310-12380-13iKE35197701-197805

GRAY,GRAY,TRIM2#

sub63310-12380

main63310-12380-15iKE35197701-197805

BEIGE,BEIGE,TRIM4#

sub63310-12380

main63310-13060iKE36197408-197508

IVORY

main63310-13061-03iKE36197508-197701

GRAY,GRAY,TRIM0#,2#

sub63310-13061

main63310-13061-04iKE36,38197805-198107

BLUE,BLUE,TRIM8#

sub63310-13061

main63310-13061-05iKE36197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub63310-13061

main63310-13061-13iKE36,38197701-198107

GRAY,GRAY,TRIM2#

sub63310-13061

main63310-13061-15iKE36,38197701-198107

BEIGE,BEIGE,TRIM4#

sub63310-13061

main63311-12280-03iTE47197701-197902

GRAY,GRAY,TRIM2#

main63311-12280-04iTE47197805-197902

BLUE,BLUE,TRIM8#

main63311-12280-05iTE47197701-197902

BEIGE,BEIGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-06143-03iKE50,TE51197508-197606

GRAY,GRAY,TRIM0#,2#

sub90467-06143

main90467-06143-05iKE50,TE51197508-197606

BEIGE,BEIGE,TRIM0#,4#

sub90467-06143

main90467-07158-03iKE30197701-197908

PLANT M12,GRAY,GRAY,TRIM2#

sub90467-07158

main90467-07158-04iKE30197805-197908

PLANT M12,BLUE,BLUE,TRIM8#

sub90467-07158

main90467-07158-05iKE30197701-197908

PLANT M12,BEIGE,BEIGE,TRIM4#

sub90467-07158

main90467-08007-03iKE30,35197606-197701

GRAY,GRAY,TRIM0#,2#

sub90467-07005

sub90467-08007

main90467-08007-04iKE30,35,55..HT,SED197805-198107

PLANT A31,A32,BLUE,BLUE,TRIM8#

sub90467-07005

sub90467-08007

main90467-08007-04iKE5#,TE47,51..CP,LB197805-197908

BLUE,BLUE,TRIM8#

sub90467-07005

sub90467-08007

main90467-08007-05iKE50,TE51197606-197701

BEIGE,BEIGE,TRIM0#,4#

sub90467-07005

sub90467-08007

main90467-08007-13iKE5#,TE47,51..CP,LB197701-197908

GRAY,GRAY,TRIM2#

sub90467-07005

sub90467-08007

main90467-08007-13iKE30,35,55..HT,SED197701-198107

PLANT A31,A32,GRAY,GRAY,TRIM2#

sub90467-07005

sub90467-08007

main90467-08007-15iKE50,TE51197701-197908

BEIGE,BEIGE,TRIM4#

sub90467-07005

sub90467-08007

main90467-08007-15iKE30,35,55..HT,SED197701-198107

PLANT A31,A32,BEIGE,BEIGE,TRIM4#

sub90467-07005

sub90467-08007

main90467-09146-03iTE47197508-197701

GRAY,GRAY,TRIM0#,2#

sub90467-09146

sub90467-07020

main90467-09146-05iTE47197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub90467-09146

sub90467-07020

main90467-09146-08iTE47197408-197508

IVORY,IVORY

sub90467-09146

sub90467-07020

main90467-09146-13iTE47197701-197805

GRAY,GRAY,TRIM2#

sub90467-09146

sub90467-07020

main90467-09146-15iTE47197701-197805

BEIGE,BEIGE,TRIM4#

sub90467-09146

sub90467-07020

63326RETAINER, ROOF HEADLINING, GARD SET, NO.1

main63321-12010iTE47197408-197511

63327RETAINER, ROOF HEADLINING, GARD SET, NO.2

main63323-12010iTE47197408-197508

main63323-12011-03iTE47197508-197511

GRAY,GRAY,TRIM0#,2#

main63323-12011-05iTE47197508-197511

BEIGE,TRIM0#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-12050iKE35,55,TE37..HT..RHD197408-198107

CKD

sub63341-22H92

main63341-13030iKE36,38197408-198107

CKD

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63342-12010iKE35,55,TE37..HT..RHD197408-198107

CKD

sub63341-22H92

main63342-12020iKE30,55,TE31..ARL,GEN,SA197408-198107

CKD

sub63341-22H92

main63342-13030iKE36,38197408-198107

sub63341-22H92

63343PAD, ROOF SILENCER, NO.3

main63341-13030iKE36,38197408-198107

sub63341-22H92

main63343-12010iKE30,35,55,TE3#..ARL,GEN,SA197408-198107

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-12050iKE30,55,TE31..ARL,GEN,SA197408-198107

COLOR GREEN

sub63362-12040

main63361-12060iKE35,55,TE37..ARL,GEN,SA197408-198107

sub63362-12040

main63361-13010iKE36,38197408-198107

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-12050iKE30,55,TE31..ARL,GEN,SA197408-198107

COLOR GREEN

sub63362-12040

main63361-13010iKE36,38197408-198107

main63362-12040iKE35,55,TE37..ARL,GEN,SA197408-198107

COLOR BLACK

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-12050iKE30,55,TE31..ARL,GEN,SA197408-198107

COLOR GREEN

sub63362-12040

main63361-13010iKE36,38197408-198107

main63362-12040iKE35,55,TE37..ARL,GEN,SA197408-198107

COLOR BLACK

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-13010iKE36,38197408-198107

main63362-12040iKE30,35,55,TE3#..ARL,GEN,SA197408-198107

COLOR BLACK

63365SUPPORT, ROOF HEADLINING, NO.5

main63361-13010iKE36,38197408-198107

63371HOOK, ROOF HEADLINING SUPPORT

main63372-12010iKE30,TE31..ARL,GEN,SA197408-198004

main63372-12020iKE30,55,TE31..ARL,GEN,SA197408-198107

main63372-12030iKE35,55,TE37..ARL,GEN,SA197408-198107

main90580-30174iKE36,38197408-198107

63376CLIP, HEADLINING

main63376-20010iKE30,35,5#,TE51197408-198107

main63395-12010iTE47197408-197902

63382RETAINER, HEADLINING, REAR CENTER

main63383-13010iKE36,38197408-198107

63383RETAINER, ROOF HEADLINING, REAR RH

main63302-12010iKE30,55,TE31..ARL,GEN,SA197408-198107

main63302-13020iKE36..LHD..DLX197408-197908

main63381-12020iKE35,55,TE37..ARL,GEN,SA197408-198107

main63381-13010iKE36,38..STD197408-198107

63384RETAINER, ROOF HEADLINING, REAR LH

main63303-12010iKE30,55,TE31..ARL,GEN,SA197408-198107

main63303-13010iKE36..RHD..DLX197408-198002

main63382-12020iKE35,55,TE37..ARL,GEN,SA197408-198107

main63382-13010iKE36..LHD..DLX197408-198107

63392TRIM, ROOF HEADLINING, REAR

main63392-12010-01iKE30,55,TE31..SED197701-198107

BLACK,BLACK,TRIM2#

sub63392-12010

main63392-12010-03iKE30,TE31197508-197701

GRAY,GRAY,TRIM0#,2#

sub63392-12010

main63392-12010-04iKE30,55..SED197805-198107

BLUE,BLUE,TRIM8#

sub63392-12010

main63392-12010-05iKE30,TE31197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub63392-12010

main63392-12010-06iKE30,55,TE31..SED197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub63392-12010

main63392-12010-08iKE30,TE31197408-197508

IVORY,IVORY

sub63392-12010

main63392-12030-01iKE35,55,TE37..HT197701-198107

BLACK,BLACK,TRIM2#

sub63392-12030

main63392-12030-03iKE35,TE37197508-197701

GRAY,GRAY,TRIM0#,2#

sub63392-12030

main63392-12030-04iKE35,55..HT197805-198107

BLUE,BLUE,TRIM8#

sub63392-12030

main63392-12030-05iKE35,TE37197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub63392-12030

main63392-12030-06iKE35,55,TE37..HT197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub63392-12030

main63392-12030-08iKE35,TE37197408-197508

IVORY,IVORY

sub63392-12030

main63392-12040-03iKE50,TE51197603-197701

GRAY,GRAY,TRIM0#,2#

main63392-12040-04iKE50,TE51197805-197908

BLUE,BLUE,TRIM8#

main63392-12040-05iKE50,TE51197603-197701

BEIGE,BEIGE,TRIM0#,4#

main63392-12040-13iKE50,TE51..EUR,GEN197701-197908

GRAY,GRAY,TRIM2#

main63392-12040-15iKE50,TE51..EUR,GEN197701-197908

BEIGE,BEIGE,TRIM4#

main63392-12050-03iKE5#..K50..ARL197701-197908

GRAY,GRAY,TRIM2#

main63392-12050-04iKE55..K50197805-197908

BLUE,BLUE,TRIM8#

main63392-12050-05iKE5#..K50..ARL197701-197908

BEIGE,BEIGE,TRIM4#

main63392-13010iKE36197408-197508

IVORY

main63392-13011-03iKE36197508-197701

GRAY,GRAY,TRIM0#,2#

main63392-13011-04iKE36,38197805-198107

BLUE,BLUE,TRIM8#

main63392-13011-05iKE36197508-197701

BEIGE,BEIGE,TRIM0#,4#

main63392-13011-13iKE36,38197701-198107

GRAY,GRAY,TRIM2#

main63392-13011-15iKE36,38197701-198107

BEIGE,BEIGE,TRIM4#

63393TRIM, ROOF HEADLINING, CENTER

main63393-12040-03iTE47197508-197701

RH,GRAY,GRAY,TRIM0#,2#

main63393-12040-05iTE47197508-197701

RH,BEIGE,BEIGE,TRIM0#,4#

main63393-12040-08iTE47197408-197508

RH,IVORY,IVORY

main63393-12050-01iKE30,55,TE31..SED..(ARL,GEN,SA)197701-198107

BLACK,BLACK,TRIM2#

sub63393-12050

main63393-12050-03iKE30,TE31..ARL,GEN,SA197508-197701

GRAY,GRAY,TRIM0#,2#

sub63393-12050

main63393-12050-04iKE30,55..SED..(ARL,GEN,SA)197805-198107

BLUE,BLUE,TRIM8#

sub63393-12050

main63393-12050-05iKE30,TE31..ARL,GEN,SA197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub63393-12050

main63393-12050-06iKE30,55,TE31..SED..(ARL,GEN,SA)197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub63393-12050

main63393-12050-08iKE30,TE31197408-197508

IVORY,IVORY

sub63393-12050

main63393-12070-03iTE47197701-197902

RH,GRAY,GRAY,TRIM2#

main63393-12070-04iTE47197805-197902

RH,BLUE,BLUE,TRIM8#

main63393-12070-05iTE47197701-197902

RH,BEIGE,BEIGE,TRIM4#

main63393-13010iKE36197408-197508

IVORY

main63393-13011-01iKE36,38197701-198107

BLACK,BLACK,TRIM2#

sub62313-12011

main63393-13011-03iKE36197508-197701

GRAY,GRAY,TRIM0#,2#

sub62313-12011

main63393-13011-04iKE36,38197805-198107

BLUE,BLUE,TRIM8#

sub62313-12011

main63393-13011-05iKE36197508-197701

BEIGE,BEIGE,TRIM0#,4#

sub62313-12011

main63393-13011-06iKE36,38197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub62313-12011

main63394-12040-03iTE47197508-197701

LH,GRAY,GRAY,TRIM0#,2#

main63394-12040-05iTE47197508-197701

LH,BEIGE,BEIGE,TRIM0#,4#

main63394-12040-08iTE47197408-197508

LH,IVORY,IVORY

main63394-12060-03iTE47197701-197902

LH,GRAY,GRAY,TRIM2#

main63394-12060-04iTE47197805-197902

LH,BLUE,BLUE,TRIM8#

main63394-12060-05iTE47197701-197902

LH,BEIGE,BEIGE,TRIM4#

9016240002

main90162-40002

9016440005

main90164-40005

9016445001

main90164-45001

9046804137

main90468-04137

9095001056

main90950-01056

9353054014

main93530-54014

9354014010

main93540-14010

28 parts on this diagram · 2 diagrams in section
