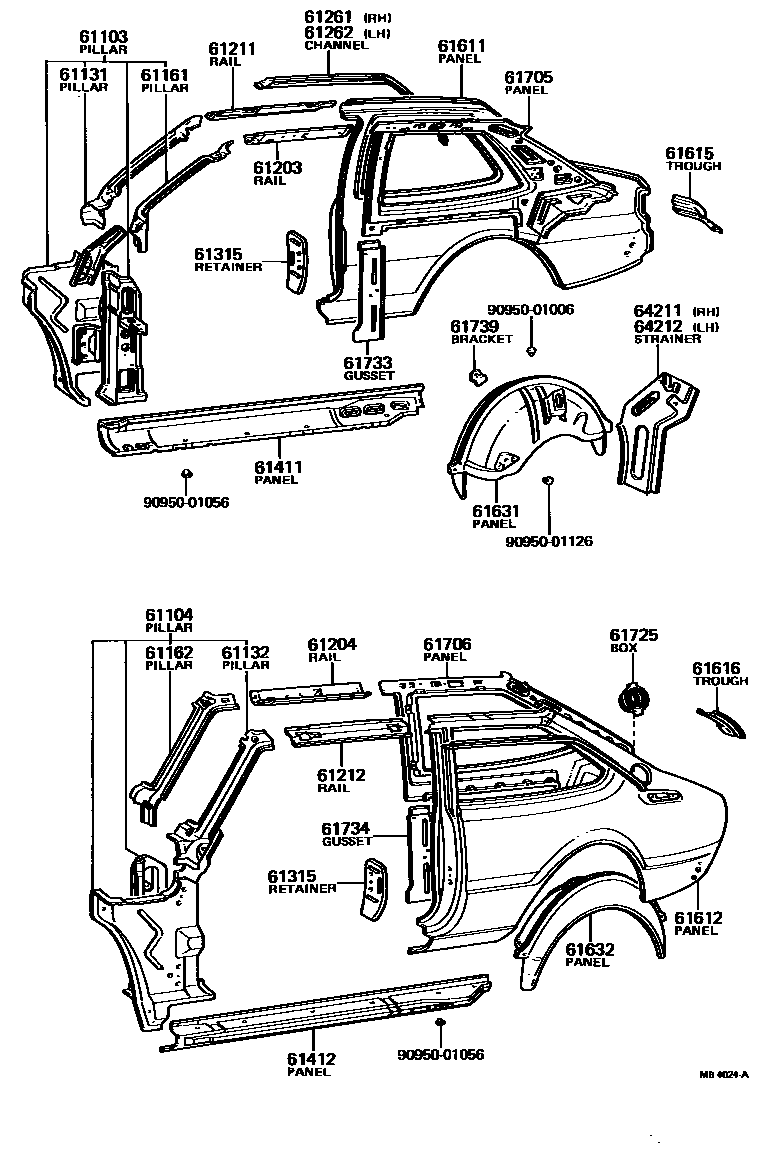

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12021iKE35..LHD197701-197808

main61021-12040iKE35197408-197409

sub61021-12020

main61021-12041iKE35,55,TE37..HT..RHD197701-198107

main61021-12050iKE35..LHD197409-197701

sub61021-12020

main61021-12060iTE47197408-197510

main61021-12110iKE30,36..LHD197808-198002

main61021-12120iKE35..LHD197808-197908

main61103-12090iKE30,36,TE31..RHD197408-197701

main61103-12091iKE30,36,38,55,TE31..(DV,SED,WG)..RHD197701-198107

W/RADIO

main61103-12130iKE5#,TE47,51..CP,LB197808-197908

main61103-12160iKE50,TE47,51197510-197701

main61103-12161iKE50,TE47,51197701-197808

main61103-12180iKE30,36..LHD197408-197701

main61103-12181iKE30,36..LHD197701-197808

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12030iKE35197408-197409

main61022-12031iKE35,55,TE37..HT..RHD197701-198107

main61022-12070iTE47197408-197510

main61022-12080iKE35..LHD197409-197701

main61022-12081iKE35..LHD197701-197808

main61022-12130iKE30,36..LHD197808-198002

main61022-12160iKE35..LHD197808-197908

main61104-12090iKE30,36,TE31..RHD197408-197701

main61104-12091iKE30,36,38,55,TE31..(DV,SED,WG)..RHD197701-198107

W/RADIO

main61104-12130iKE50,TE47,51197510-197701

main61104-12131iKE50,TE47,51197701-197808

main61104-12190iKE30,36..LHD197408-197701

main61104-12191iKE30,36..LHD197701-197808

main61104-12200iKE5#,TE47,51..CP,LB197808-197908

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12070iKE30,36,38,55,TE31..DV,SED,WG197408-198107

main61131-12100iKE35,55,TE37..HT197408-198107

main61131-12120iKE5#,TE47,51..CP,LB197408-197908

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12070iKE30,36,38,55,TE31..DV,SED,WG197408-198107

main61132-12080iKE35,55,TE37..HT197408-198107

main61132-12100iKE5#,TE47,51..CP,LB197408-197908

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-12050iKE30,36,38,55,TE31..DV,SED,WG197408-198107

main61161-12060iKE35,55,TE37..HT197408-198107

main61161-12070iKE5#,TE47,51..CP,LB197408-197908

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-12050iKE30,36,38,55,TE31..DV,SED,WG197408-198107

main61162-12060iKE35,55,TE37..HT197408-198107

main61162-12070iKE5#,TE47,51..CP,LB197408-197908

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61231-12080iKE30,36..2D197408-197501

main61231-12090iKE30..4D197408-197501

main61231-12110iKE30,36,38,TE31..2D197501-198107

main61231-12120iTE47197408-197902

main61231-12140iKE30,TE31..4D197501-197509

main61231-12141iKE30,55,TE31..4D197509-198107

main61231-12160iKE5#,TE51..LB197603-197908

main61231-13020iKE36..4D197408-197505

main61231-13021iKE36,38..4D197505-198107

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61232-12080iKE30,36,38,TE31..2D197408-198107

main61232-12090iKE30,TE31..4D197408-197509

main61232-12091iKE30,55,TE31..4D197509-198107

main61232-12110iKE5#,TE51..LB197603-197908

main61232-12120iTE47197408-197902

main61232-13020iKE36..4D197408-197505

main61232-13021iKE36,38..4D197505-198107

61211RAIL, ROOF SIDE, OUTER RH

main61201-12010iKE35,55,TE37..HT197408-198107

main61211-12070iKE30,55,TE31..4D197408-198107

main61211-12080iKE30,36,38,TE31..2D197408-198107

main61211-12100iTE47197408-197902

main61211-12120iKE5#,TE51..LB197603-197908

main61211-13020iKE36..4D197408-197505

main61211-13021iKE36,38..4D197505-198107

61212RAIL, ROOF SIDE, OUTER LH

main61202-12010iKE35,55,TE37..HT197408-198107

main61212-12070iKE30,55,TE31..4D197408-198107

main61212-12080iKE30,36,38,TE31..2D197408-198107

main61212-12100iTE47197408-197902

main61212-12120iKE5#,TE51..LB197603-197908

main61212-13020iKE36..4D197408-197505

main61212-13021iKE36,38..4D197505-198107

61261CHANNEL, ROOF DRIP, RH

main61261-12080iKE30,TE31..2D197408-198004

main61261-12090iTE47197408-197902

61262CHANNEL, ROOF DRIP, LH

main61262-12080iKE30,TE31..2D197408-198004

main61262-12090iTE47197408-197902

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-12030×2iKE50,TE47,51197502-197703

main61309-20010×2iKE30,36,TE47197408-197502

61411PANEL, ROCKER, OUTER RH

main61411-12130iKE3#,TE3#..2D197608-197701

main61411-12131iKE3#,55,TE3#..2D197701-198107

main61411-12140iKE30,36,38,55,TE31..4D197608-198107

main61411-12150iKE5#,TE47,51..CP,LB197608-197908

main61411-12901iKE3#,TE3#..2D197408-197608

main61411-12902iKE30,36,TE31..4D197408-197608

main61411-12903iKE50,TE47,51197408-197608

61412PANEL, ROCKER, OUTER LH

main61412-12130iKE3#,TE3#..2D197608-197701

main61412-12131iKE3#,55,TE3#..2D197701-198107

main61412-12140iKE30,36,38,55,TE31..4D197608-198107

main61412-12150iKE5#,TE47,51..CP,LB197608-197908

main61412-12901iKE3#,TE3#..2D197408-197608

main61412-12902iKE30,36,TE31..4D197408-197608

main61412-12903iKE50,TE47,51197408-197608

61611PANEL, QUARTER, RH

main61601-12140iKE5#,TE51..LB..DLX197603-197908

main61601-12240iTE51..GSL197603-197908

main61601-13010iKE36..2D197408-197511

sub62951-19156

sub62951-19167

sub62951-19185

main61601-13011iKE36,38..2D197511-198107

main61601-13901iKE36..4D197408-197511

sub62951-19156

sub62951-19167

sub62951-19185

main61601-13904iKE36,38..4D197511-198107

main61611-12010iKE30,TE31..2D197408-198004

main61611-12040iKE30,55,TE31..4D197408-198107

main61611-12050iKE35,TE37197408-197612

sub61611-12H00

main61611-12051iKE35,55,TE37..HT197612-198107

main61611-12070iTE47197408-197503

main61611-12190iTE47197503-197902

61612PANEL, QUARTER, LH

main61602-12060iKE5#,TE51..LB..DLX197603-197908

main61602-12140iTE51..GSL197603-197908

main61602-13010iKE36,38..2D197408-198107

main61602-13901iKE36,38..4D197408-198107

main61612-12010iKE30,TE31..2D197408-198004

main61612-12040iKE30,55,TE31..4D197408-198107

main61612-12050iKE35,TE37197408-197612

sub61612-12H00

main61612-12051iKE35,55,TE37..HT197612-198107

main61612-12070iTE47197408-197503

main61612-12190iTE47197503-197902

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12010iKE30,55,TE31..SED197408-198107

main61621-12020iKE35,55,TE37..HT197408-198107

main61621-12030iTE47197408-197902

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12010iKE30,55,TE31..SED197408-198107

main61622-12020iKE35,55,TE37..HT197408-198107

main61622-12030iTE47197408-197902

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-12080iTE47197408-197902

main61603-12110iKE5#,TE51..LB197603-197908

main61603-12901iKE30,35,55,TE3#..HT,SED197701-198107

main61603-13040iKE36,38..WG;KE36..DV..RHD..GEN197408-198107

main61603-13050iKE36,38..DV197408-198107

LONG DECK

main61631-12900iKE30,35,TE3#197408-197701

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-12080iTE47197408-197902

main61604-12110iKE5#,TE51..LB197603-197908

main61604-12901iKE30,35,55,TE3#..HT,SED197701-198107

main61604-13040iKE36,38..WG;KE36..DV..RHD..GEN197408-198107

main61604-13050iKE36,38..DV197408-198107

LONG DECK

main61632-12900iKE30,35,TE3#197408-197701

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12090iTE47197408-197607

main61705-12140iKE30,55,TE31..4D..(ARL,GEN,SA)197805-198107

main61705-12280iKE30..4D..EUG197805-197908

main61705-12923iKE50,TE51197603-197710

main61705-12925iKE30..2D197408-197501

main61705-12927iKE30,TE31..2D197501-198004

main61705-12928iTE47197607-197902

main61705-12929iKE50..SDN197710-197908

main61705-13120iKE36..2D..GEN197408-197501

sub62951-19156

sub62951-19167

sub62951-19177

sub62951-19185

sub62951-19195

main61705-13121iKE36..SA197511-198107

LONG DECK

sub61705-13300

main61705-13130iKE36..4D197408-197501

sub61705-13131

sub62951-19156

sub62951-19167

sub62951-19177

sub62951-19185

sub62951-19195

main61705-13140iKE36..DV..RHD..GEN197408-197501

LONG DECK

main61705-13141iKE36..DV..RHD..GEN197501-197511

LONG DECK

sub62951-19156

main61705-13142iKE36,38..DV..(ARL,EUR,GEN)197511-198002

LONG DECK

sub61705-13300

main61705-13151iKE36..2D..(EUR,GEN)197501-197511

sub62951-19156

sub62951-19177

sub62951-19195

main61705-13152iKE36..2DW197511-197908

sub61705-13300

main61705-13160iKE36..4D197501-197511

sub62951-19156

sub62951-19177

sub62951-19195

main61705-13161iKE36,38..4D197511-198107

sub61705-13290

main61731-12130iKE35,55,TE37197408-198107

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12090iTE47197408-197607

main61706-12140iKE30,TE31..4D197408-197805

main61706-12290iKE30..4D..EUG197805-197908

main61706-12923iKE5#,TE51..LB..(ARL,GEN)197710-197908

main61706-12925iKE30..2D197408-197501

main61706-12927iKE30,TE31..2D197501-198004

main61706-12928iTE47197607-197902

main61706-12929iKE50..SDN197710-197908

main61706-13120iKE36..SA197408-198107

LONG DECK

sub61706-13350

main61706-13130iKE36..4D197408-197501

sub61706-13340

main61706-13140iKE36..DV..RHD..GEN197408-197501

LONG DECK

main61706-13141iKE36,38..DV..(ARL,EUR,GEN)197501-198002

LONG DECK

sub61706-13350

main61706-13171iKE36..2D..GEN197501-197508

main61706-13180iKE36..4D197501-197508

main61706-13220iKE36..2DW197508-197908

sub61706-13350

main61706-13230iKE36,38..4D197508-198107

sub61706-13340

main61732-12130iKE35,55,TE37..HT197408-198107

61725BOX, FUEL INLET

main61725-12060iKE30,55,TE31..SED197408-198107

main61725-12070iKE35,55,TE37..HT197408-198107

main61725-12080iTE47197408-197908

61733GUSSET, QUARTER, INNER RH

main61077-12010iKE35,55,TE37..HT197408-198107

main61733-12040iKE30,TE31..2D197408-198004

main61733-12050iKE5#,TE47,51..CP,LB197408-197908

61734GUSSET, QUARTER, INNER LH

main61078-12010iKE35,55,TE37..HT197408-198107

main61734-12040iKE30,TE31..2D197408-198004

main61734-12060iKE5#,TE47,51..CP,LB197408-197908

61739BRACKET, REAR BODY INSIDE TRIM

main61647-14010×4iKE30,35,55,TE3#..2D197408-198107

main61753-13010×4iKE36,38..2D197408-198107

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

9095001006

main90950-01006

9095001056

main90950-01056

9095001126

main90950-01126

32 parts on this diagram · 7 diagrams in section
