FLOOR MAT

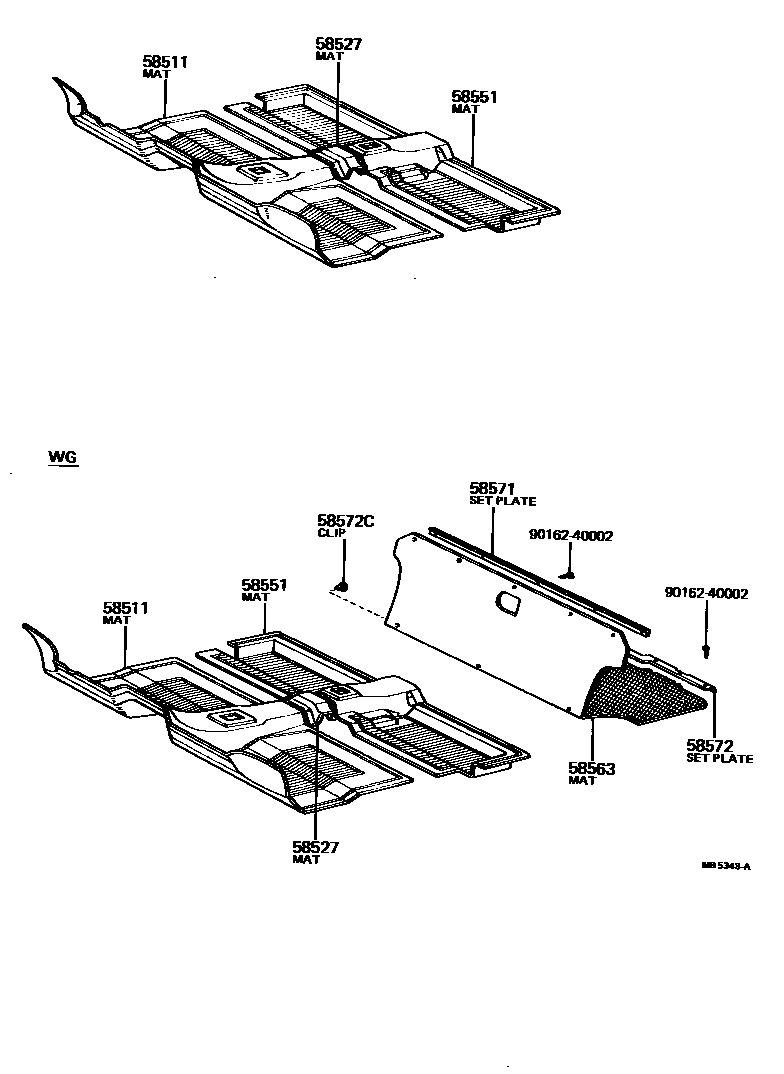

Parts diagram
58511MAT, FLOOR, FRONT
main58510-12160-01i197408-197701
BLACK,BLACK,TRIM0#,2#
main58510-12160-06i197408-197508
BROWN,BROWN,TRIM0#,4#
main58510-12160-16i197508-197701
BROWN,BROWN,TRIM0#,4#
main58510-12180-01i197408-197608
BLACK,BLACK,TRIM0#,2#
main58510-12180-06i197408-197508
BROWN,BROWN,TRIM0#,4#
main58510-12180-16i197508-197608
BROWN,BROWN,TRIM0#,4#
main58510-12181-01i197608-197701
BLACK,BLACK,TRIM0#,2#
main58510-12181-06i197608-197701
BROWN,BROWN,TRIM0#,4#
main58510-12190-01i197408-197608
BLACK,BLACK,TRIM0#,2#
main58510-12190-06i197408-197508
BROWN,BROWN,TRIM0#,4#
main58510-12190-16i197508-197608
BROWN,BROWN,TRIM0#,4#
main58510-12191-01i197608-197701
BLACK,BLACK,TRIM0#,2#
main58510-12191-06i197608-197701
BROWN,BROWN,TRIM0#,4#
main58510-12330-01i197805-198107
BLACK,BLACK,TRIM2#,8#
main58510-12330-06i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58510-12330-16i197805-198107
LIGHT BROWN,BROWN,TRIM4#
main58510-12340-01i197805-198107
W/CONSOLE,BLACK,BLACK,TRIM2#,8#
main58510-12340-06i197701-197805
W/CONSOLE,LIGHT BROWN,BROWN,TRIM4#
main58510-12340-16i197805-198107
W/CONSOLE,LIGHT BROWN,BROWN,TRIM4#
main58510-12410-01i197408-197701
BLACK,BLACK,TRIM0#,2#
main58510-12410-06i197408-197508
BROWN,BROWN,TRIM0#,4#
main58510-12410-16i197508-197701
BROWN,BROWN,TRIM0#,4#
main58510-12480-01i197701-197805
BLACK,BLACK,TRIM2#
main58510-12490-01i197701-197805
W/CONSOLE,BLACK,BLACK,TRIM2#
main58510-13060-01i197701-197805
BLACK,BLACK,TRIM2#
main58510-13060-06i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58510-13070-01i197701-197805
BLACK,BLACK,TRIM2#
main58510-13070-06i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58510-13070-16i197805-198107
LIGHT BROWN,BROWN,TRIM4#
58527MAT, CENTER FLOOR CROSSMEMBER
main58532-12010-01i197408-197701
BLACK,BLACK,TRIM0#,2#
main58532-12010-06i197408-197508
BROWN,BROWN,TRIM0#,4#
main58532-12010-16i197508-197701
BROWN,BROWN,TRIM0#,4#
main58532-12020-01i197408-197701
BLACK,BLACK,TRIM0#,2#
main58532-12020-06i197408-197508
BROWN,BROWN,TRIM0#,4#
main58532-12020-16i197508-197701
BROWN,BROWN,TRIM0#,4#
58551MAT, FLOOR, REAR
main58514-12320-01i197408-197701
BLACK,BLACK,TRIM0#,2#
main58514-12320-06i197408-197508
BROWN,BROWN,TRIM0#,4#
main58514-12320-16i197508-197701
BROWN,BROWN,TRIM0#,4#
main58514-13020-01i197408-197701
LONG DECK,BLACK,BLACK,TRIM0#,2#
main58514-13020-06i197408-197508
LONG DECK,BROWN,BROWN,TRIM0#,4#
main58514-13020-16i197508-197701
LONG DECK,BROWN,BROWN,TRIM0#,4#
main58540-12280-01i197701-197805
W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-12280-06i197701-197805
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-12281-01i197805-197908
W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-12281-06i197805-197908
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-12290-01i197701-197805
W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-12290-06i197701-197805
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-12291-01i197805-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#,8#
main58540-12291-06i197805-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-12300-01i197701-197805
BLACK,BLACK,TRIM2#
main58540-12300-06i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58540-12301-01i197805-197908
BLACK,BLACK,TRIM2#,8#
main58540-12301-06i197805-197908
LIGHT BROWN,BROWN,TRIM4#
main58540-12310-01i197701-197805
BLACK,BLACK,TRIM2#
main58540-12310-06i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58540-12311-01i197805-198107
BLACK,BLACK,TRIM2#,8#
main58540-12311-06i197805-198107
LIGHT BROWN,BROWN,TRIM4#
main58540-13040-01i197701-197805
W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-13040-06i197701-197805
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-13041-01i197805-197908
W/SEAT BELT,BLACK,BLACK,TRIM2#,8#
main58540-13041-06i197805-197908
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-13050-01i197701-197805
W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-13050-06i197701-197805
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-13051-01i197805-197908
W/SEAT BELT,BLACK,BLACK,TRIM2#,8#
main58540-13051-06i197805-197908
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-13060-01i197701-197805
SHORT DECK,BLACK,BLACK,TRIM2#
main58540-13060-06i197701-197805
SHORT DECK,LIGHT BROWN,BROWN,TRIM4#
main58540-13061-01i197805-198002
SHORT DECK,BLACK,BLACK,TRIM2#,8#
main58540-13061-06i197805-198002
SHORT DECK,LIGHT BROWN,BROWN,TRIM4#
main58540-13070-01i197701-197805
BLACK,BLACK,TRIM2#
main58540-13070-06i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58540-13071-01i197805-197908
BLACK,BLACK,TRIM2#,8#
main58540-13071-06i197805-197908
LIGHT BROWN,BROWN,TRIM4#
main58540-13080-01i197701-197805
BLACK,BLACK,TRIM2#
main58540-13080-06i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58540-13081-01i197805-198107
BLACK,BLACK,TRIM2#,8#
main58540-13081-06i197805-198107
LIGHT BROWN,BROWN,TRIM4#
58563MAT, REAR FLOOR
main58581-13010i197408-197508
main58581-13010-03i197808-198002
GRAY,GRAY,TRIM2#,8#
main58581-13010-06i197508-197701
BROWN,BROWN,TRIM0#,4#
main58581-13010-16i197701-197805
LIGHT BROWN,BROWN,TRIM4#
main58581-13010-26i197805-197808
LIGHT BROWN,BROWN,TRIM4#
58571SET PLATE, REAR FLOOR MAT, FRONT
main71882-13010i197808-198002
main71882-13010-03i197408-197505
GRAY,GRAY
58572SET PLATE, REAR FLOOR MAT, REAR
main58573-13010i197408-197711
main58573-13011i197711-197808
58572CCLIP, REAR FLOOR MAT SET
main90467-06161-03×4i197808-198002
OD=15,GRAY,GRAY,TRIM2#,8#
main90467-06161-16×4i197808-198002
OD=15,LIGHT BROWN,BROWN,TRIM4#
main90467-07162-03×4i197408-197701
OD=26,GRAY,GRAY
main90467-07162-13×4i197701-197808
OD=26,GRAY,GRAY,TRIM2#
main90467-07162-16×4i197808-198002
OD=26,LIGHT BROWN,BROWN,TRIM4#
9016240002
main90162-40002

8 parts on this diagram · 2 diagrams in section
