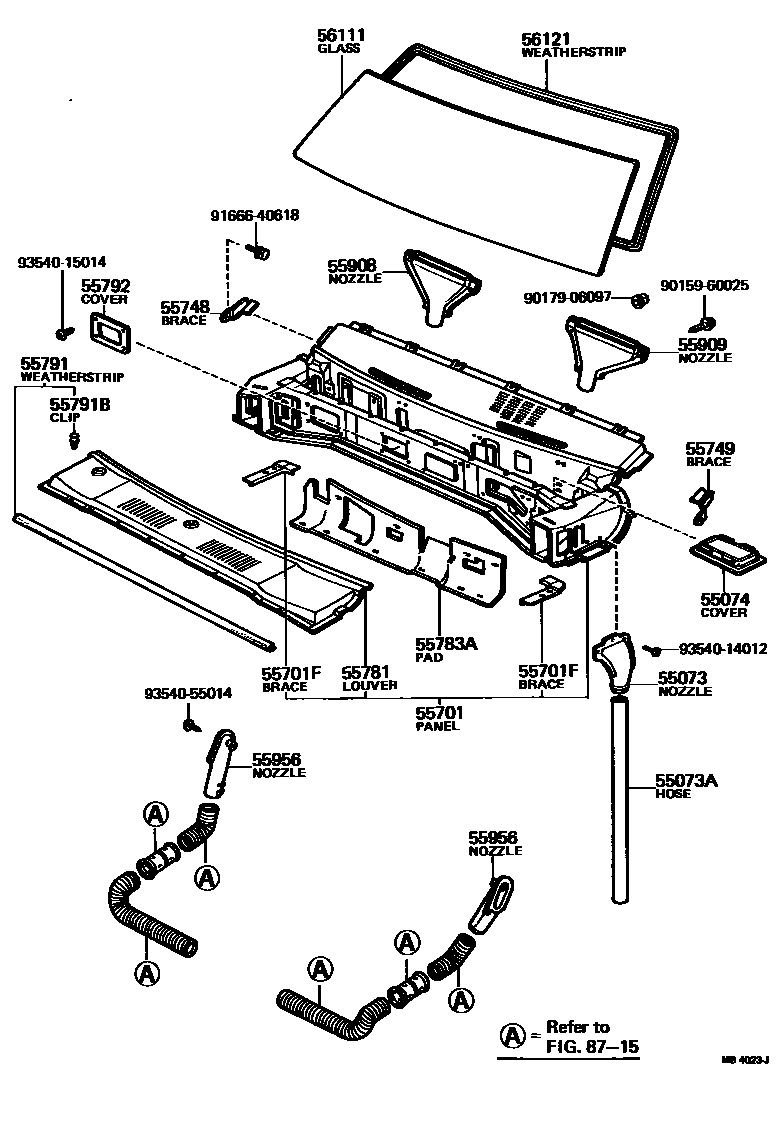

COWL PANEL & WINDSHIELD GLASS

0001 1 0003 1 0004 1 0005 1 0006 1

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20010iKE3#,TE47197408-197501

55073AHOSE(FOR EXTRACT NOZZLE)

main90445-33004iKE3#,TE47197408-197501

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55077-12010iKE30,35,36,50,TE47,51..RHD..GEN197408-198107

W/O HEATER

main55077-12020iKE35..LHD..EUR;KE30..K50..4D..EUG;KE30..LHD..(A20,K40)..EUR197408-198002

W/O HEATER

55701PANEL SUB-ASSY, COWL

main55700-12010iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197408-198107

main55700-12020iKE5#,TE47,51..(CP,LB)..RHD¥45,600197408-197902

sub55701-12080

sub55703-12050

main55700-12030iTE47..LHD197408-197511

main55700-12031iKE50,TE47,51..LHD197511-197808

sub55700-12070

main55700-12040iKE3#..LHD197408-197808

sub55700-12060

main55700-12060iKE30,35,36..LHD197808-198002

main55700-12070iKE50,TE47,51..LHD197808-197902

sub55701-12120

sub55703-12061

main55701-12080iKE5#,TE51..LB..RHD197902-197908

OUTER

main55701-12120iKE50,TE51..LHD197902-197908

OUTER

main55703-12050iKE5#,TE51..LB..RHD197902-197908

INNER

main55703-12061iKE50,TE51..LHD197902-197908

INNER

55701FBRACE, COWL TOP TO APRON

main55715-12020iKE3#,5#,TE3#,47,51¥600197805-198107

RH

sub55715-12040

main55716-12020iKE3#,5#,TE3#,47,51¥600197805-198107

LH

sub55716-12040

55748BRACE, COWL TOP TO PILLAR, RH

main55748-12020iTE47..RHD197408-197701

main55748-12030iTE47..LHD¥2,460197408-197510

sub55748-12020

55749BRACE, COWL TOP TO PILLAR, LH

main55749-12020iTE47..RHD¥2,460197408-197510

sub55749-12030

main55749-12030iTE47..LHD197408-197701

55781LOUVER, COWL VENTILATOR

main55711-12040iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197408-198107

main55711-12050iKE5#,TE47,51..(CP,LB)..RHD197408-197908

main55711-12060iKE50,TE47,51..LHD197408-197908

main55711-12070iKE30,35,36..LHD197408-198002

55783APAD, COWL TOP SILENCER

main55783-12010iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197704-198107

main55783-12020iKE30,35,36..LHD..MTM197704-198002

main55783-12030iKE30,35..LHD..A20197704-197908

main55783-12040iKE5#,TE47,51..(CP,LB)..RHD197704-197908

main55783-12050iKE50..LHD¥2,230197704-197908

main55783-12060iTE47,51..LHD197704-197908

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-12010iKE3#,55,TE3#..DV,HT,SED,WG¥1,930197408-198107

main53383-12020iKE5#,TE47,51..CP,LB¥1,930197408-197908

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-07050iKE3#,50,TE3#,47,51¥170197408-197610

sub90467-08008¥170

main90467-08008iKE3#,5#,TE3#,47,51¥170197610-198107

55792COVER, WIPER MOTOR SERVICE HOLE

main55071-12010iKE5#,TE47,51..CP,LB197408-197908

MOTOR SIDE

main55071-20010iKE3#,5#,TE3#,47,51197408-198107

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55091-12010iKE3#,5#,TE3#,47,51197408-198107

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55092-12010iKE3#,5#,TE3#,47,51197408-198107

55956NOZZLE, SIDE DEFROSTER

main55961-12020iKE3#..LHD197508-197701

RH

main55961-12030iKE50,TE51..LHD197603-197701

RH

main55961-12040iKE3#..RHD..EUG197701-197805

RH

main55961-12050iKE30,35,36..LHD..EUR197701-197908

RH

main55961-12060iKE50,TE51..RHD..EUG¥730197701-197805

RH

main55961-12070iKE50,TE51..LHD..EUR¥980197701-197805

RH

main55961-12070-01iKE50,TE51..LHD..EUR197805-197908

RH,BLACK,BLACK,TRIM2#

sub55961-12070¥980

main55961-12070-04iKE50,TE51..LHD..EUR197805-197908

RH,BLUE,BLUE,TRIM8#

sub55961-12070¥980

main55961-12070-06iKE50,TE51..LHD..EUR197805-197908

RH,LIGHT BROWN,BROWN,TRIM4#

sub55961-12070¥980

main55962-12010iKE3#..LHD197508-197701

LH

main55962-12020iKE50,TE51..LHD197603-197701

LH

main55962-12030iKE3#..RHD..EUG197701-197805

LH

main55962-12040iKE30,35,36..LHD..EUR197701-197908

LH

main55962-12050iKE50,TE51..RHD..EUG¥730197701-197805

LH

main55962-12060iKE50,TE51..LHD..EUR¥970197701-197805

LH

main55962-12060-01iKE50,TE51..LHD..EUR197805-197908

LH,BLACK,BLACK,TRIM2#

sub55962-12060¥970

main55962-12060-04iKE50,TE51..LHD..EUR197805-197908

LH,BLUE,BLUE,TRIM8#

sub55962-12060¥970

main55962-12060-06iKE50,TE51..LHD..EUR197805-197908

LH,LIGHT BROWN,BROWN,TRIM4#

sub55962-12060¥970

56111GLASS, WINDSHIELD

main56111-12180iKE30,36..STD..GEN¥35,500197408-198107

*ZT,T=5.0

sub56111-12190¥38,300

main56111-12190iKE30,36..DLX..GEN¥38,300197408-198107

*TZT,T=5.0

sub56111-12200¥76,900

main56111-12200iKE30,36..DLX¥76,900197408-198107

*TL,T=5.7

main56111-12210iKE35..GEN¥39,600197408-197908

*TZT,T=5.0

sub56111-12220¥76,200

main56111-12220iKE35..GEN¥76,200197408-197908

*TL,T=5.7

main56111-12230iKE50,TE47,51..GEN¥37,400197408-197908

*TZT,T=5.0

sub56111-12380¥72,600

main56111-12240iKE50,TE47,51..EUR,GEN¥72,600197408-197808

*TL,T=5.7

sub56111-12380¥72,600

main56111-12260iKE35,55,TE37..HT..(ARL,SA)¥66,200197408-198107

*LAM,T=5.7

sub56111-12220¥76,200

main56111-12280iKE5#..K50..ARL¥62,800197701-197908

*LAM,T=5.7

sub56111-12380¥72,600

main56111-12330iKE30,36,38,55,TE31..STD¥66,600197408-198107

*LAM,T=5.7

sub56111-12200¥76,900

main56111-12380iKE50,TE47,51¥72,600197808-197908

*TL,T=5.7

56121WEATHERSTRIP, WINDSHIELD

main56121-12140iKE35,55,TE37..HT¥9,800197408-198107

main56121-12160iKE30..STD..(ARL,GEN)¥9,700197408-197701

W/O MOULDING

main56121-12170iKE30,55..SED¥9,800197408-198107

W/MOULDING

main56121-12180iKE5#,TE47,51..CP,LB¥11,700197408-197908

main56121-13010iKE36..WG..STD;KE36..DV..(GEN,SA)¥9,200197408-197908

*SUH,W/O MOULDING

main56121-13010iKE36..WG..STD;KE36..DV..(GEN,SA)¥9,200197408-197701

W/O MOULDING

main56121-13020iTE31¥9,300197408-197701

*SUN,W/MOULDING

main56121-13020iTE31¥9,300197408-198107

*SUH,W/MOULDING

main56121-13020iKE36,38¥9,300197408-198107

W/MOULDING

8715

9015960025

main90159-60025¥200

9017906097

main90179-06097¥320

9166640618

main91666-40618¥120

9354014012

main93540-14012¥120

9354015014

main93540-15014¥110

9354055014

main93540-55014¥60

24 parts on this diagram · 5 diagrams in section
