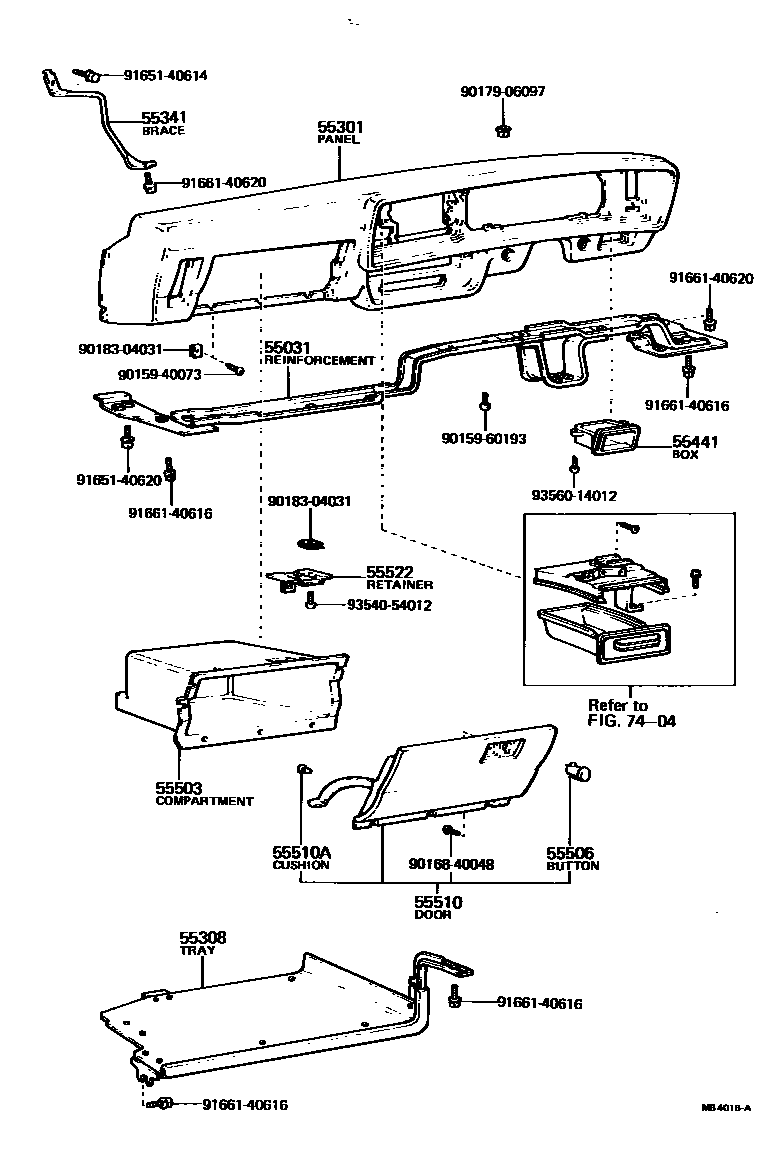

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-12010iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55305-12020iKE30,35,36..LHD197701-198002

main55305-12030iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55305-12040iKE50,TE47,51..LHD197701-197908

main55330-12010iKE3#,TE3#..RHD197408-197701

main55330-12020iKE50,TE47,51..RHD197408-197701

LH

main55330-12050iKE50,TE47,51..LHD197408-197701

RH

main55330-12060iKE3#..LHD197408-197701

main55332-12020iKE50,TE47,51..RHD197408-197701

RH

main55332-12050iKE50,TE47,51..LHD197408-197701

LH

55301PANEL SUB-ASSY, INSTRUMENT

main55301-12010-01iKE3#,TE3#..RHD197408-197701

BLACK,BLACK,TRIM0#,2#

main55301-12010-06iKE3#,TE3#..RHD197408-197701

BROWN,BROWN,TRIM0#,4#

main55301-12020-01iKE50,TE47,51..RHD197408-197701

BLACK,BLACK,TRIM0#,2#

main55301-12020-06iKE50,TE47,51..RHD197408-197701

BROWN,BROWN,TRIM0#,4#

main55301-12030-01iKE3#..LHD197508-197701

W/SIDE DEFROSTER,BLACK,BLACK,TRIM0#,2#

main55301-12030-06iKE3#..LHD197508-197701

W/SIDE DEFROSTER,BROWN,BROWN,TRIM0#,4#

main55301-12050-01iKE50,TE47,51..LHD197408-197701

BLACK,BLACK,TRIM0#,2#

main55301-12050-06iKE50,TE47,51..LHD197408-197701

BROWN,BROWN,TRIM0#,4#

main55301-12060-01iKE3#..LHD197408-197701

BLACK,BLACK,TRIM0#,2#

main55301-12060-06iKE3#..LHD197408-197701

BROWN,BROWN,TRIM0#,4#

main55301-12070-01iKE50,TE51..LHD197603-197701

W/SIDE DEFROSTER,BLACK,BLACK,TRIM0#,2#

sub55301-12070

main55301-12070-06iKE50,TE51..LHD197603-197701

W/SIDE DEFROSTER,BROWN,BROWN,TRIM0#,4#

sub55301-12070

main55301-12080-01iTE3#..2TB197904-198004

BLACK,BLACK,TRIM2#

sub55301-12080

main55301-12080-06iTE3#..2TB197904-198004

LIGHT BROWN,BROWN,TRIM4#

sub55301-12080

main55311-12090-01iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

BLACK,BLACK,TRIM2#

main55311-12090-04iKE3#,55..(DV,HT,SED,WG)..RHD197805-198107

BLUE,BLUE,TRIM8#

main55311-12090-06iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main55311-12100-01iKE3#..LHD..(DLX,SR)197701-198002

BLACK,BLACK,TRIM2#

main55311-12100-04iKE30,35,36..LHD197805-198002

BLUE,BLUE,TRIM8#

main55311-12100-06iKE30,35,36..LHD197701-198002

LIGHT BROWN,BROWN,TRIM4#

main55311-12110-01iKE5#,TE47,51..(CP,LB)..RHD197701-197908

BLACK,BLACK,TRIM2#

main55311-12110-04iKE5#,TE47,51..(CP,LB)..RHD197805-197908

BLUE,BLUE,TRIM8#

main55311-12110-06iKE5#,TE47,51..(CP,LB)..RHD197701-197908

LIGHT BROWN,BROWN,TRIM4#

main55311-12120-01iKE50,TE47,51..LHD197701-197908

BLACK,BLACK,TRIM2#

main55311-12120-04iKE50,TE47,51..LHD197805-197908

BLUE,BLUE,TRIM8#

main55311-12120-06iKE50,TE47,51..LHD197701-197908

LIGHT BROWN,BROWN,TRIM4#

main55311-12130-01iKE30,36..LHD..STD197701-197805

BLACK,BLACK,TRIM2#

main55311-12130-06iKE30,36..LHD..STD197701-197805

LIGHT BROWN,BROWN,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-12010iKE3#,TE37..RHD..(DLX,SR)197408-197701

sub55601-12011

main55601-12012iKE3#,TE37..RHD..(DLX,SR)197511-197701

main55601-12020iTE31197701-197805

main55601-12020-01iKE35,55,TE37..HT..RHD;KE30..RHD..K40..2D..STD..GEN197805-198107

BLACK,BLACK,TRIM2#

sub55601-12020

main55601-12020-04iKE35,55,TE37..HT..RHD;KE30..RHD..K40..2D..STD..GEN197805-198107

BLUE,BLUE,TRIM8#

sub55601-12020

main55601-12020-06iKE35,55,TE37..HT..RHD;KE30..RHD..K40..2D..STD..GEN197805-198107

LIGHT BROWN,BROWN,TRIM4#

sub55601-12020

main55601-12030iKE30,35,36..LHD..(DLX,SR)197701-197908

main55601-12040iTE47..RHD197408-197511

sub55601-12041

main55601-12041iKE50,TE47,51..RHD197511-197701

main55601-12050iTE47..LHD197408-197511

sub55601-12051

main55601-12051iKE50,TE47,51..LHD197511-197908

main55601-12060iKE3#..LHD..(DLX,SR)197408-197511

sub55601-12061

main55601-12062iKE3#..LHD..(DLX,SR)197511-197701

main55601-12070iKE50,TE47,51..RHD197701-197805

main55601-12070-01iKE5#,TE47,51..(CP,LB)..RHD197805-197908

BLACK,BLACK,TRIM2#

sub55601-12070

main55601-12070-04iKE5#,TE47,51..(CP,LB)..RHD197805-197908

BLUE,BLUE,TRIM8#

sub55601-12070

main55601-12070-06iKE5#,TE47,51..(CP,LB)..RHD197805-197908

LIGHT BROWN,BROWN,TRIM4#

sub55601-12070

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-12030iKE3#,TE3#..RHD197408-197701

main55341-12050iKE5#,TE47,51..(CP,LB)..RHD197408-197908

main55341-12060iKE3#..LHD197408-197701

main55341-12070iKE50,TE47,51..LHD197408-197908

main55341-12080iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55341-12090iKE30,35,36..LHD197701-198002

55441BOX, INSTRUMENT PANEL

main55441-12040iKE3#,TE3#197408-197701

main55441-12050iKE50,TE47,51197408-197701

main55441-12060-01iKE3#,55,TE3#..DV,HT,SED,WG197701-198107

BLACK,BLACK,TRIM2#

sub55441-12060

main55441-12060-04iKE3#,55..DV,HT,SED,WG197805-198107

BLUE,BLUE,TRIM8#

sub55441-12060

main55441-12060-06iKE3#,55,TE3#..DV,HT,SED,WG197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub55441-12060

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-12010iKE3#,TE3#..RHD197408-197701

main55581-12020iKE50,TE47,51..RHD197408-197701

main55581-12030iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55581-12050iKE3#..LHD197408-197701

main55581-12060iKE50,TE47,51..LHD197408-197701

main55581-12080iKE30,35,36..LHD197701-198002

main55581-12090iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55581-12100iKE50,TE47,51..LHD197701-197908

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55520-14011iKE3#,50,TE3#,47,51197605-197701

main55560-12010iKE3#,50,TE3#,47,51197408-197605

sub55520-14011

main55560-12020iKE3#,5#,TE3#,47,51197701-198107

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12010-01iKE3#,TE3#..RHD197408-197701

BLACK,BLACK,TRIM0#,2#

sub55550-12010

main55550-12010-06iKE3#,TE3#..RHD197408-197701

BROWN,BROWN,TRIM0#,4#

sub55550-12010

main55550-12030-01iKE50,TE47,51..RHD197408-197701

BLACK,BLACK,TRIM0#,2#

main55550-12030-06iKE50,TE47,51..RHD197408-197701

BROWN,BROWN,TRIM0#,4#

main55550-12040-01iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

BLACK,BLACK,TRIM2#

sub55550-12040

main55550-12040-04iKE3#,55..(DV,HT,SED,WG)..RHD197805-198107

BLUE,BLUE,TRIM8#

sub55550-12040

main55550-12040-06iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub55550-12040

main55550-12090-01iKE3#..LHD197408-197701

BLACK,BLACK,TRIM0#,2#

sub55550-12090

main55550-12090-06iKE3#..LHD197408-197701

BROWN,BROWN,TRIM0#,4#

sub55550-12090

main55550-12100-01iKE50,TE47,51..LHD197408-197701

BLACK,BLACK,TRIM0#,2#

main55550-12100-06iKE50,TE47,51..LHD197408-197701

BROWN,BROWN,TRIM0#,4#

main55550-12110-01iKE3#..LHD197408-197701

WEST GERMANY SPEC,BLACK,BLACK,TRIM0#,2#

sub55550-12110

main55550-12110-06iKE3#..LHD197408-197701

WEST GERMANY SPEC,BROWN,BROWN,TRIM0#,4#

sub55550-12110

main55550-12120-01iKE30,35,36..LHD197701-198002

BLACK,BLACK,TRIM2#

sub55550-12120

main55550-12120-04iKE30,35,36..LHD197805-198002

BLUE,BLUE,TRIM8#

sub55550-12120

main55550-12120-06iKE30,35,36..LHD197701-198002

LIGHT BROWN,BROWN,TRIM4#

sub55550-12120

main55550-12130-01iKE5#,TE47,51..(CP,LB)..RHD197701-197908

BLACK,BLACK,TRIM2#

main55550-12130-04iKE5#,TE47,51..(CP,LB)..RHD197805-197908

BLUE,BLUE,TRIM8#

main55550-12130-06iKE5#,TE47,51..(CP,LB)..RHD197701-197908

LIGHT BROWN,BROWN,TRIM4#

main55550-12140-01iKE50,TE47,51..LHD197701-197908

BLACK,BLACK,TRIM2#

main55550-12140-04iKE50,TE47,51..LHD197805-197908

BLUE,BLUE,TRIM8#

main55550-12140-06iKE50,TE47,51..LHD197701-197908

LIGHT BROWN,BROWN,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iKE3#,5#,TE3#,47,51197408-198107

55522RETAINER, GLOVE COMPARTMENT MALE

main55521-14010iKE3#,50,TE3#,47,51197408-197701

main55561-12010iKE3#,5#,TE3#,47,51197701-198107

7404

9015940073

main90159-40073

9015960193

main90159-60193

9016840048

main90168-40048

9017906097

main90179-06097

9018304031

main90183-04031

9165140614

main91651-40614

9165140620

main91651-40620

9166140616

main91661-40616

9166140620

main91661-40620

9354054012

main93540-54012

9356014012

main93560-14012
