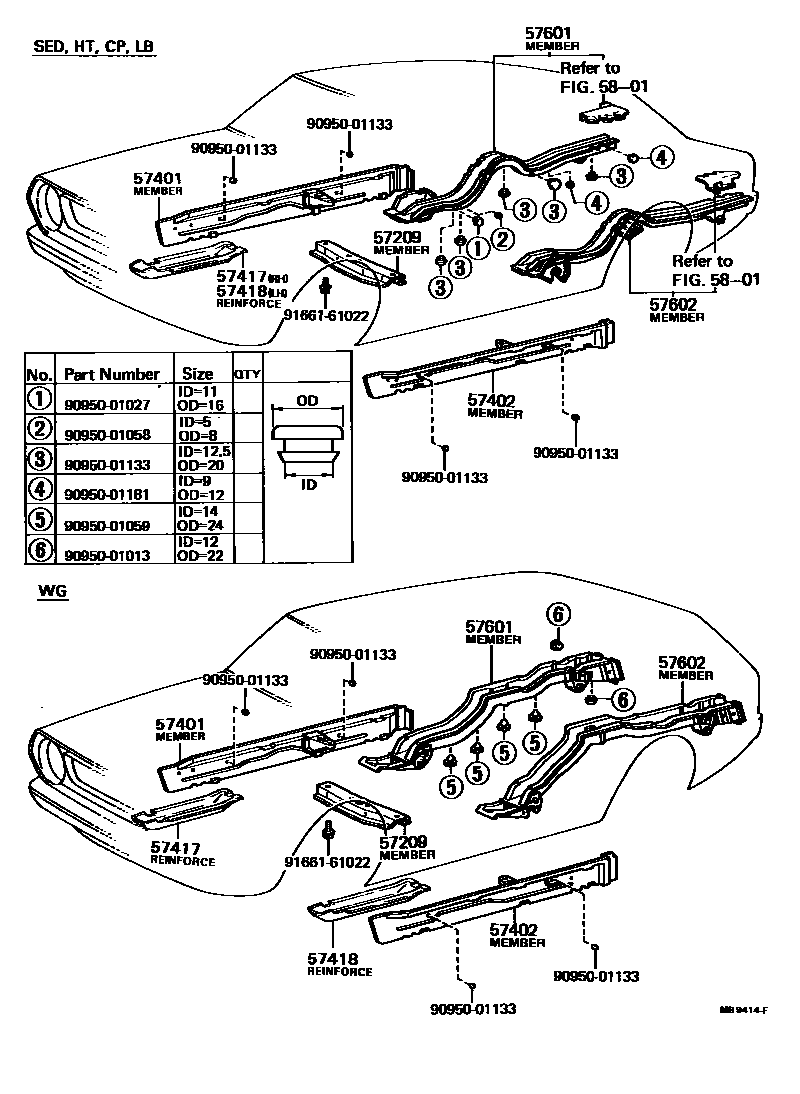

FLOOR SIDE MEMBER

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-12060iTE31,51..A40197512-198004

main57255-12060iKE30,35..A20197408-198107

main57255-12070iKE35..K50197408-197606

main57255-12080iTE3#,47,51..MTM197408-198004

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12030iKE3#,50,TE3#,47,51197408-197701

main57401-12070iKE36..2D..(EUR,GEN,SA);KE30,35,5#,TE3#,47,51..2D197701-198107

main57401-12080iKE30,36,38,55,TE31..4D197701-198107

main57401-12080iKE36..DV..GEN197701-198002

LONG DECK

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12030iKE3#,50,TE3#,47,51197408-197701

main57402-12070iKE36..2D..(EUR,GEN,SA);KE30,35,5#,TE3#,47,51..2D197701-198107

main57402-12080iKE36..DV..GEN197701-198002

LONG DECK

main57402-12080iKE30,36,38,55,TE31..4D197701-198107

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12010iKE3#,50,TE3#,47,51197408-197808

main57417-12020iKE3#,5#,TE3#,47,51197808-198107

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-12010iKE3#,50,TE3#,47,51197408-197808

main57418-12020iKE3#,5#,TE3#,47,51197808-198107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12010iKE30,35,TE3#,47197408-197701

main57601-12030iKE5#,TE51..LB197603-197908

main57601-12050iKE30,35,55,TE3#,47..CP,HT,SED197701-198107

main57601-13040iKE36197408-197508

main57601-13041iKE36,38197508-197902

main57601-13042iKE36,38197902-198107

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12010iKE30,35,TE3#,47197408-197701

main57602-12030iKE5#,TE51..LB197603-197908

main57602-12050iKE30,35,55,TE3#,47..CP,HT,SED197701-198107

main57602-13030iKE36,38197408-197902

main57602-13031iKE36,38197902-198107

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9095001013

main90950-01013

9095001027

main90950-01027

9095001058

main90950-01058

9095001059

main90950-01059

9095001133

main90950-01133

9095001181

main90950-01181

9166161022

main91661-61022

15 parts on this diagram · 1 diagram in section
