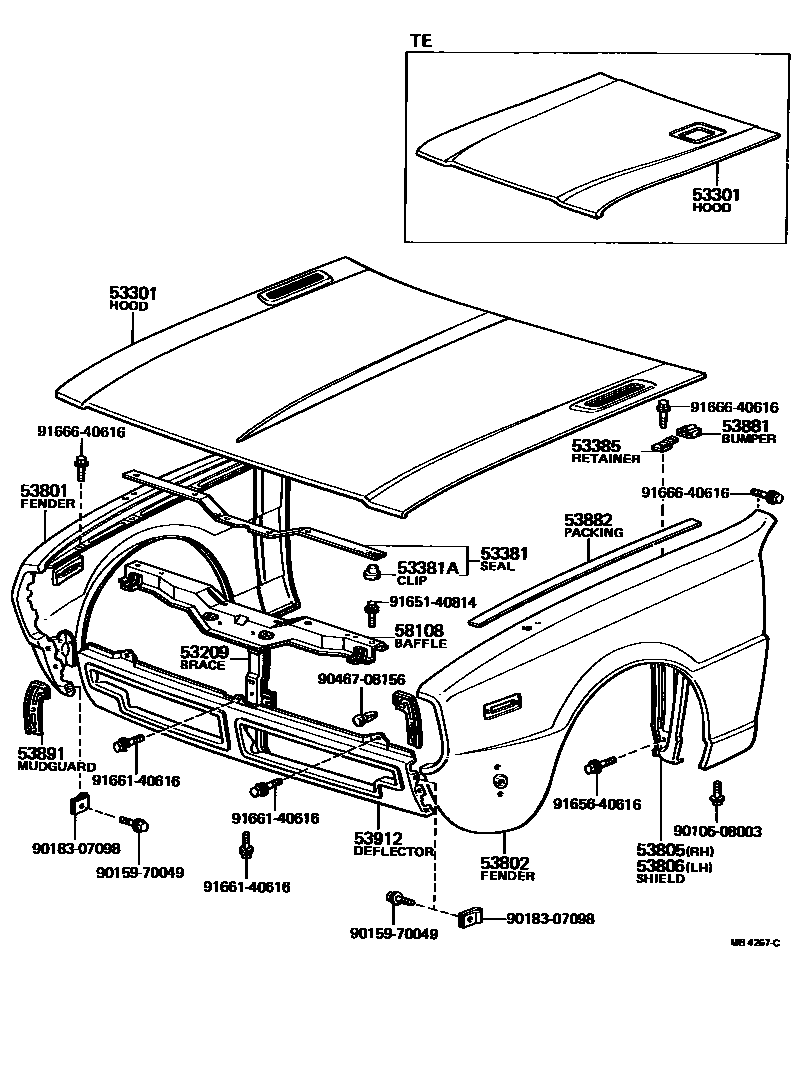

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-12020iKE3#,TE3#197408-197701

main53208-12021iKE3#,TE3#197701-197808

sub53208-12030

main53208-12030iKE3#,55,TE3#..DV,HT,SED,WG197808-198107

main53209-12060iTE47197408-197511

sub53209-12061

main53209-12061iTE47197511-197701

main53209-12062iTE47197701-197805

main53209-12063iTE47197805-197902

main53209-12070iKE50,TE51197603-197701

sub53209-12071

sub94611-10800

main53209-12071iKE50,TE51197701-197808

main53209-12090iKE5#,TE51..LB197808-197908

sub53209-12071

53301HOOD SUB-ASSY

main53301-12050iKE3#197408-197511

sub53301-12051

main53301-12051iKE3#197511-197709

sub53301-12110

main53301-12060iTE3#197503-197511

sub53301-12061

main53301-12061iTE3#197511-197709

sub53301-12130

main53301-12070iKE5#,TE51..LB197603-197908

sub53301-12160

main53301-12090iTE47197408-197511

sub53301-12091

main53301-12091iTE47197511-197701

main53301-12092iTE47197701-197902

main53301-12110iKE35,36197709-197908

main53301-12130iKE30,36,TE3#..SA197709-198107

main53301-12170iKE30..GEN197805-198107

sub53301-12190

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12010iKE3#197408-197511

main53381-12020iTE3#197503-197511

main53381-12030iTE47197408-197701

main53381-12050iKE3#..EUR197710-197805

main53381-12070iKE30,35,36..EUR197805-197908

main53381-12080iTE47..EUG197710-197902

main53381-12090iKE50,TE51..EUR197710-197908

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-07050iKE3#,TE3#,47197408-197610

sub90467-08008

main90467-08008iKE50,TE51197610-197712

main90467-08011iKE30,35,36,TE47,51..EUR197712-197908

53385RETAINER, HOOD, BUMPER

main53385-14010iKE3#,5#,TE3#,47,51197408-198107

RH

main53386-14010iKE3#,5#,TE3#,47,51197408-198107

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-12491iTE47197409-197701

W/O MIRROR HOLE

sub53801-12492

main53801-12492iTE47197701-197708

W/O MIRROR HOLE

sub53801-12750

main53801-12520iKE3#..LHD..(DLX,STD)..EUR197408-197802

W/O MIRROR HOLE,WEST GERMANY

sub53801-12920

main53801-12540iKE35..LHD..SR..EUG197408-197802

W/O MIRROR HOLE,WEST GERMANY

sub53801-12920

main53801-12550iKE35..LHD..SR197408-197508

W/MIRROR HOLE,WEST GERMANY

main53801-12750iTE47197708-197902

W/O MIRROR HOLE

main53801-12903iKE3#,TE37197408-197801

W/MIRROR HOLE

sub53801-12925

sub04871-12010

main53801-12905iKE3#,TE31197408-197708

W/O MIRROR HOLE

sub53801-12919

main53801-12907iTE47197408-197409

W/MIRROR HOLE

sub53801-12910

sub53893-12010

main53801-12908iTE47197408-197409

W/O MIRROR HOLE

sub53801-12491

sub53893-12010

main53801-12910iTE47197409-197701

W/MIRROR HOLE

sub53801-12923

main53801-12911iKE50,TE51197603-197708

W/MIRROR HOLE

sub53801-12924

main53801-12917iKE50,TE51197603-197708

W/O MIRROR HOLE

sub53801-12922

main53801-12918iKE30,TE3#..(A40,K40,T50)..SA197808-198107

W/O MIRROR HOLE

sub53801-12919

main53801-12918iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE

sub53801-12919

main53801-12919iKE3#,TE3#..ARL,GEN,SA197708-197908

W/O MIRROR HOLE

main53801-12920iKE30,35,36..LHD..EUR197802-197908

W/O MIRROR HOLE,WEST GERMANY

sub53801-12931

main53801-12922iKE5#,TE51..LB197708-197908

W/O MIRROR HOLE

main53801-12923iTE47197701-197801

W/MIRROR HOLE

sub53801-12926

sub04871-12010

main53801-12924iKE50,TE51197708-197801

W/MIRROR HOLE

sub53801-12927

sub04871-12010

main53801-12925iKE3#..GEN,SA197801-197806

W/MIRROR HOLE

sub53801-12930

main53801-12926iTE47197801-197902

W/MIRROR HOLE

main53801-12927iKE50,TE51..EUR,GEN197801-197908

W/MIRROR HOLE

sub53801-12928

main53801-12930iKE30,35,36..GEN,SA197806-198004

W/MIRROR HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-12491iTE47197409-197701

W/O MIRROR HOLE

sub53802-12492

main53802-12492iTE47197701-197708

W/O MIRROR HOLE

sub53802-12770

main53802-12520iKE30..LHD..DLX;KE30..LHD..STD..GEN;KE35,36..LHD..(DLX,STD)197408-197802

W/O MIRROR HOLE,WEST GERMANY

sub53802-12920

main53802-12540iKE35..LHD..SR..EUG197408-197802

W/O MIRROR HOLE,WEST GERMANY

sub53802-12920

main53802-12550iKE35..LHD..SR197408-197508

W/MIRROR HOLE,WEST GERMANY

main53802-12770iTE47197708-197902

main53802-12903iKE3#,TE37197408-197801

W/MIRROR HOLE

sub53802-12925

sub04871-12020

main53802-12905iKE3#,TE31197408-197708

W/O MIRROR HOLE

sub53802-12919

main53802-12907iTE47197408-197409

W/MIRROR HOLE

sub53802-12910

sub53894-12010

main53802-12908iTE47197408-197409

W/O MIRROR HOLE

sub53802-12491

sub53894-12010

main53802-12910iTE47197409-197701

W/MIRROR HOLE

sub53802-12923

main53802-12911iKE50,TE51197603-197708

W/MIRROR HOLE

sub53802-12924

main53802-12917iKE50,TE51197603-197708

W/O MIRROR HOLE

sub53802-12922

main53802-12918iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE

sub53802-12919

main53802-12918iKE3#,55..ARL,GEN197808-198107

W/O MIRROR HOLE

sub53802-12919

main53802-12919iKE30,35,36..EUR197708-197908

W/O MIRROR HOLE

main53802-12920iKE30,35,36..LHD..EUR197802-197908

W/O MIRROR HOLE,WEST GERMANY

sub53802-12931

main53802-12922iKE5#,TE51..LB197708-197908

W/O MIRROR HOLE

main53802-12923iTE47197701-197902

W/MIRROR HOLE

sub53802-12926

sub04871-12020

main53802-12924iKE50,TE51..EUR,GEN197708-197908

W/MIRROR HOLE

sub53802-12927

sub04871-12020

main53802-12925iKE3#..GEN,SA197801-197806

W/MIRROR HOLE

sub53802-12930

main53802-12930iKE30,35,36..GEN,SA197806-198004

W/MIRROR HOLE

53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH

main53805-12040iKE3#,55..ARL,EUR,GEN197408-198107

main53805-12050iKE5#,TE51..LB..(ARL,GEN)197408-197908

53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH

main53806-12040iKE3#,TE3#197408-198107

main53806-12050iKE5#,TE51..LB..(ARL,GEN)197408-197908

53881BUMPER, FENDER TO HOOD

main53384-14010iKE3#,5#,TE3#,47,51197408-198107

53882PACKING, FRONT FENDER MAIN

main53882-12030iKE3#,5#,TE3#,47,51197408-198107

53891MUDGUARD, FRONT FENDER TO SIDE BAFFLE

main53891-12020iTE47197408-197708

RH

main53891-12030iKE50,TE51..ARL,GEN197603-197708

RH

main53892-12020iTE47197408-197708

LH

main53892-12030iKE50,TE51..ARL,GEN197603-197708

LH

53912DEFLECTOR, FRONT BUMPER STONE

main53901-12020iKE30..GEN197805-197908

LARGE BUMPER

sub53901-12030

main53901-12020iTE3#197904-198004

sub53901-12030

main53901-12020iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE SPEC

sub53901-12030

main53911-12010iKE3#,TE3#197408-197701

main53911-12020iKE5#,TE51..LB197603-197908

sub53911-12090

main53911-12030iTE47197408-197511

main53911-12031iTE47197511-197701

main53911-12032iTE47197701-197902

main53911-12060iKE3#,55,TE3#197701-198107

58108BAFFLE SUB-ASSY, RADIATOR UPPER

main53205-12060iKE3#,TE3#197408-197511

main53205-12061iKE3#,55,TE3#..DV,HT,SED,WG197511-198107

main53216-12040iTE47197408-197511

sub53205-12080

main53216-12041iKE50,TE47,51197511-197701

sub53216-12042

main53216-12042iKE5#,TE47,51..CP,LB197701-197908

9010508003

main90105-08003

9015970049

main90159-70049

9018307098

main90183-07098

9046708156

main90467-08156

9165140814

main91651-40814

9165640616

main91656-40616

9166140616

main91661-40616

9166640616

main91666-40616

22 parts on this diagram · 4 diagrams in section
