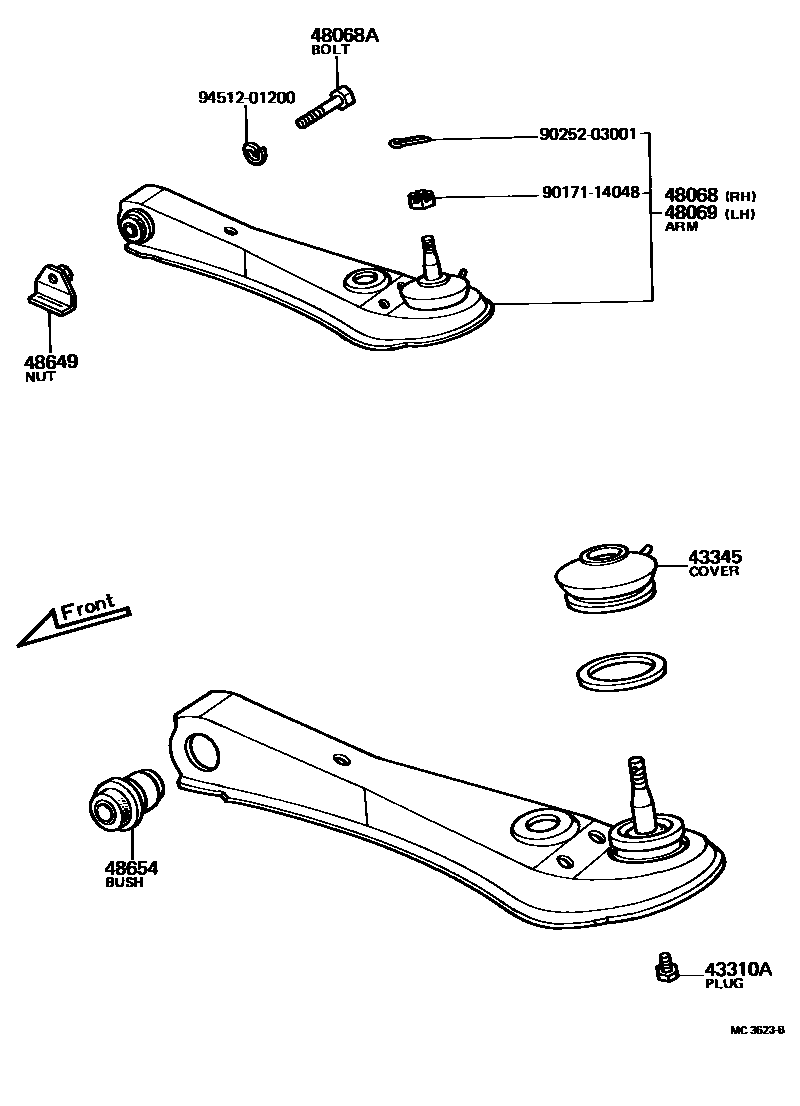

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iKE3#,5#,TE3#,47,51197408-198107

43345COVER, LOWER BALL JOINT DUST

main43345-14020iKE3#,5#,TE3#,47,51197408-198107

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19045iKE3#,5#,TE3#,47,51197408-198107

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12291iKE3#,5#,TE3#,47,51197408-198107

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19045iKE3#,5#,TE3#,47,51197408-198107

48649NUT, LOWER ARM SHAFT

main48649-12030iKE3#,5#,TE3#,47,51197408-198107

48654BUSH, LOWER ARM

main48654-12010iKE3#,5#,TE3#,47,51197408-198107

9017114048

main90171-14048

9025203001

main90252-03001

9451201200

main94512-01200

10 parts on this diagram · 1 diagram in section
