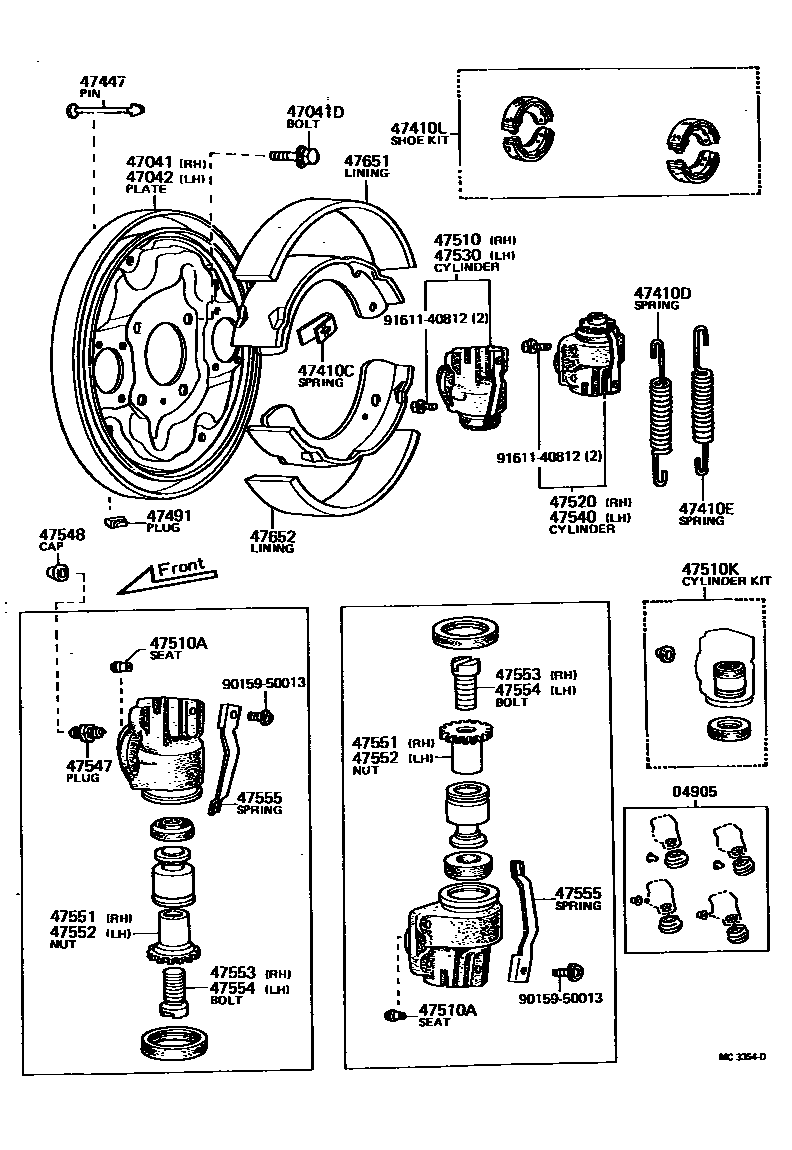

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-12020iKE36..SA197701-198107

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-12040iKE30..GEN;KE36..GEN,SA197408-198107

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90119-10009iKE30,36..GEN197411-198107

*10-1.25PX30-30

main90119-10082iKE30..GEN;KE36..GEN,SA197408-198107

*10-1.25PX16-16

sub90119-10804

main90119-10188iKE30,36197408-197411

*10-1.25PX30-30

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-12040iKE30..GEN;KE36..GEN,SA197408-198107

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main47446-10010iKE30..GEN;KE36..GEN,SA197408-198107

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-16464iKE30,36..GEN,SA197408-197702

CW=24,WD=1.6

main90506-20013iKE30,36..GEN197702-198107

CW=13,WD=2.0

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-16464iKE30,36..GEN,SA197408-197702

CW=24,WD=1.6

main90506-20013iKE30..GEN;KE36..GEN,SA197702-198107

CW=13,WD=2.0

47410LSHOE KIT, FRONT BRAKE

main04494-12040iKE30,36197408-198107

sub04494-12011

main04494-12050iKE30,36197506-197609

sub04494-12011

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-11010iKE30,36..GEN197408-198107

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020iKE30..GEN;KE36..GEN,SA197408-198107

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-19075iKE30..GEN;KE36..GEN,SA197408-198107

47510ASEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90410-03015iKE30..GEN;KE36..GEN,SA197408-198107

47510KCYLINDER KIT, FRONT WHEEL

main04473-12021iKE30..GEN;KE36..GEN,SA197408-198107

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-19065iKE30..GEN;KE36..GEN,SA197408-198107

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-19075iKE30..GEN;KE36..GEN,SA197408-198107

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-19065iKE30..GEN;KE36..GEN,SA197408-198107

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iKE30..GEN;KE36..GEN,SA197408-198107

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iKE30..GEN;KE36..GEN,SA197408-198107

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-14010iKE30,36197408-197608

sub47551-14011

main47551-14011iKE30..GEN;KE36..GEN,SA197608-198107

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-14010iKE30,36197408-197608

sub47552-14011

main47552-14011iKE30..GEN;KE36..GEN,SA197608-198107

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-12011iKE30,36197408-197608

main47553-20020iKE30..GEN;KE36..GEN,SA197608-198107

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-12011iKE30,36197408-197608

main47554-20020iKE30..GEN;KE36..GEN,SA197608-198107

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-12050iKE30..GEN;KE36..GEN,SA197506-198107

RH

main47555-14011iKE30,36197408-197506

RH

main47556-12030iKE30..GEN;KE36..GEN,SA197506-198107

LH

main47556-14011iKE30,36197408-197506

LH

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-12050iKE30,36197408-198107

main47651-12070iKE30,36197506-197609

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-12050iKE30,36..GEN197408-198107

main47651-12070iKE30,36197506-197609

9015950013

main90159-50013

9161140812

main91611-40812
