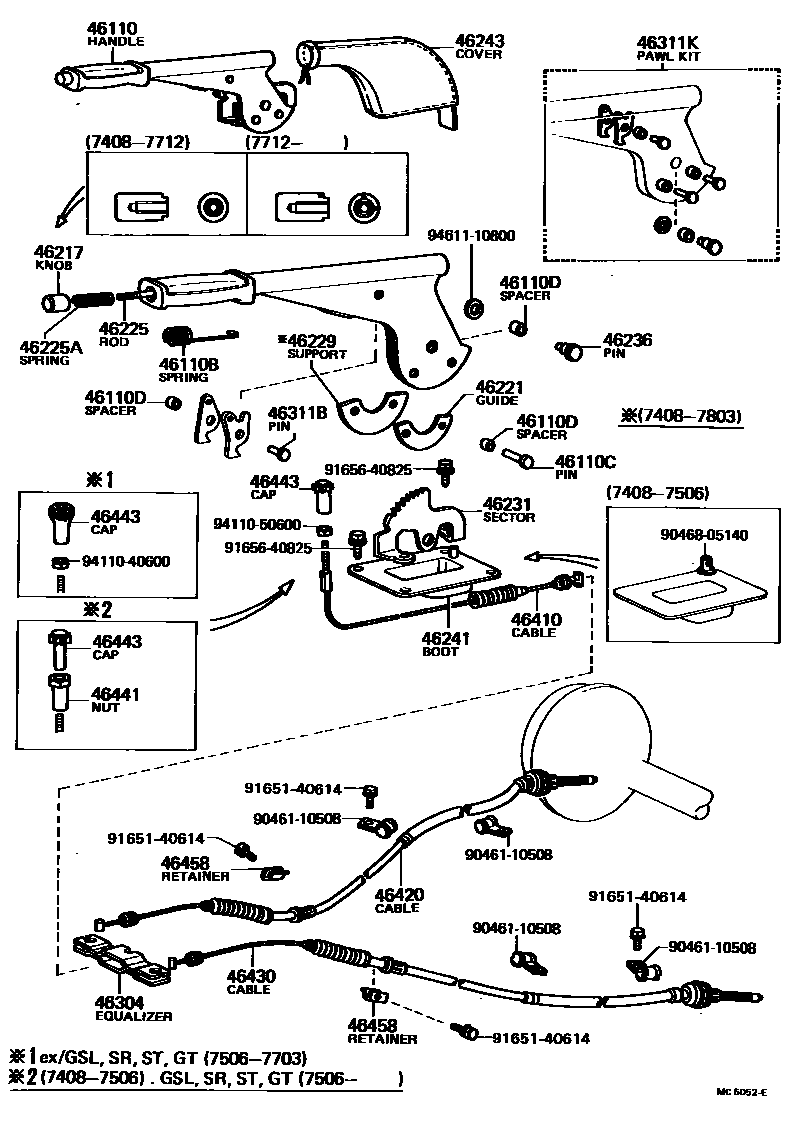

PARKING BRAKE & CABLE

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46201-12020iKE3#,50,TE3#,47,51197408-197805

BLACK

main46201-12020-01iKE3#,5#,TE3#,47,51197805-198107

BLACK,BLACK

sub46201-12020

46110BSPRING, TENSION(FOR PARKING BRAKE HANDLE)

main90507-08001iKE3#,5#,TE3#,47,51197408-198107

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90243-06018iKE3#,5#,TE3#,47,51197408-198107

46110DSPACER(FOR PARKING BRAKE HANDLE)

main90560-06195iKE3#,5#,TE3#,47,51197408-198107

L=6,ID=6

main90560-06201iKE3#,5#,TE3#,47,51197408-198107

L=6,ID=6.7

main90560-10200iKE3#,5#,TE3#,47,51197408-198107

L=6.2,ID=10

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10013iKE3#,50,TE3#,47,51197408-197712

BLACK

sub46217-10020

main46217-10020-01iKE3#,5#,TE3#,47,51197712-198107

BLACK,BLACK

sub46217-10020

sub46217-20020

46221GUIDE, PARKING BRAKE CABLE

main46221-12010iKE3#,5#,TE3#,47,51197408-198107

46225ROD, PARKING BRAKE PAWL RELEASE

main46225-12012iKE3#,5#,TE3#,47,51197408-198107

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-12160iKE3#,5#,TE3#,47,51197408-198107

46229SUPPORT, PARKING BRAKE CABLE GUIDE

main46229-12010iKE3#,50,TE3#,47,51197408-197803

46231SECTOR, PARKING BRAKE LEVER

main46231-12020iKE3#,5#,TE3#,47,51197408-198107

46236PIN, LEVER PIVOT

main46236-12010iKE3#,5#,TE3#,47,51197408-198107

46241BOOT, PARKING BRAKE LEVER

main46241-12020iKE3#,5#,TE3#,47,51197408-198107

46243COVER, PARKING BRAKE LEVER

main58879-12020-01iKE35,TE37,47,51..GSL,GT,SR,ST197408-198004

BLACK,BLACK,TRIM2#

sub58879-12020

main58879-12020-04iKE35,TE37,47,51..GSL,GT,SR,ST197805-198004

BLUE,BLUE,TRIM8#

sub58879-12020

main58879-12020-06iKE35,TE37,47,51..GSL,GT,SR,ST197805-198004

BROWN,BROWN,TRIM4#

sub58879-12020

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iKE3#,5#,TE3#,47,51197408-198107

46311BPIN, PARKING BRAKE PAWL PIVOT

main90243-06017iKE3#,5#,TE3#,47,51197408-198107

46311KPAWL KIT, PARKING BRAKE

main04461-12010iKE3#,5#,TE3#,47,51197408-198107

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-14020iKE3#,5#,TE3#,47,51197408-198107

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12090iKE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN197408-197901

sub46420-12091

main46420-12091iKE3#,55..ARL,GEN197901-198107

main46420-12110iTE3#,47,51..DLX,LT,SR,ST,STD197408-197901

sub46420-12111

main46420-12111iKE30,36..SA197901-198107

main46420-12130iTE47,51..GSL,GT197408-197901

sub46420-12131

main46420-12131iTE47,51..GSL,GT197901-197908

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12010iKE3#,50..EUR,GEN,SA197408-197701

sub46430-12011

main46430-12010iKE36,38197701-197901

FR DISC BRAKE

sub46430-12011

main46430-12011iKE36,38197901-198107

main46430-12011iKE30,35,50..EUR,GEN197901-198107

FR DISC BRAKE

main46430-12030iTE3#,47,51..DLX,LT,SR,ST,STD197408-197901

sub46430-12031

main46430-12031iTE3#,47,51..DLX,LT,SR,ST,STD197901-198107

main46430-12050iTE47,51..GSL,GT197408-197901

sub46430-12051

main46430-12051iTE47,51..GSL,GT197901-197908

main46430-12090iKE30..GEN197701-197901

FR DRUM BRAKE

sub46430-12091

main46430-12090iKE3#,50197602-197701

sub46430-12091

main46430-12091iKE55197901-198107

FR DRUM BRAKE

46441NUT, WIRE ADJUSTING, NO.1

main46441-14010iKE3#,TE3#,47197408-198004

46443CAP, CABLE ADJUSTING

main46443-12020iKE3#,50,TE31,47,51..DLX,LT,STD197506-197703

main46443-12040iKE3#,5#,TE31,47,51..DLX,LT,STD197805-198107

main46443-14010iKE3#,TE3#,47197408-198004

46458RETAINER, CABLE

main46458-20020iKE3#,5#,TE3#,47,51197408-198107

sub46458-50010

9046110508

main90461-10508

9046805140

main90468-05140

9165140614

main91651-40614

9165640825

main91656-40825

9411040600

main94110-40600

9411050600

main94110-50600

9461110800

main94611-10800

29 parts on this diagram · 1 diagram in section
