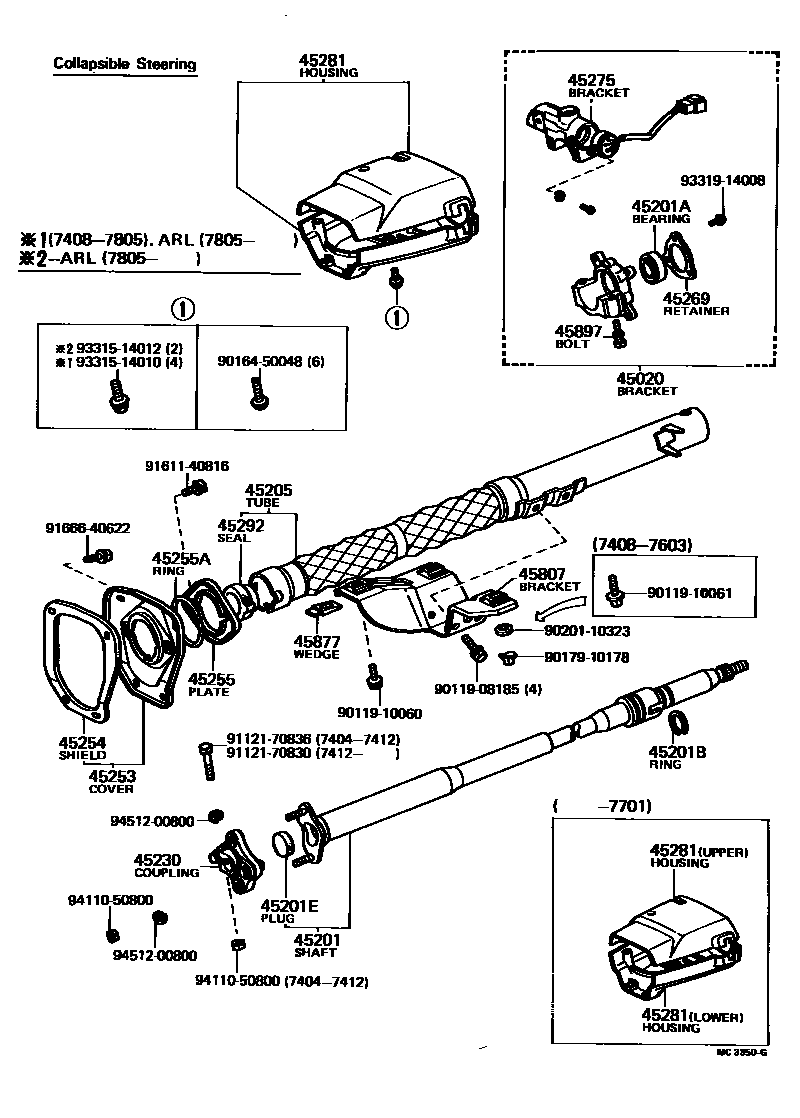

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-12100iKE3#,TE3#,47..RHD¥2,900197408-197512

sub45208-12090¥3,640

sub45307-12040¥6,300

sub45897-12020¥210

sub84450-12041¥4,180

sub93319-13012¥130

main45020-12110iKE3#,50,TE47,51..LHD197408-197701

sub45208-12100¥3,620

sub45307-12040¥6,300

sub45897-12020¥210

sub84450-12041¥4,180

sub93319-13012¥130

main45020-12111iKE30,35,36,50,TE47,51..LHD197701-198002

sub45208-12100¥3,620

sub45307-12040¥6,300

sub45897-12020¥210

sub84450-14021¥4,590

sub93319-13012¥130

main45020-14020iKE3#,5#,TE3#,47,51..RHD¥3,850197512-198107

sub45020-14050

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-13030iKE30,36,TE3#197408-197511

W/RIGID STEERING

main45201-13031iKE30,36,TE3#..GEN,SA197511-198107

W/RIGID STEERING

main45210-12050iKE3#,TE47..EUR,GEN¥13,600197408-197511

W/COLLAPSIBLE STEERING

sub45210-12051

main45210-12051iKE3#,5#,TE47,51..ARL,EUR,GEN197511-198107

W/COLLAPSIBLE STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iKE3#,5#,TE3#,47,51¥660197408-198107

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iKE3#,5#,TE3#,47,51¥120197408-198107

T=1.20,T=1.2

main90520-17196iKE3#,5#,TE3#,47,51¥210197408-198107

T=1.35-1.45,T=1.4

45201EPLUG, PLATE(FOR STEERING MAIN SHAFT)

main90333-21008iKE3#,5#,TE47,51..ARL,EUR,GEN¥180197408-198107

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-13010iKE30,36,TE3#..GEN,SA197408-198107

W/RIGID STEERING

main45870-12050iKE3#,50,TE47,51..ARL,EUR,GEN197408-197708

W/COLLAPSIBLE STEERING

main45870-12051iKE3#,5#,TE47,51..ARL,EUR,GEN197708-198107

W/COLLAPSIBLE STEERING

45230COUPLING ASSY, FLEXIBLE

main45230-12020iKE3#,TE47..EUR,GEN¥3,200197412-197511

W/COLLAPSIBLE STEERING

main45230-14020iKE3#,5#,TE3#,47,51¥3,510197511-198107

main45230-20010iKE3#,TE47..GEN¥3,200197408-197412

W/COLLAPSIBLE STEERING

sub45230-12020¥3,200

main45230-20020iKE30,36,TE3#¥3,200197412-197511

W/RIGID STEERING

main45230-22010iKE30,36¥3,200197408-197412

W/RIGID STEERING

sub45230-20020¥3,200

45253COVER, STEERING COLUMN HOLE

main45025-12010iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main45025-12020iKE5#,TE47,51..CP,LB197408-197908

45254SHIELD, STEERING COLUMN HOLE

main45254-12010iKE3#,5#,TE3#,47,51197408-198107

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iKE3#,5#,TE3#,47,51¥320197408-198107

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iKE3#,5#,TE3#,47,51¥430197408-198107

45269RETAINER, MAIN SHAFT BEARING

main45269-20010iKE3#,50,TE3#,47,51¥460197408-197808

sub45269-35010¥480

main45269-35010iKE3#,5#,TE3#,47,51¥480197808-198107

45275BRACKET, STEERING COLUMN, UPPER

main45307-12040iKE3#,5#,TE3#,47,51¥6,300197408-198107

45281HOUSING, STEERING COLUMN

main45286-12070iKE3#,TE47..RHD197408-197409

UPR

sub45286-12912¥4,130

main45286-12071iKE3#,TE3#,47..RHD197409-197505

UPR

sub45286-12912¥4,130

main45286-12072iKE3#,50,TE3#,47,51..RHD¥3,440197505-197701

UPR

sub45286-12918¥3,950

main45286-12080iKE3#,TE47..LHD197408-197409

UPR

sub45286-12913¥4,370

main45286-12081iKE3#,TE47..LHD197409-197504

UPR

sub45286-12913¥4,370

main45286-12082iKE3#,50,TE47,51..LHD¥3,340197504-197701

UPR

sub45286-12919¥3,840

main45286-12918iKE3#,5#,TE3#,47,51..RHD¥3,950197701-198107

main45286-12919iKE30,35,36,50,TE47,51..LHD¥3,840197701-198002

main45287-12060iKE3#,TE47..RHD197408-197409

LWR

sub45286-12908¥4,010

sub45286-12912¥4,130

main45287-12061iKE3#,TE3#,47..RHD197409-197505

LWR

sub45286-12908¥4,010

sub45286-12912¥4,130

main45287-12062iKE3#,50,TE3#,47,51..RHD197505-197701

LWR

sub45286-12917¥4,400

sub45286-12918¥3,950

main45287-12070iKE3#,TE47..LHD197408-197409

LWR

sub45286-12913¥4,370

sub45286-12914

sub45286-12915

main45287-12071iKE3#,TE47..LHD197409-197504

LWR

sub45286-12913¥4,370

sub45286-12914

sub45286-12915

main45287-12072iKE3#,50,TE47,51..LHD¥2,780197504-197701

LWR

sub45286-12919¥3,840

sub45286-12920¥4,650

45292SEAL, MAIN SHAFT LOWER DUST

main45292-14030iKE3#,5#,TE47,51..ARL,EUR,GEN¥600197708-198107

W/COLLAPSIBLE STEERING

main45292-20020iKE30,36,TE3#¥800197408-197908

W/RIGID STEERING

main45292-20020iKE30,36,TE3#..GEN,SA¥800197701-198107

FOR RIGID

main45292-20030iKE3#,50,TE47,51..ARL,EUR,GEN197408-197708

W/COLLAPSIBLE STEERING

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-12060iKE3#,50,TE47,51..ARL,EUR,GEN197408-197708

W/COLLAPSIBLE STEERING

main45807-12061iKE3#,5#,TE47,51..ARL,EUR,GEN197708-198107

W/COLLAPSIBLE STEERING

45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)

main45877-12010iKE3#,5#,TE47,51..ARL,EUR,GEN¥330197508-198107

W/COLLAPSIBLE STEERING

main45877-30010iKE3#,TE47..GEN197408-197508

W/COLLAPSIBLE STEERING

45897BOLT, STEERING LOCK SET

main45897-12020iKE3#,5#,TE3#,47,51¥210197408-198107

9011908185

main90119-08185¥130

9011910060

main90119-10060¥300

9011910061

main90119-10061

9016450048

main90164-50048¥110

9017910178

main90179-10178¥170

9020110323

main90201-10323¥470

9112170830

main91121-70830¥140

9112170836

main91121-70836¥200

9161140816

main91611-40816¥140

9166640622

main91666-40622¥120

9331514010

main93315-14010¥160

9331514012

main93315-14012¥70

9331914008

main93319-14008¥80

9411050800

main94110-50800¥80

9451200800

main94512-00800¥80

33 parts on this diagram · 7 diagrams in section
