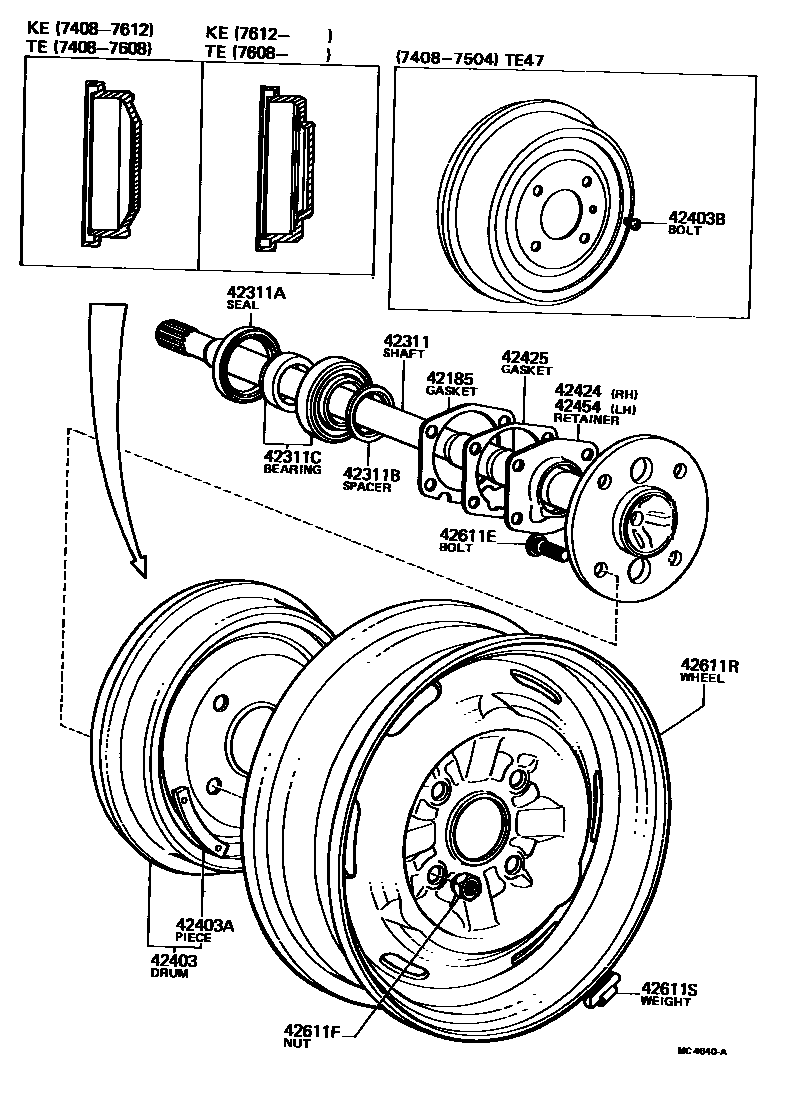

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-12010iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197408-198107

T=0.3

sub42185-52030

main42185-13010iTE3#,51..DLX,SR,STD197903-197908

T=0.3

main42185-13020iTE3#,51..DLX,SR,STD197903-197908

T=0.6

main42185-22010iKE3#,50,TE47,51..DLX,LT,SR,ST,STD197408-198107

T=0.6

main42185-22020iTE47,51..GSL,GT197408-197908

42311SHAFT, REAR AXLE

main42311-12050iKE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN197408-197903

sub42311-12051

main42311-12051iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197903-197908

sub42311-12052

main42311-12052iKE3#,55..ARL,GEN197908-198107

main42311-12120iKE30..SA197903-197908

sub42311-12121

main42311-12121iKE30,36,TE3#..SA197908-198107

main42311-15010iTE47,51..GSL,GT197809-197908

main42311-20042iTE47,51..DLX,LT,ST197408-197903

sub42311-12120

main42311-20060iTE47,51..GSL,GT197408-197809

sub42311-15010

sub90369-35003

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055iKE3#,50,TE47,51..DLX,LT,SR,ST,STD197408-198107

main90311-52059iTE47,51..GSL,GT197408-197908

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-30152iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197408-197908

main90560-35153iTE47,51..GSL,GT197408-197809

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-12010iKE3#,5#197408-198107

sub04421-12011

main04421-13010iTE3#,51..DLX,SR,STD197903-198004

main04421-30010iTE47,51..GSL,GT197408-197611

sub04421-30011

main04421-30011iTE47,51..GSL,GT197611-197908

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12020iKE3#,50..ARL,EUR,GEN197408-197612

sub42431-12050

main42431-12021iKE3#,50..ARL,EUR,GEN197612-197705

main42431-12040iTE47,51197608-197611

sub42431-22050

main42431-12050iKE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN197705-198107

sub42431-12110

main42431-12060iKE30,36,TE3#..SA197705-198107

sub42431-14061

main42431-14060iTE47,51197708-197908

sub42431-12060

main42431-20040iTE47,51197408-197608

sub42431-22050

main42431-22050iTE47,51197611-197705

sub42431-12060

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iTE47,51197408-198107

10G,10G

main90937-01118iTE47,51197608-198107

20G,20G

main90937-01119iTE47,51197608-198107

30G,30G

main90937-01120iTE47,51197608-197806

40G,40G

main90937-01121iTE47,51197608-197806

50G,50G

main90937-01122iTE47,51197608-197806

60G,60G

main90937-01141iTE47,51197408-197608

20G

main90937-01142iTE47,51197408-197608

30G

main90937-01143iTE47,51197408-197608

40G

main90937-01144iTE47,51197408-197608

50G

main90937-01145iTE47,51197408-197608

10G,60G

main90937-01195iKE30,TE3#..SA197806-198107

40G,40G

main90937-01196iTE47,51197806-198107

50G,50G

main90937-01197iTE47,51197806-198107

60G,60G

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007iTE47197408-197504

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-20010iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197408-198107

main42424-21010iTE47,51..GSL,GT197408-197908

42425GASKET, REAR AXLE BEARING RETAINER

main42425-13010iTE3#,51..DLX,SR,STD197903-197908

main42425-20010iKE3#,55,TE3#197408-198107

sub42425-52030

main42425-22020iTE47,51..GSL,GT197408-197908

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-20010iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197408-198107

main42454-21010iTE47,51..GSL,GT197408-197908

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021iTE47,51..GSL,GT197408-197703

*12-1.5PX38-24

sub90942-02035

main90942-02032iKE3#,50,TE3#,47,51..DLX,LT,SR,ST,STD197408-197703

*12-1.5PX38-25.5

sub90942-02035

main90942-02035iKE3#,5#,TE3#,47,51197703-198107

*12-1.5PX36-23.5

sub90942-02047

42611FNUT, HUB (FOR REAR AXLE)

main90942-01007iKE30,36..STD..(ARL,GEN,SA)197408-198107

main90942-01017iKE36..WG..LHD197408-197411

H=37.5,CAP NUT

main90942-01020iKE36..WG..LHD197411-197704

H=34.5,CAP NUT

main90942-01021iKE36..EUR,GEN197704-198107

H=29.5,CAP NUT

main90942-01026iTE3#..2TB197904-198004

ALUMI WHEEL

42611RWHEEL, DISC(FOR REAR)

main42611-12241iTE51..GSL197605-197908

5J-13

main42611-12401iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197701-197708

4.5J-13,SPORT WHEEL

main42611-12430iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197708-198107

4.5J-13,SPORT WHEEL

main42611-13040iTE3#;KE3#..ARL,EUR,GEN197508-197701

4.5J-13,SEMI-STYLED WHEEL

sub42611-22121

main42611-14060iKE30..SA197908-198004

4.5J-13

main42611-14100iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197603-197701

4.5J-13,SPORT WHEEL,155SR13

sub42611-12400

main42611-14101iKE30,35,TE47..DLX,LT,SR,ST,STD197408-197603

4.5J-13,SPORT WHEEL,155SR13

main42611-14110iTE51..GSL197408-197605

5J-13

sub42611-12240

main42611-14120iKE30197408-197605

4J-13,TUBELESS

main42611-14130iKE30197408-197508

4J-13,W/TUBE

main42611-14130iKE30..STD197508-197605

4J-13,WITH TUBE

main42611-14240iKE36..RHD..GEN;KE30,35,50..MTM;KE36..ARL,EUR,SA;KE36..WG..LHD..GEN197511-197701

5J-13

main42611-14242iKE36..LHD..EUG197703-197708

5J-13,AUSTRIA SPEC

main42611-14242iKE36..WG..STD..EUG197701-197708

5J-13,SWITZERLAND SPEC

main42611-14300iKE36..LHD..EUG197805-197908

5J-13

main42611-14310iTE3#..2TB197904-198004

5J-13,ALUMI WHEEL

sub42611-14311

main42611-14320iKE36..WG..STD..EUG197708-197805

5J-13,AUSTRIA SPEC

main42611-14320iKE36..WG..STD..EUG197708-197805

5J-13,SWITZERLAND SPEC

main42611-14330iKE30,35,55,TE3#..(HT,SED)..(ARL,GEN,SA)197805-197908

4.5J-13,SEMI-STYLED WHEEL

sub42611-14331

main42611-14330iKE30..RHD..GEN197801-197805

4.5J-13,IRELAAND SPEC

sub42611-14331

main42611-14331iKE30,55..ARL,GEN197908-198107

4.5J-13,SEMI-STYLED WHEEL

main42611-14350iTE3#..2TB197708-198004

5J-13,SPORT WHEEL

main42611-20050iKE36197408-197701

4J-13

sub42611-20060

main42611-20060iKE3#..ARL197408-198107

4J-13

main42611-20090iKE50,TE51..LHD..DLX197603-197701

5J-13,SPORT WHEEL

sub42611-20091

main42611-20091iKE30,35,50,TE51..LHD..(DLX,SR,STD)..EUR197701-197708

5J-13,SPORT WHEEL

main42611-20160iKE3#..(HT,SED,WG)..LHD..MTM197408-197511

5J-13

sub42611-14241

main42611-22080iTE31..STD197503-197508

4.5J-13

sub42611-14060

main42611-22090iKE3#..GEN;TE3#..DLX,SR197408-197508

4.5J-13,RADIAL TIRE

sub42611-14060

main42611-22121iKE30,35..EUG197701-198107

4.5J-13,SEMI-STYLED WHEEL

42611SWEIGHT, BALANCE(FOR REAR DISC WHEEL)

main90942-03017iKE3#,5#,TE3#,47,51197408-198107

20G

main90942-03020iKE3#,5#,TE3#,47,51197408-198107

30G

main90942-03022iKE3#,5#,TE3#,47,51197408-198107

40G

main90942-03025iKE3#,5#,TE3#,47,51197408-198107

50G

main90942-03027iKE3#,5#,TE3#,47,51197408-198107

60G

main90942-03029iKE3#,5#,TE3#,47,51197408-198107

70G

main90942-03031iKE3#,5#,TE3#,47,51197408-198107

80G

main90942-03041iKE3#,5#,TE3#,47,51197408-198107

10G

main90942-03092iTE3#..2TB197904-198004

10G,ALUMI WHEEL

main90942-03093iTE3#..2TB197904-198004

20G,ALUMI WHEEL

main90942-03094iTE3#..2TB197904-198004

30G,ALUMI WHEEL

main90942-03095iTE3#..2TB197904-198004

40G,ALUMI WHEEL

main90942-03096iTE3#..2TB197904-198004

50G,ALUMI WHEEL

main90942-03097iTE3#..2TB197904-198004

60G,ALUMI WHEEL

15 parts on this diagram · 1 diagram in section
