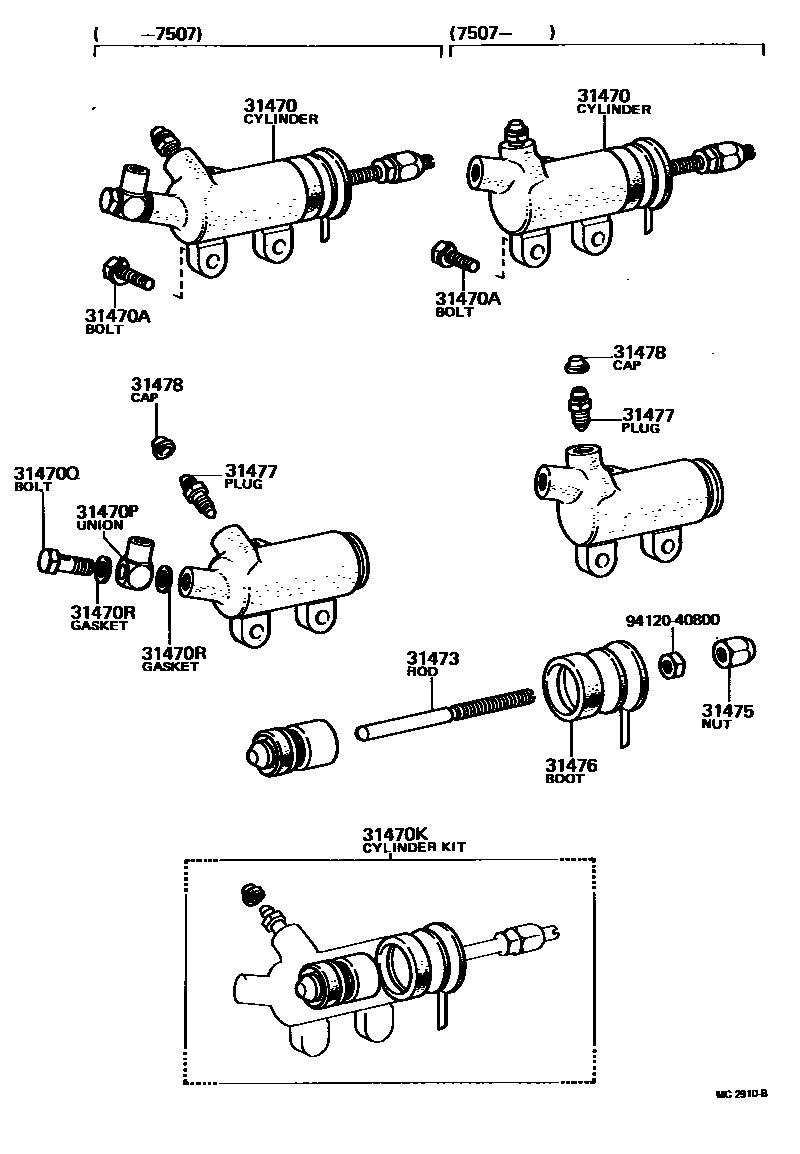

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12020iTE3#,47197408-197507

sub31470-12021

main31470-12021iTE3#,47,51..MTM197507-197708

main31470-14020iTE3#,47,51..MTM197708-198004

sub31470-14021

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iTE3#,47,51..MTM197408-198004

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-30054iTE3#,47,51..MTM197408-197708

main04313-30100iTE3#,47,51..MTM197708-198004

31470PUNION(FOR CLUTCH RELEASE)

main90405-10165iTE3#,47197408-197507

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10047iTE3#,47197408-197507

31470RGASKET(FOR CLUTCH RELEASE)

main90430-10074iTE3#,47197408-197507

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iTE3#,47,51..MTM197708-198004

main31473-30021iTE3#,47,51..MTM197408-197708

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30011iTE3#,47,51..MTM197408-197708

sub31475-30020

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iTE3#,47,51..MTM197408-197708

main31476-30040iTE3#,47,51..MTM197708-198004

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iTE3#,47,51..MTM197408-198004

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iTE3#,47,51..MTM197408-198004

9412040800

main94120-40800

12 parts on this diagram · 2 diagrams in section
