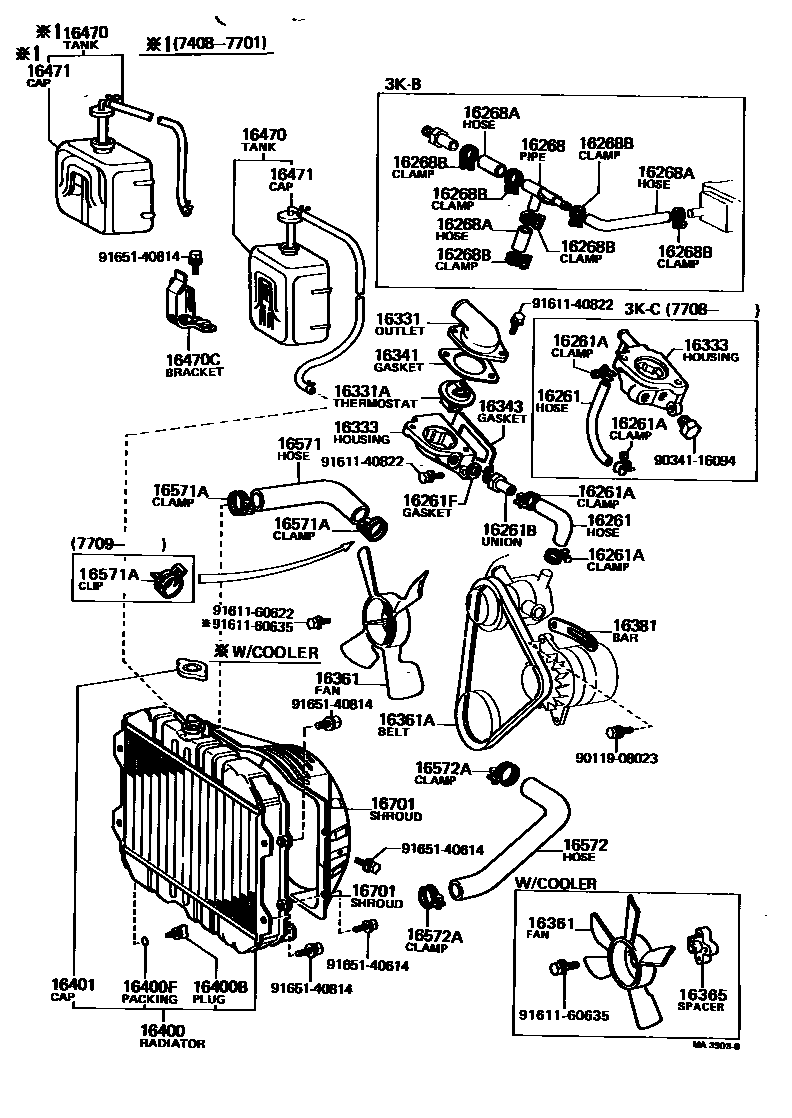

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-13010i3KC..KE3#,50197708-198107

main16261-22011i3KC,3KH..KE3#,50197408-197805

main16261-25010i2T,2TB..TE3#,47,51197408-197606

main16261-25020i2T,2TB..TE3#,47,51197606-198004

main16261-88220i2TG..TE47197408-197902

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-15001i3KC..KE3#,50197801-198107

sub96112-10150

main90467-23001i2TG..TE47197611-197902

sub96134-52100

main96111-10220i2T,2TB..TE3#,47,51197408-198004

sub96112-10220

main96112-10140i3KC..KE3#,50197709-197801

ID=14

main96112-10160i3KC..KE3#,50197708-197709

ID=16

main96112-10220i3KH..KE3#,50197408-197805

main96112-10250i2TG..TE47197408-197611

16261BUNION(FOR WATER BY-PASS HOSE)

main90072-40613i2TG..TE47197408-197805

main90404-16162i3K#..KE3#,50197408-197805

main90404-53021i2TG..TE47197805-197902

16261FGASKET(FOR WATER BY-PASS HOSE)

main90430-16003i3K#..KE3#,50197503-197805

main90430-16044i3K#..KE3#197408-197503

16268PIPE, WATER BY-PASS, NO.1

main16268-22012i3KB..KE35197408-197805

16268AHOSE(FOR WATER BY-PASS PIPE)

main90445-15277i3KB..KE35197408-197805

MANIFOLD SIDE

main90445-20344i3KB..KE35197408-197805

PUMP & OUTLET SIDE

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main96112-10160i3KB..KE35197408-197805

ID=16

main96112-10220i3KB..KE35197408-197805

ID=22.5

16331OUTLET, WATER

main16331-13010i3KC,3KH..KE30,35,36,50..EUR197805-198012

sub16331-13011

main16331-22030i3K#..KE3#,50197408-197709

sub16331-22031

main16331-22031i3KC,3KH..KE30,35,36,50..ARL,GEN,SA197709-198107

main16331-26030i2T,2TB..TE47,51197706-197904

sub16331-26031

sub91611-60825

sub91611-60830

main16331-26031i2T#..TE51197904-197908

main16331-26040i2TG..TE47197708-197902

main16331-31010i2T,2TB..TE3#,47,51197408-198004

sub16331-26030

main16331-33010i2TG..TE47197408-197708

16331ATHERMOSTAT

main90916-03020i3KH,3KB..KE30,35,36,50197408-197911

*WAX 82-95,*(F)

main90916-03034i2T#..TE3#,47,51197408-198107

*WAX 82-95,*(F)

main90916-03035i3K#..KE3#..EUR,GEN197408-197511

*WAX 82-95,KUZEH

sub90916-03054

main90916-03035i3K#..KE3#..EUR,GEN197408-197511

COLD SPEC,*WAX 82-95,KUZEH

sub90916-03054

main90916-03036i3KC,4KC..KE3#,5#197511-198107

*WAX 88-100,*(F)

sub90916-03040

main90916-03036i3KH,3KB..KE3#,50197408-198012

COLD SPEC,*WAX 88-100,*(F)

sub90916-03040

main90916-03037i3KH..KE30,36197911-198107

WAX 82-95, KUZEH

sub90916-03083

main90916-03037i2T#..TE3#,47,51197408-198004

*WAX 82-95,KUZEH

sub90916-03083

main90916-03038i3KH,3KB..KE30,35,36,50197408-197911

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i2T#..TE47,51197512-197908

*WAX 88-100,KUZEH

sub90916-03078

16333HOUSING, WATER OUTLET

main16303-25010i2T..TE3#,47,51197408-198004

main16303-26030i2TB..TE47,51197603-197908

main16333-12011i3KH,3KB..KE30,35,36,50197805-198107

main16333-22020i3KH,3KB..KE3#197408-197511

sub16333-22021

main16333-22021i3KH,3KB..KE3#,50197511-197805

main16333-24020i3KC..KE3#,50197508-197708

main16333-24050i3KC..KE30,35,36,50197708-197810

main16333-24070i3KC..KE30,35,36,50197810-197908

main16333-88220i2TG..TE47197408-197902

16341GASKET, WATER OUTLET

main16341-13010i3K#,4KC..KE3#,5#197803-197812

sub16341-13011

main16341-13011i3K#,4KC..KE3#,5#197812-198107

sub16341-13040

main16341-22010i3K#..KE3#,50197408-197803

sub16341-13010

main16341-38010i2T,2TB..TE3#,47,51197810-198004

sub16341-38012

main16341-49010i2T,2TB..TE3#,47,51197408-197810

sub16341-38010

main16341-88260i2TG..TE47197808-197902

sub16341-88280

16343GASKET, WATER OUTLET HOUSING

main16343-22010i2T,2TB..TE3#,47,51197408-198107

sub16343-22011

main16343-88220i2TG..TE47197408-197902

sub16343-88280

16361FAN

main16361-14010i3KC..KE30,35,36,50;3KH..KE30,35,36,50..MTM..EUG197810-198107

W/COOLING FAN MOTER

main16361-15010i3KH..KE30,35..A20..EUG197805-198107

W/COOLING FAN MOTER

main16361-24030i3KH,3KB..KE3#..MTM197408-197511

4 BLADES

main16361-24031i3KC..KE3#,50..MTM197805-197808

AUSTRALIA SPEC

main16361-24031i3K#..KE3#,50..MTM197508-198107

4 BLADES

main16361-24040i3KH..KE30,35..A20197408-197511

4 BLADES

main16361-24041i3KC..KE35..A20197805-198107

AUSTRALIA SPEC

main16361-24041i3KC,3KH..KE30,35..A20197511-198107

4 BLADES

main16361-24050i3KC..KE30,35,36,50..SDN197805-197810

W/COOLING FAN MOTER

main16361-26020i2T#..TE3#..MTM197511-198004

4 BLADES

main16361-26030i2T,2TB..TE47,51197601-197708

W/COOLER

main16361-26030i2T..TE31..A40197908-198004

5 BLADES

main16361-26040i2T,2TB..TE47,51197708-197908

main16361-31021i2TG..TE47197408-197908

4 BLADES

main16361-31030i2TG..TE47197609-198004

W/COOLER

sub16361-31031

main16361-31030i2T..TE31..A40197511-197908

5 BLADES

sub16361-31031

main16361-31030i2T#..TE47..RHD197408-197511

5 BLADES,W/COOLER

sub16361-31031

16361ABELT, V(FOR FAN & ALTERNATOR)

main99321-00840i3K#,4KC..KE3#,5#197808-198107

L=400

main99321-00860i2TG..TE47197808-197902

L=860

main99321-00870i4KC..KE38,55198012-198107

L=700

main99321-50855i2T,2TB..TE3#197802-198004

L=855

sub99321-00855

main99321-50885i2T#..TE47,51197802-197908

MTM=W/COOLER,L=885

sub99321-00885

main99321-50895i2T#..TE47,51..MTM197802-197908

L=895

sub99321-00895

main99521-10839i3K#..KE3#,50197710-197808

L=839

sub99321-00840

main99521-10843i3K#..KE3#,50197408-197710

L=843

sub99321-00840

main99521-10851i2T,2TB..TE47,51197408-197908

W/COOLER,L=851

sub99321-00850

main99521-10860i2T#..TE47,51..MTM197408-197808

L=860

sub99321-00860

main99521-10889i2T#..TE47,51197708-197802

MTM=W/COOLER,L=889

sub99321-50885

main99521-10902i2T,2TB..TE47,51..MTM197708-197802

L=902

sub99321-50895

16365SPACER, FAN

main16365-24010i3KH,3KB..KE30,35,36,50197609-198004

W/COOLER

16381BAR, FAN BELT ADJUSTING

main16381-24011i3K#,4KC..KE3#,5#197408-198107

main16381-25010i2T#..TE3#,47,51197408-198004

16400RADIATOR ASSY

main16400-24120i3K#..KE3#..MTM197408-197511

sub16400-24121

main16400-24121i3KH..KE35,36..K40..(EUR,GEN);3K#..KE30,35,36..MTM..(EUR,GEN)197511-198107

sub16400-24131

main16400-24130i3KH..KE30,35..A20197408-197511

sub16400-24131

main16400-24131i4KC..KE55..3FC197511-198107

main16400-24140i4KC..KE55..K50197603-198107

main16400-25070i2T,2TB..TE3#,47197408-197511

main16400-26050i2TG..TE47197408-197512

main16400-26061i2TG..TE47197601-197606

main16400-26062i2TG..TE47197606-197902

sub16400-26073

main16400-26072i2T..TE51..A40197601-197606

main16400-26073i2T..TE51..A40197606-197908

main16400-26100i2T,2TB..TE51..MTM197511-197606

sub16400-26072

main16400-26101i2T,2TB..TE51..MTM197606-197701

sub16400-26102

main16400-26102i2T,2TB..TE51..MTM197701-197908

sub16400-26062

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i2T#..TE3#,47,51197408-198107

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i3K#,4KC..KE3#,5#197408-198107

sub96711-19007

16401CAP SUB-ASSY, RADIATOR

main16401-36010i3K#,4KC..KE3#,5#197408-197901

sub16401-36011

main16401-36011i3K#,4KC..KE3#,5#197901-198107

16470TANK ASSY, RADIATOR RESERVE

main16470-24031i3K#..KE3#,50197408-197701

main16470-24032i3K#,4KC..KE3#,5#197701-198107

sub16470-15012

main16470-25030i2T#..TE3#,47,51197408-198004

sub16470-34101

main16470-41090i3KC..KE3#197602-197701

SWEDEN SPEC

sub16470-89103

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-24011i3K#..KE3#197408-197505

sub16611-24012

main16611-24012i3K#..KE3#197505-197507

main16611-24013i3K#..KE3#,50197507-197701

main16611-24014i3K#,4KC..KE3#,5#197701-198107

16471CAP SUB-ASSY, RESERVE TANK

main16471-24020i3K#..KE3#,50197408-197701

sub16471-87606

main16471-24032i3K#,4KC..KE3#,5#197701-198107

sub16471-15012

main16471-34030i2T#..TE3#,47,51197408-198004

main16471-41090i3KC..KE3#197602-197701

SWEDEN SPEC

sub16471-87606

16571HOSE, RADIATOR, INLET

main16571-26040i2TG..TE47197512-197902

main16571-27010i2TG..TE47197408-197512

main90916-01101i2T,2TB..TE3#197408-198004

main90916-01136i3K#..KE3#,50197408-197709

sub90916-01156

main90916-01144i2T,2TB..TE47,51197511-197908

main90916-01154i3KH..KE30..SA197711-198004

sub90916-01156

main90916-01156i3K#,4KC..KE3#,5#197709-198107

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2T,2TB..TE47,51197606-198107

WATER OUTLET SIDE

sub90467-37003

main96111-10430i2T,2TB..TE47,51197606-198005

RADIATOR SIDE

main96111-10430i2TG..TE47197408-197709

16572HOSE, RADIATOR, OUTLET

main16571-13030i3K#,4KC..KE3#,5#197801-198107

main16571-25011i2T#..TE3#,47,51197408-198004

main90916-01135i3K#..KE3#,50197408-197801

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i3K#,4KC..KE3#,5#197408-198107

TE=1(RADIATOR SIDE)

main96111-10500i2T#..TE3#,47,51197408-198004

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-24040i3KH..KE30,35,36,50..MTM197805-198107

UPR,W/O COOLING FAN MOTER

main16711-24040i3KC..KE30,35,36,50197408-197908

UPR

main16711-24040i3KC..KE30,35,36,50197805-197908

LWR

main16711-24050i3KC..KE30,35,36,50197408-197908

UPR

main16711-24050i3KC..KE3#..MTM197710-197805

UPR,AUSTRALIA SPEC

main16711-24050i3KH..KE30,35..A20197805-198107

UPR,W/O COOLING FAN MOTER

main16711-24110i3KH..KE30..A20..EUG197805-197808

W/COOLING FAN MOTOR

sub16711-24111

main16711-24111i3KH..KE30..A20..EUG197808-197908

W/COOLING FAN MOTOR

main16711-24120i3KC..KE30,35,36,50..SDN197805-197908

W/COOLING FAN MOTOR

sub16711-24121

main16711-24121i3KH..KE30,35,36,50..MTM..EUG197810-197908

W/COOLING FAN MOTOR

main16711-25020i2T#..TE3#,47197408-197512

UPR,MTM=W/COOLER

main16711-26020i2T,2TB..TE3#,47,51197512-198004

UPR

main16711-26020i2T,2TB..TE3#,47,51197512-197701

UPR,MTM=W/COOLER

main16711-26040i2T,2TB..TE3#,47,51197808-198004

W/COOLER

main16712-24030i3KH..KE30,35,36,50..MTM197805-198107

LWR,W/O COOLING FAN MOTER

main16712-24030i3KB..KE35197408-197908

LWR

main16712-24040i3KH..KE30,35..A20197805-198107

LWR,W/O COOLING FAN MOTER

main16712-24040i3KC..KE3#..MTM197710-197805

LWR,AUSTRALIA SPEC

main16712-24040i3KC,3KH..KE30,35..A20197408-197805

LWR

main16712-25020i2T#..TE3#,47197408-197512

LWR,MTM=W/COOLER

main16712-26011i2T,2TB..TE3#,47,51197512-198004

LWR

main16712-26011i2T,2TB..TE3#,47,51197512-197701

LWR,MTM=W/COOLER

main16712-26030i2T,2TB..TE3#,47,51197808-198004

W/COOLER

9011908023

main90119-08023

9034116094

main90341-16094

9161140822

main91611-40822

9161160622

main91611-60622

9161160635

main91611-60635

9165140614

main91651-40614

9165140814

main91651-40814

35 parts on this diagram · 5 diagrams in section
