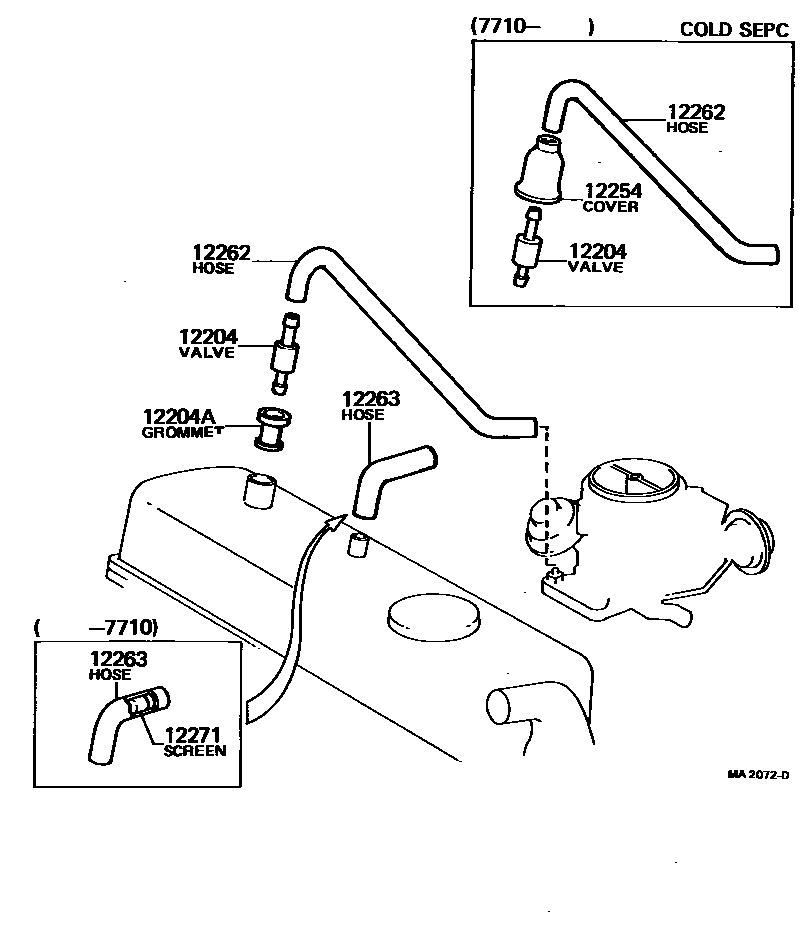

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12204VALVE SUB-ASSY, VENTILATION

main12204-15020i2T#..TE3#197908-198004

sub12204-28010

main12204-24011i3K#,4KC..KE3#,5#197408-198107

main12204-34010i2T,2TB..TE3#,47,51197408-197908

sub12204-28010

sub12204-35010

main12204-88250i2TG..TE47197408-197902

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-16003i3K#,4KC..KE3#,5#197710-198107

main90480-16157i3K#..KE3#,50197408-197710

main90480-18180i2T,2TB..TE3#,47,51197408-198004

12254COVER, VENTILATION VALVE

main12236-24010i3KB..KE35197710-197908

SWEDEN SPEC

12262HOSE, VENTILATION, NO.2

main12261-22010i3K#..KE3#,50197408-197908

main12261-24020i3KC,3KH..KE3#,50197701-197707

sub12261-24021

main12261-24021i3KC,3KH,4KC..KE3#,5#197707-198107

main12261-25011i2T..TE3#,47,51197408-197908

sub12261-25012

main12261-25012i2T..TE31197908-198004

main12261-25020i2TB..TE3#,47,51197408-197908

sub12261-25021

main12261-25021i2TB..TE3#197908-198004

main90072-44552i2TG..TE47197408-197902

12263HOSE, VENTILATION, NO.3

main12261-88210i2TG..TE47197408-197804

sub12261-88220

main12261-88220i2TG..TE47197804-197902

main12262-25010i2T..TE3#,47,51197408-198004

main12262-25020i2TB..TE3#,47,51197408-198004

main90445-17571i3KB..KE35197408-197908

main90910-05040i3KC,3KH..KE3#,50197408-197808

sub90910-05130

main90910-05130i3KC..KE30,35,36,50197710-198107

12271SCREEN, OIL SEPARATOR

main12271-24010i3K#..KE3#,50197508-197808

main12271-24010i3KH..KE3#..RHD197408-197511

AUSTRALIA SPEC

6 parts on this diagram · 4 diagrams in section
